Toyota Crown/Majesta
2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan
Supported model
Data version 2009-07

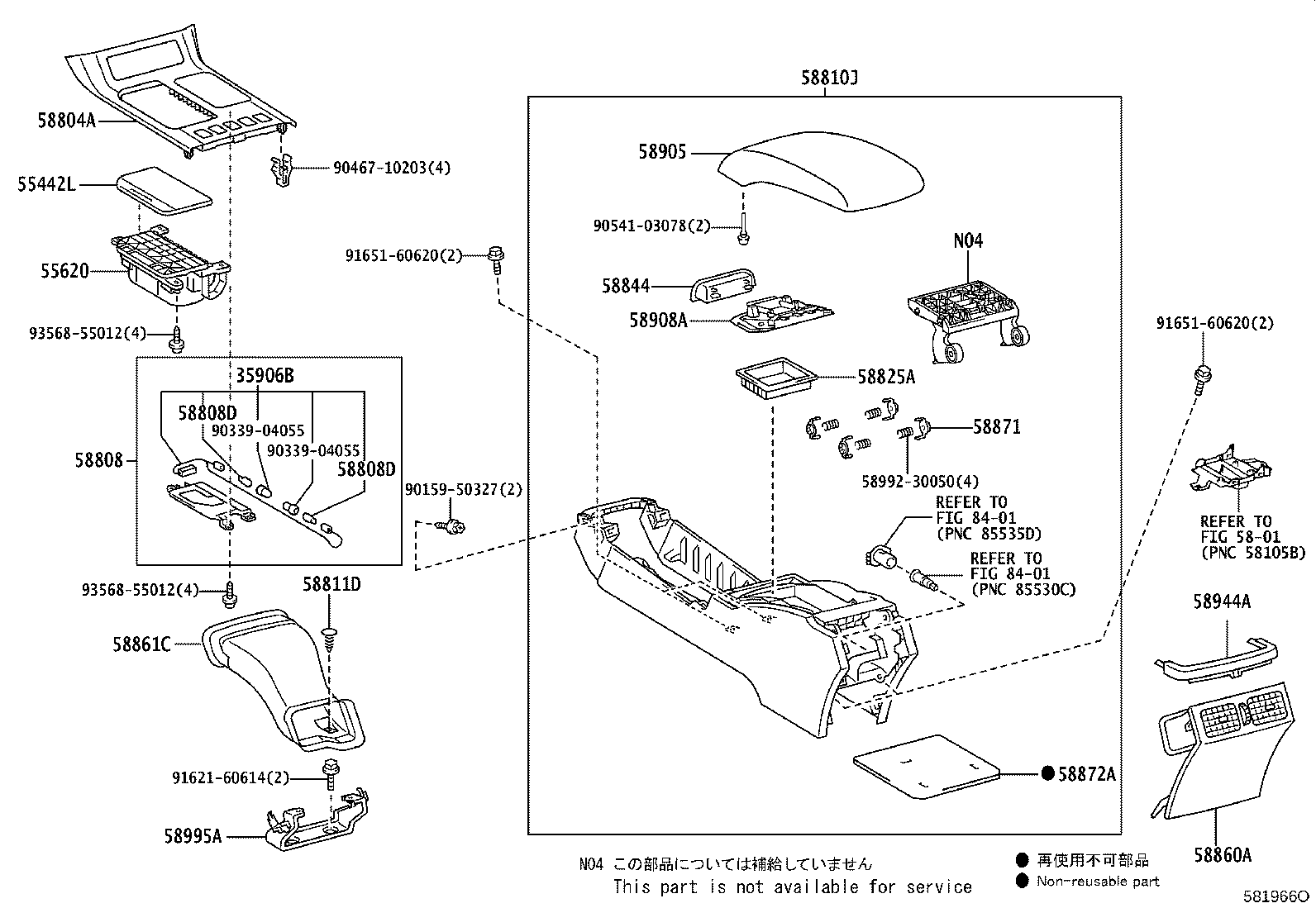

Console Box & Bracket
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35906B | Wire Sub-assy, Indicator Lamp |
| 55442L | Door, Instrument Panel |
| 55539A | Cover, Spare Switch Hole |
| 55620 | Holder Assy, Instrument Panel Cup |
| 58804A | Panel Sub-assy, Console, Upper |
| 58808 | Cover Sub-assy, Shifting Hole |
| 58808D | Shift Indicator Lamp Bulb |
| 58810J | Box Assy, Console |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58825A | Pocket, Console Box |
| 58844 | Bezel, Console Box |
| 58860A | Register Assy, Console Box |
| 58861C | Duct, Console Box, NO.1 |
| 58871 | Cushion, Console Box |
| 58872A | Cushion, Console Box, NO.2 |
| 58905 | Door Sub-assy, Console Compartment |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58944A | Cover, Console, Rear |
| 58995A | Bracket, Console Box Mounting, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
