Toyota Crown/Majesta

2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

18 part groups · 2 illustrations

Illustrations

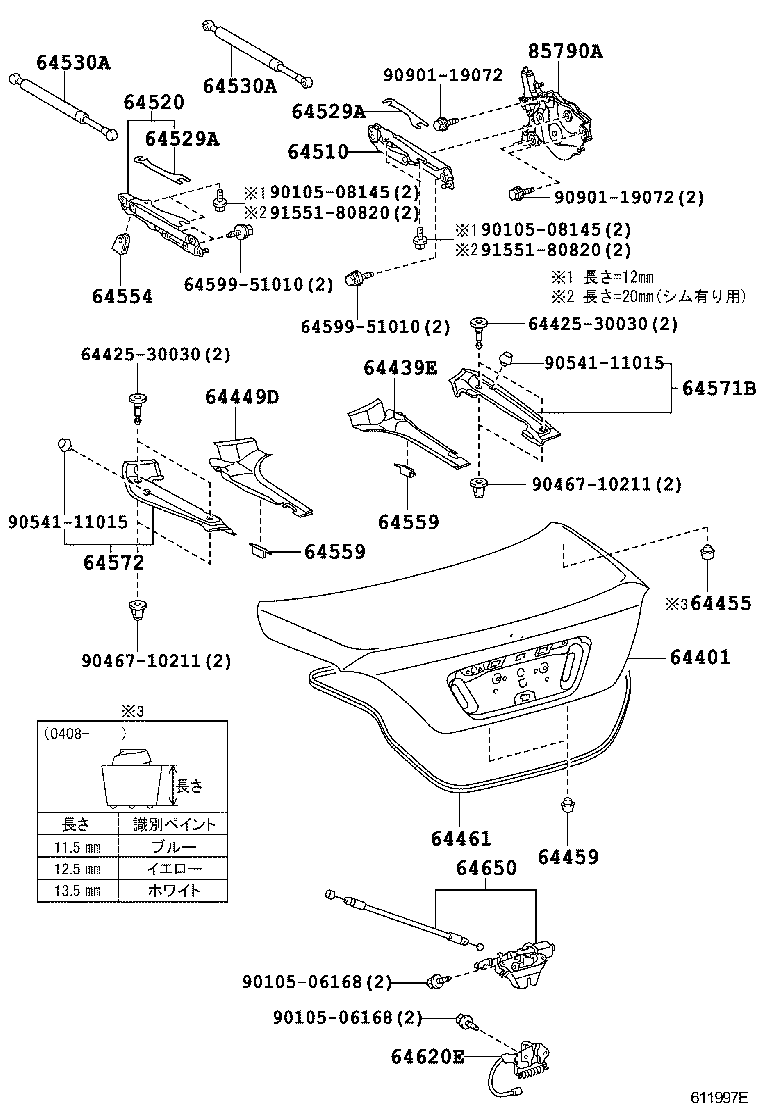

Figure 611933A 611933A 2003-12 → — Figure 611997E 611997E 2004-06 → —

Part groups

PNCDescription
64401 Panel Sub-assy, Luggage Compartment Door
64439E Cover, Luggage Room Box Side, RH
64449D Cover, Luggage Room Box Side, LH
64455 Cushion, Luggage Compartment Door Side, RH
64459 Cushion, Luggage Compartment Door
64461 Weatherstrip, Luggage Compartment Door
64510 Hinge Assy, Luggage Compartment Door, RH
64520 Hinge Assy, Luggage Compartment Door, LH
64529A Shim, Luggage Compartment Door Hinge
64530A Support Assy, Luggage Compartment Door
64554 Stopper, Luggage Door Balancer
64559 Pin, Luggage Door Hinge
64571B Cover, Luggage Compartment Door Hinge, RH
64572 Cover, Luggage Compartment Door Hinge, LH
64610 Lock Assy, Luggage Compartment Door
64620E Striker Assy, Luggage Compartment Door
64650 Closer Assy, Luggage Door
85790A Motor Assy, Luggage Closer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
