Toyota Crown/Majesta
2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan
Supported model
Data version 2009-07

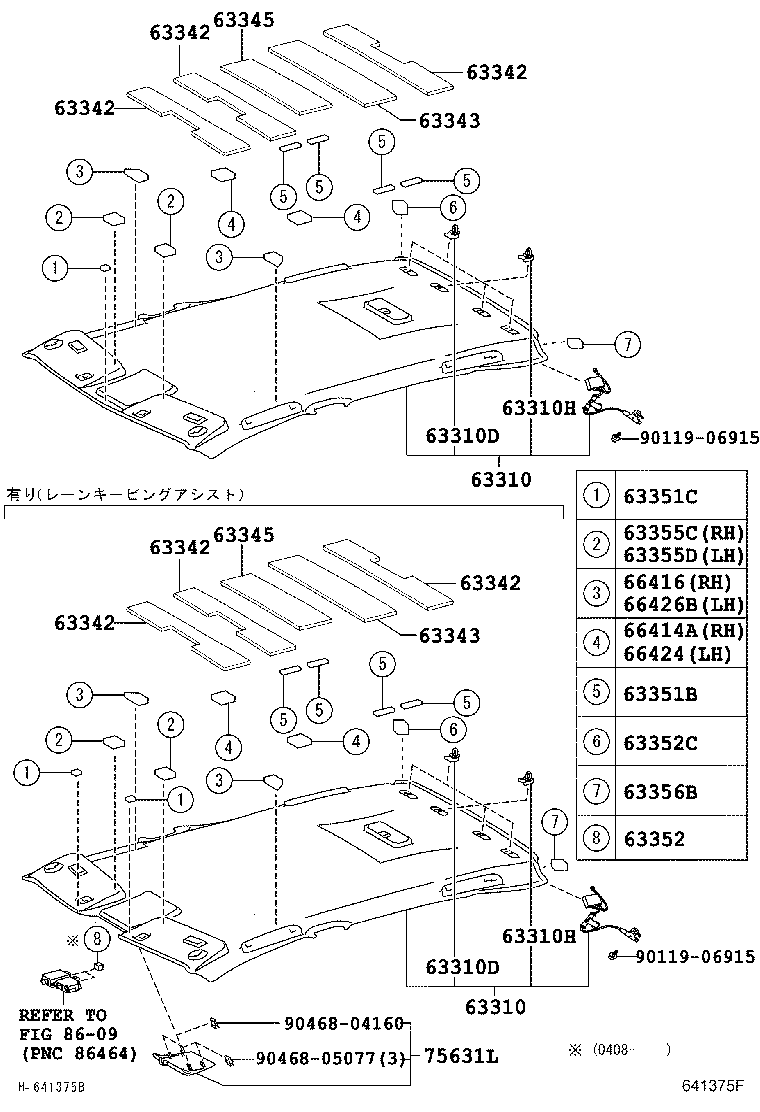

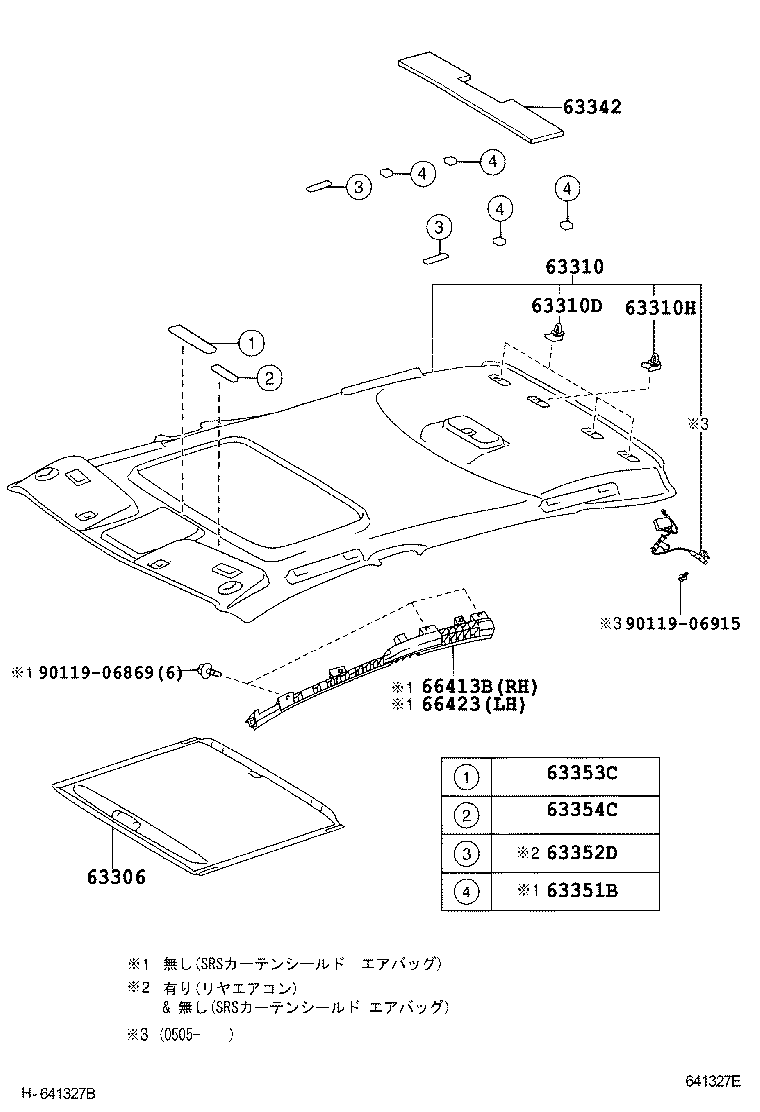

Roof Headlining & Silencer Pad
24 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63345 | Pad, Roof Silencer, NO.5 |
| 63351B | Pad, Roof Headlining |
| 63351C | Pad, Roof Headlining |
| 63352 | Pad, Roof Headlining, Center |
| 63352C | Pad, Roof Headlining, End |
| 63352D | Pad, Roof Headlining, NO.2 |
| 63353C | Pad, Roof Headlining, Center |
| 63354C | Pad, Roof Headlining Front Side |
| 63355C | Pad, Roof Headlining, RH |
| 63355D | Pad, Roof Headlining, LH |
| 63356B | Pad, Roof Headlining, LH |
| 66413B | Spacer, Side Rail, Front RH |
| 66414A | Spacer, Side Rail, Rear RH |
| 66416 | Spacer, Side Rail, Rear NO.3 RH |
| 66423 | Spacer, Side Rail, Front LH |
| 66424 | Spacer, Side Rail, Rear LH |
| 66426B | Spacer, Side Rail, Rear NO.3 LH |
| 75631L | Garnish, Roof Top, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
