Toyota Crown/Majesta
2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan
Supported model
Data version 2009-07

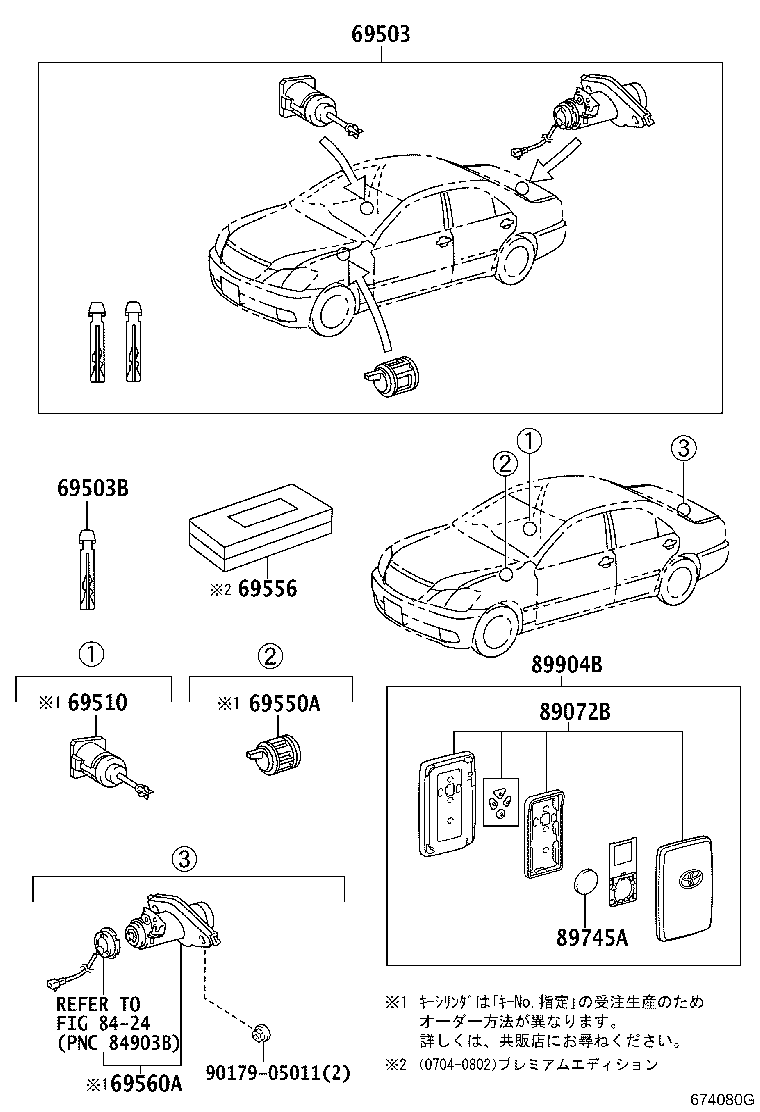

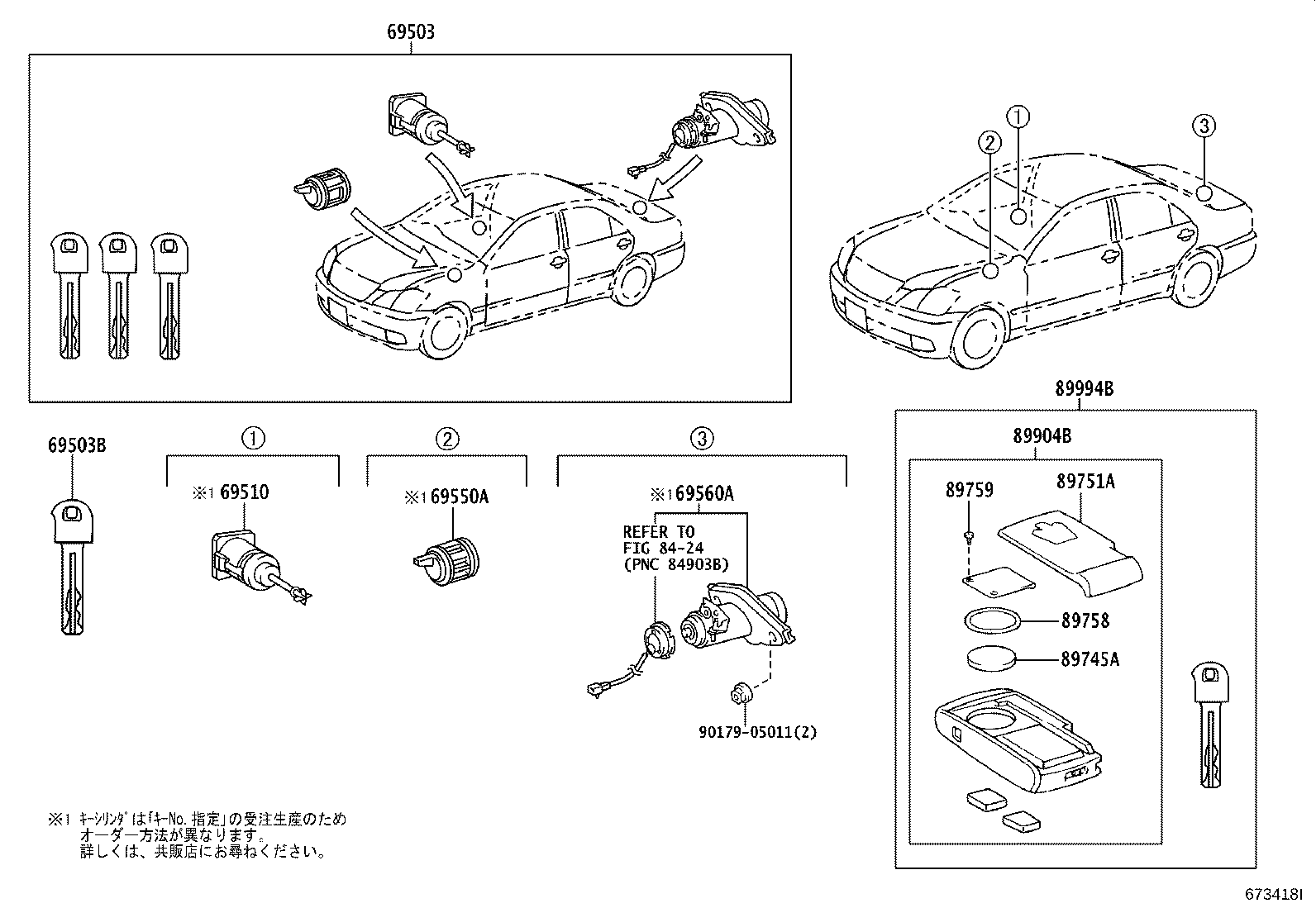

Lock Cylinder Set
18 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 69503 | Cylinder Set, Lock |
| 69503B | Key, Cut |
| 69510 | Cylinder Assy, Front Door Lock, RH |
| 69550A | Cylinder Assy, Glove Compartment Door Lock |
| 69556 | Case, Key Set |
| 69560A | Cylinder Assy, Luggage Compartment Door Lock |
| 69570 | Cylinder Assy, Ignition Switch Lock |
| 89070F | Transmitter Assy, Door Control (CUT KEY) |
| 89071B | Module Set, Transmitter Sub-assy, Door Control |
| 89072B | Housing Set, Door Control Transmitter (FOR SMART KEY) |
| 8907A | Switch Set, Transmitter |
| 89745A | Battery, Transmitter |
| 89751A | Cover, Transmitter Housing |
| 89758 | Packing, Door Control Transmitter |
| 89759 | Screw, Door Control Transmitter |
| 89786B | Transmitter, Transponder Key Sub |
| 89904B | Transmitter Sub-assy, Electrical Key |
| 89994B | Transmitter, Electrical Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
