Toyota Crown/Majesta

2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

18 part groups · 3 illustrations

Illustrations

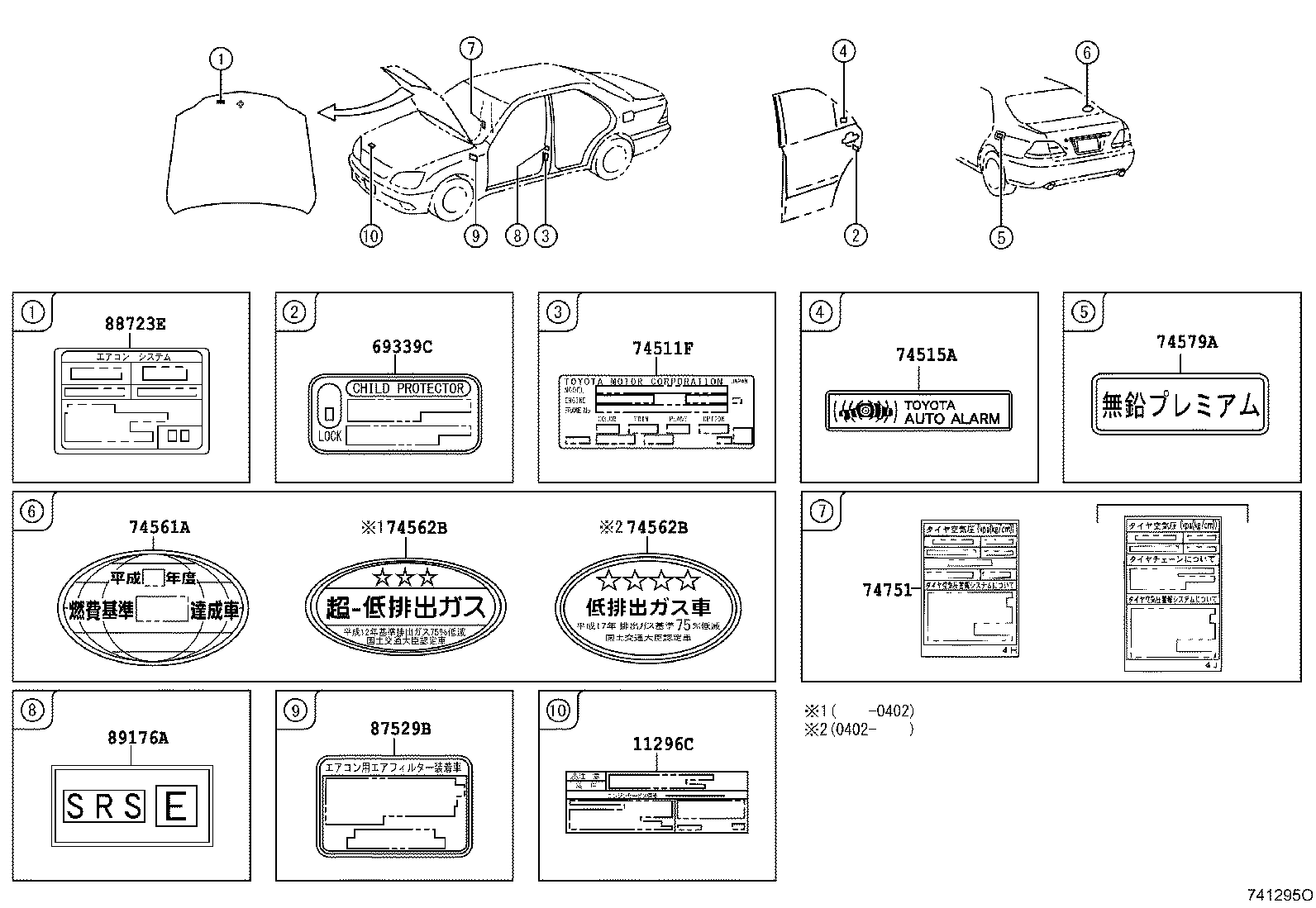

Figure 745916 745916 2003-12 → — Figure 741295O 741295O 2003-12 → — Figure 741940A 741940A 2003-12 → —

Part groups

PNCDescription
11291B Plate, Engine Name
11296C Label, Engine Service Information
11296D Label, Engine Service Information
11297C Label, Engine Service Information, NO.2
17791A Label, Maintenance Information
69339C Label, Child Protector Information
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515A Plate, Theft Warning
74541E Plate, Compact Spare Tire Caution
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74579A Label, Unleaded Fuel Information
74751 Label, Tire Pressure Information
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
88723H Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
89616 Label, Push Start Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
