Toyota Crown/Majesta

2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

8 part groups · 3 illustrations

Illustrations

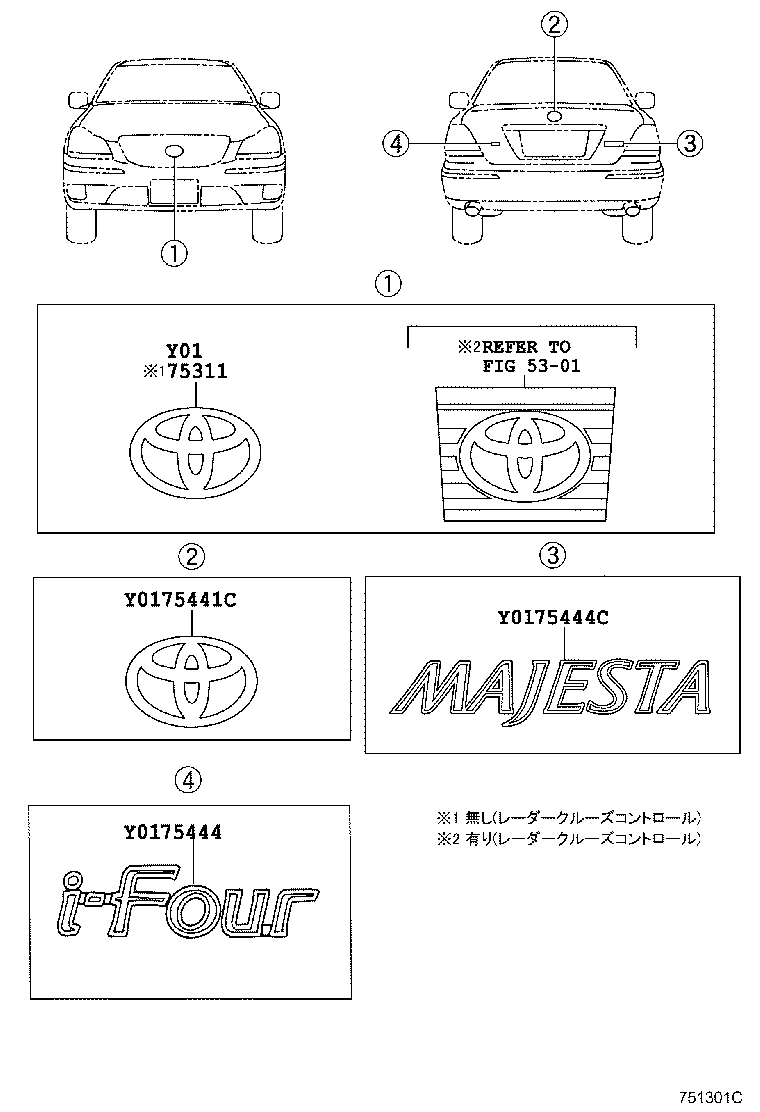

Figure 751265A 751265A 2003-12 → — Figure 751301C 751301C 2004-06 → 2006-06 Figure 753111 753111 2006-06 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75371A Emblem, Quarter Panel
75431 Emblem, Luggage Compartment Door
75441C Plate, Back Door Name
75442 Plate, Luggage Compartment Door Name, NO.2
75443A Plate, Luggage Compartment Door, NO.3
75444 Plate, Luggage Compartment Door, NO.4
75444C Plate, Luggage Compartment Door Name, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
