Toyota Crown/Majesta

2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

22 part groups · 6 illustrations

Illustrations

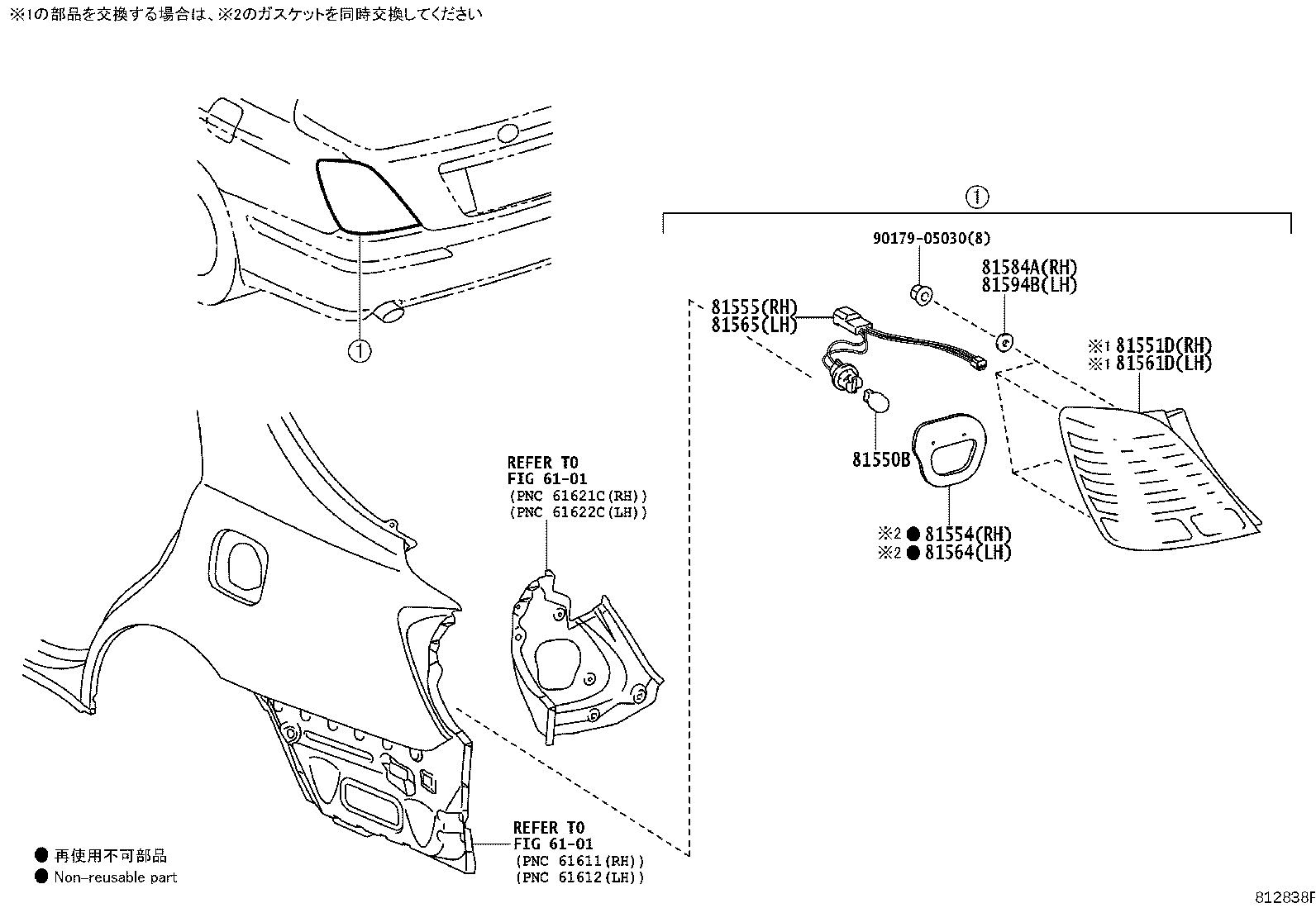

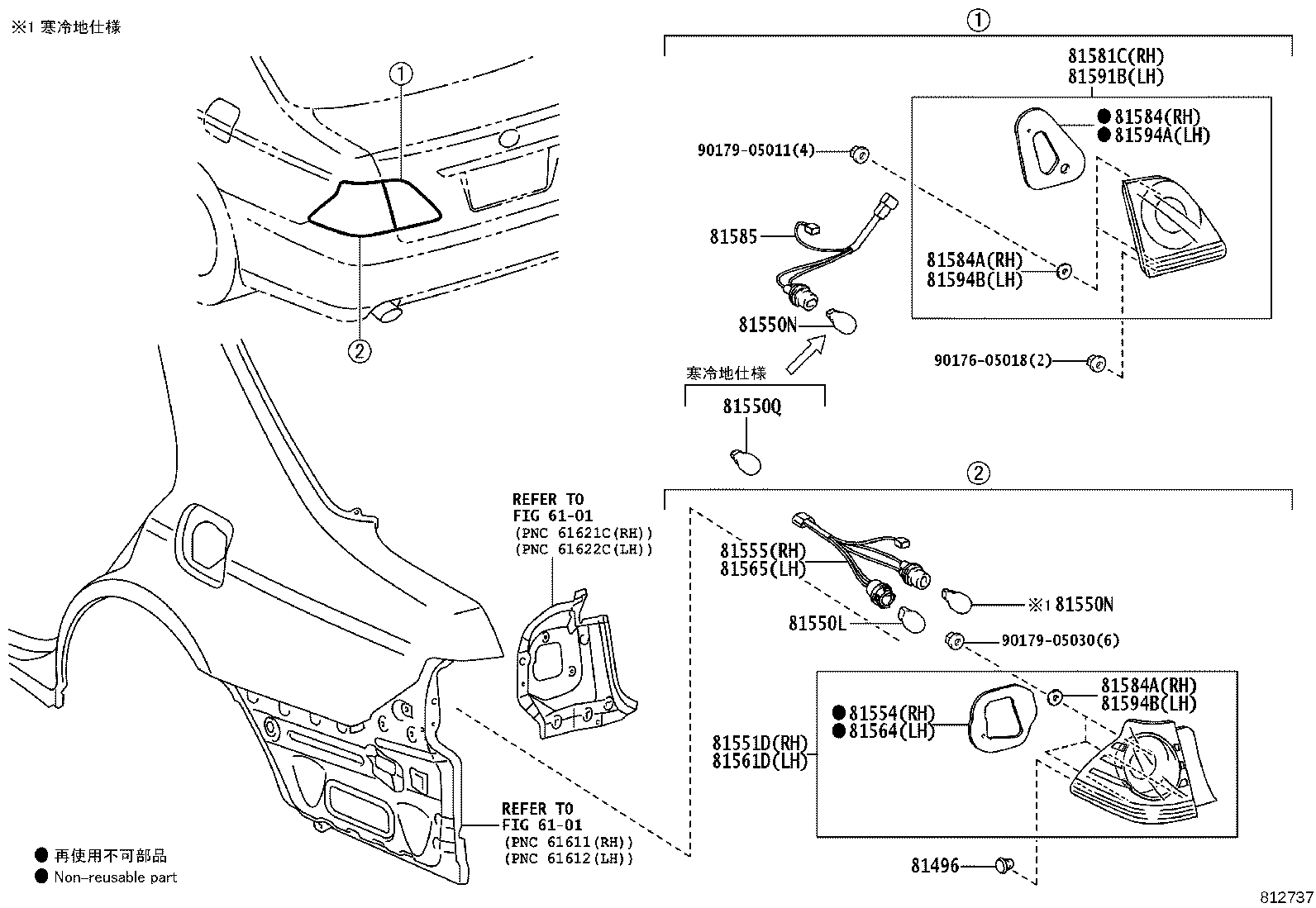

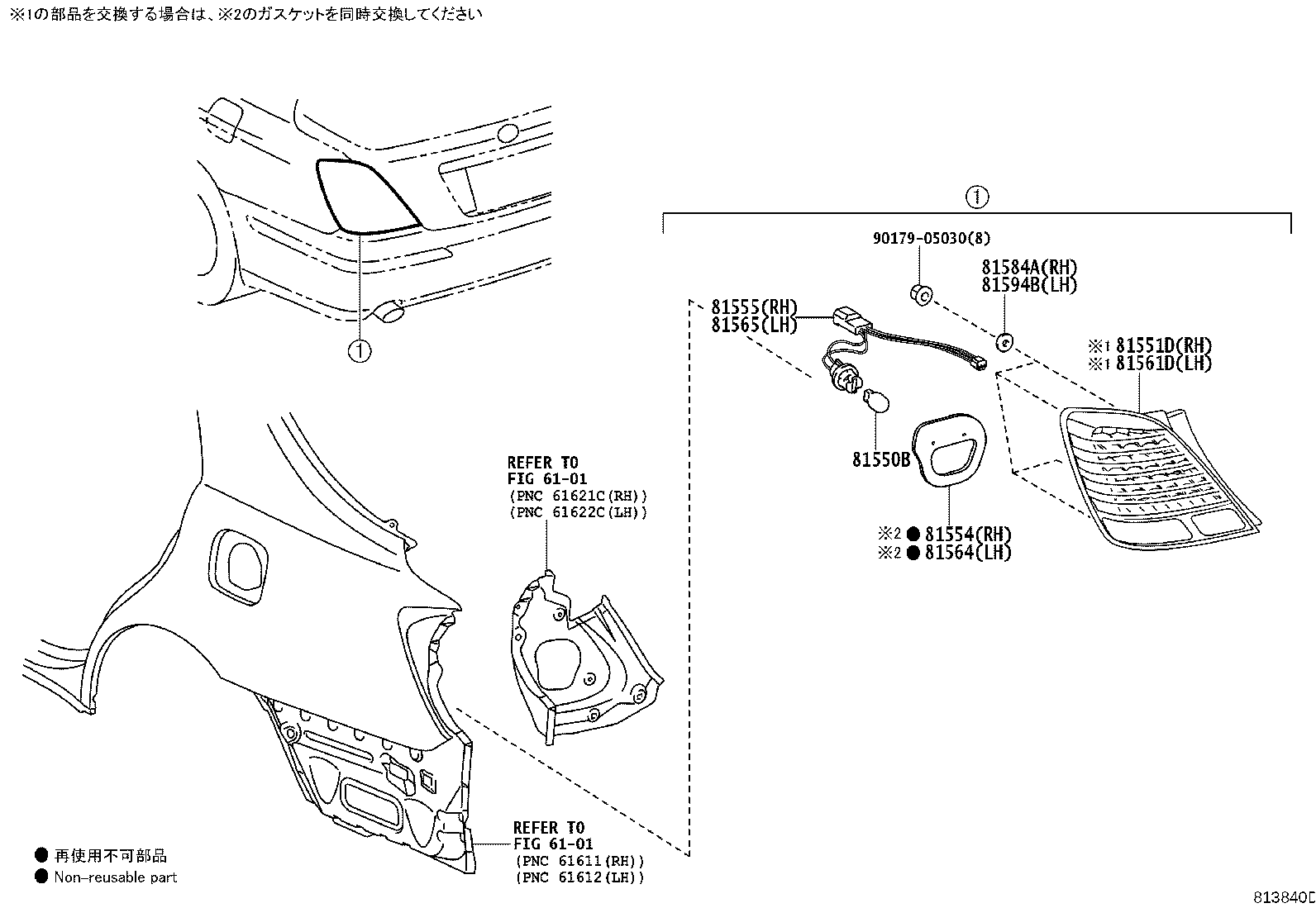

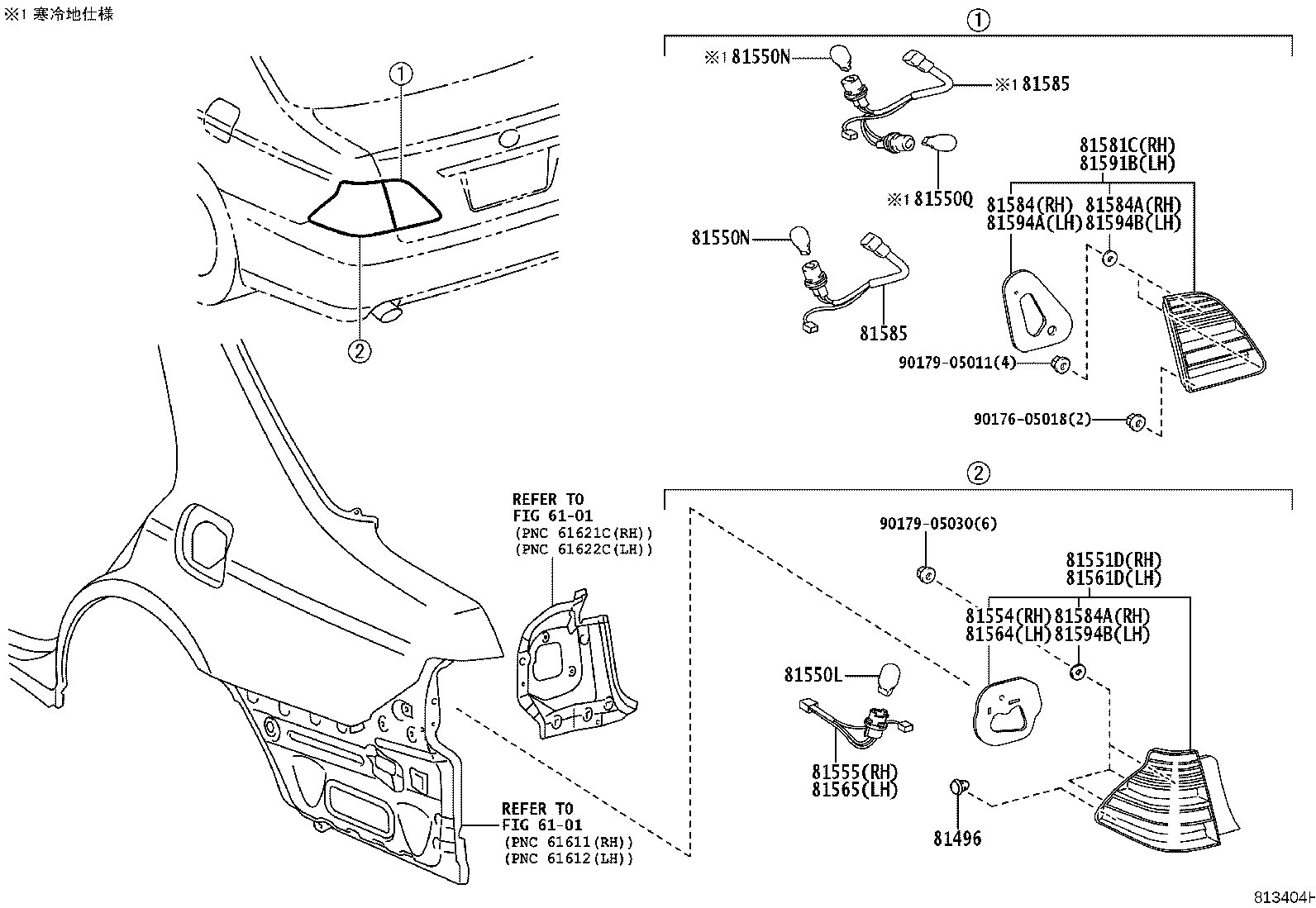

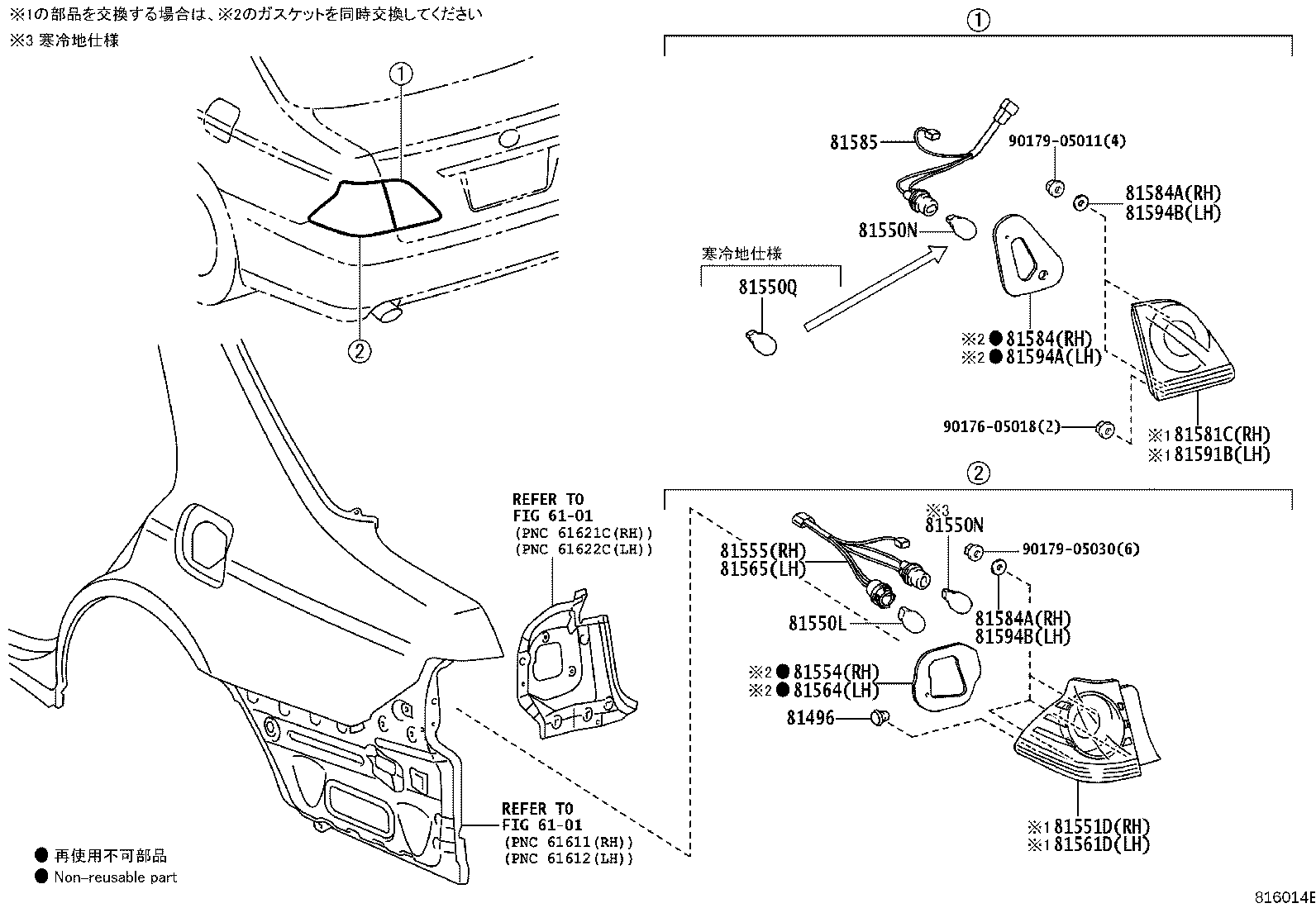

Figure 812736P 812736P 2003-12 → 2005-09 Figure 816014E 816014E 2003-12 → 2005-09 Figure 812838F 812838F 2004-06 → 2006-06 Figure 813404H 813404H 2005-09 → — Figure 812737I 812737I 2005-09 → — Figure 813840D 813840D 2006-06 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81550B Bulb(FOR REAR COMBINATION LAMP)
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550Q Bulb, Rear Fog Lamp, NO.1
81551A Lens, Rear Combination Lamp, RH
81551D Lens & Body, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555D Unit, Led, RH
81561A Lens, Rear Combination Lamp, LH
81561D Lens & Body, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81565C Unit, Led, LH
81581C Lens And Body, Rear Lamp, RH
81584 Packing, Rear Lamp RH
81584A Gasket, Rear Lamp RH
81585 Socket & Wire, Rear Lamp
81591B Lens And Body, Rear Lamp, LH
81594A Gasket, Rear Lamp LH
81594B Packing, Rear Lamp LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
