Toyota Crown/Majesta
2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan
Supported model
Data version 2009-07
Interior Lamp
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81080H | Lamp Assy, Interior Illumination, NO.1 RH |
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81080K | Lamp Assy, Console Box Illumination |
| 81080L | Lamp Assy, Interior Illumination, NO.1 LH |
| 81080P | Lamp Assy, Interior Illumination, NO.1 RH |
| 81205C | Bulb, Ash Receptacle Lamp, Rear RH |
| 81205D | Bulb, Ash Receptacle Lamp, Rear LH |
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81240B | Bulb, Room Lamp, NO.1 |

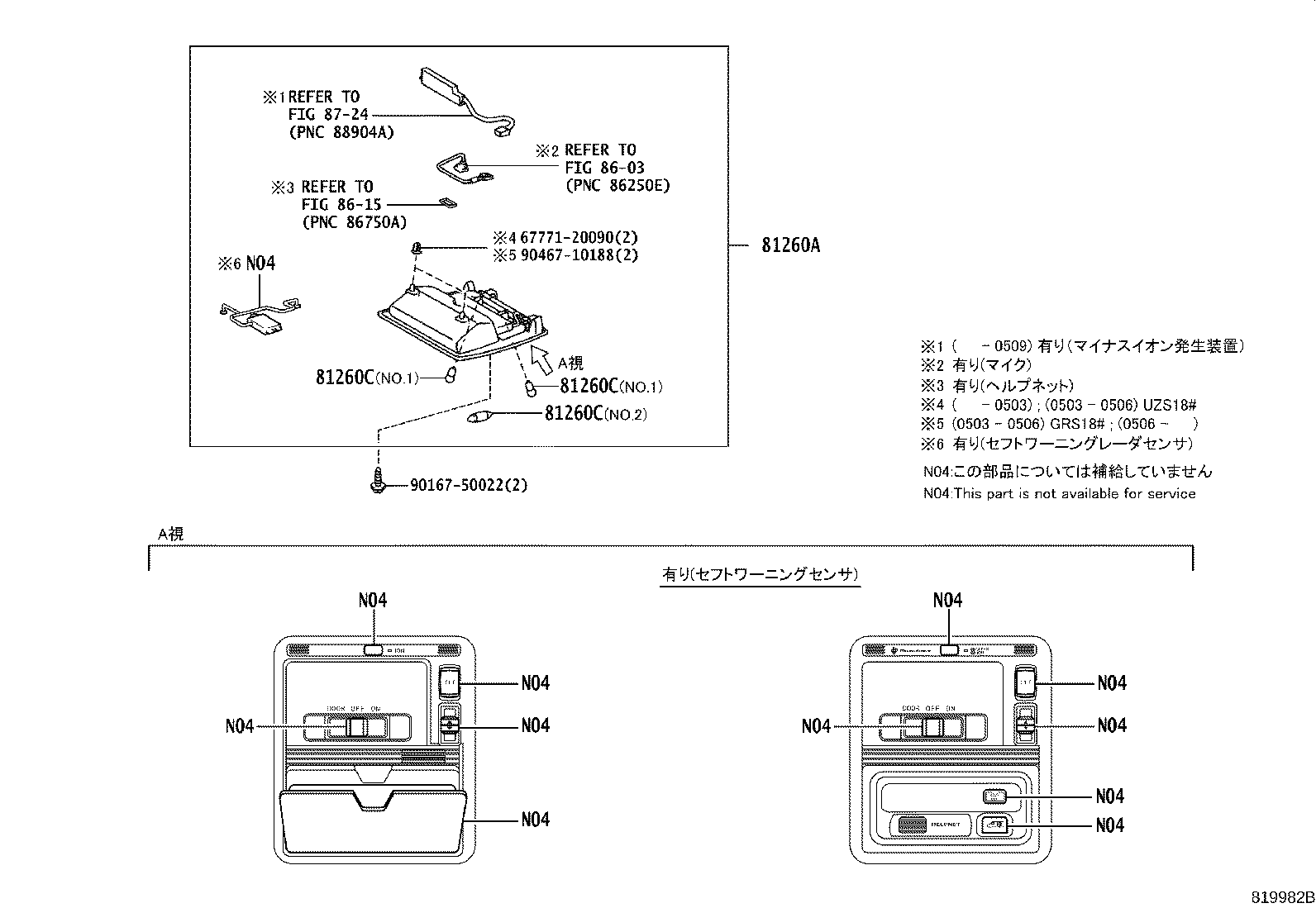

| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81331 | Lens, Luggage Compartment Lamp |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81360T | Lamp Assy, Spot |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
