Toyota Crown/Majesta
2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan
Supported model
Data version 2009-07
Meter
14 part groups · 4 illustrations

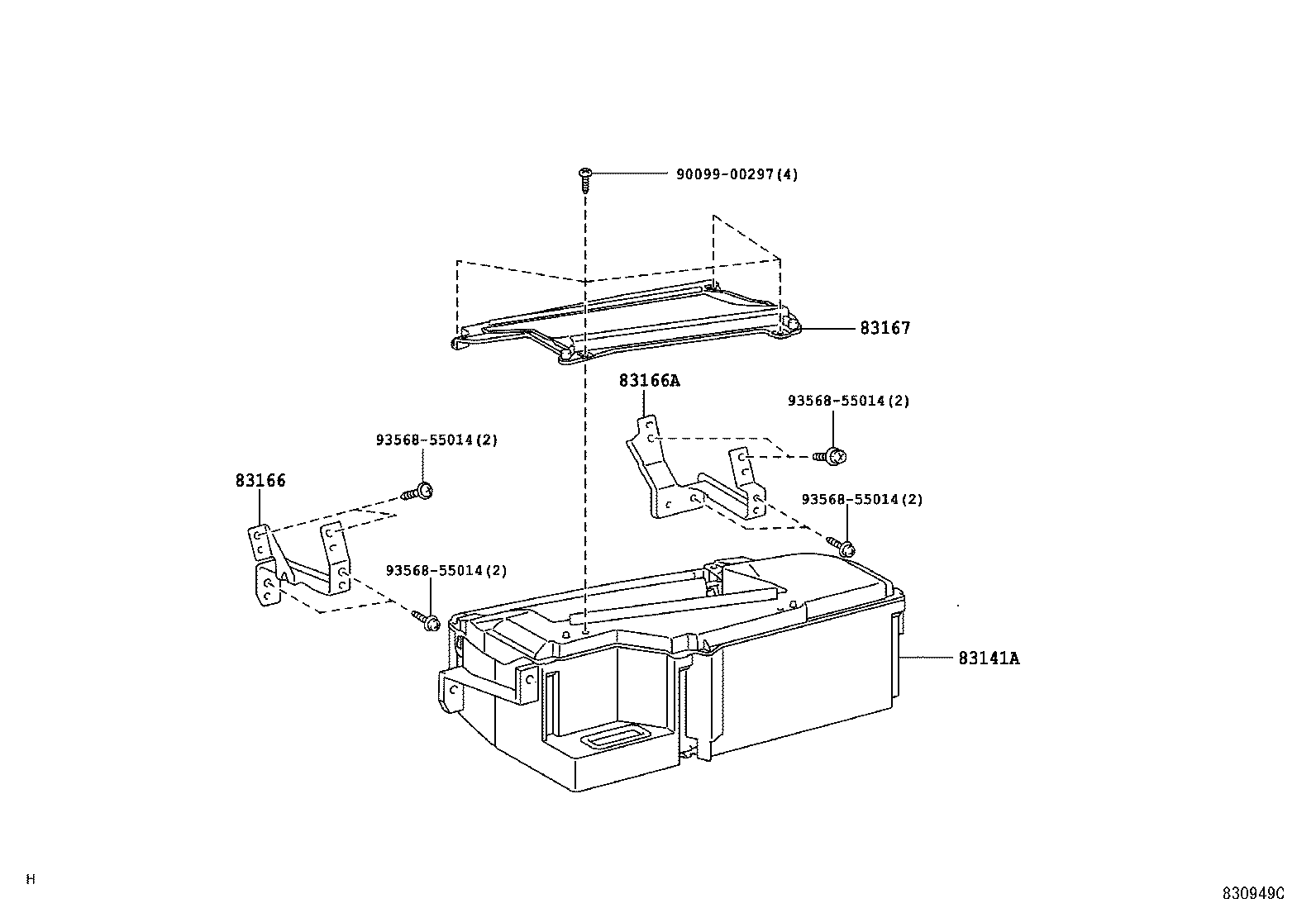

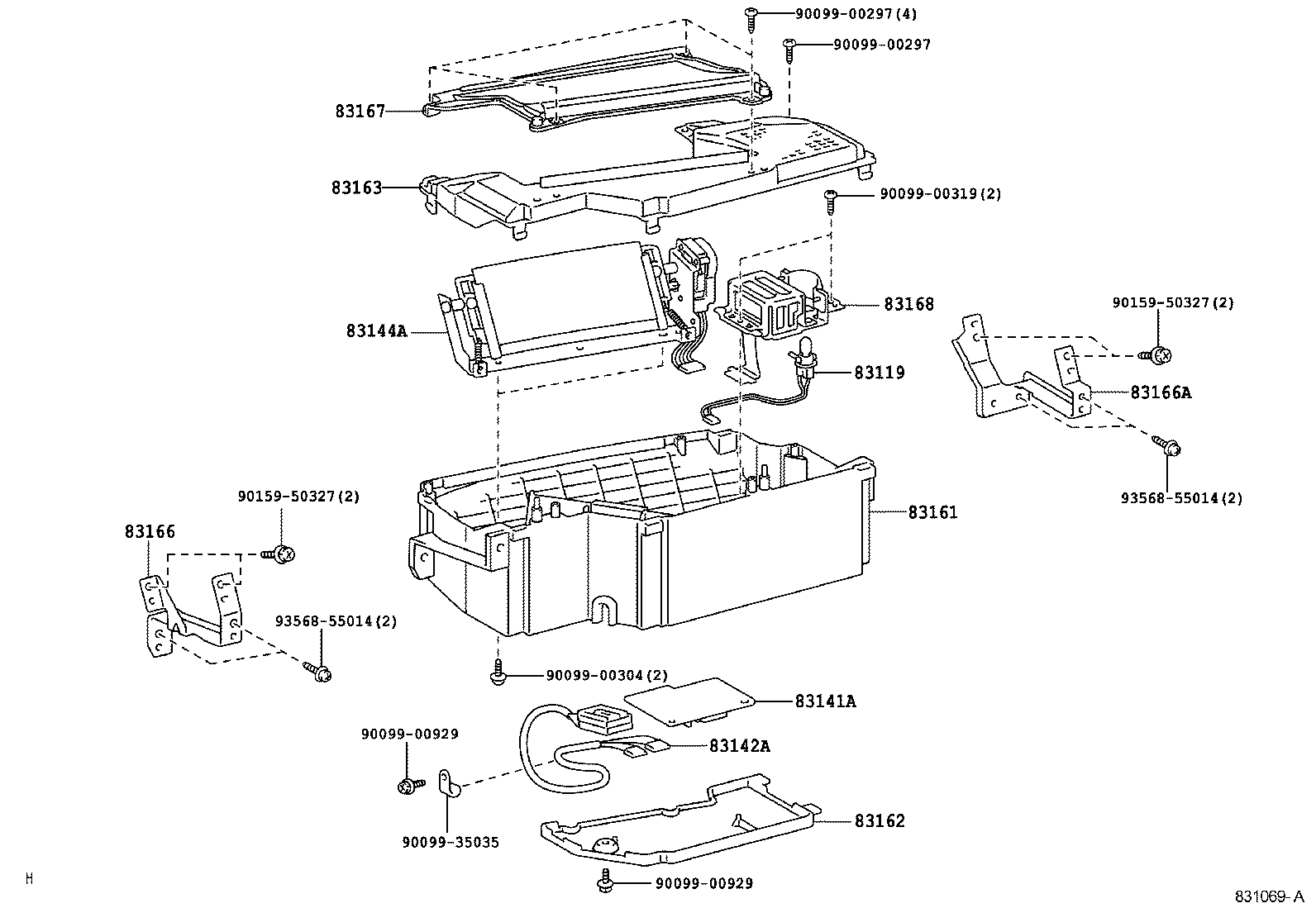

Part groups
| PNC | Description |
|---|---|
| 83100 | Meter Assy, Combination |
| 83119 | Bulb, Combination Meter, NO.3 |
| 83138G | Glass, Combination Meter |
| 83141A | Computer, Combination Meter Mirror |
| 83142A | Wire, Combination Meter |
| 83144A | Mirror, Combination Meter |
| 83161 | Case, Combination Meter Mirror, NO.1 |
| 83162 | Case, Combination Meter Mirror, NO.2 |
| 83163 | Plate, Combination Meter Mirror, NO.1 |
| 83166 | Bracket, Combination Meter Mirror, NO.1 |
| 83166A | Bracket, Combination Meter Mirror, NO.1 |
| 83167 | Glass, Combination Meter Mirror |
| 83168 | Display, Combination |
| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
