Toyota Crown/Majesta
2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan
Supported model
Data version 2009-07

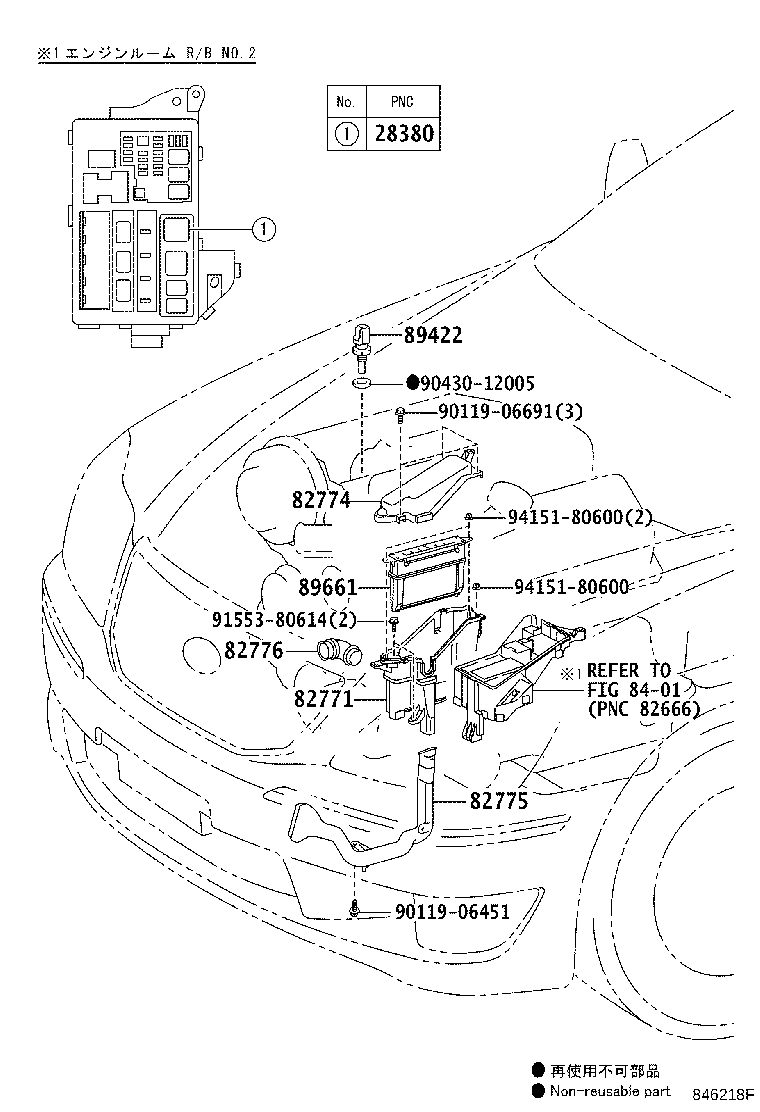

Electronic Fuel Injection System
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 28380 | Relay Assy, Fuel Pump |
| 82666U | Holder, Connector |
| 82771 | Box, Engine Room Ecu |
| 82774 | Cover, Engine Room Ecu |
| 82775 | Duct, Engine Room Ecu Inlet |
| 82776 | Duct, Engine Room Ecu Outlet |
| 85915S | Relay, Heater (FOR AIR FUEL RATIO SENSOR) |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89661 | Computer, Engine Control |
| 89871 | Driver, Injector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
