Toyota Crown/Majesta

2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

17 part groups · 2 illustrations

Illustrations

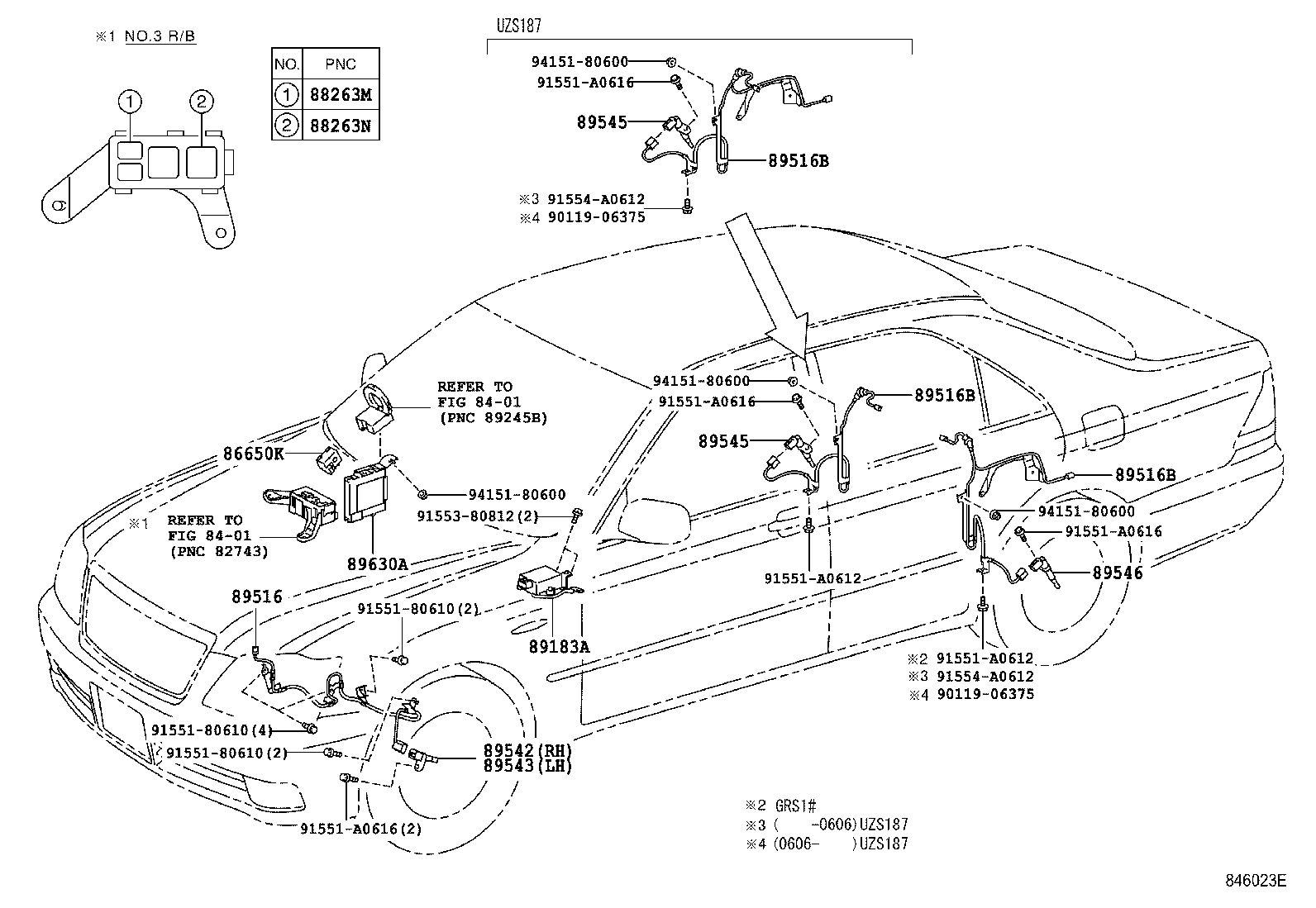

Figure 846022G 846022G 2003-12 → — Figure 846023E 846023E 2003-12 → —

Part groups

PNCDescription
86650K Buzzer Assy, Skid Control
88263M Relay, Abs Solenoid
88263N Relay, Abs Motor
89183A Sensor, Yawrate
89510D Sensor Assy, Brake Pedal Stroke
89516 Wire, Skid Control Sensor
89516B Wire, Skid Control Sensor
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89549 Bracket, Skid Control Computer
89630A Computer Assy, 4WD
89680 Supply Assy, Brake Control Power
89686 Bracket, Brake Control Power Supply, NO.1
89686A Bracket, Brake Control Power Supply, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
