Toyota Crown/Majesta
2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan
Supported model
Data version 2009-07
Electronic Modulated Suspension

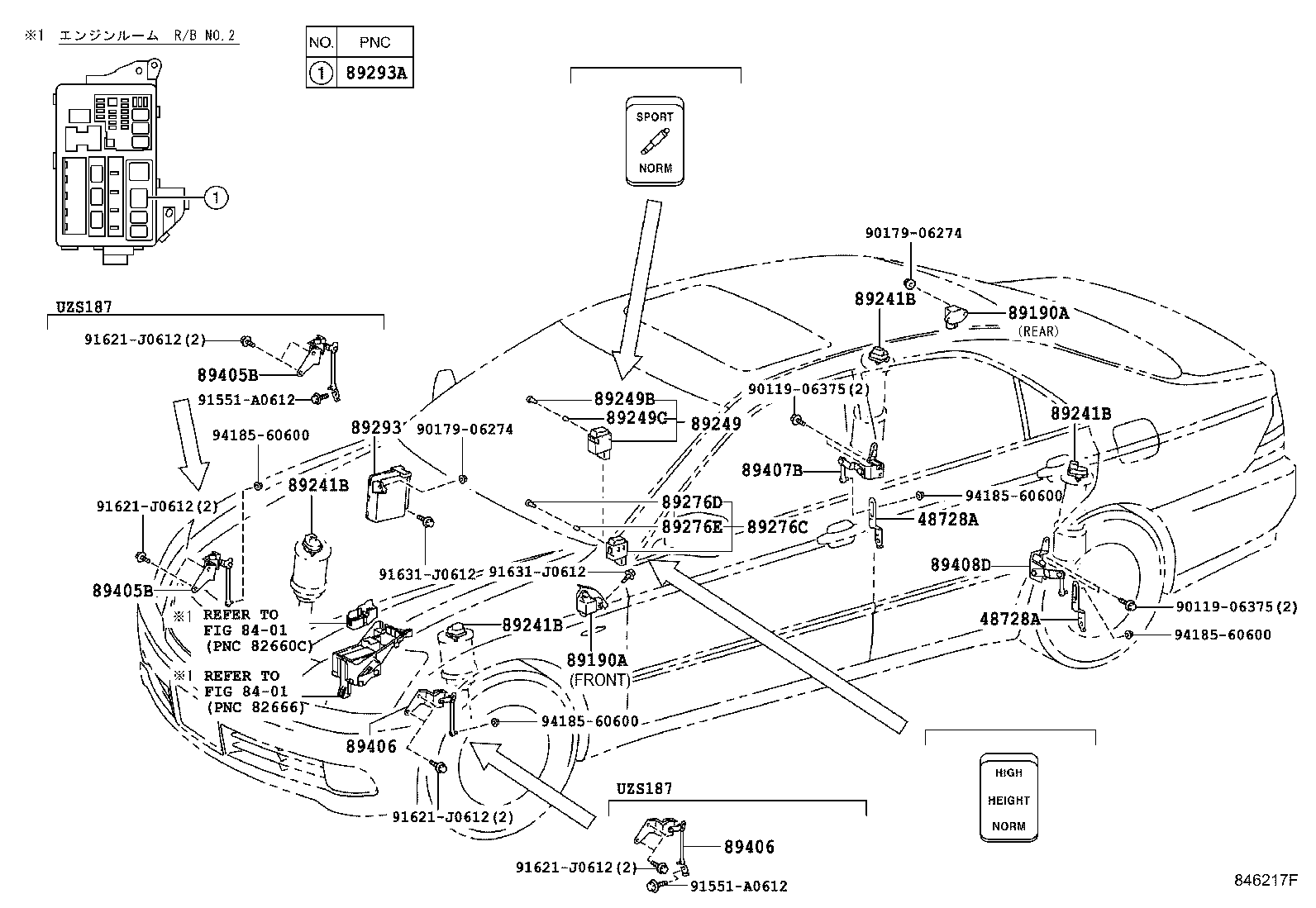

16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 48728A | Bracket, Load Sensing Valve Sensor |
| 89190A | Sensor Assy, Acceleration |
| 89241B | Actuator, Absorber Control |
| 89243 | Computer, Absorber Control |
| 89249 | Switch, Absorber Control |
| 89249B | Bulb, Absorber Control Switch |
| 89249C | Cap Bulb, Absorber Control Switch |
| 89276C | Switch, Height Control |
| 89276D | Bulb, (FOR HEIGHT CONTROL SWITCH) |
| 89276E | Color Cap (F0R HEIGHT CONTROL SWITCH BULB) |
| 89293 | Computer, Suspension Control |
| 89293A | Relay, Suspension Control |
| 89405B | Sensor Sub-assy, Height Control, Front RH |
| 89406 | Sensor Sub-assy, Height Control, Front LH |
| 89407B | Sensor Sub-assy, Height Control, Rear RH |
| 89408D | Sensor Sub-assy, Height Control, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
