Toyota Crown/Majesta
2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan
Supported model
Data version 2009-07

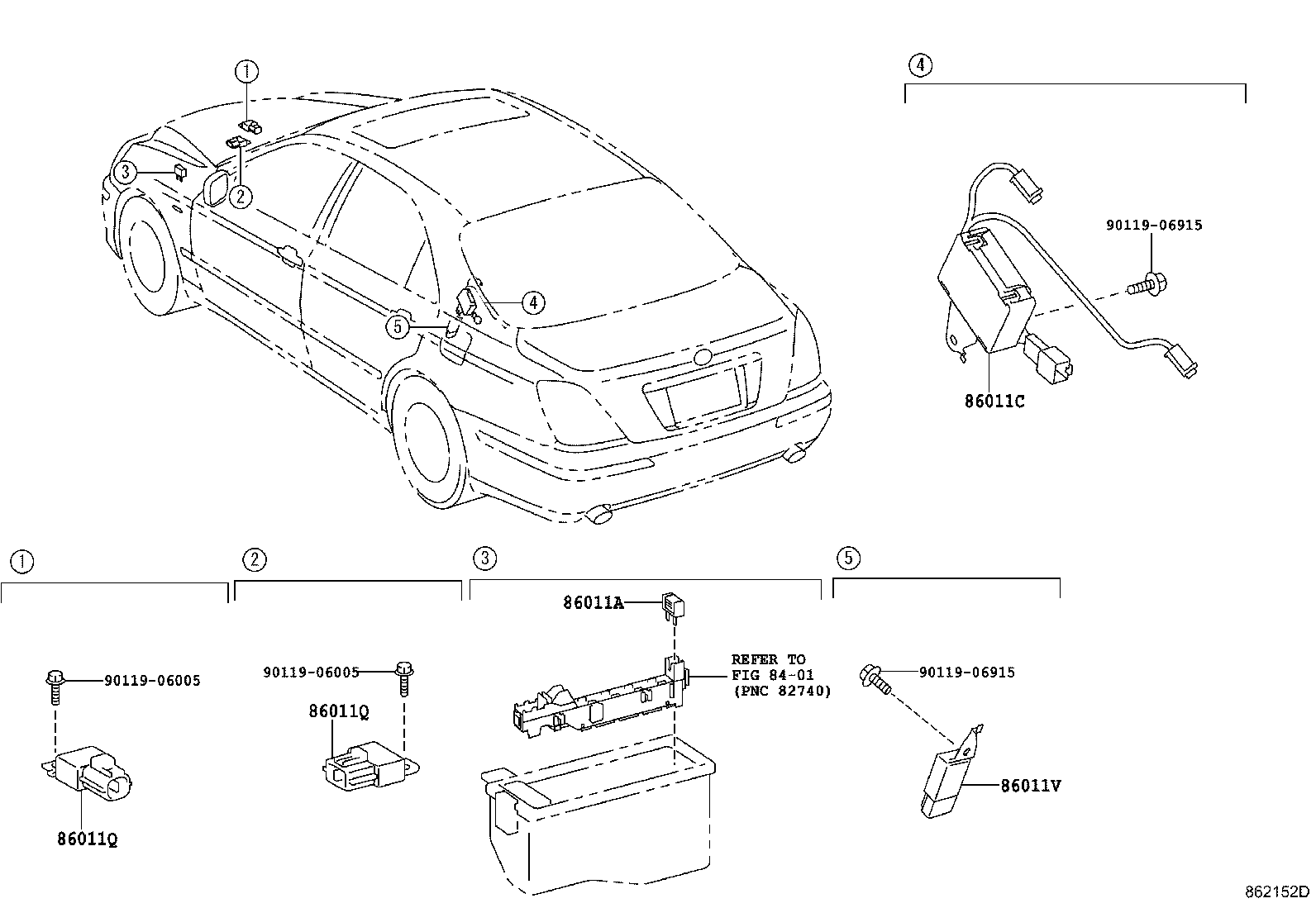

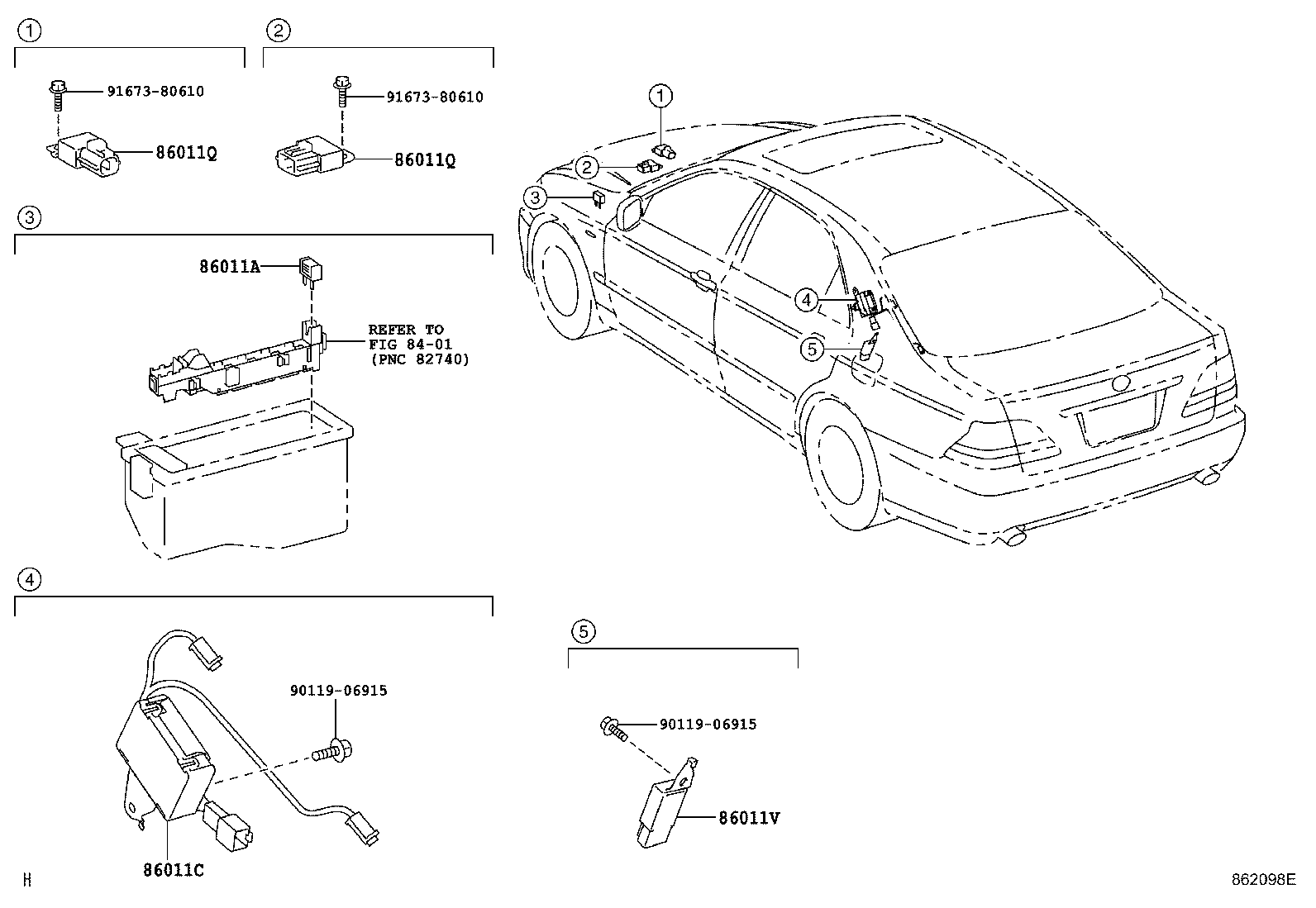

Radio Receiver & Amplifier & Condenser
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011A | Condenser, Radio Setting |
| 86011C | Filter, Noise |
| 86011Q | Condenser, Radio Setting |
| 86011V | Condenser, Radio Setting |
| 86120 | Receiver Assy, Radio |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86280 | Amplifier Assy, Stereo Component |
| 86285 | Bracket, Amplifier, NO.1 |
| 86286 | Bracket, Amplifier, NO.2 |
| 86287B | Cover, Amplifier |
| 86453A | Wire, Multi-media Module |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
