Toyota Crown/Majesta
2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan
Supported model
Data version 2009-07

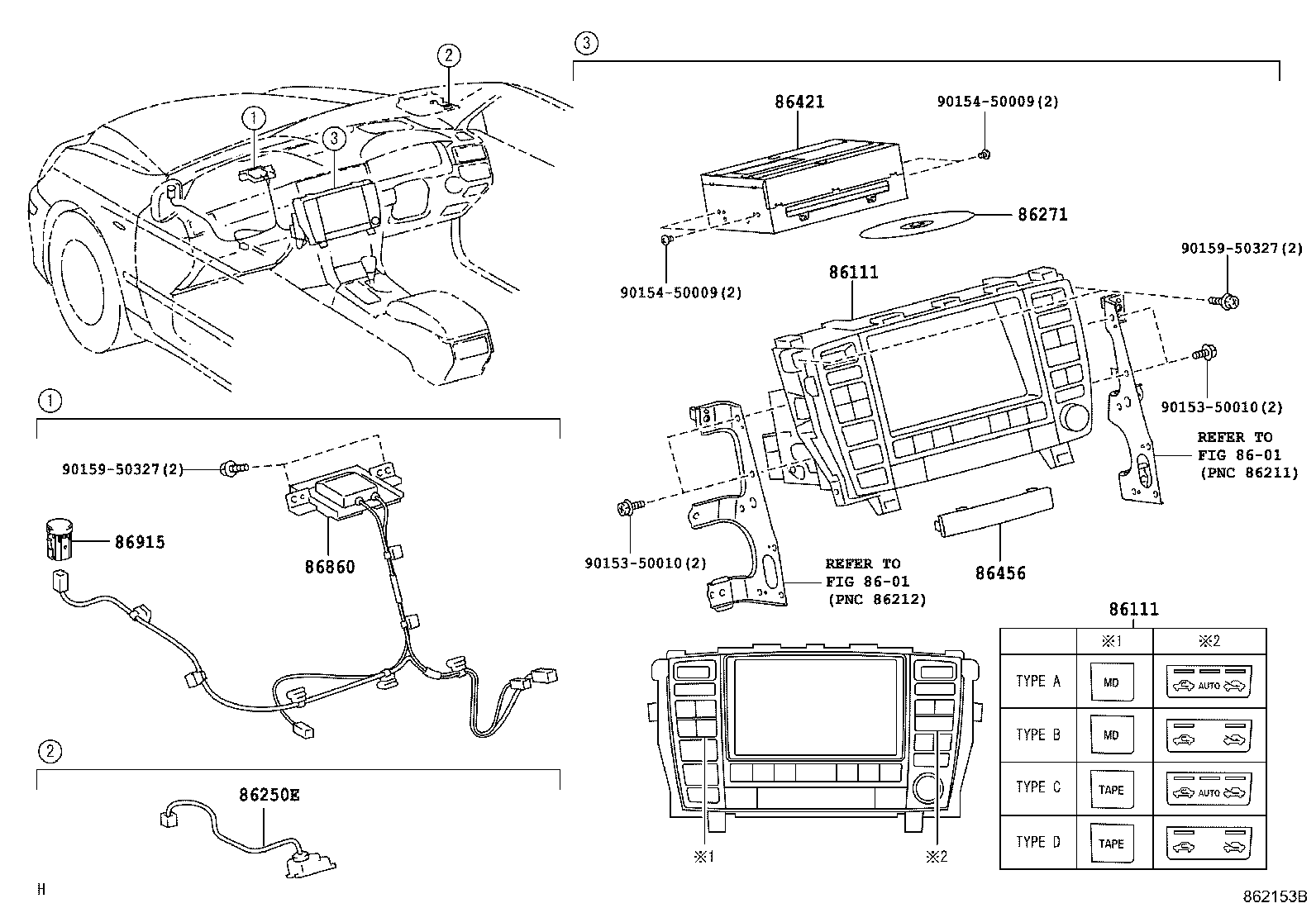

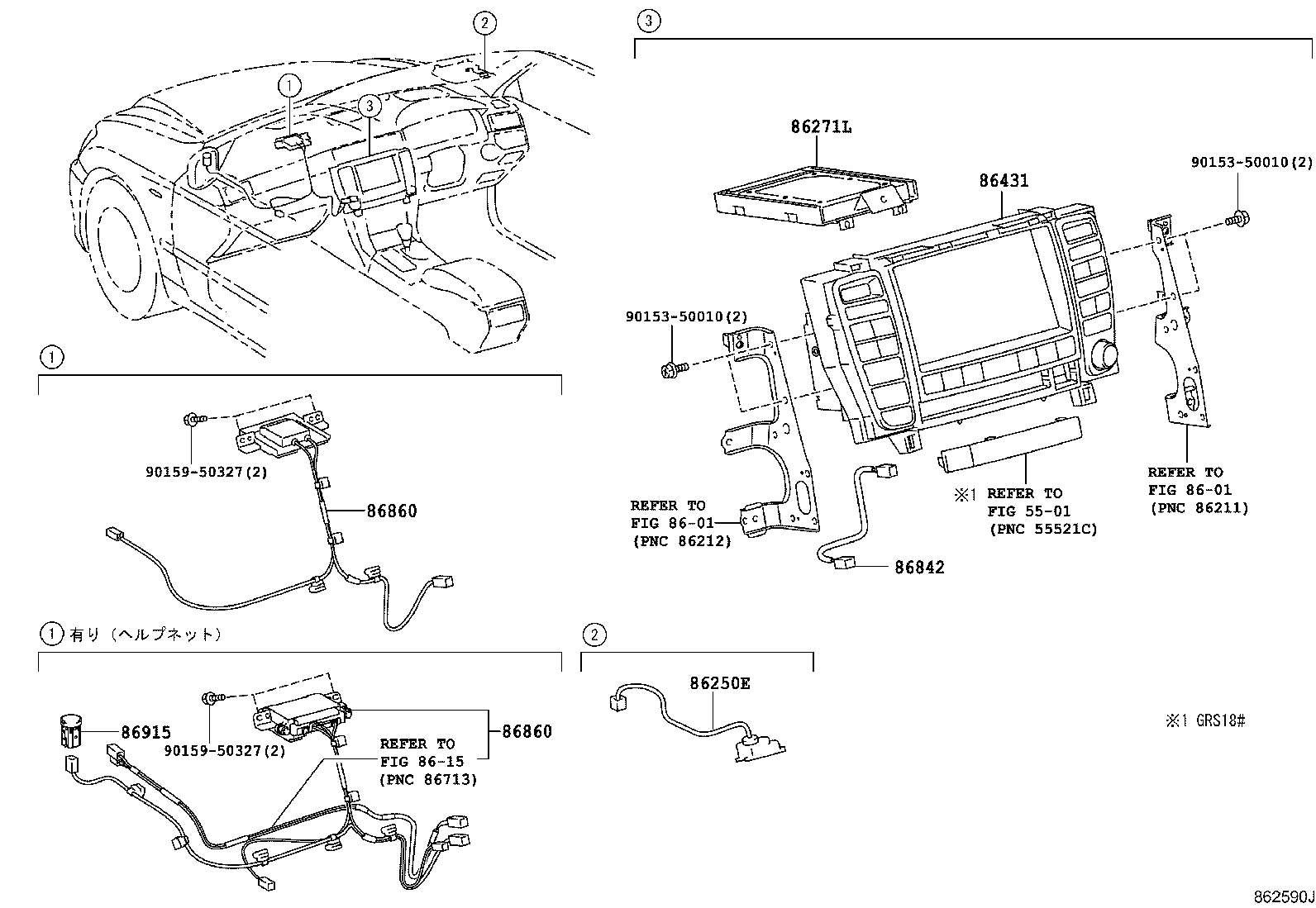

Navigation & Front Monitor Display
10 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86111 | Multi-display |
| 86250E | Microphone Assy, Amplifier |
| 86271 | Disc, Disc Player |
| 86271L | Hard Disc |
| 86421 | Board, Navigation Module |
| 86431 | Display, Display & Navigation Module |
| 86456 | Cover, Multi-media Module |
| 86842 | Wire, Navigation, NO.1 |
| 86860 | Antenna Assy, Navigation |
| 86915 | Transceiver, Optical Beacon |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
