Toyota Crown/Majesta

2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

10 part groups · 4 illustrations

Illustrations

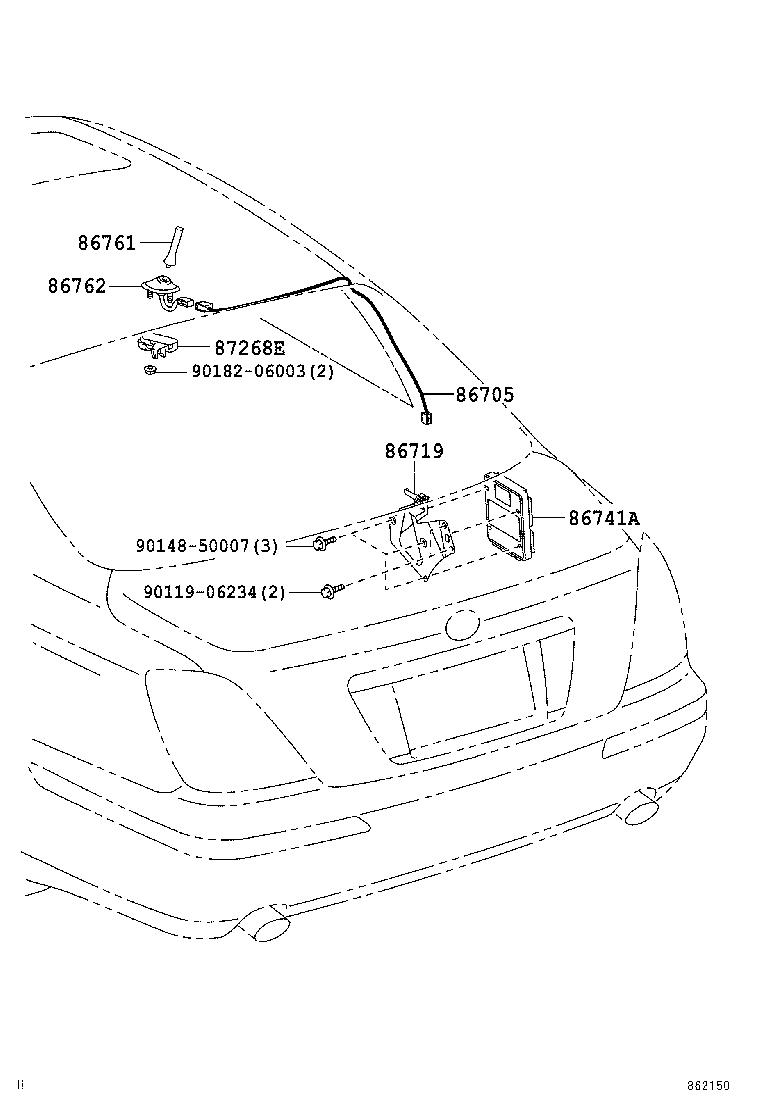

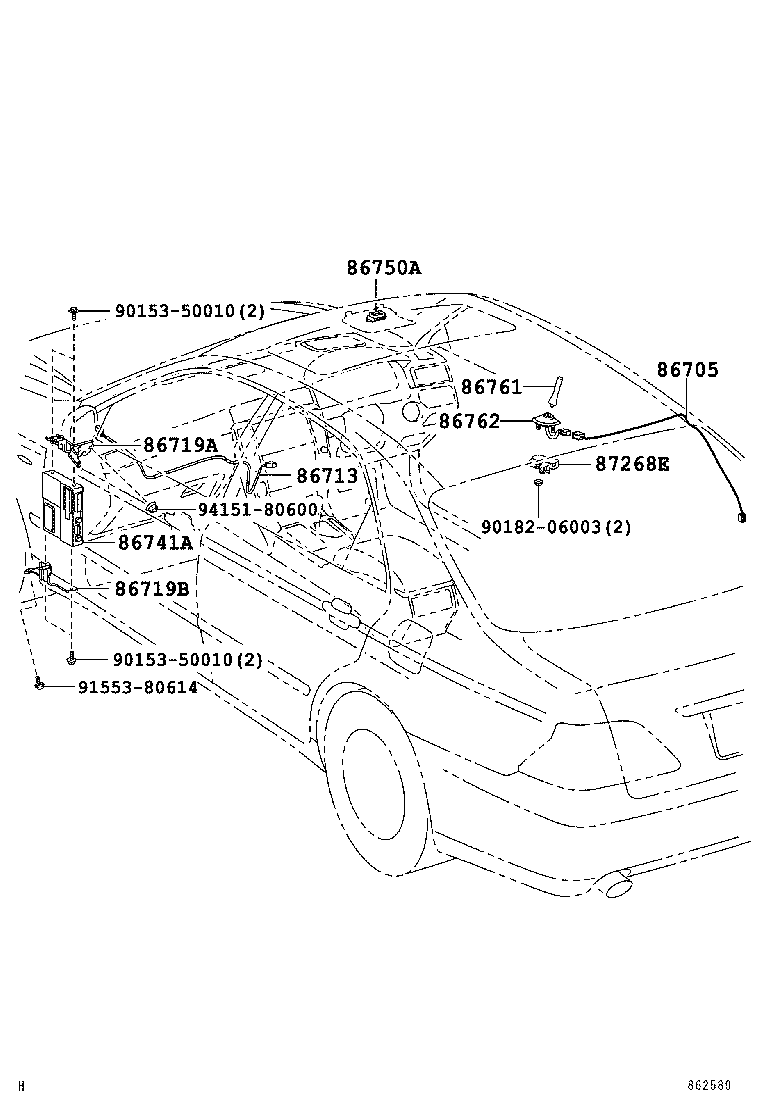

Figure 862086A 862086A 2003-12 → 2005-09 Figure 862150 862150 2004-06 → 2006-06 Figure 862589 862589 2005-09 → — Figure 862589 862589 2006-06 → —

Part groups

PNCDescription
86705 Cord Sub-assy, Telephone Antenna
86713 Wire, Telephone Computer
86719 Bracket, Telephone
86719A Bracket, Telephone NO.1
86719B Bracket, Telephone NO.2
86741A Transceiver, Telematics
86750A Switch Assy, Mayday
86761 Rod, Telephone Antenna
86762 Base, Telephone Antenna
87268E Protector, Telephone Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
