Toyota Crown/Majesta

2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

11 part groups · 5 illustrations

Illustrations

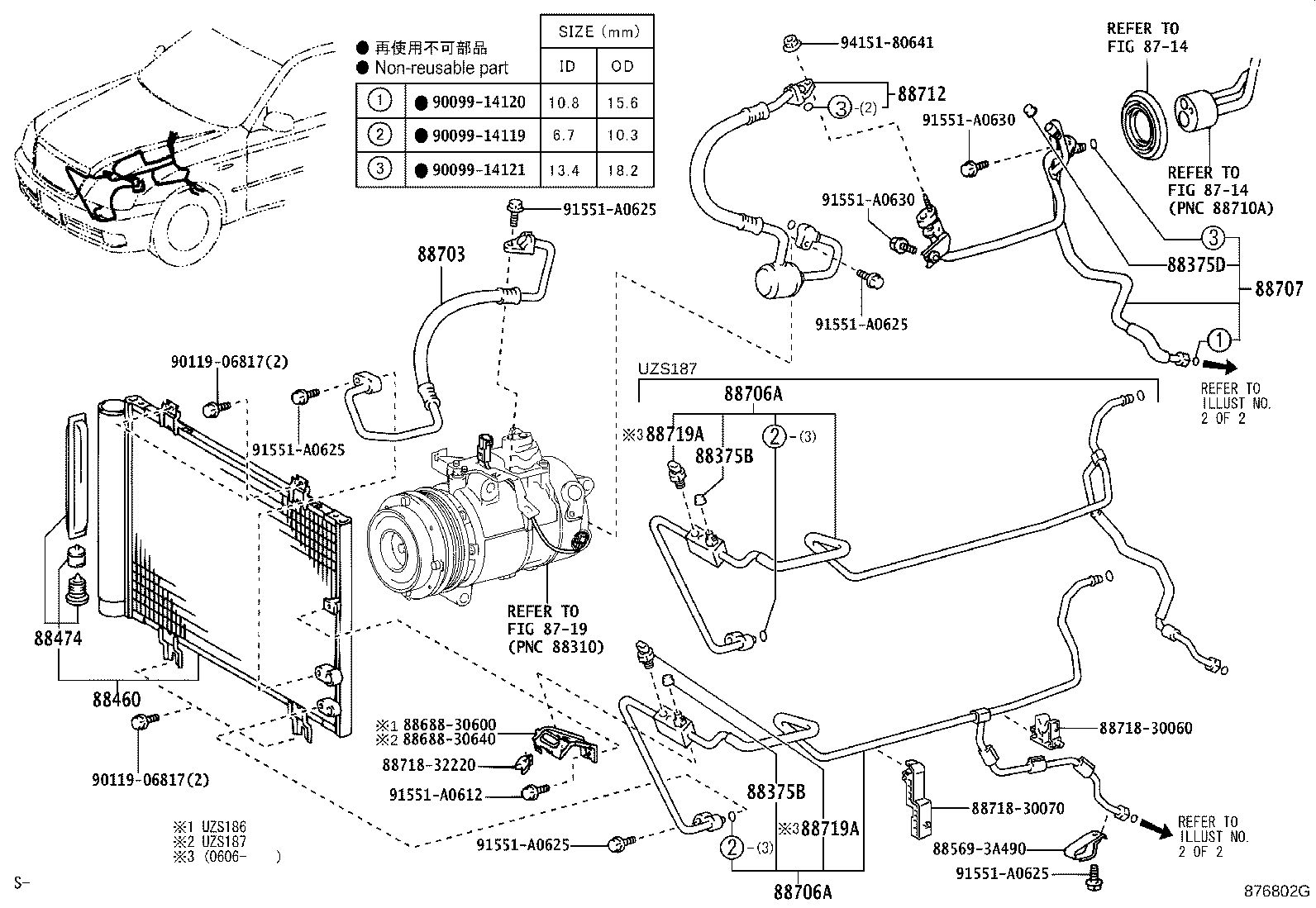

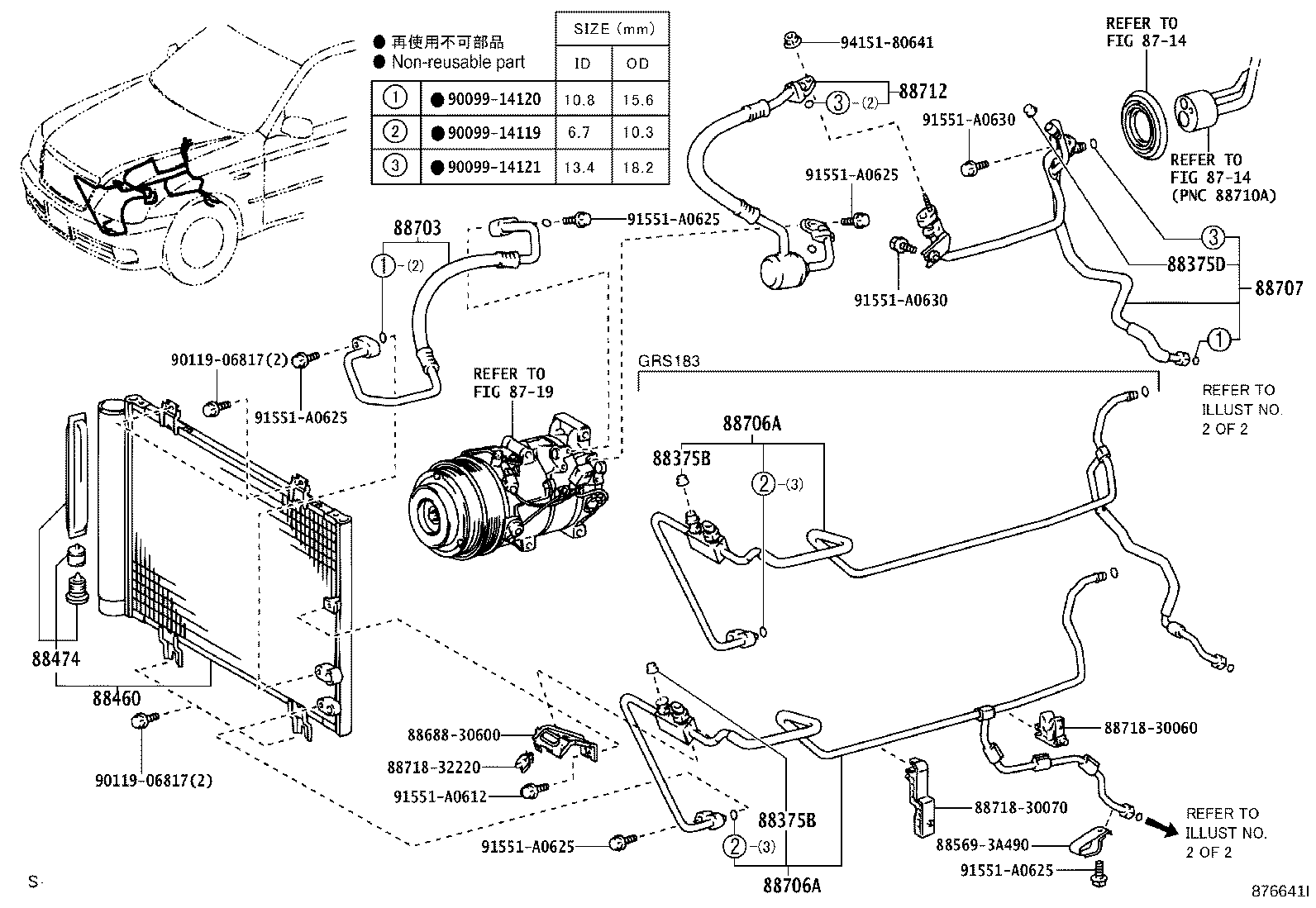

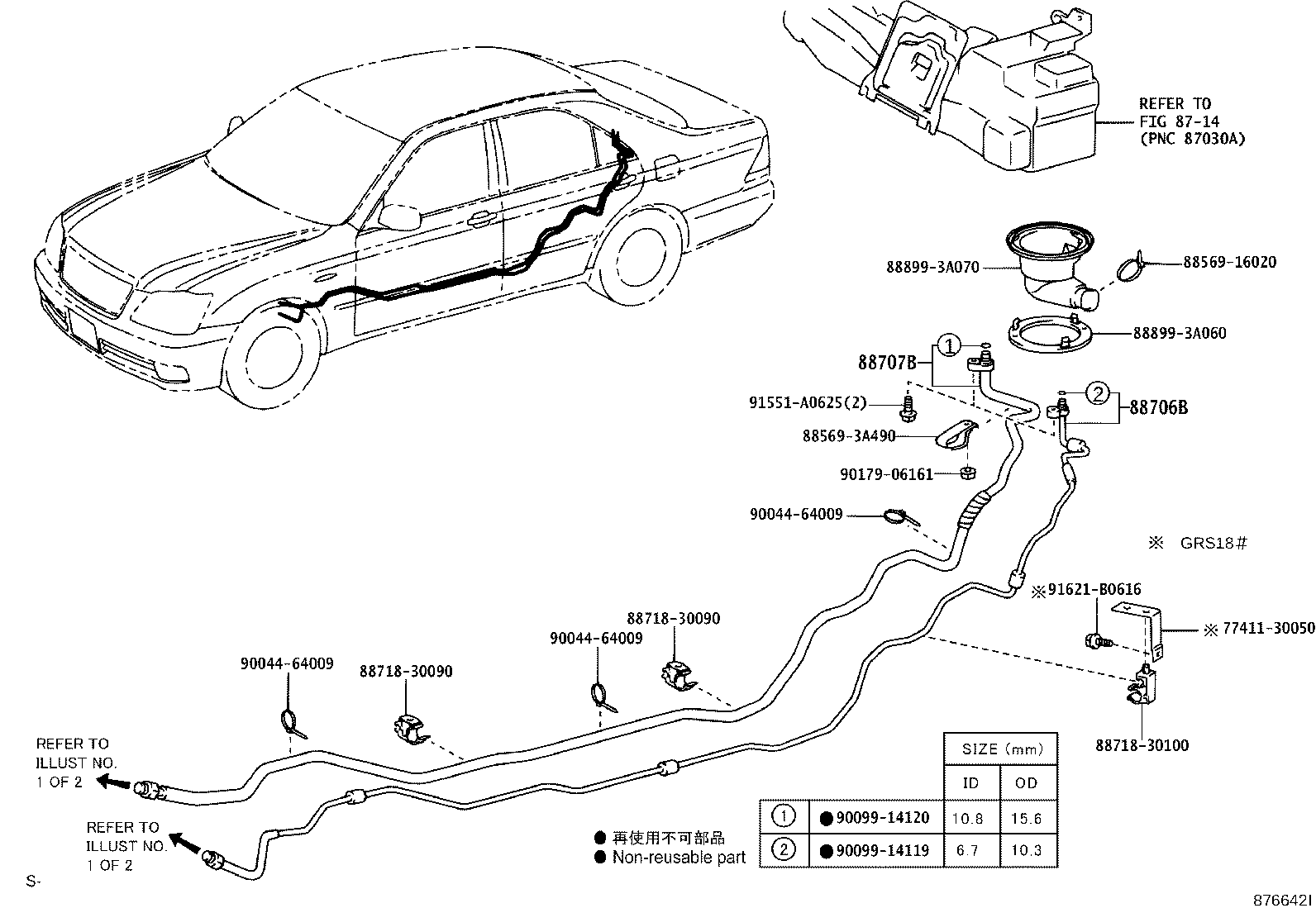

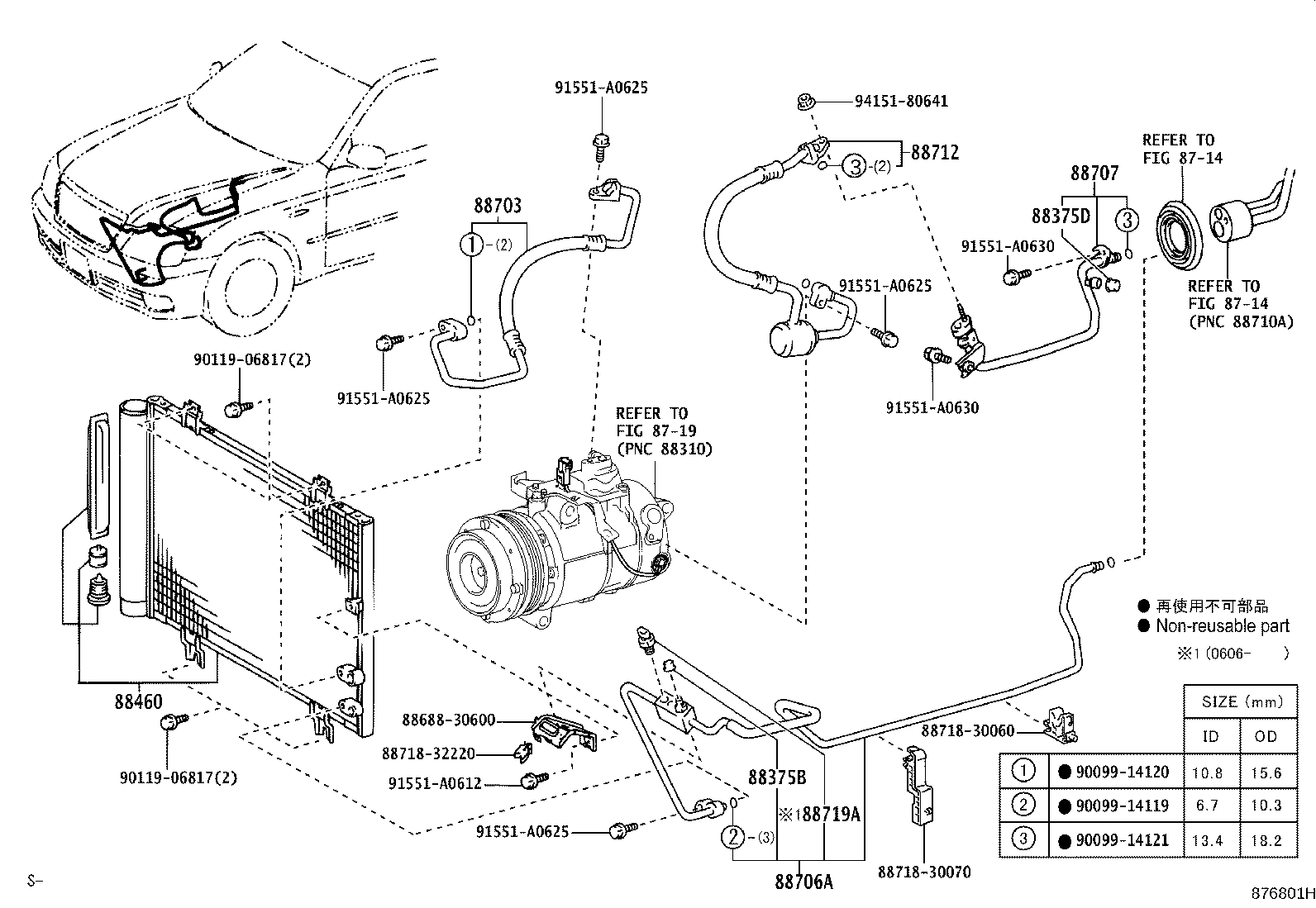

Figure 876640H 876640H 2003-12 → — Figure 876641I 876641I 2003-12 → — Figure 876801H 876801H 2004-06 → — Figure 876802G 876802G 2004-06 → — Figure 876642I 876642I 2003-12 → —

Part groups

PNCDescription
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88703 Hose Sub-assy, Discharge
88706A Tube Sub-assy, Liquid, A
88706B Tube Sub-assy, Liquid, B
88707 Pipe Sub-assy, Suction
88707B Tube Sub-assy, Suction, B
88712 Hose, Cooler Refrigerant Suction, NO.1
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
