Toyota Crown/Majesta
2003-12 → 2008-12 · chassis GRS18#,UZS18# · catalogue 3311B0 · Japan
Supported model
Data version 2009-07

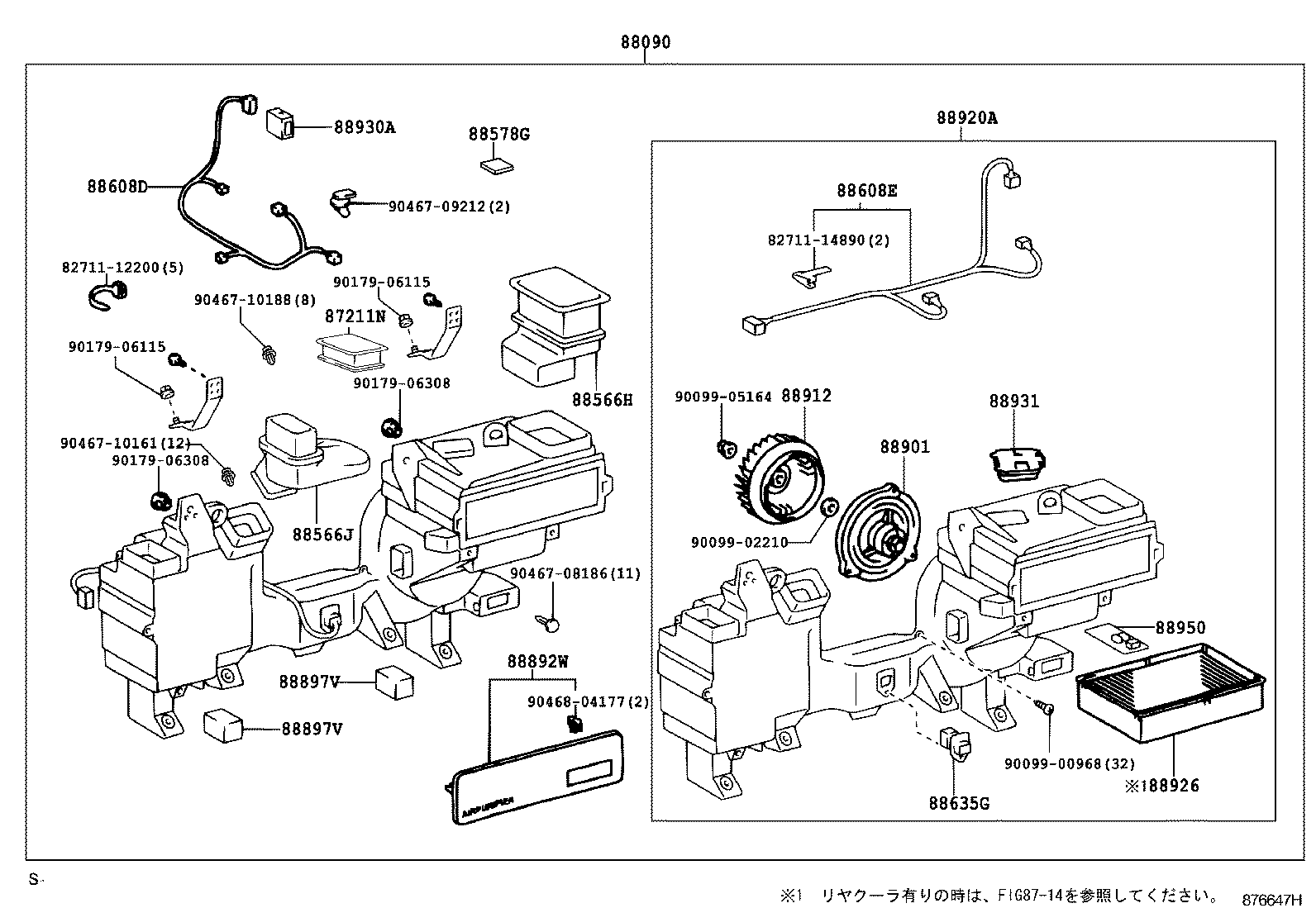

Air Purifier OR Ion Generator
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 87211N | Duct, Air Purifier Air, NO.1 |
| 88051A | Generator Sub-assy,Ion |
| 88090 | Air Purifier & Accessory Assy |
| 88566H | Duct, Air, NO.1 |
| 88566J | Duct, Air, NO.2 |
| 88578G | Packing, Air Purifier, NO.1 |
| 88608D | Harness Sub-assy, Wiring Air Indicater, NO.2 |
| 88608E | Harness Sub-assy, Wiring Air Indicator, NO.3 |
| 88635G | Resistor, Air Purifier Blower |
| 88892W | Cover, Air Purifier |
| 88897V | Cushion, Air Purifier |
| 88901 | Motor Sub-assy, Air Purifier |
| 88904A | Accessory Sub-assy, Air Purifire |
| 88912 | Fan, Air Purifier |
| 88920A | Purifier Assy, Air |
| 88926 | Filter, Air Purifier |
| 88930A | Switch Assy, Air Purifier |
| 88931 | Sensor, Smoke |
| 88950 | Amplifier Assy, Air Purifier |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
