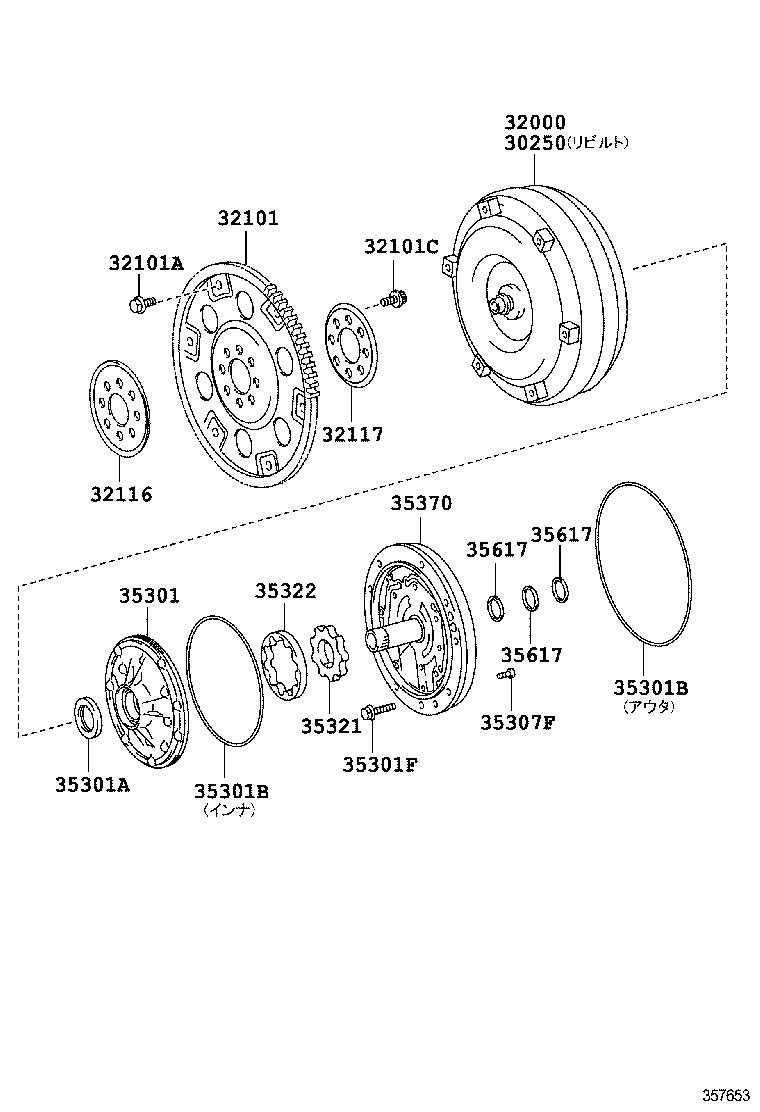

Exploded illustration 357653 35301F — BOLT (FOR FRONT OIL PUMP SETTING) (4 parts) 35301 — BODY SUB-ASSY, FRONT OIL PUMP (4 parts) 35301A — SEAL, OIL (FOR FRONT OIL PUMP) (2 parts) 35301B — RING, O (FOR FRONT OIL PUMP BODY) (8 parts) 35301B — RING, O (FOR FRONT OIL PUMP BODY) (8 parts) 35322 — GEAR, FRONT OIL PUMP DRIVEN (28 parts) 35321 — GEAR, FRONT OIL PUMP DRIVE (28 parts) 35617 — RING, CLUTCH DRUM OIL SEAL (2 parts) 35617 — RING, CLUTCH DRUM OIL SEAL (2 parts) 35617 — RING, CLUTCH DRUM OIL SEAL (2 parts) 35370 — SHAFT ASSY, STATOR (4 parts) 35307F — BOLT (FOR STATOR SHAFT) (2 parts) 30250 — CONVERTER ASSY, TORQUE, REBUILT (6 parts) 32000 — CONVERTER ASSY, TORQUE (6 parts) 32101C — BOLT, HEXAGON(FOR DRIVE PLATE SETTING) (4 parts) 32117 — SPACER, DRIVE PLATE, REAR (2 parts) 32101A — BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) (4 parts) 32101 — GEAR SUB-ASSY, DRIVE PLATE & RING (3 parts) 32116 — SPACER, DRIVE PLATE, FRONT (2 parts)
357653 · 19 callouts Full size ↗
109 parts on this figure
Part number Description Fitment Price
30250 — Converter Assy, Torque, Rebuilt
30250-30390 Converter Assy, Torque, Rebuilt
2008-02 → 2010-02 ended
GRS202,203 ¥86,900
30250-30400 Converter Assy, Torque, Rebuilt
2008-02 → 2010-02 ended
GRS200,201 ¥72,400
30250-30420 Converter Assy, Torque, Rebuilt
2008-02 → 2010-02 ended
GRS204 ¥78,400
30250-30390 Converter Assy, Torque, Rebuilt
2010-02 → 2012-12 ended
GRS202,203 CBU ¥86,900
30250-30400 Converter Assy, Torque, Rebuilt
2010-02 → 2012-12 ended
GRS200,201 CBU ¥72,400
30250-30420 Converter Assy, Torque, Rebuilt
2010-02 → 2012-12 ended
GRS204 ¥78,400
32000 — Converter Assy, Torque
32000-30390 Converter Assy, Torque
2008-02 → 2010-02 ended
GRS202,203 ¥125,000
32000-30400 Converter Assy, Torque
2008-02 → 2010-02 ended
GRS200,201 ¥104,000
32000-30420 Converter Assy, Torque
2008-02 → 2010-02 ended
GRS204 ¥113,000
32000-30390 Converter Assy, Torque
2010-02 → 2012-12 ended
GRS202,203 CBU ¥125,000
32000-30400 Converter Assy, Torque
2010-02 → 2012-12 ended
GRS200,201 CBU ¥104,000
32000-30420 Converter Assy, Torque
2010-02 → 2012-12 ended
GRS204 ¥113,000
32101 — Gear Sub-assy, Drive Plate & Ring
32101-30080 Gear Sub-assy, Drive Plate & Ring
2008-02 → 2010-02 ended
GRS20# ¥21,400
32101-30080 Gear Sub-assy, Drive Plate & Ring
2010-02 → 2011-05 ended
GRS20# CBU ¥21,400
32101-30081 Gear Sub-assy, Drive Plate & Ring
2011-06 → 2012-12 ended
GRS20# CBU ¥13,400
32101A — Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90105-09005 note Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2008-02 → 2010-02 ended
GRS20# ¥80
90105-09006 note Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2008-02 → 2010-02 ended
GRS20# ¥80
90105-09005 note Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2010-02 → 2012-12 ended
GRS20# CBU ¥80
90105-09006 note Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2010-02 → 2012-12 ended
GRS20# CBU ¥80
32101C — Bolt, Hexagon(FOR DRIVE PLATE SETTING)
90105-10048 note Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2008-02 → 2010-02 ended
GRS20# ¥130
90105-A0022 note Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2008-02 → 2010-02 ended
GRS20# —
90105-10048 note Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2010-02 → 2012-12 ended
GRS20# CBU ¥130
90105-A0022 note Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2010-02 → 2010-03 ended
GRS20# CBU —
32116 — Spacer, Drive Plate, Front
32116-32020 Spacer, Drive Plate, Front
2008-02 → 2010-02 ended
GRS20# ¥1,050
32116-32020 Spacer, Drive Plate, Front
2010-02 → 2012-12 ended
GRS20# CBU ¥1,050
32117 — Spacer, Drive Plate, Rear
32117-30030 Spacer, Drive Plate, Rear
2008-02 → 2010-02 ended
GRS20# ¥930
32117-30030 Spacer, Drive Plate, Rear
2010-02 → 2012-12 ended
GRS20# CBU ¥930
35301 — Body Sub-assy, Front Oil Pump
35301-22030 Body Sub-assy, Front Oil Pump
2008-02 → 2010-02 ended
GRS200,202 ¥14,200
35301-60030 Body Sub-assy, Front Oil Pump
2008-02 → 2010-02 ended
GRS201,203,204 ¥13,000
35301-22030 Body Sub-assy, Front Oil Pump
2010-02 → 2012-12 ended
GRS200,202 CBU ¥14,200
35301-60030 Body Sub-assy, Front Oil Pump
2010-02 → 2012-12 ended
GRS201,203,204 CBU ¥13,000
35301A — Seal, Oil (FOR FRONT OIL PUMP)
90311-38083 Seal, Oil (FOR FRONT OIL PUMP)
2008-02 → 2010-02 ended
GRS20# ¥290
90311-38083 Seal, Oil (FOR FRONT OIL PUMP)
2010-02 → 2012-12 ended
GRS20# CBU ¥290
35301B — Ring, O (FOR FRONT OIL PUMP BODY)
90301-99093 note Ring, O (FOR FRONT OIL PUMP BODY)
2008-02 → 2010-02 ended
GRS200,202 ¥200
90301-99139 note Ring, O (FOR FRONT OIL PUMP BODY)
2008-02 → 2010-02 ended
GRS201,203,204 ¥450
90301-99148 note Ring, O (FOR FRONT OIL PUMP BODY)
2008-02 → 2010-02 ended
GRS201,203,204 ¥200
90301-99153 note Ring, O (FOR FRONT OIL PUMP BODY)
2008-02 → 2010-02 ended
GRS200,202 ¥270
90301-99093 note Ring, O (FOR FRONT OIL PUMP BODY)
2010-02 → 2012-12 ended
GRS200,202 CBU ¥200
90301-99139 note Ring, O (FOR FRONT OIL PUMP BODY)
2010-02 → 2012-12 ended
GRS201,203,204 CBU ¥450
90301-99148 note Ring, O (FOR FRONT OIL PUMP BODY)
2010-02 → 2012-12 ended
GRS201,203,204 CBU ¥200
90301-99153 note Ring, O (FOR FRONT OIL PUMP BODY)
2010-02 → 2012-12 ended
GRS200,202 CBU ¥270
35301F — Bolt (FOR FRONT OIL PUMP SETTING)
90105-08451 note Bolt (FOR FRONT OIL PUMP SETTING)
2008-02 → 2010-02 ended
GRS201,203,204 ¥100
90105-08451 note Bolt (FOR FRONT OIL PUMP SETTING)
2008-02 → 2010-02 ended
GRS200,202 ¥100
90105-08451 note Bolt (FOR FRONT OIL PUMP SETTING)
2010-02 → 2012-12 ended
GRS200,202 CBU ¥100
90105-08451 note Bolt (FOR FRONT OIL PUMP SETTING)
2010-02 → 2012-12 ended
GRS201,203,204 CBU ¥100
35307F — Bolt (FOR STATOR SHAFT)
90148-60079 Bolt (FOR STATOR SHAFT)
2008-02 → 2010-02 ended
GRS20# ¥60
90148-60079 Bolt (FOR STATOR SHAFT)
2010-02 → 2012-12 ended
GRS20# CBU ¥60
35321 — Gear, Front Oil Pump Drive
35321-22120 note Gear, Front Oil Pump Drive
2008-02 → 2010-02 ended
GRS200,202 ¥3,890
35321-22130 note Gear, Front Oil Pump Drive
2008-02 → 2010-02 ended
GRS200,202 ¥3,890
35321-22140 note Gear, Front Oil Pump Drive
2008-02 → 2010-02 ended
GRS200,202 ¥3,890
35321-22150 note Gear, Front Oil Pump Drive
2008-02 → 2010-02 ended
GRS200,202 ¥3,890
35321-22160 note Gear, Front Oil Pump Drive
2008-02 → 2010-02 ended
GRS200,202 ¥3,890
35321-22170 note Gear, Front Oil Pump Drive
2008-02 → 2010-02 ended
GRS200,202 ¥3,890
35321-22180 note Gear, Front Oil Pump Drive
2008-02 → 2010-02 ended
GRS200,202 ¥3,890
35321-50010 note Gear, Front Oil Pump Drive
2008-02 → 2010-02 ended
GRS201,203,204 ¥2,940
35321-50020 note Gear, Front Oil Pump Drive
2008-02 → 2010-02 ended
GRS201,203,204 ¥2,940
35321-50030 note Gear, Front Oil Pump Drive
2008-02 → 2010-02 ended
GRS201,203,204 ¥2,940
35321-50040 note Gear, Front Oil Pump Drive
2008-02 → 2010-02 ended
GRS201,203,204 ¥2,940
35321-50050 note Gear, Front Oil Pump Drive
2008-02 → 2010-02 ended
GRS201,203,204 ¥2,940
35321-50060 note Gear, Front Oil Pump Drive
2008-02 → 2010-02 ended
GRS201,203,204 ¥2,940
35321-50070 note Gear, Front Oil Pump Drive
2008-02 → 2010-02 ended
GRS201,203,204 ¥2,940
35321-22120 note Gear, Front Oil Pump Drive
2010-02 → 2012-12 ended
GRS200,202 CBU ¥3,890
35321-22130 note Gear, Front Oil Pump Drive
2010-02 → 2012-12 ended
GRS200,202 CBU ¥3,890
35321-22140 note Gear, Front Oil Pump Drive
2010-02 → 2012-12 ended
GRS200,202 CBU ¥3,890
35321-22150 note Gear, Front Oil Pump Drive
2010-02 → 2012-12 ended
GRS200,202 CBU ¥3,890
35321-22160 note Gear, Front Oil Pump Drive
2010-02 → 2012-12 ended
GRS200,202 CBU ¥3,890
35321-22170 note Gear, Front Oil Pump Drive
2010-02 → 2012-12 ended
GRS200,202 CBU ¥3,890
35321-22180 note Gear, Front Oil Pump Drive
2010-02 → 2012-12 ended
GRS200,202 CBU ¥3,890
35321-50010 note Gear, Front Oil Pump Drive
2010-02 → 2012-12 ended
GRS201,203,204 CBU ¥2,940
35321-50020 note Gear, Front Oil Pump Drive
2010-02 → 2012-12 ended
GRS201,203,204 CBU ¥2,940
35321-50030 note Gear, Front Oil Pump Drive
2010-02 → 2012-12 ended
GRS201,203,204 CBU ¥2,940
35321-50040 note Gear, Front Oil Pump Drive
2010-02 → 2012-12 ended
GRS201,203,204 CBU ¥2,940
35321-50050 note Gear, Front Oil Pump Drive
2010-02 → 2012-12 ended
GRS201,203,204 CBU ¥2,940
35321-50060 note Gear, Front Oil Pump Drive
2010-02 → 2012-12 ended
GRS201,203,204 CBU ¥2,940
35321-50070 note Gear, Front Oil Pump Drive
2010-02 → 2012-12 ended
GRS201,203,204 CBU ¥2,940
35322 — Gear, Front Oil Pump Driven
35322-22120 note Gear, Front Oil Pump Driven
2008-02 → 2010-02 ended
GRS200,202 ¥3,320
35322-22130 note Gear, Front Oil Pump Driven
2008-02 → 2010-02 ended
GRS200,202 ¥3,320
35322-22140 note Gear, Front Oil Pump Driven
2008-02 → 2010-02 ended
GRS200,202 ¥3,320
35322-22150 note Gear, Front Oil Pump Driven
2008-02 → 2010-02 ended
GRS200,202 ¥3,320
35322-22160 note Gear, Front Oil Pump Driven
2008-02 → 2010-02 ended
GRS200,202 ¥3,320
35322-22170 note Gear, Front Oil Pump Driven
2008-02 → 2010-02 ended
GRS200,202 ¥3,320
35322-22180 note Gear, Front Oil Pump Driven
2008-02 → 2010-02 ended
GRS200,202 ¥3,320
35322-50010 note Gear, Front Oil Pump Driven
2008-02 → 2010-02 ended
GRS201,203,204 ¥2,500
35322-50020 note Gear, Front Oil Pump Driven
2008-02 → 2010-02 ended
GRS201,203,204 ¥2,500
35322-50030 note Gear, Front Oil Pump Driven
2008-02 → 2010-02 ended
GRS201,203,204 ¥2,500
35322-50040 note Gear, Front Oil Pump Driven
2008-02 → 2010-02 ended
GRS201,203,204 ¥2,500
35322-50050 note Gear, Front Oil Pump Driven
2008-02 → 2010-02 ended
GRS201,203,204 ¥2,500
35322-50060 note Gear, Front Oil Pump Driven
2008-02 → 2010-02 ended
GRS201,203,204 ¥2,500
35322-50070 note Gear, Front Oil Pump Driven
2008-02 → 2010-02 ended
GRS201,203,204 ¥2,500
35322-22120 note Gear, Front Oil Pump Driven
2010-02 → 2012-12 ended
GRS200,202 CBU ¥3,320
35322-22130 note Gear, Front Oil Pump Driven
2010-02 → 2012-12 ended
GRS200,202 CBU ¥3,320
35322-22140 note Gear, Front Oil Pump Driven
2010-02 → 2012-12 ended
GRS200,202 CBU ¥3,320
35322-22150 note Gear, Front Oil Pump Driven
2010-02 → 2012-12 ended
GRS200,202 CBU ¥3,320
35322-22160 note Gear, Front Oil Pump Driven
2010-02 → 2012-12 ended
GRS200,202 CBU ¥3,320
35322-22170 note Gear, Front Oil Pump Driven
2010-02 → 2012-12 ended
GRS200,202 CBU ¥3,320
35322-22180 note Gear, Front Oil Pump Driven
2010-02 → 2012-12 ended
GRS200,202 CBU ¥3,320
35322-50010 note Gear, Front Oil Pump Driven
2010-02 → 2012-12 ended
GRS201,203,204 CBU ¥2,500
35322-50020 note Gear, Front Oil Pump Driven
2010-02 → 2012-12 ended
GRS201,203,204 CBU ¥2,500
35322-50030 note Gear, Front Oil Pump Driven
2010-02 → 2012-12 ended
GRS201,203,204 CBU ¥2,500
35322-50040 note Gear, Front Oil Pump Driven
2010-02 → 2012-12 ended
GRS201,203,204 CBU ¥2,500
35322-50050 note Gear, Front Oil Pump Driven
2010-02 → 2012-12 ended
GRS201,203,204 CBU ¥2,500
35322-50060 note Gear, Front Oil Pump Driven
2010-02 → 2012-12 ended
GRS201,203,204 CBU ¥2,500
35322-50070 note Gear, Front Oil Pump Driven
2010-02 → 2012-12 ended
GRS201,203,204 CBU ¥2,500
35370 — Shaft Assy, Stator
35370-22070 Shaft Assy, Stator
2008-02 → 2010-02 ended
GRS200,202 ¥19,800
35370-50030 Shaft Assy, Stator
2008-02 → 2010-02 ended
GRS201,203,204 ¥14,900
35370-22070 Shaft Assy, Stator
2010-02 → 2012-12 ended
GRS200,202 CBU ¥19,800
35370-50030 Shaft Assy, Stator
2010-02 → 2012-12 ended
GRS201,203,204 CBU ¥14,900
35617 — Ring, Clutch Drum Oil Seal
35617-50030 Ring, Clutch Drum Oil Seal
2008-02 → 2010-02 ended
GRS20# ¥280
35617-50030 Ring, Clutch Drum Oil Seal
2010-02 → 2012-12 ended
GRS20# CBU ¥280
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.

This drawing is also used by

Crown/Hybrid
