Toyota Crown

2008-02 → 2012-12 · chassis GRS20#,GWS204 · catalogue 3311C0 · Japan

Supported model Data version 2012-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

8 part groups · 2 illustrations

Illustrations

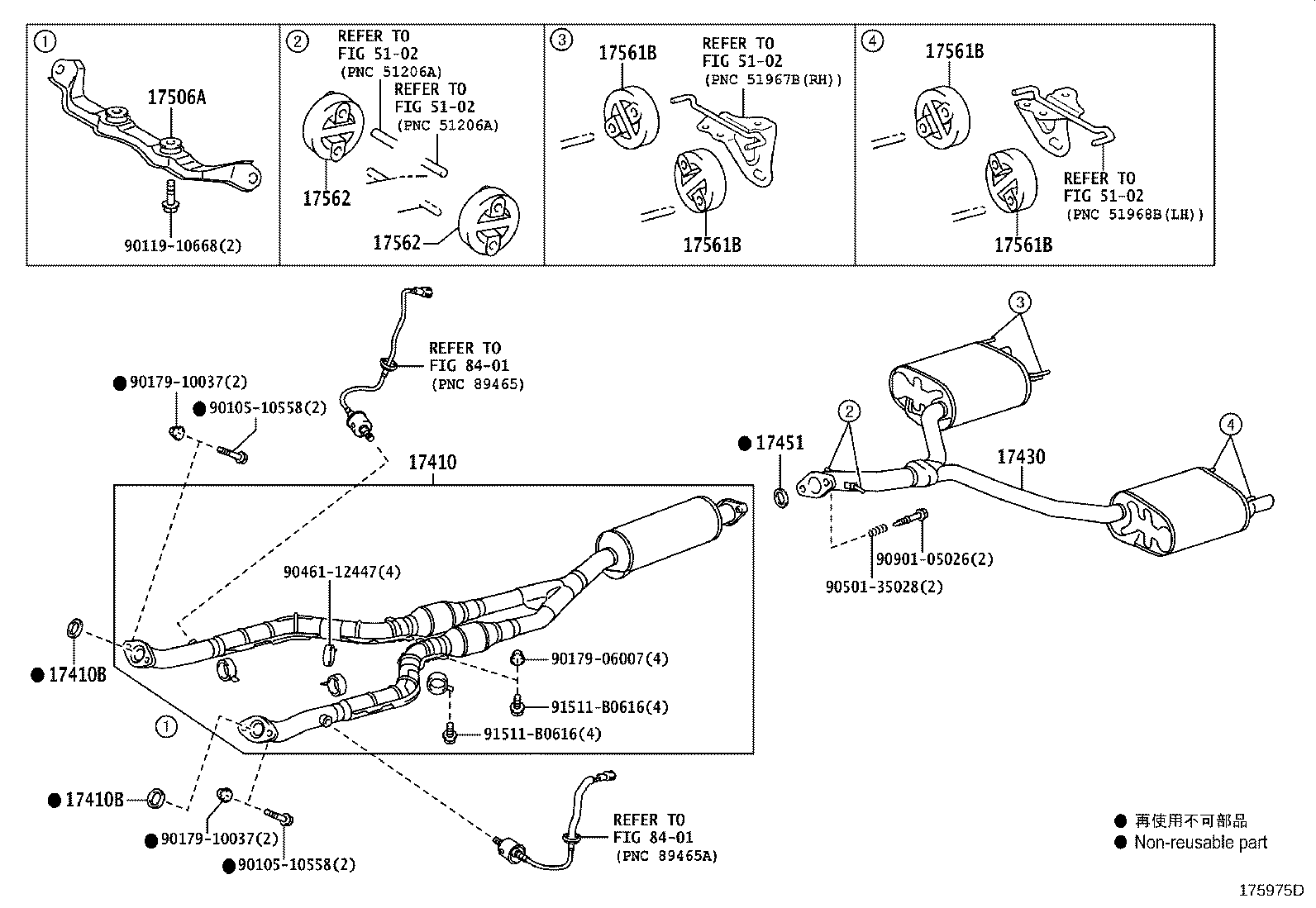

Figure 175912E 175912E 2008-02 → — Figure 175975D 175975D 2008-05 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17581A Damper, Exhaust Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
