Toyota Crown
2008-02 → 2012-12 · chassis GRS20#,GWS204 · catalogue 3311C0 · Japan
Supported model
Data version 2012-12

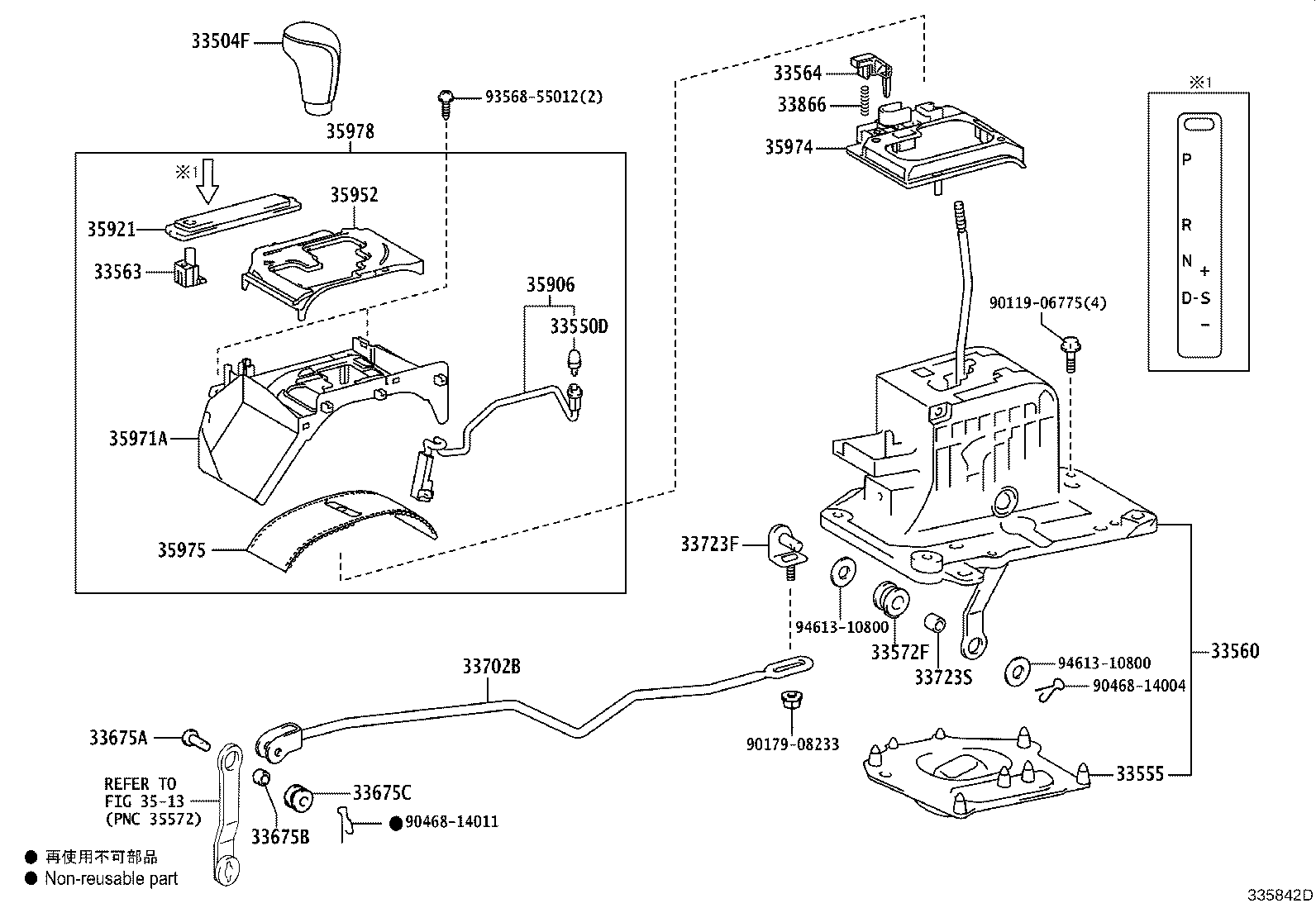

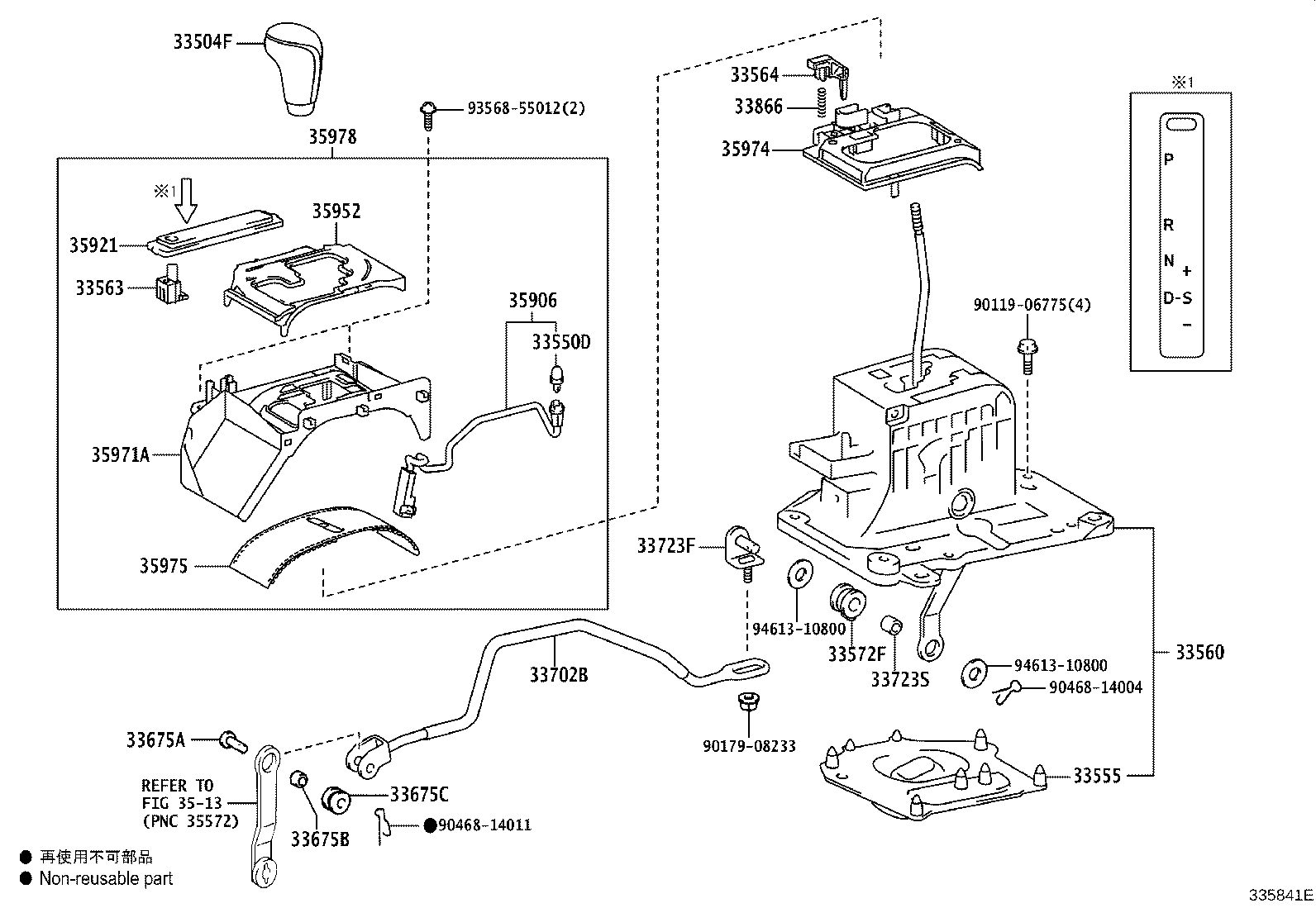

Shift Lever & Retainer
21 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33504F | Knob Sub-assy, Shift Lever |
| 33550D | Bulb, Position Indicator Lamp |
| 33555 | Boot, Shift Lever |
| 33560 | Unit Assy, Shift Lock Control |
| 33563 | Button, Shift Lock Release |
| 33564 | Link, Shift Lock Release, NO.1 |
| 33572F | Bush, Control Shaft Lower |
| 33675A | Pin, W/Hole (FOR TRANSMISSION CONTROL ROD) |
| 33675B | Bush (FOR TRANSMISSION CONTROL ROD) |
| 33675C | Grommet (FOR TRANSMISSION CONTROL ROD) |
| 33702B | Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT) |
| 33723F | Swivel, Connecting Rod (FOR FLOOR SHIFT) |
| 33723S | Bush (FOR CONNECTING ROD SWIVEL) |
| 33866 | Spring, Shift Lock Release |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35921 | Plate, Control Position Indicator |
| 35952 | Lens, Position Indicator |
| 35971A | Housing, Position Indicator, Upper |
| 35974 | Housing, Position Indicator, Lower |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35978 | Indicator, Shift Position |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
