Toyota Crown

2008-02 → 2012-12 · chassis GRS20#,GWS204 · catalogue 3311C0 · Japan

Supported model Data version 2012-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

5 part groups · 3 illustrations

Illustrations

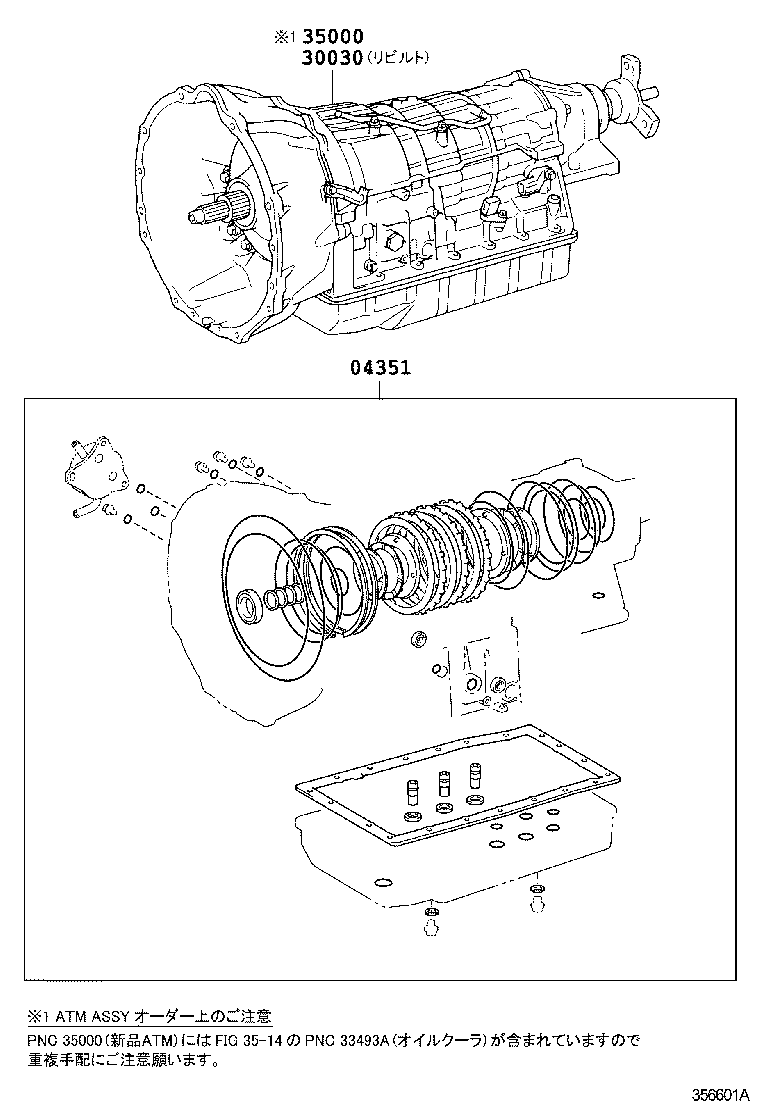

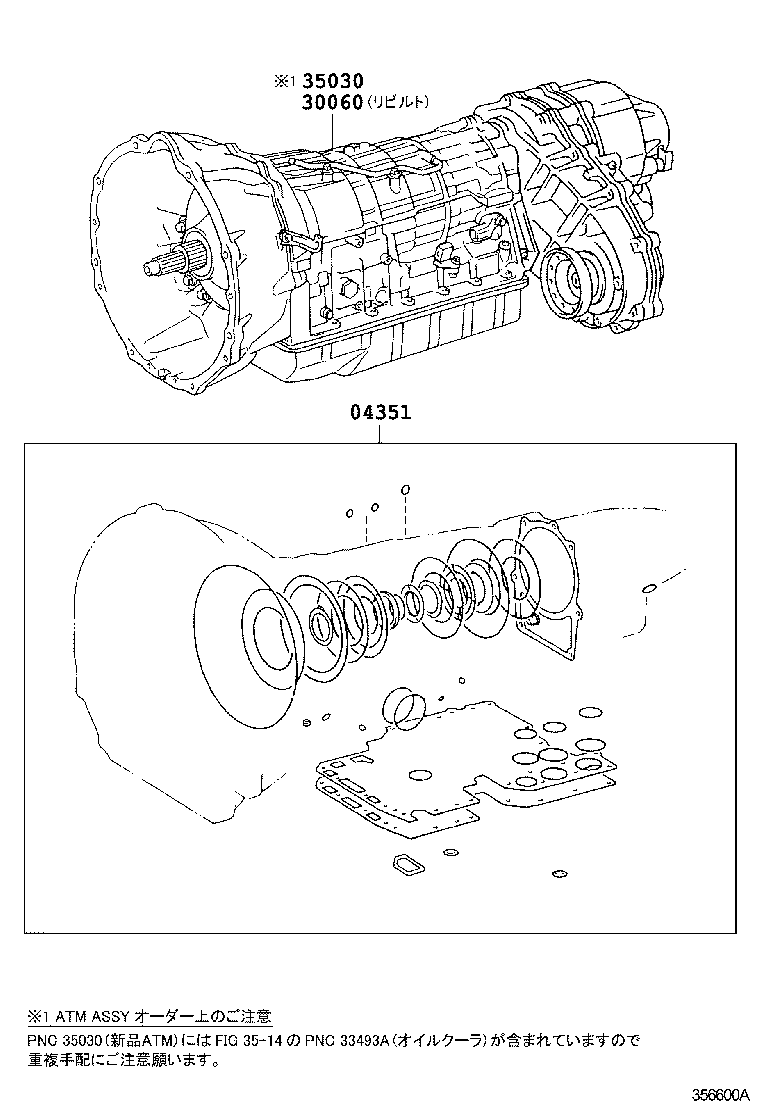

Figure 356599B 356599B 2008-02 → — Figure 356600A 356600A 2008-02 → — Figure 356601A 356601A 2008-02 → —

Part groups

PNCDescription
04351 Gasket Kit, Automatic Transmission Overhaul
30030 Transmission Assy, Rebuilt
30060 Transmission Assy, W/Transfer, Rebuilt
35000 Transmission Assy, Automatic
35030 Transmission Assy, Automatic W/Transfer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
