Toyota Crown
2008-02 → 2012-12 · chassis GRS20#,GWS204 · catalogue 3311C0 · Japan
Supported model
Data version 2012-12

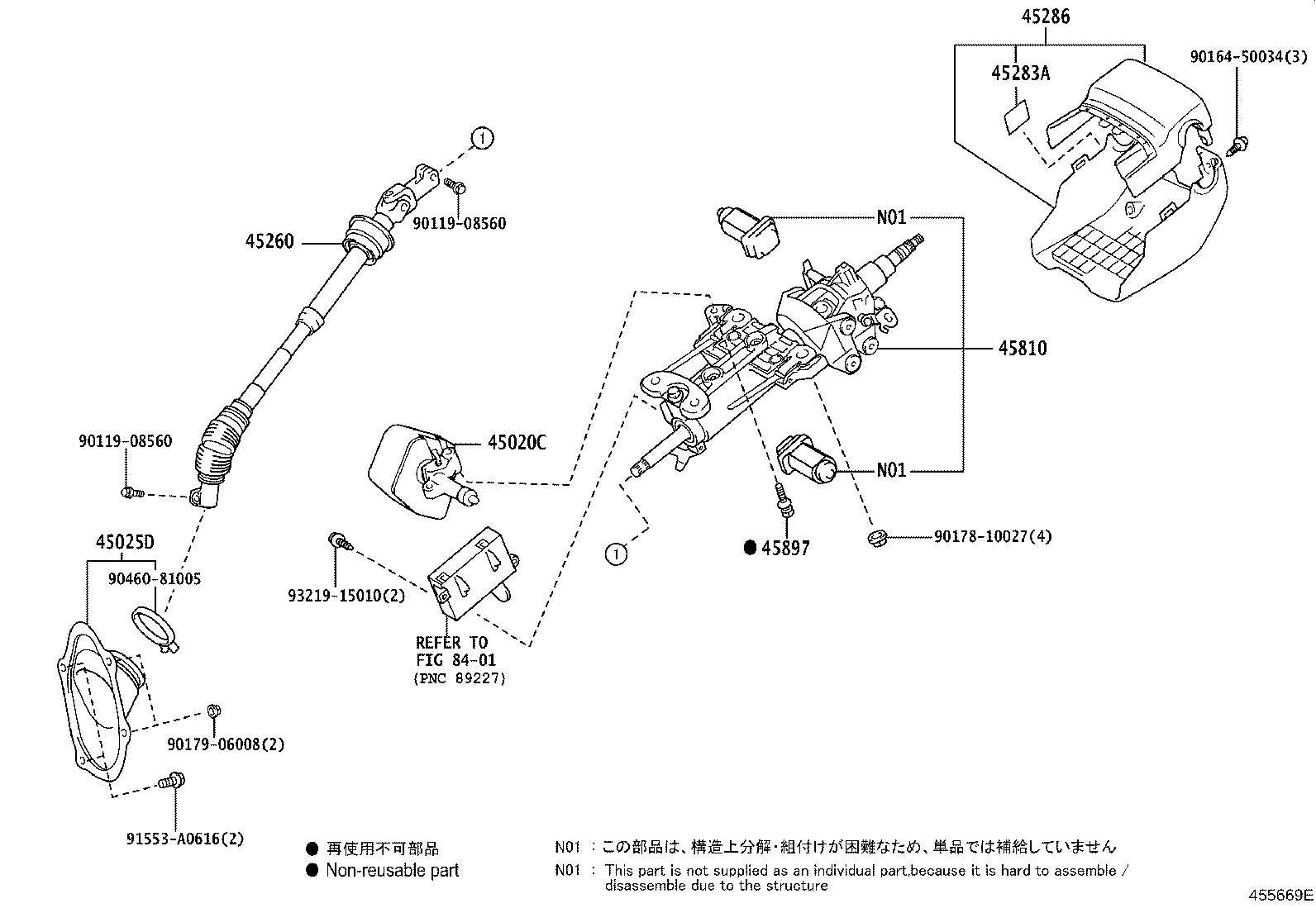

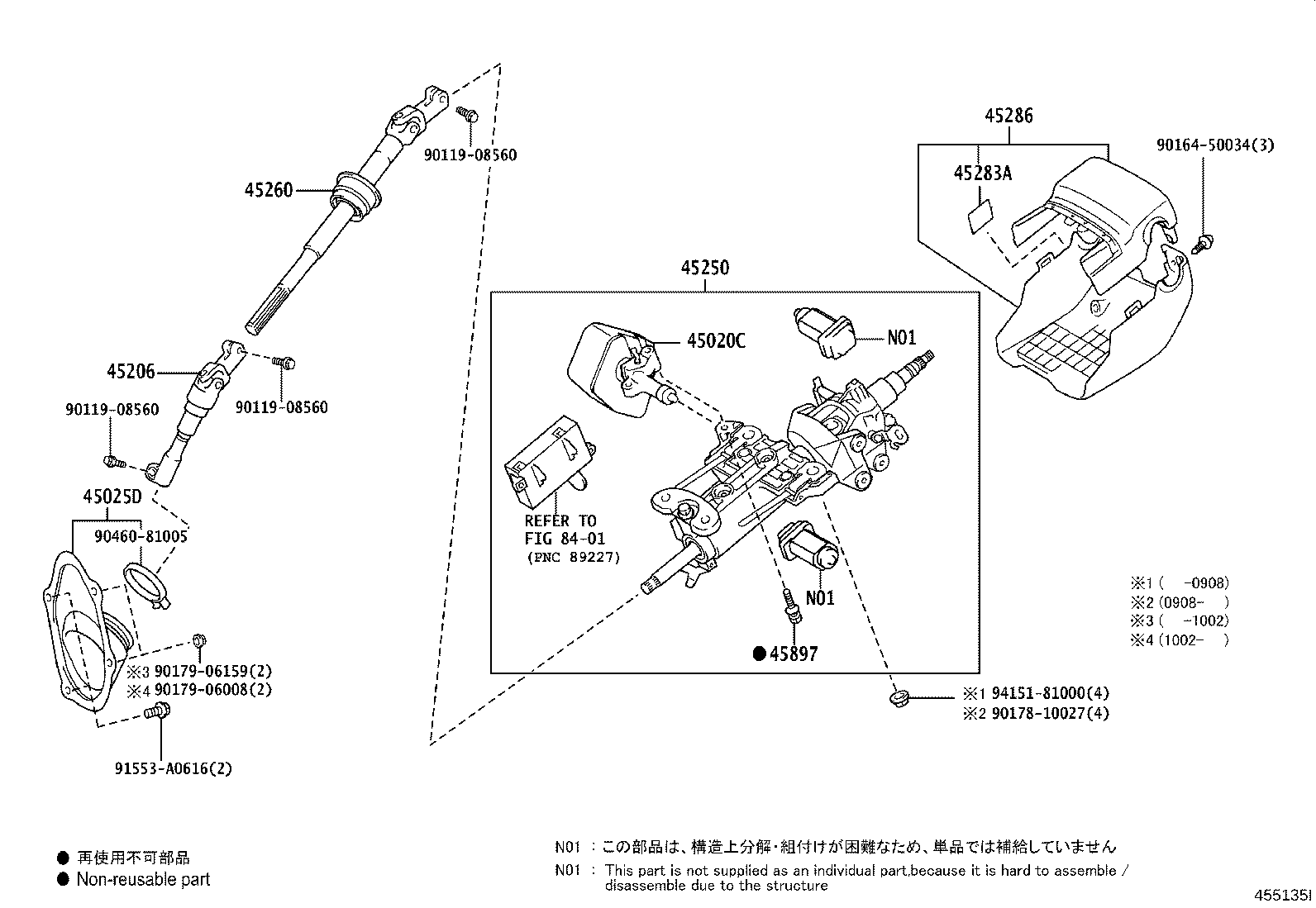

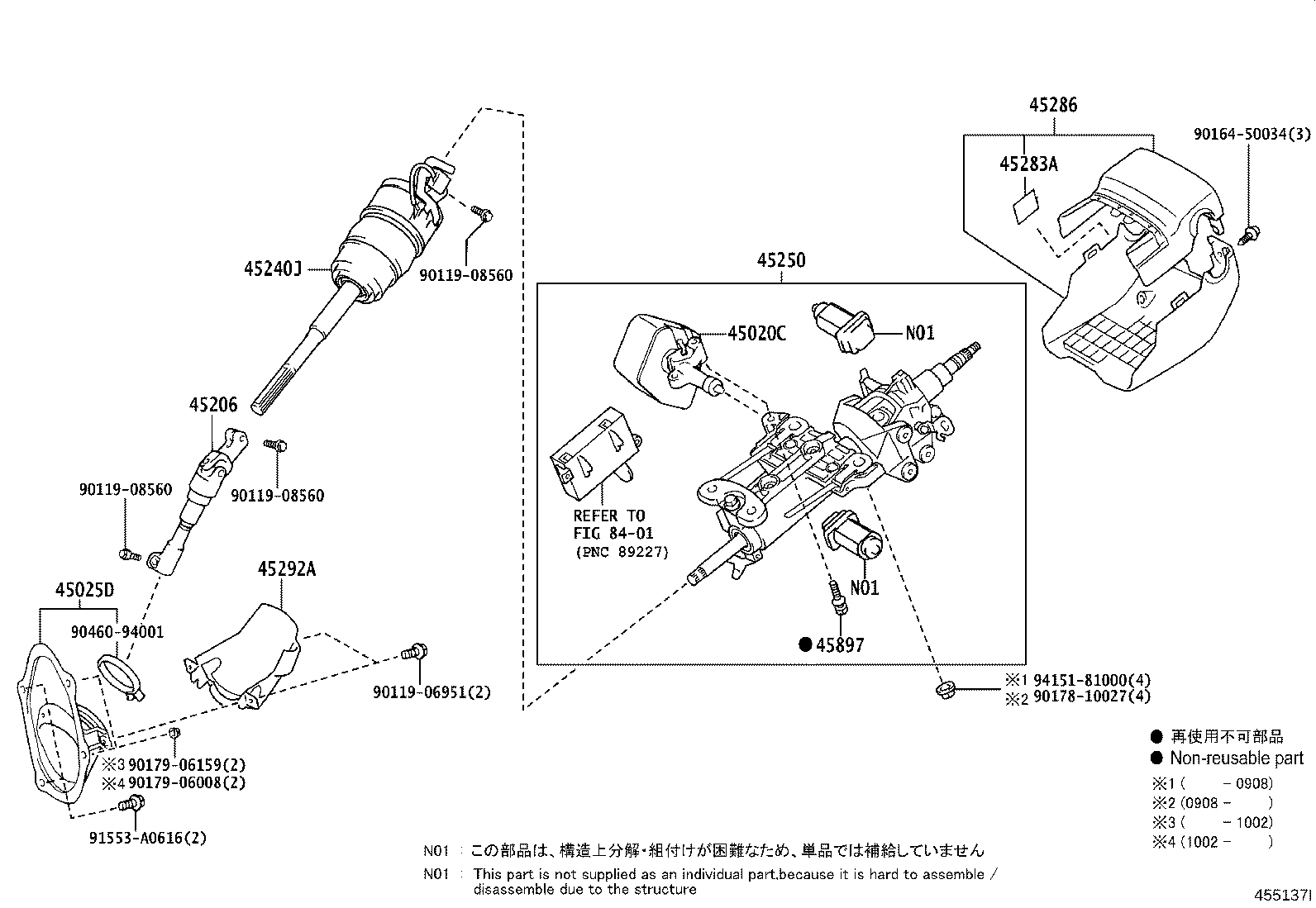

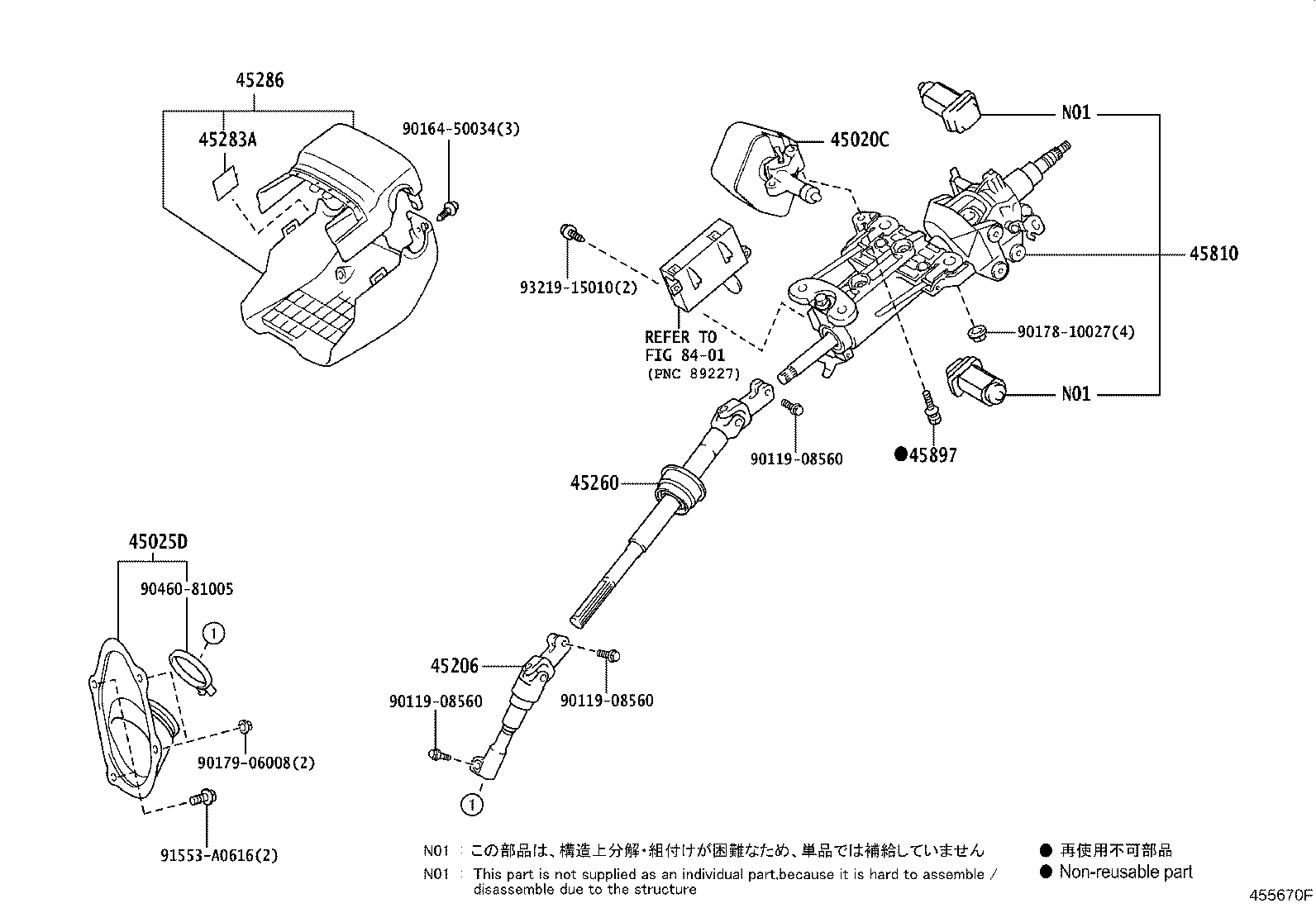

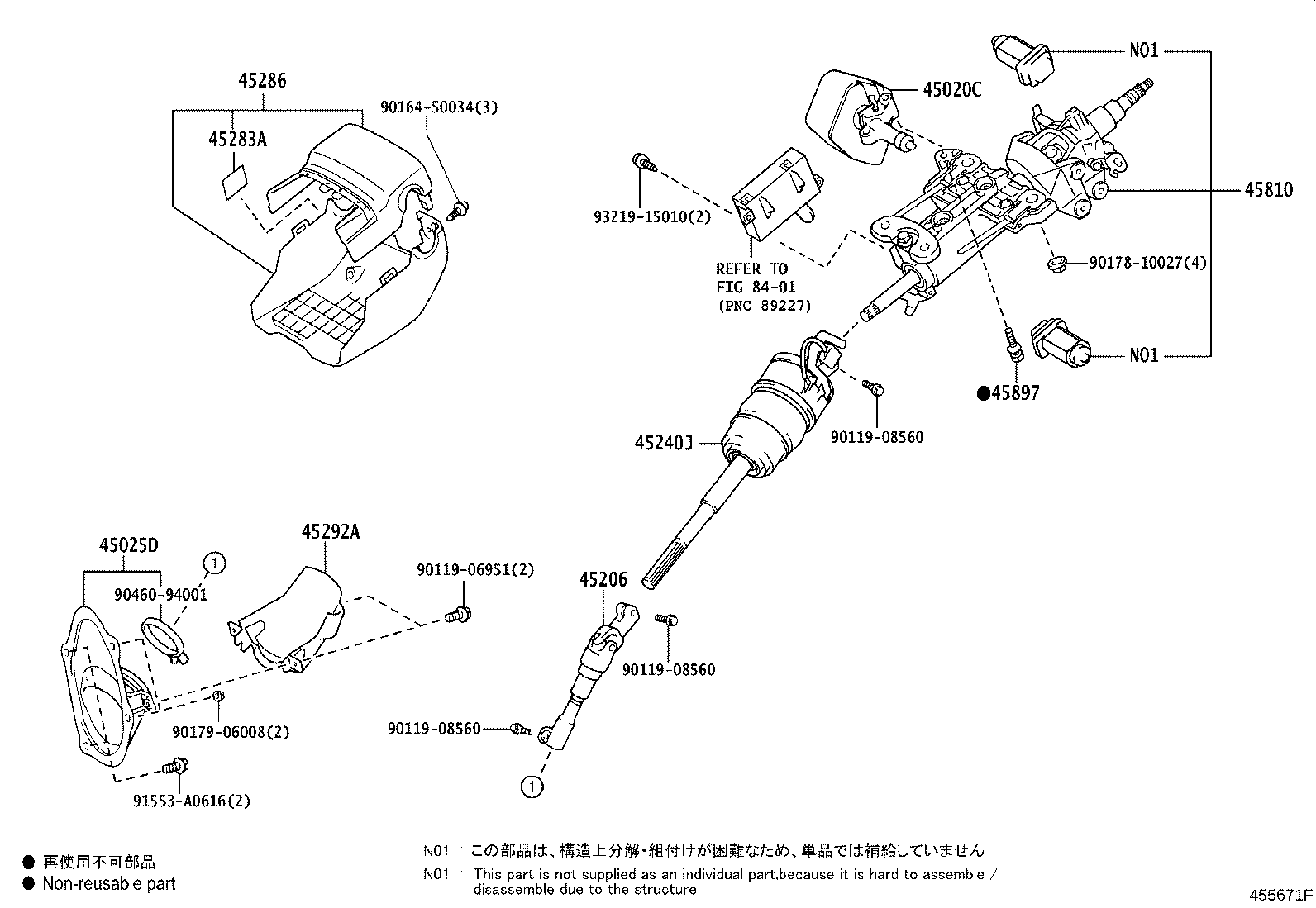

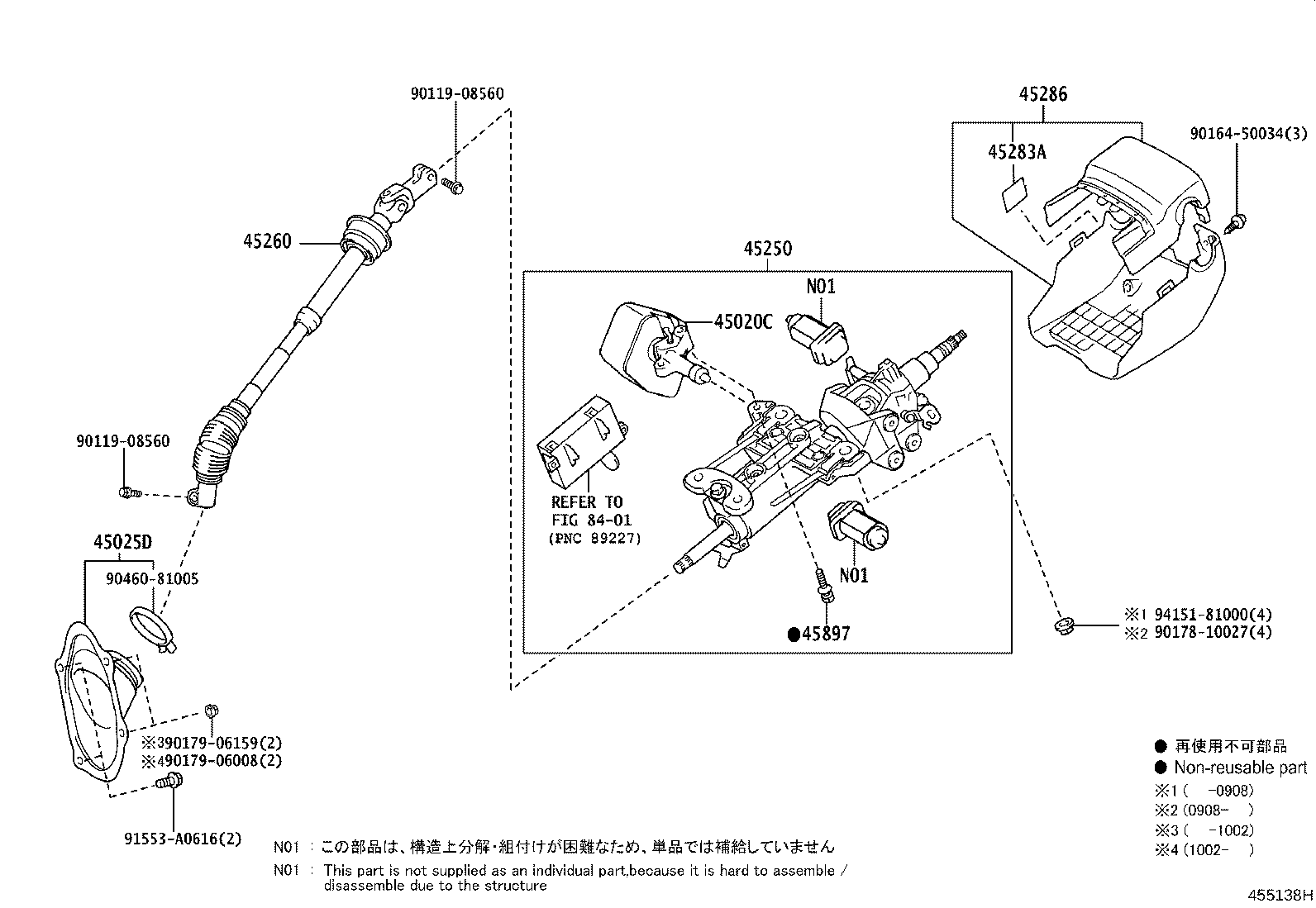

Steering Column & Shaft
43 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 45020C | Actuator Assy, Steering Lock(W/ECU) |
| 45025D | Cover Sub-assy, Steering Column Hole, NO.1 |
| 45082 | Bracket Sub-assy, Break Away W/Capsule |
| 45201A | Bearing(FOR STEERING MAIN SHAFT) |
| 45201B | Ring, Shaft Snap(FOR STEERING MAIN SHAFT) |
| 45201G | Spring, Compression(FOR STEERING MAIN SHAFT) |
| 45205J | Tube Sub-assy, Steering Column, Upper |
| 45206 | Yoke Sub-assy, Steering Sliding W/Shaft |
| 45210 | Shaft Assy, Steering Main |
| 45240J | Actuator Assy, Steering |
| 45246A | Guide, Steering Energy Absorbing Plate |
| 45250 | Column Assy, Steering |
| 45257A | Plate, Steering Column Energy Absorbing |
| 45260 | Shaft Assy, Steering Intermediate, NO.2 |
| 45263 | Ring, Steering Column, NO.1 |
| 45271 | Clamp, Steering Column, Upper |
| 45279A | Attachment, Steering Column Tube, Lwr |
| 45283A | Plate, Beam Change & Turn Signal Caution |
| 45286 | Cover, Steering Column |
| 45291A | Support, Steering Column Tube |
| 45292A | Cover, Main Shaft Lower Dust |
| 45765 | Guide, Telescopic Steering |
| 45801A | Pin Sub-assy, Steering Energy Absorbing |
| 45810 | Gear Assy, Tilt Steering, W/Motor |
| 45817 | Stopper, Steering Shaft Thrust |
| 45819 | Retainer, Tilt Lever |
| 45821B | Reinforce, Tilt Steering Support, NO.1 |
| 45826C | Bush(FOR STEERING TILT LEVER) |
| 45826D | Lever, Steering Telescopic |
| 45831A | Bolt, Telescope Lever Lock |
| 45835 | Wedge, Lock |
| 45837A | Bracket, Steerlng Lower Tube, NO.1 |
| 45855B | Shaft, T1LT Steering, NO.1 |
| 45856B | Shaft, T1LT Steering, NO.2 |
| 45870 | Tube Assy, Steering Column |
| 45873 | Stopper, Steering Column Tube |
| 45874B | Protector, Steering Column, NO.1 |
| 45880 | Lever Assy, Steering Tilt |
| 45885 | Link, Tilt Lever |
| 45887 | Clip, Steering Telescopic Lever |
| 45890A | Pawl Assy, Tilt Steering |
| 45890D | Spring, Tension(FOR TILT STEERING PAWL ASSY) |
| 45897 | Bolt, Steering Lock Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
