Toyota Crown

2008-02 → 2012-12 · chassis GRS20#,GWS204 · catalogue 3311C0 · Japan

Supported model Data version 2012-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

19 part groups · 8 illustrations

Illustrations

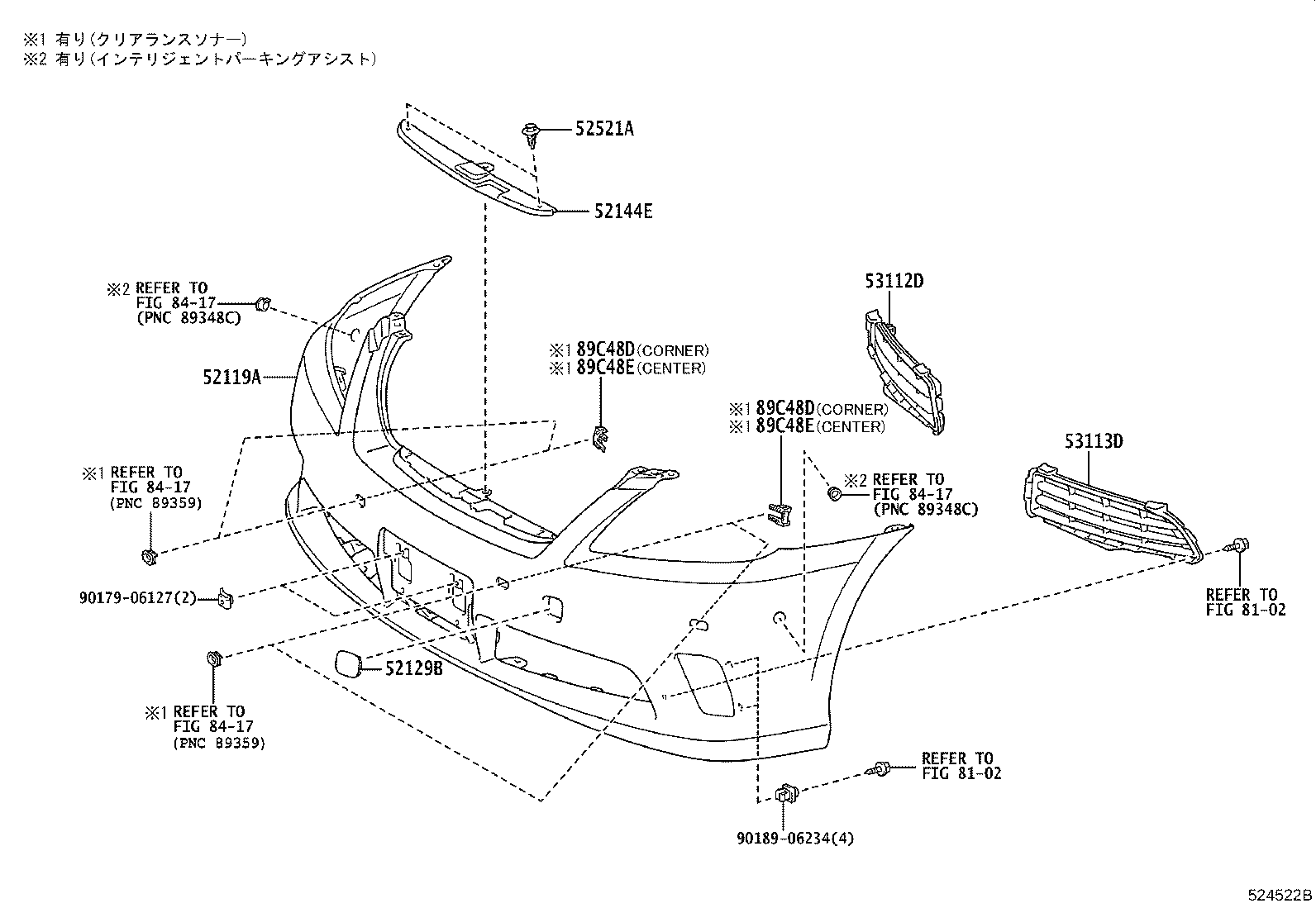

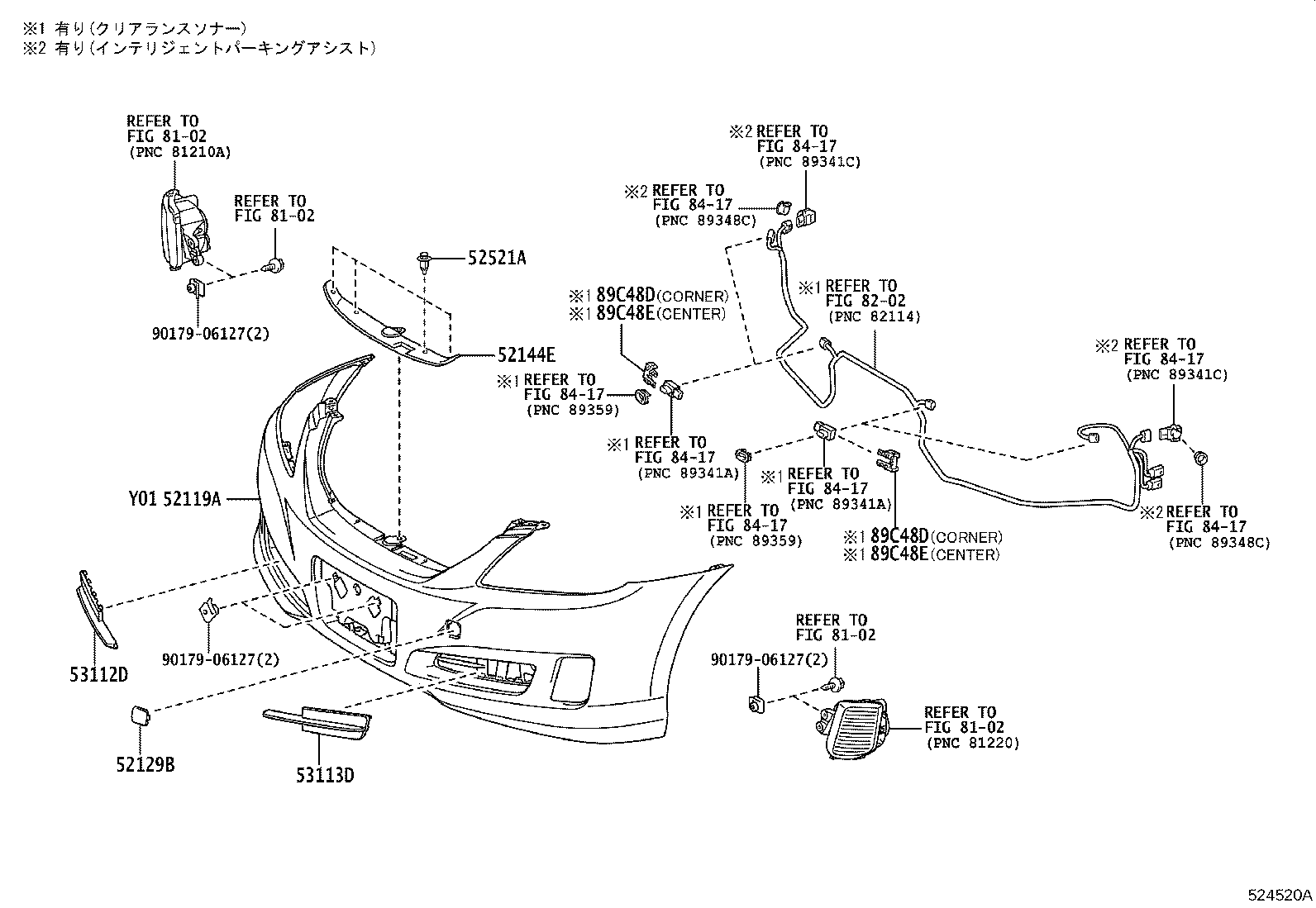

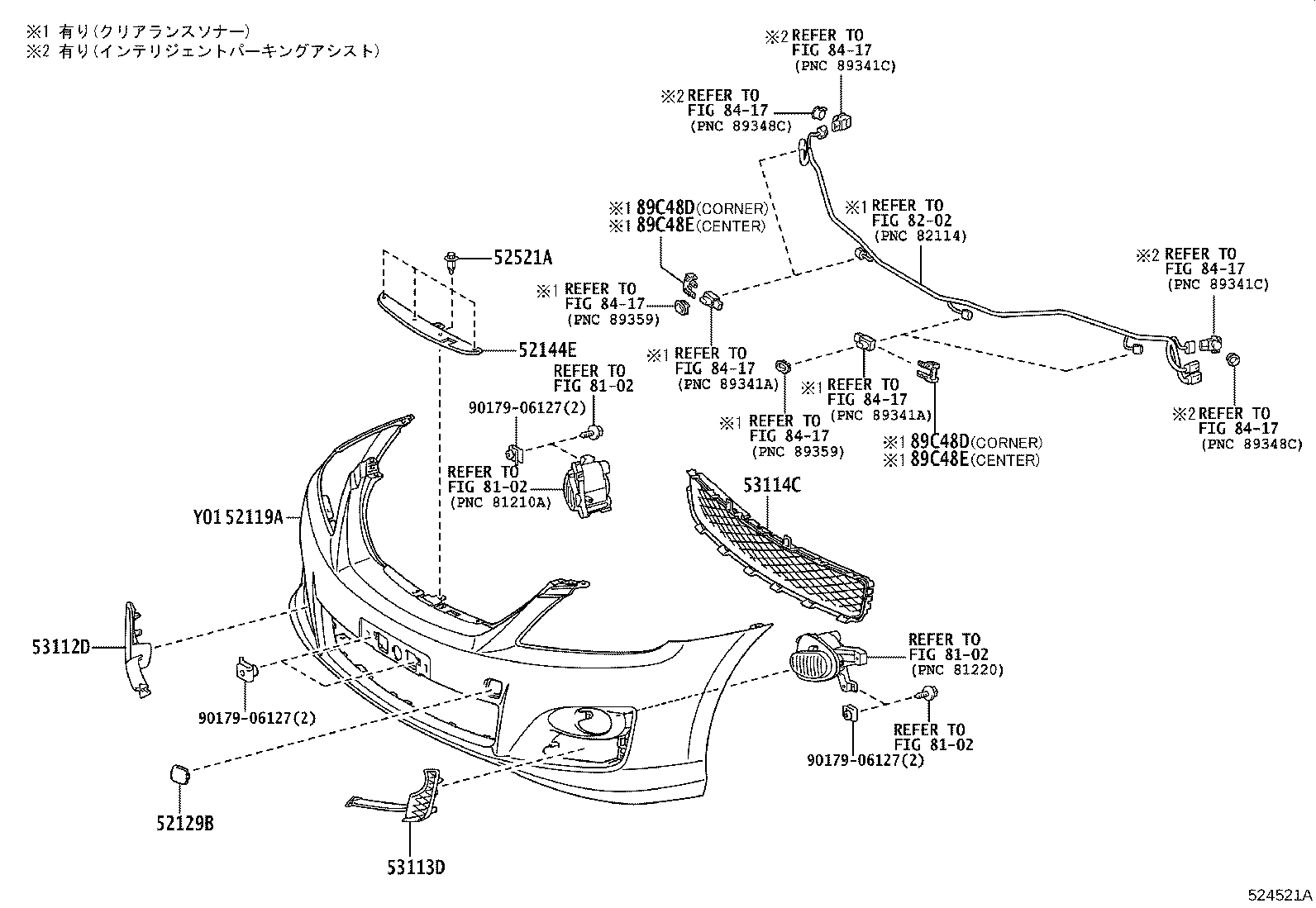

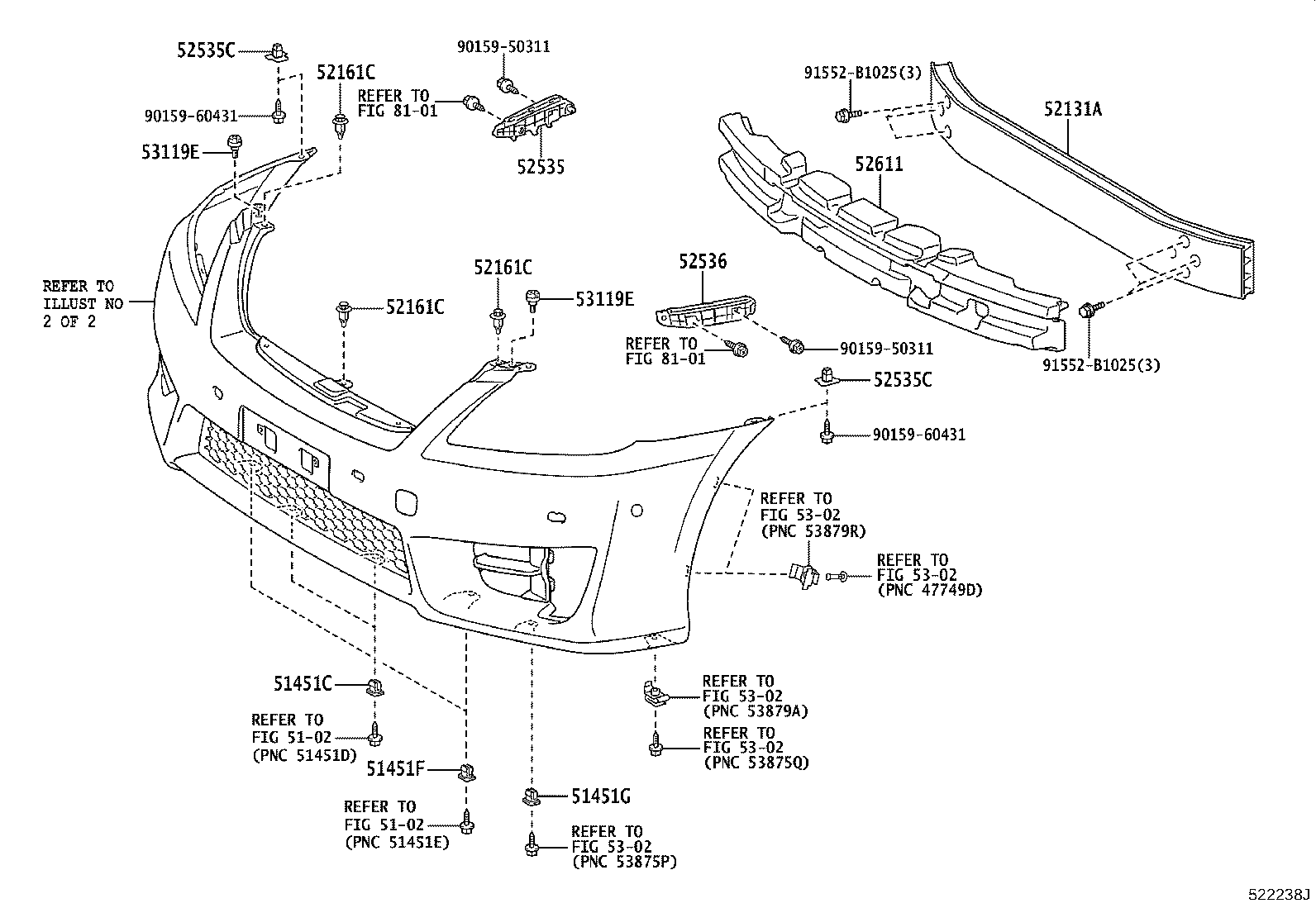

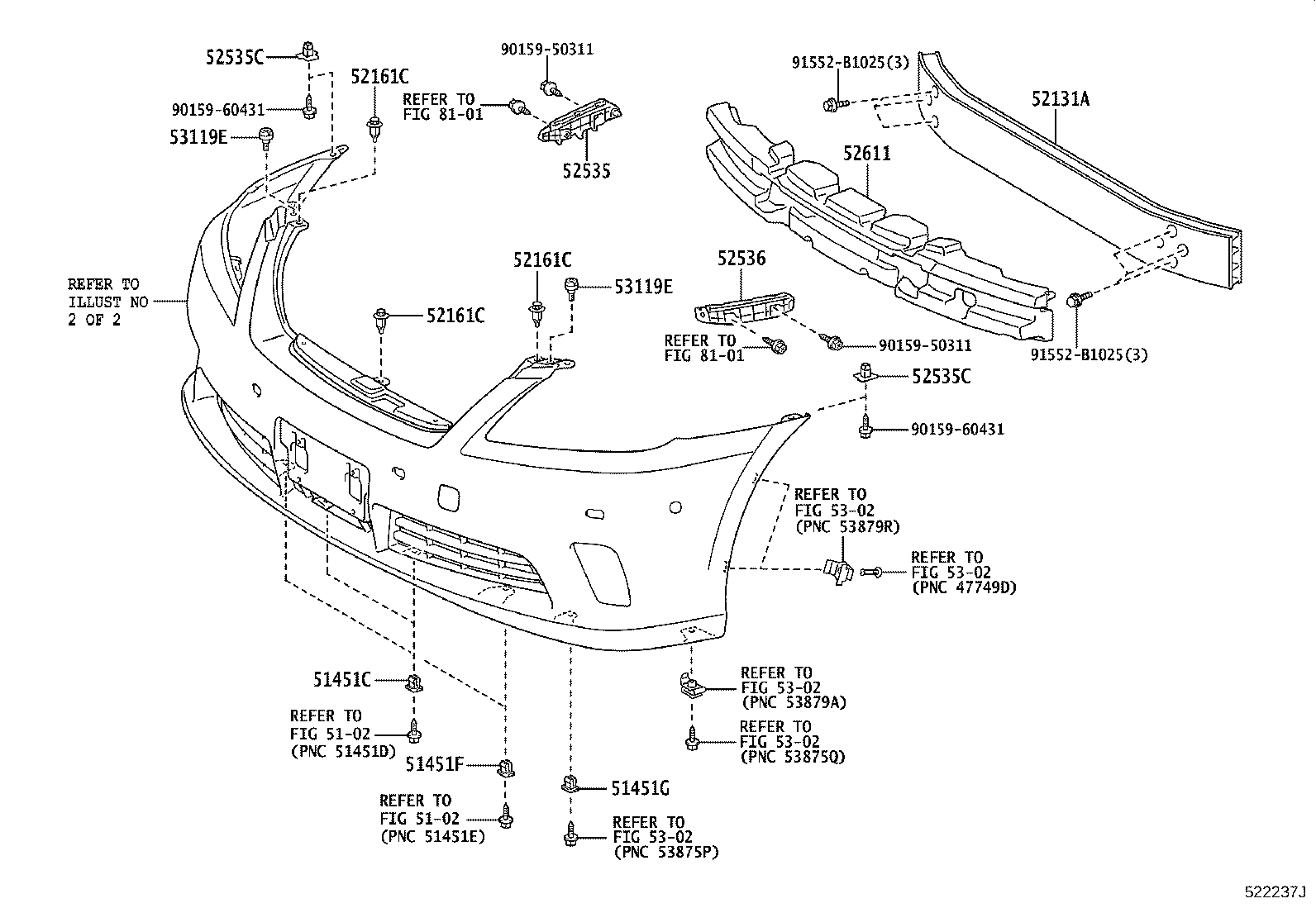

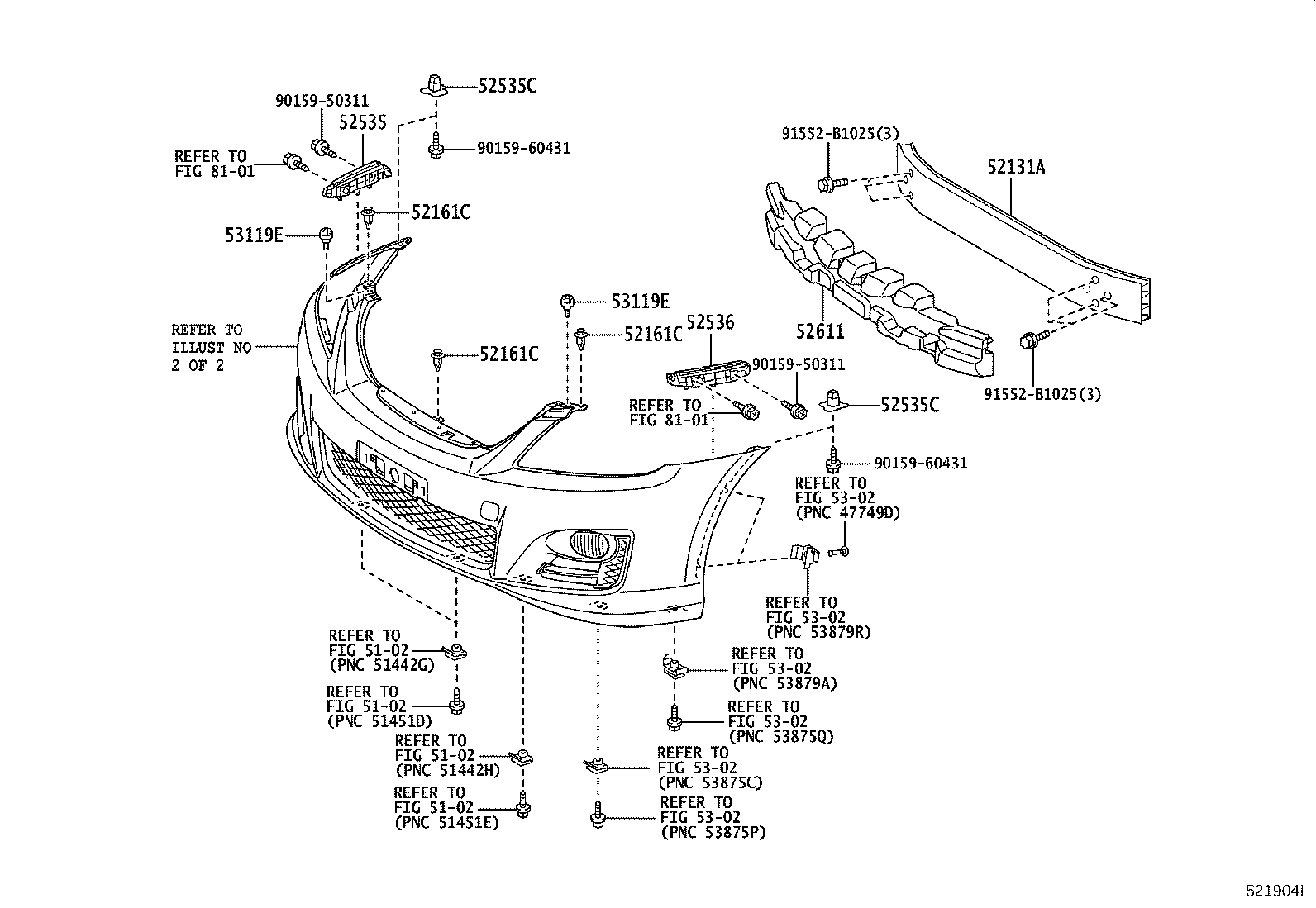

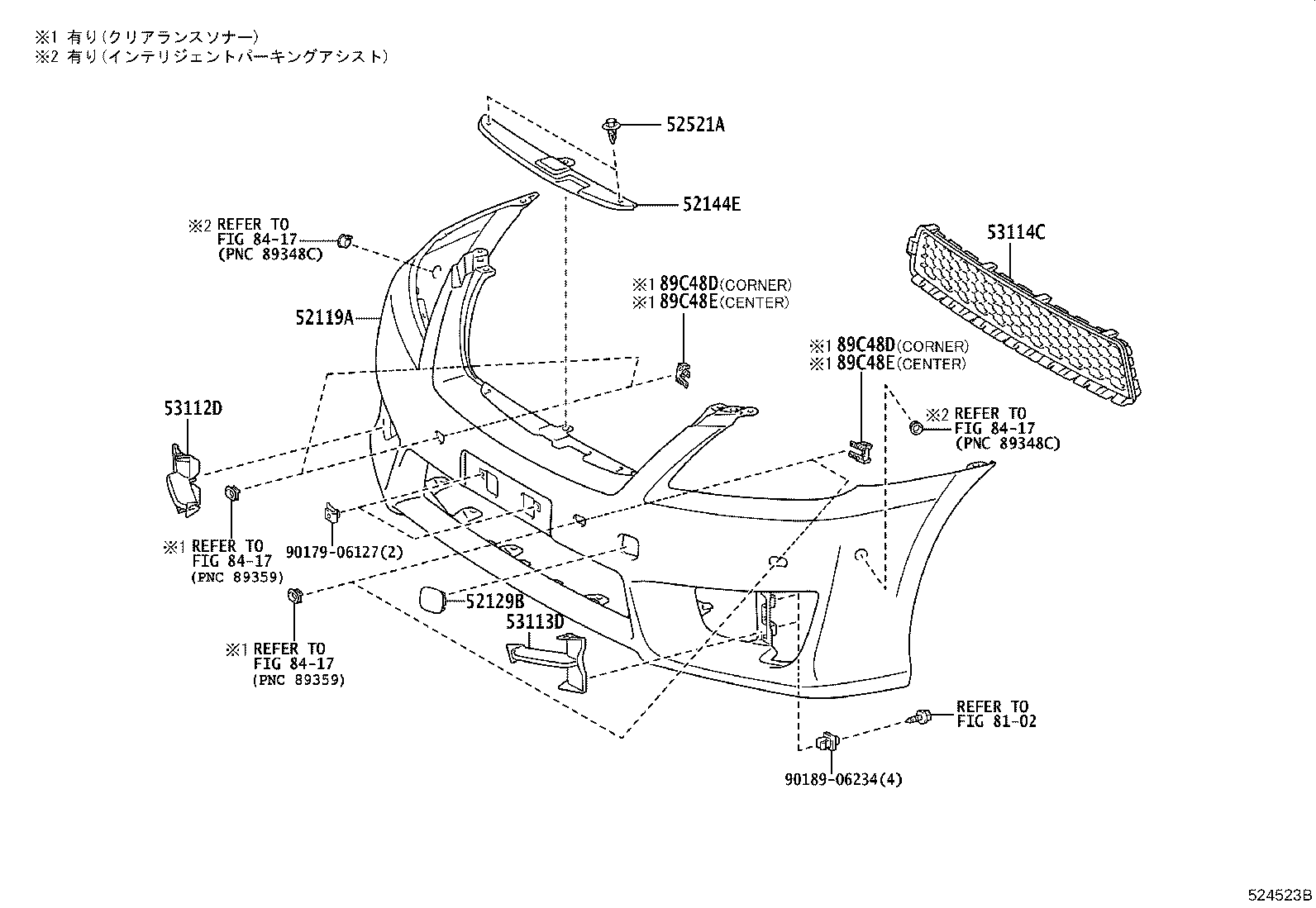

Figure 521903I 521903I 2008-02 → 2010-02 Figure 524520A 524520A 2008-02 → 2010-02 Figure 521904I 521904I 2008-02 → 2010-02 Figure 524521A 524521A 2008-02 → 2010-02 Figure 522237J 522237J 2010-02 → — Figure 524522B 524522B 2010-02 → — Figure 522238J 522238J 2010-02 → — Figure 524523B 524523B 2010-02 → —

Part groups

PNCDescription
51451C Grommet(FOR ENGINE UNDER COVER)
51451F Grommet, NO.1
51451G Grommet, NO.2
52119A Cover, Front Bumper
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52144E Stay, Front Bumper, Center
52161C Piece, Front Bumper
52521A Clip(FOR FRONT BUMPER RETAINER)
52535 Retainer, Front Bumper Side, RH
52535C Retainer, Front Bumper Side
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
53112D Grille, Radiator, Lower RH
53113D Grille, Radiator, Lower LH
53114C Grille, Radiator, Inner
53119E Protector, Radiator Grille
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48E Retainer, Ultrasonic Sensor, Front Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
