Toyota Crown

2008-02 → 2012-12 · chassis GRS20#,GWS204 · catalogue 3311C0 · Japan

Supported model Data version 2012-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

8 part groups · 6 illustrations

Illustrations

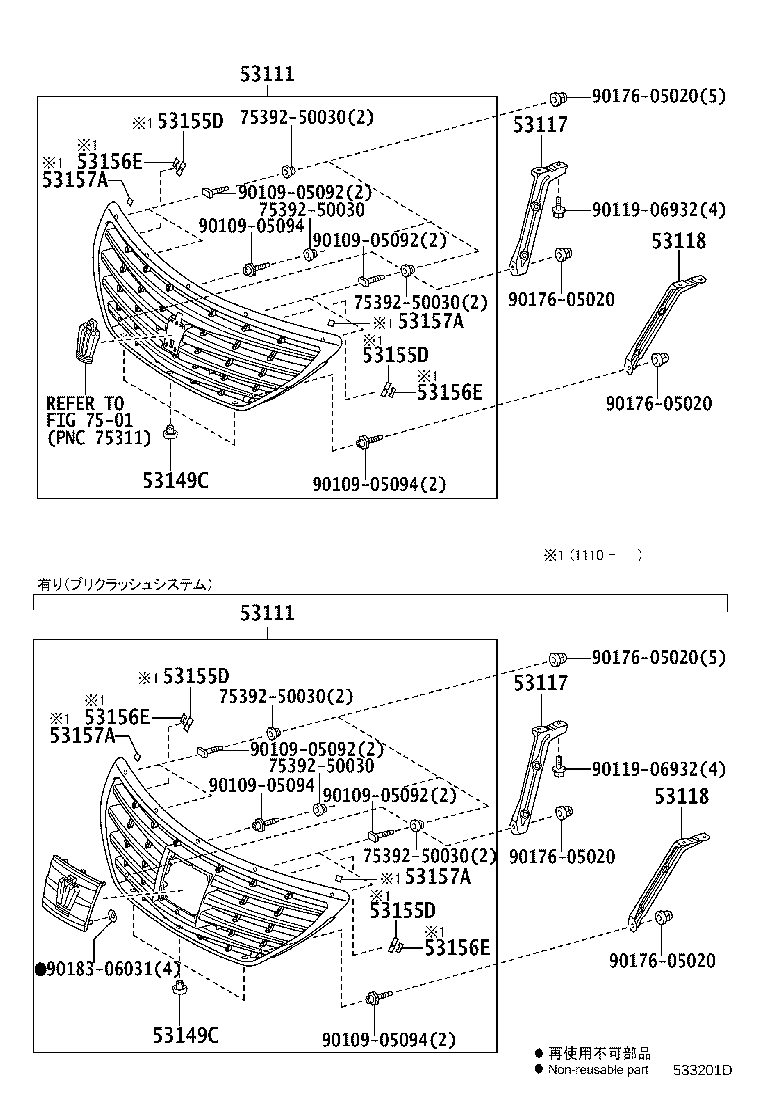

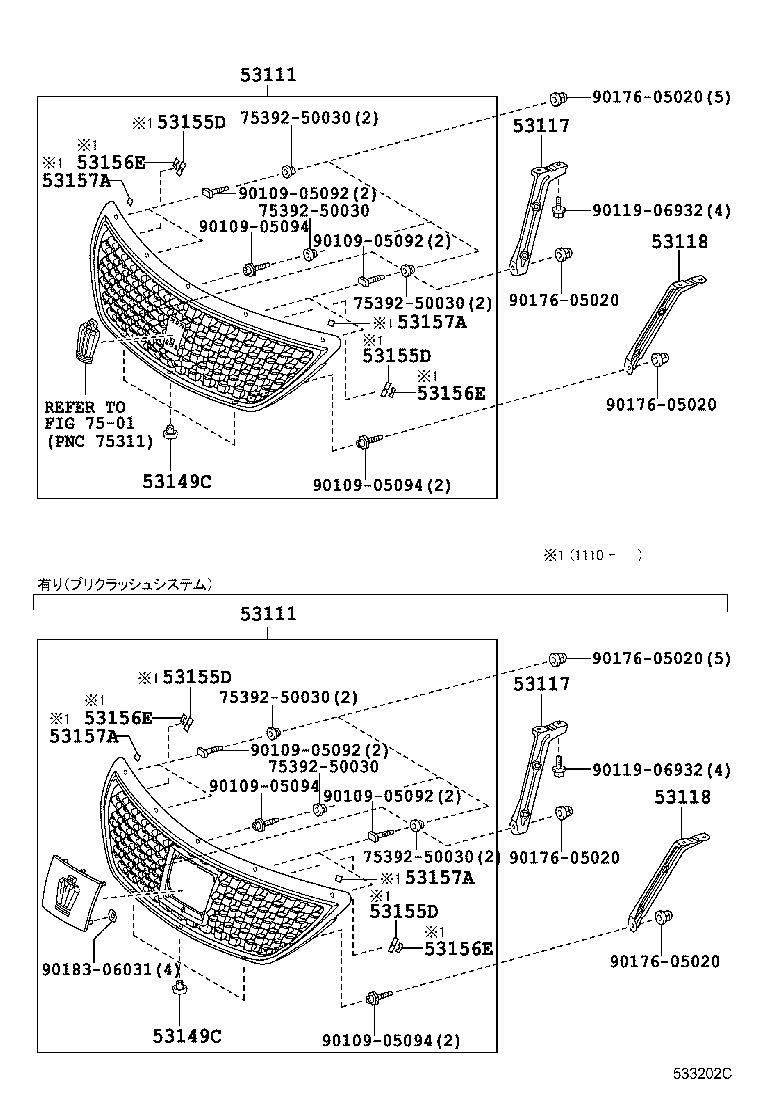

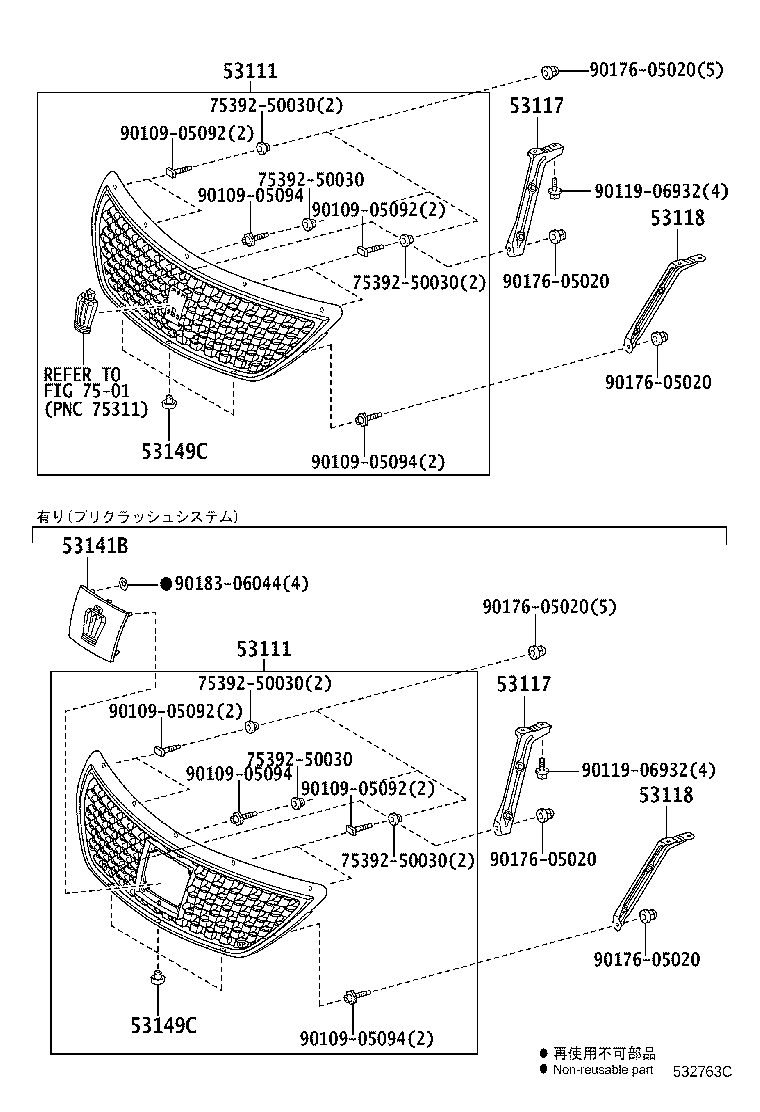

Figure 532762C 532762C 2008-02 → 2010-02 Figure 532763C 532763C 2008-02 → 2010-02 Figure 537688 537688 2008-05 → 2010-02 Figure 533201D 533201D 2010-02 → — Figure 534831A 534831A 2010-02 → — Figure 533202C 533202C 2010-02 → —

Part groups

PNCDescription
53111 Grille, Radiator
53117 Bracket, Radiator Grille Support, RH
53118 Bracket, Radiator Grille Support, LH
53141B Garnish, Radiator Grille, NO.1
53149C Protector, Radiator Grille, NO.2
53155D Seal, Radiator Grille, NO.1
53156E Seal, Radiator Grille, NO.2
53157A Seal, Radiator Grille, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
