Toyota Crown

2008-02 → 2012-12 · chassis GRS20#,GWS204 · catalogue 3311C0 · Japan

Supported model Data version 2012-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

33 part groups · 2 illustrations

Illustrations

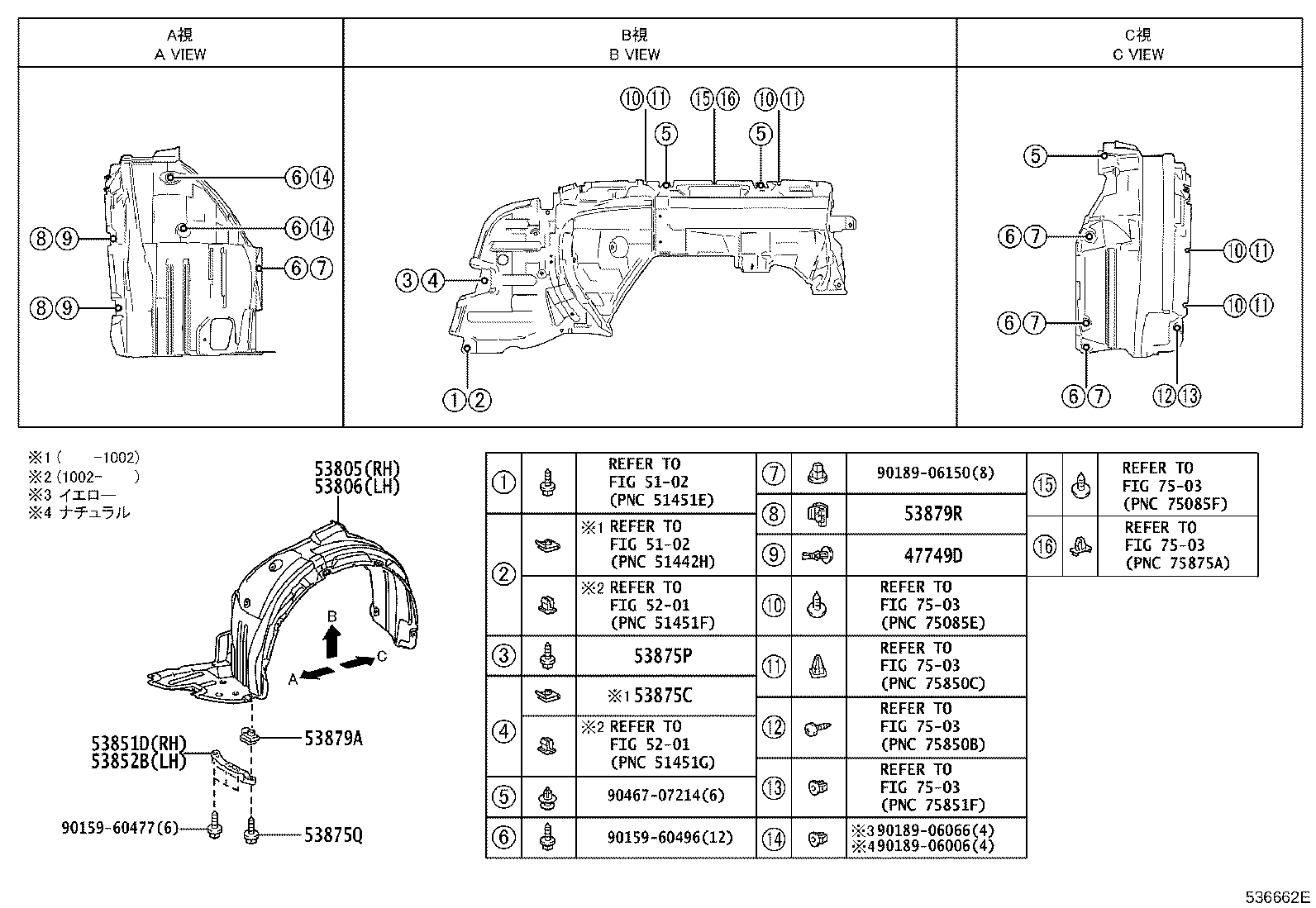

Figure 532758K 532758K 2008-02 → — Figure 536662E 536662E 2008-02 → —

Part groups

PNCDescription
47749D Clip, Pin Hold
53209E Duct Sub-assy, Cool Air Intake, NO.3
53285L Duct, Cool Air Intake, NO.2
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53378C Seal, Hood Air Intake Duct
53378D Clip(FOR HOOD AIR INTAKE DUCT SEAL)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53825A Protector, Front Fender, Upper RH
53826A Protector, Front Fender, Upper LH
53827L Protector, Front Fender Side Panel, RH
53827Q Clip, Front Fender Side Panel Protector, NO.1
53828K Protector, Front Fender Side Panel, LH
53828N Clip, Front Fender Side Panel Protector, NO.1
53835C Bracket, Front Side Panel, RH
53836B Bracket, Front Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53875C Clip, Front Fender Liner
53875P Screw, NO.1
53875Q Screw, NO.2
53879A Retainer, Front Fender Liner
53879R Retainer, Front Fender Liner
53882N Clip(FOR FRONT FENDER SEAL)
53882P Seal, Front Fender, RH
53883K Seal, Front Fender, LH
53883S Clip(FOR FRONT FENDER SEAL)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
