Toyota Crown

2008-02 → 2012-12 · chassis GRS20#,GWS204 · catalogue 3311C0 · Japan

Supported model Data version 2012-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Package Tray Panel & Luggage Compartment Mat

38 part groups · 5 illustrations

Illustrations

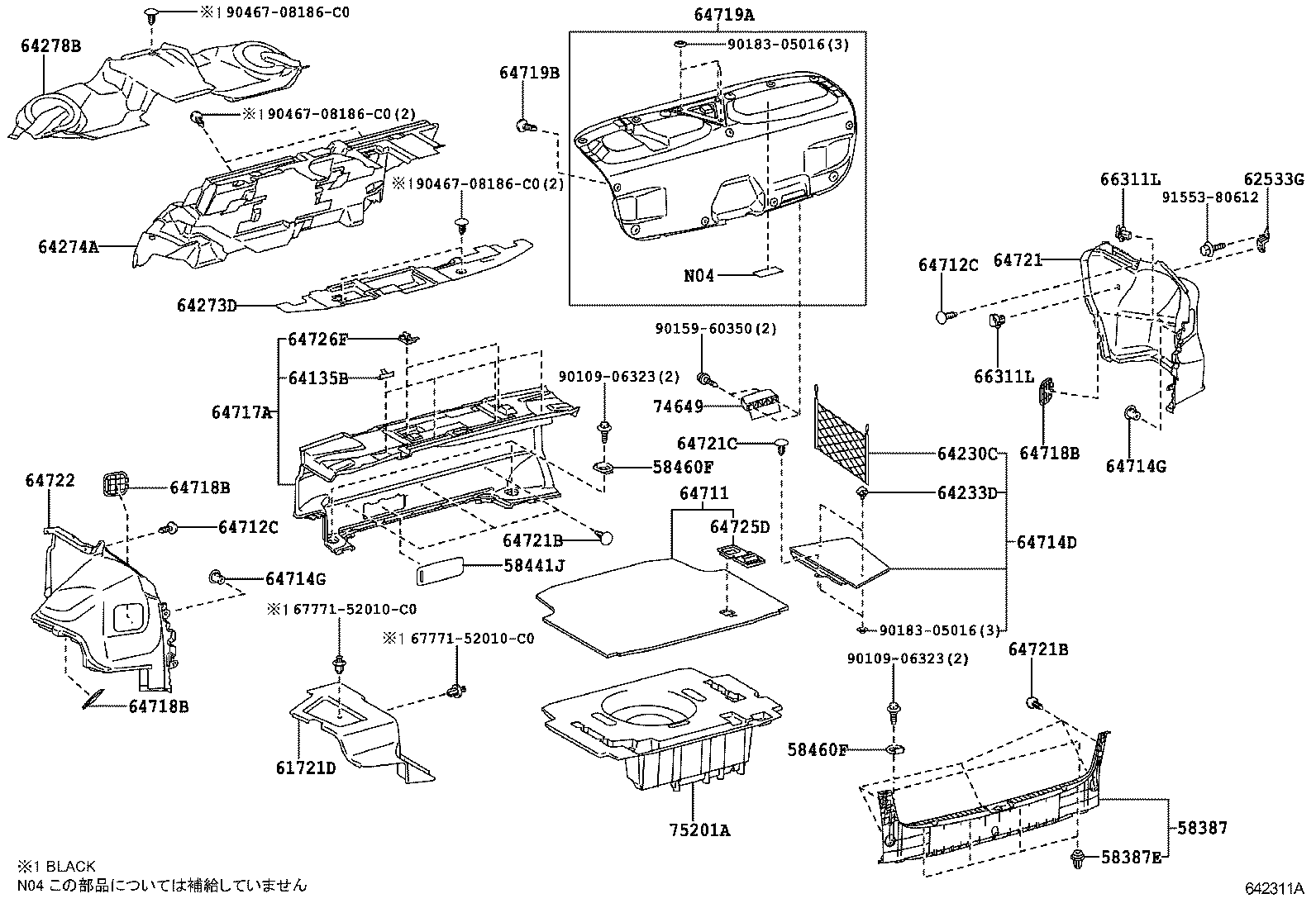

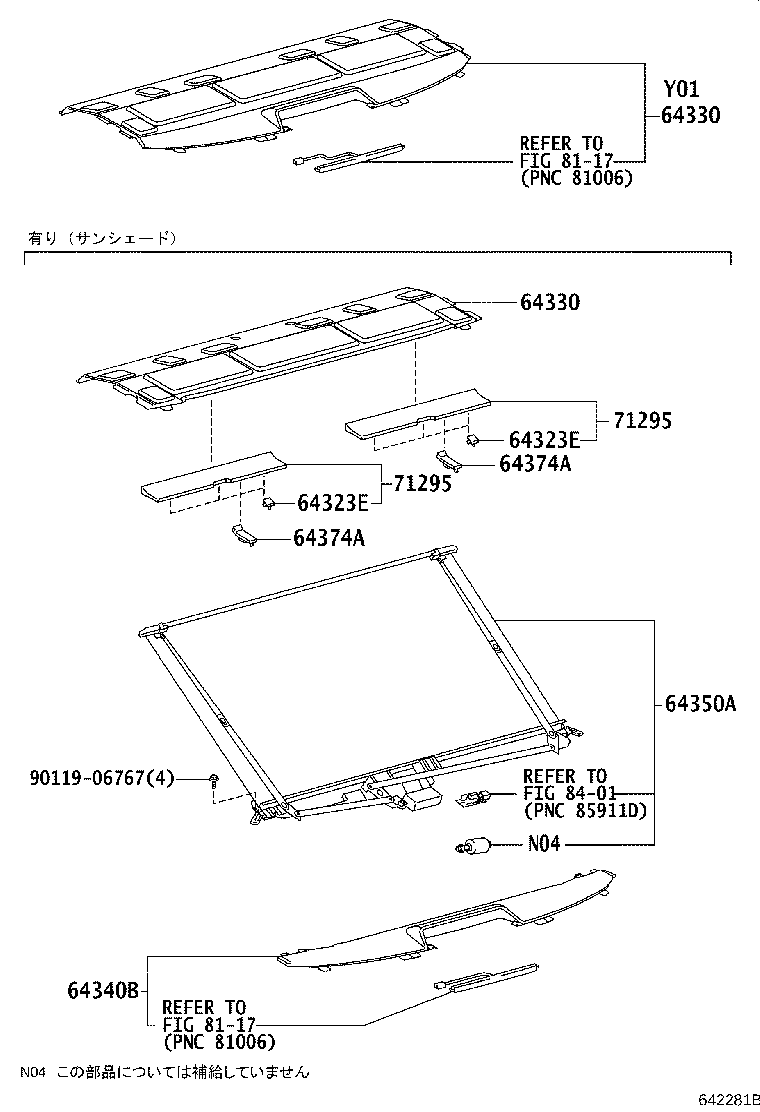

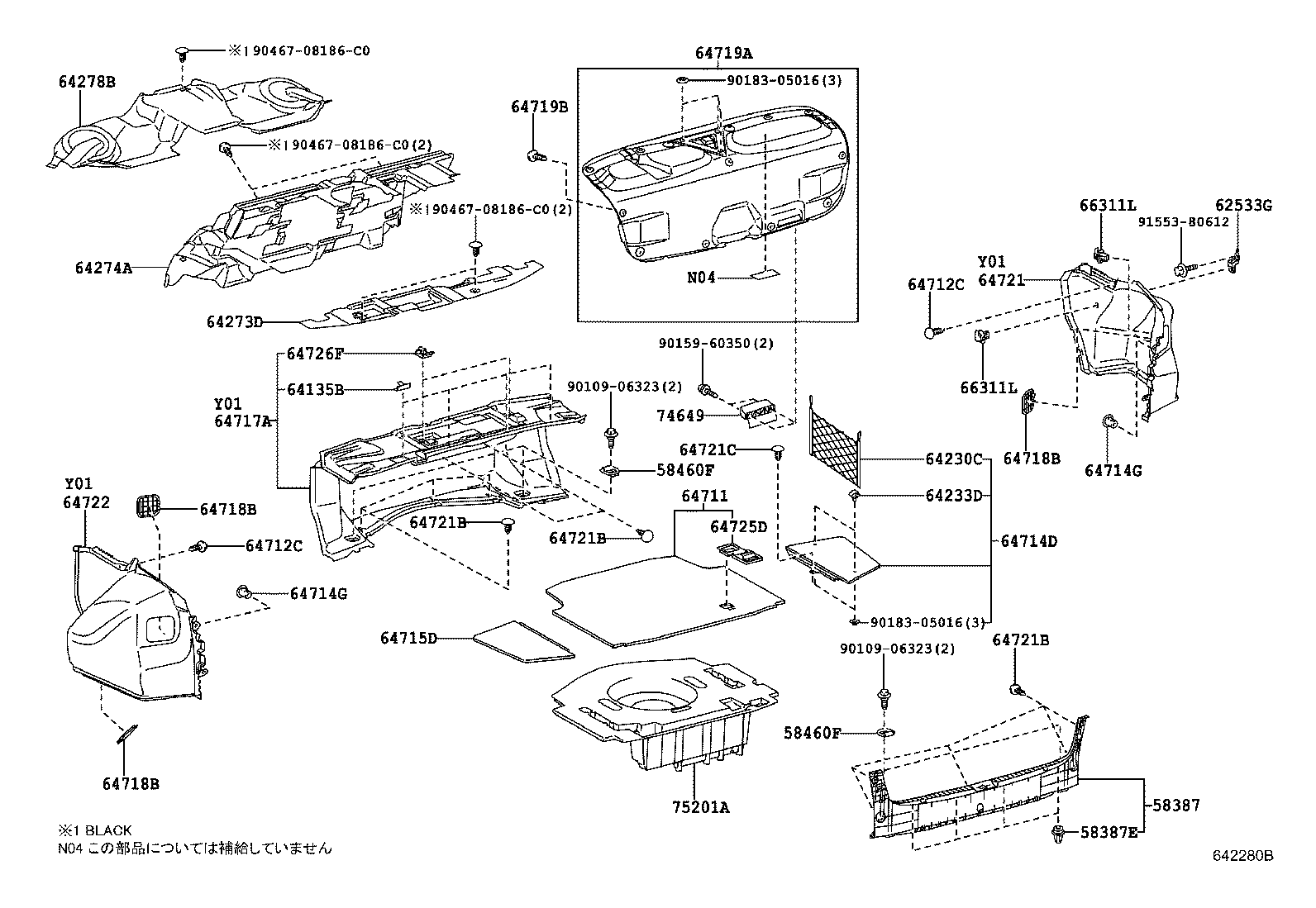

Figure 642279C 642279C 2008-02 → — Figure 642280B 642280B 2008-02 → — Figure 642311A 642311A 2008-05 → — Figure 642281B 642281B 2008-02 → — Figure 642923B 642923B 2008-02 → —

Part groups

PNCDescription
58387 Plate, Rear Floor Finish
58387E Clip(FOR REAR FLOOR FINISH PLATE)
58441J Cover, Battery Service Hole
58460F Striker Assy, Luggage Hold Belt
61721D Cover, Battery Service Hole, LH
62533G Bracket, Quarter Trim, RH
64135B Bracket, Luggage Compartment Tray, Rear RH
64230C Net Assy, Room Partition
64233D Hook, Room Partition Net, Rear RH
64273D Pad, Room Partition, NO.1
64274A Pad, Room Partition, NO.2
64278B Pad, Room Partition, NO.3
64323E Clamp, Package Tray Trim
64330 Panel Assy, Package Tray Trim
64332 Cover, Package Tray Trim
64340B Panel Assy, Package Tray Trim, NO.2
64350A Shade Assy, Rear Window
64374A Support, Package Tray Trim
64711 Mat, Luggage Compartment Floor
64712C Clip(FOR LUGGAGE COMPARTMENT TRIM COVER)
64714D Cover, Luggage Compartment Trim, Side, RH
64714G Clip(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)
64715D Cover, Luggage Compartment Trim, Side, LH
64717A Cover, Luggage Compartment Trim, Front
64718B Cover, Luggage Trim Service Hole
64719A Cover, Luggage Compartment Door
64719B Clip(FOR LUGGAGE COMPARTMENT DOOR)
64721 Cover, Luggage Compartment Trim, Inner RH
64721A Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64721B Cover, Luggage Compartment Trim, NO.1
64721C Clip(LUGGAGE COMPARTMENT)
64722 Cover, Luggage Compartment Trim, Inner LH
64725D Hook, Luggage Compartment Trim, NO.1
64726F Hook, Luggage Compartment Trim, NO.2
66311L Hook,Rope
71295 Plate, Rear Seatback, Upper RH
74649 Grip, Luggage Compartment Door Assist
75201A Box, Tool
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
