Toyota Crown

2008-02 → 2012-12 · chassis GRS20#,GWS204 · catalogue 3311C0 · Japan

Supported model Data version 2012-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

95 part groups · 16 illustrations

Illustrations

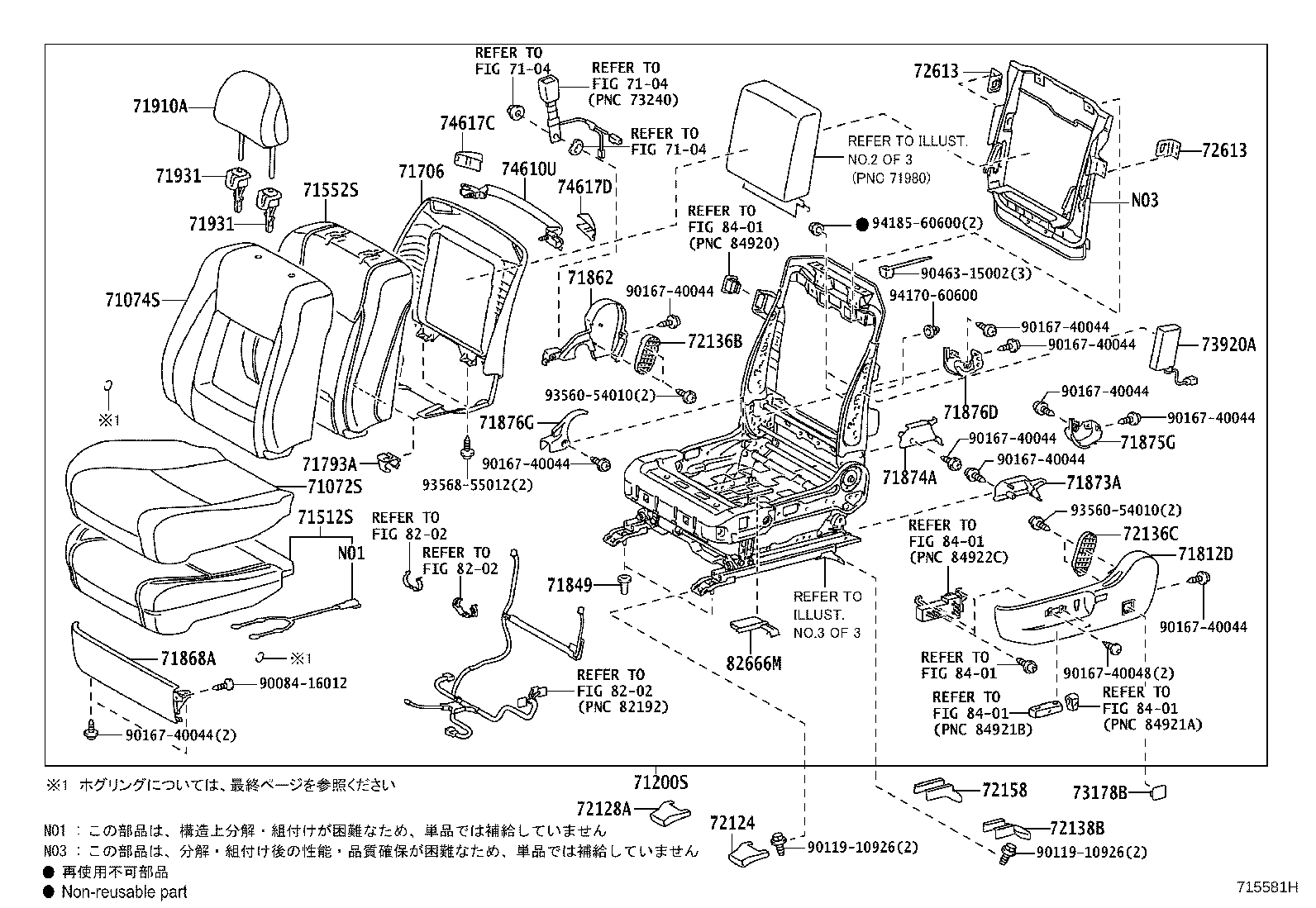

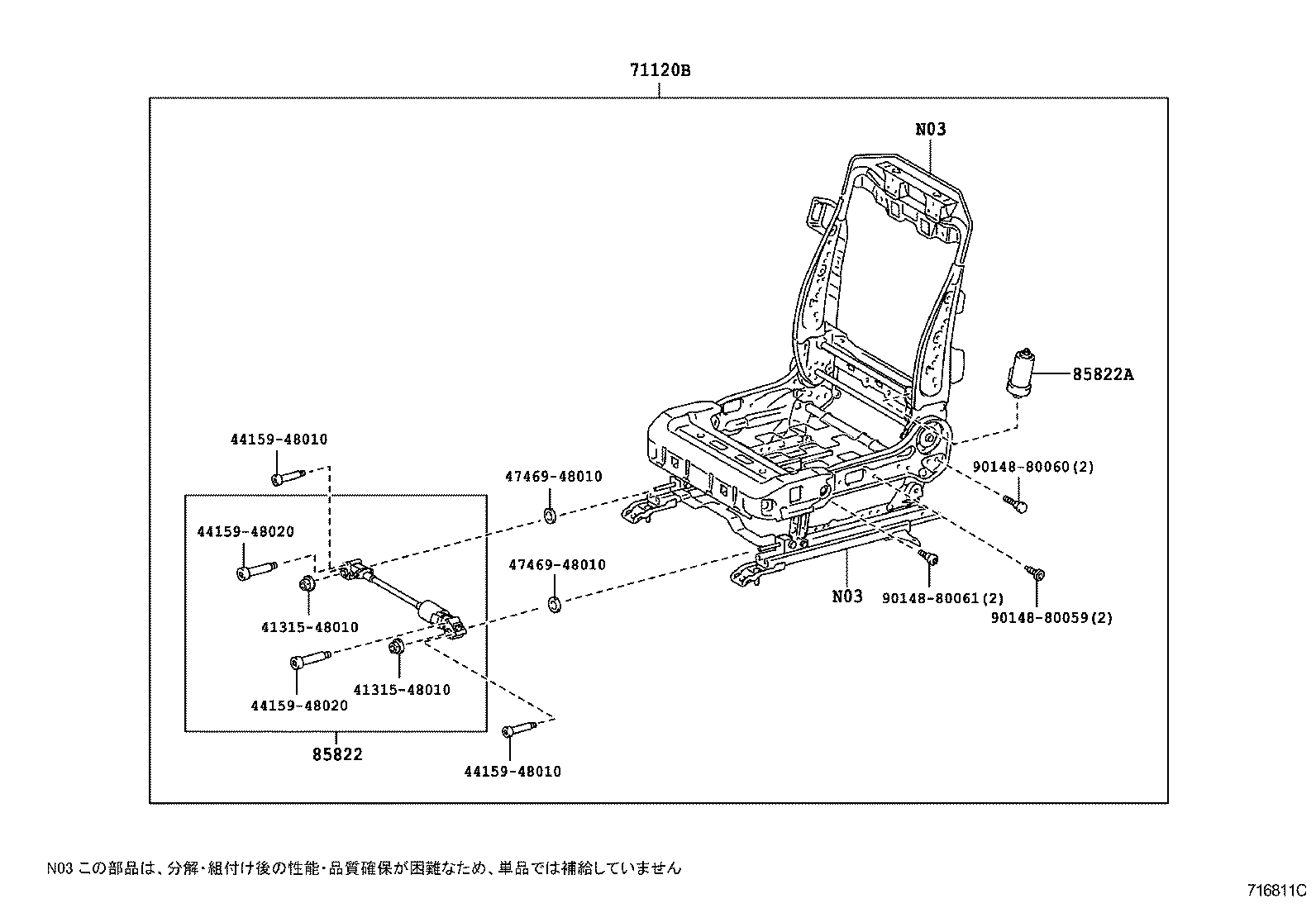

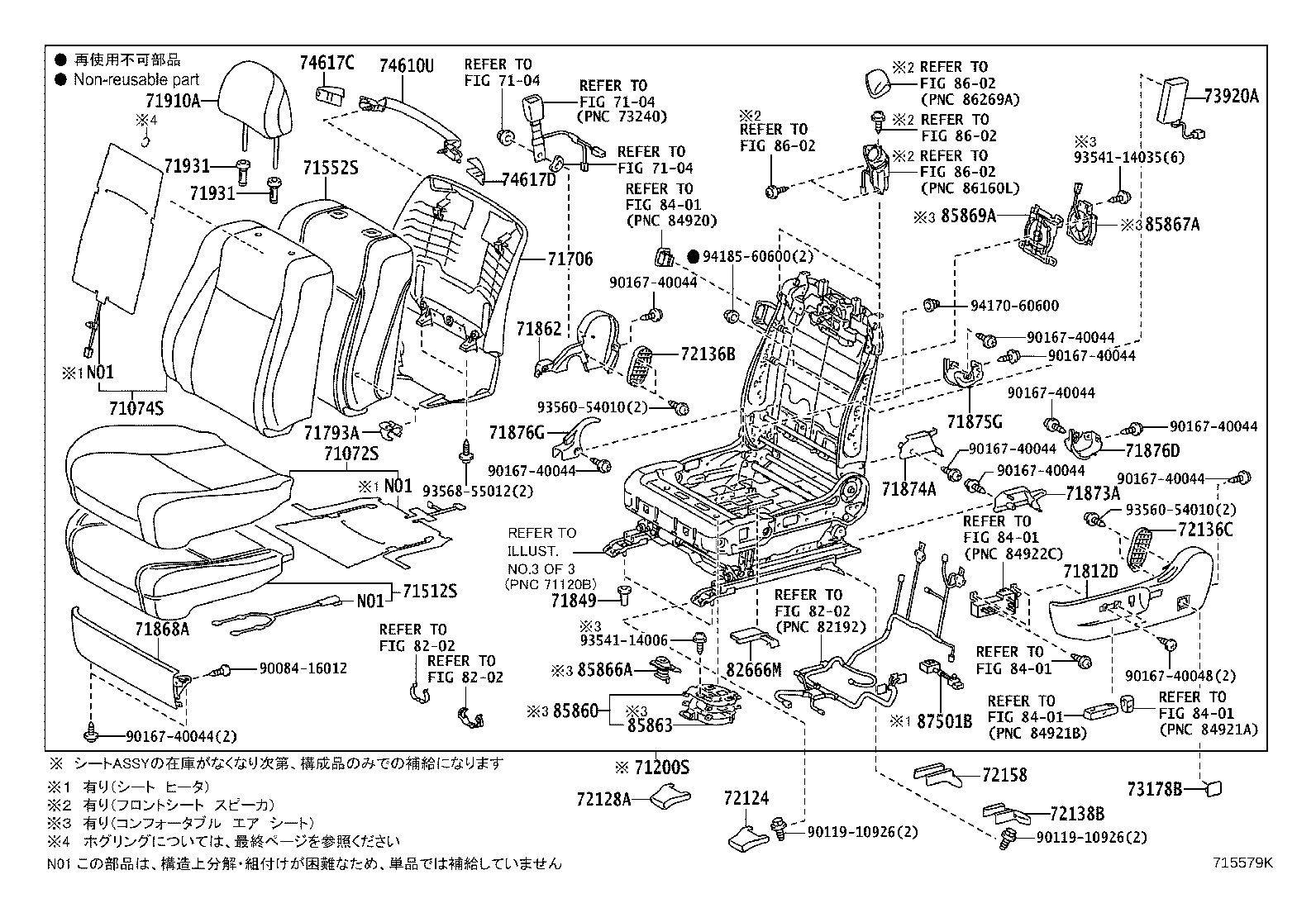

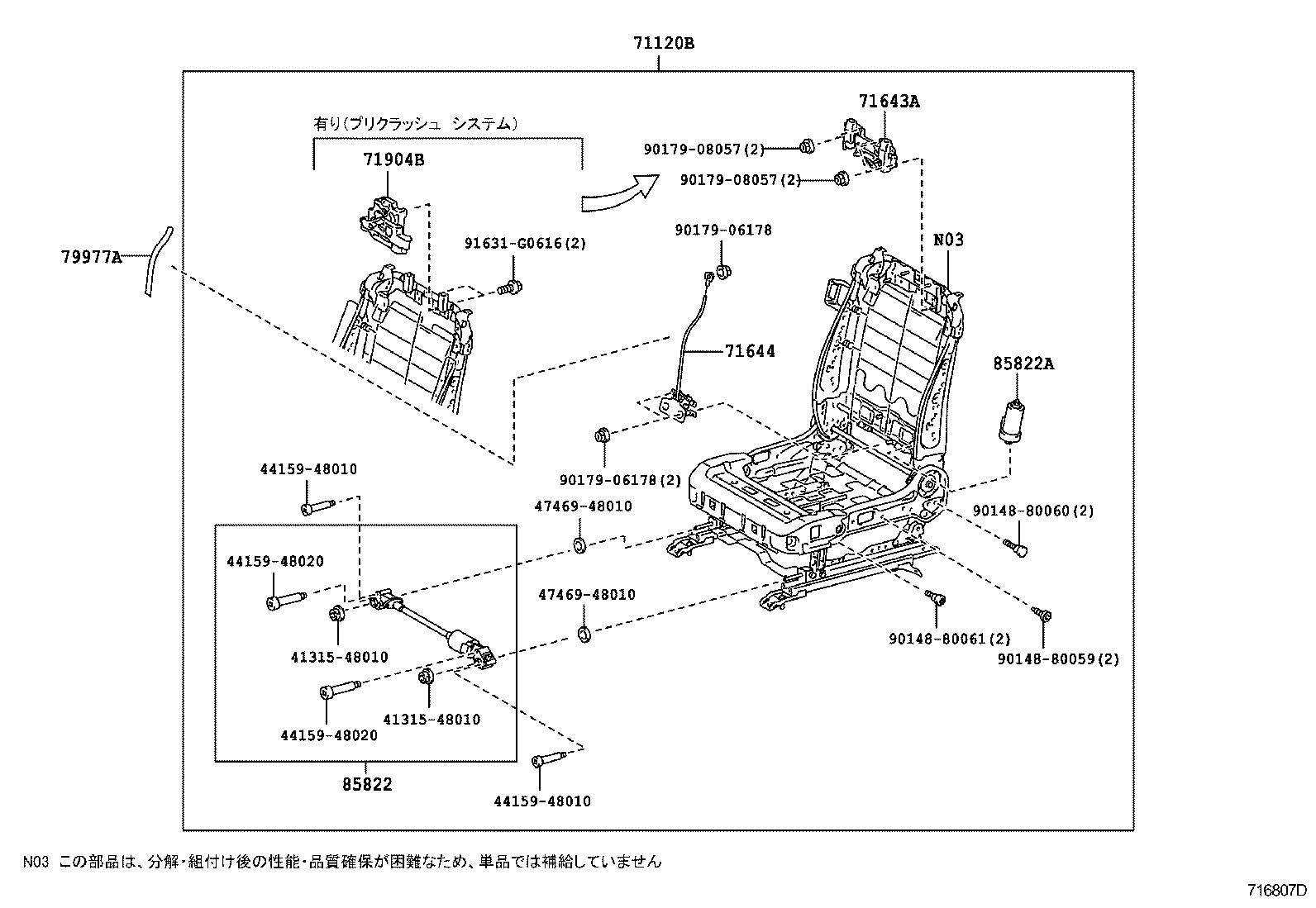

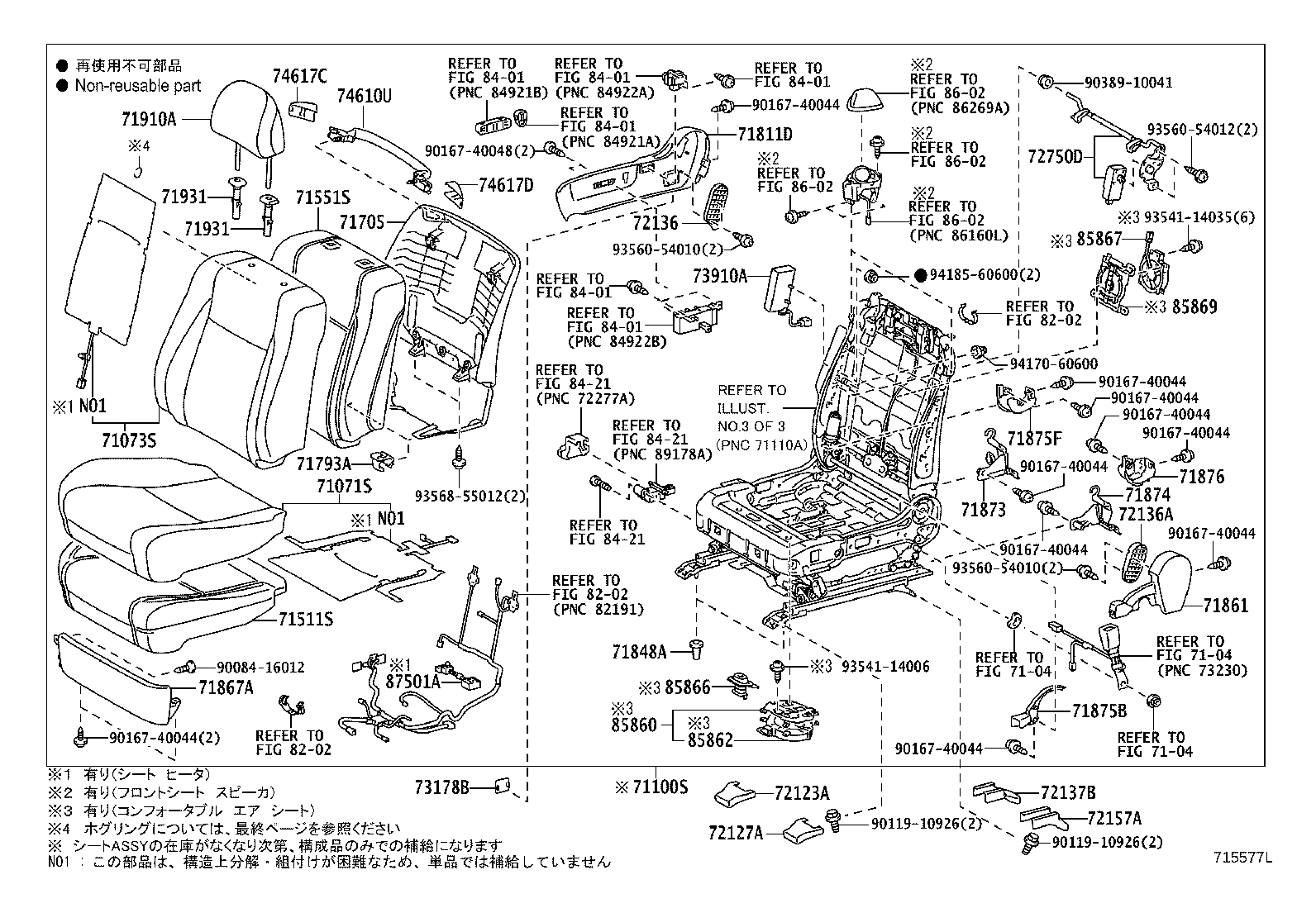

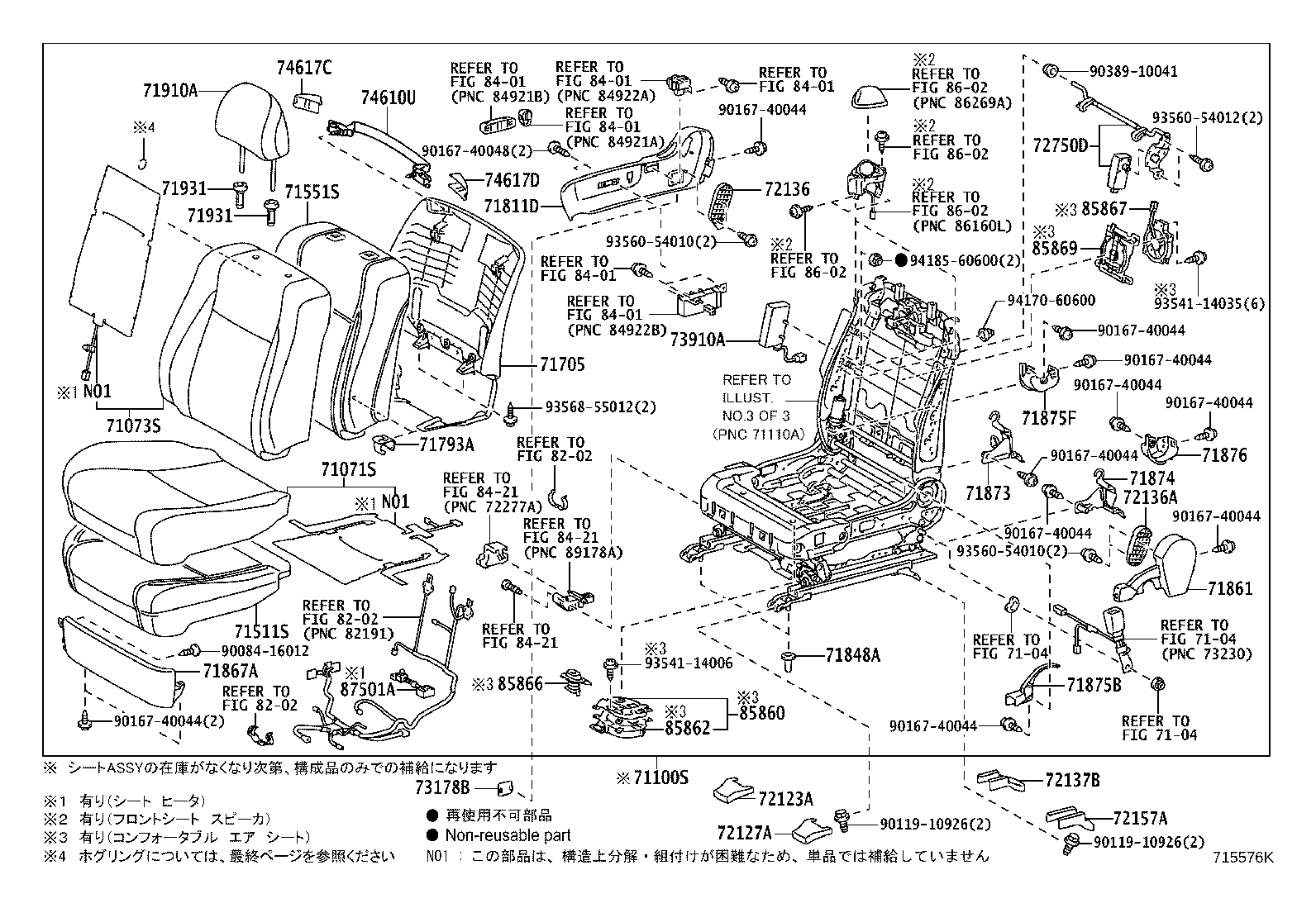

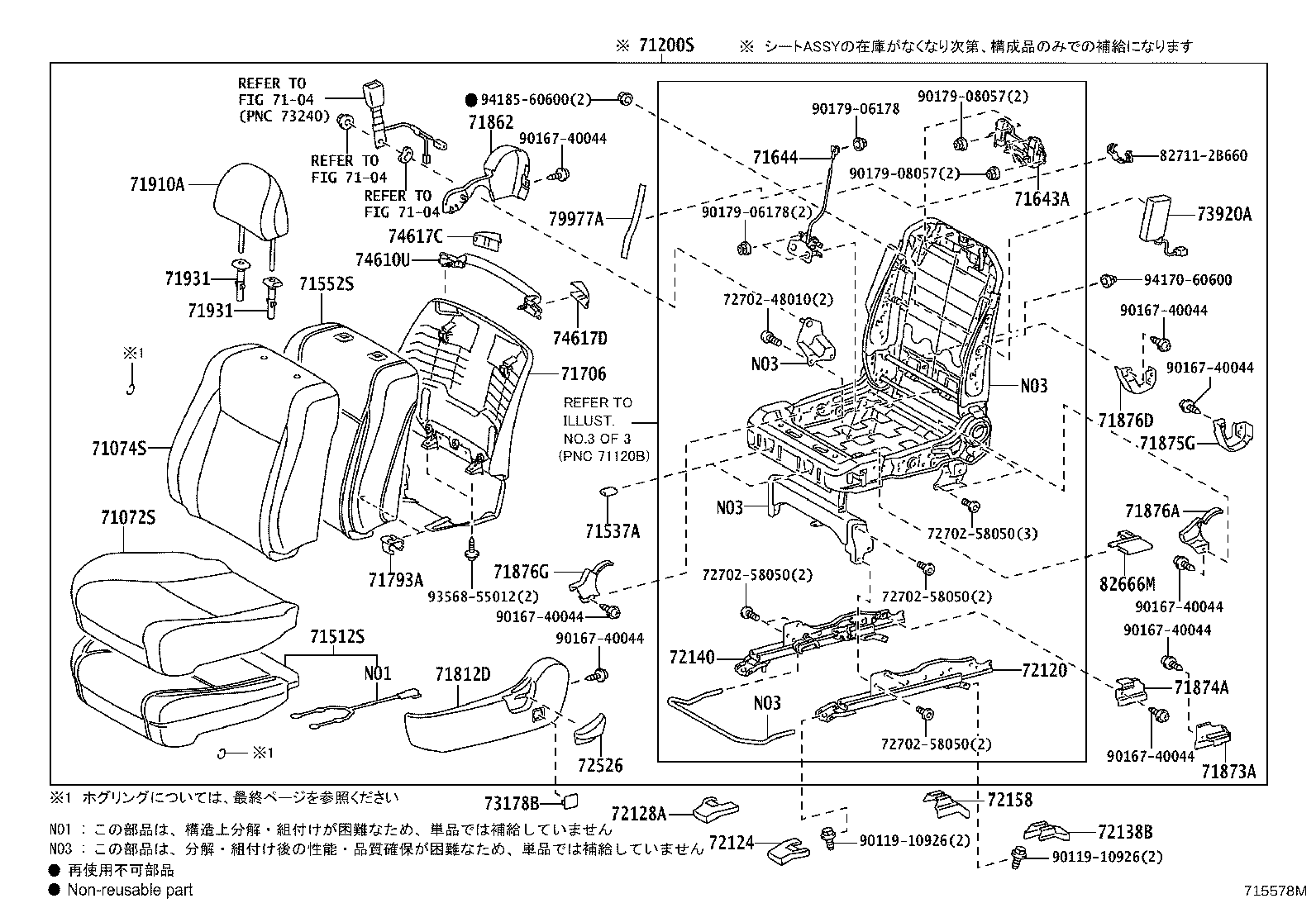

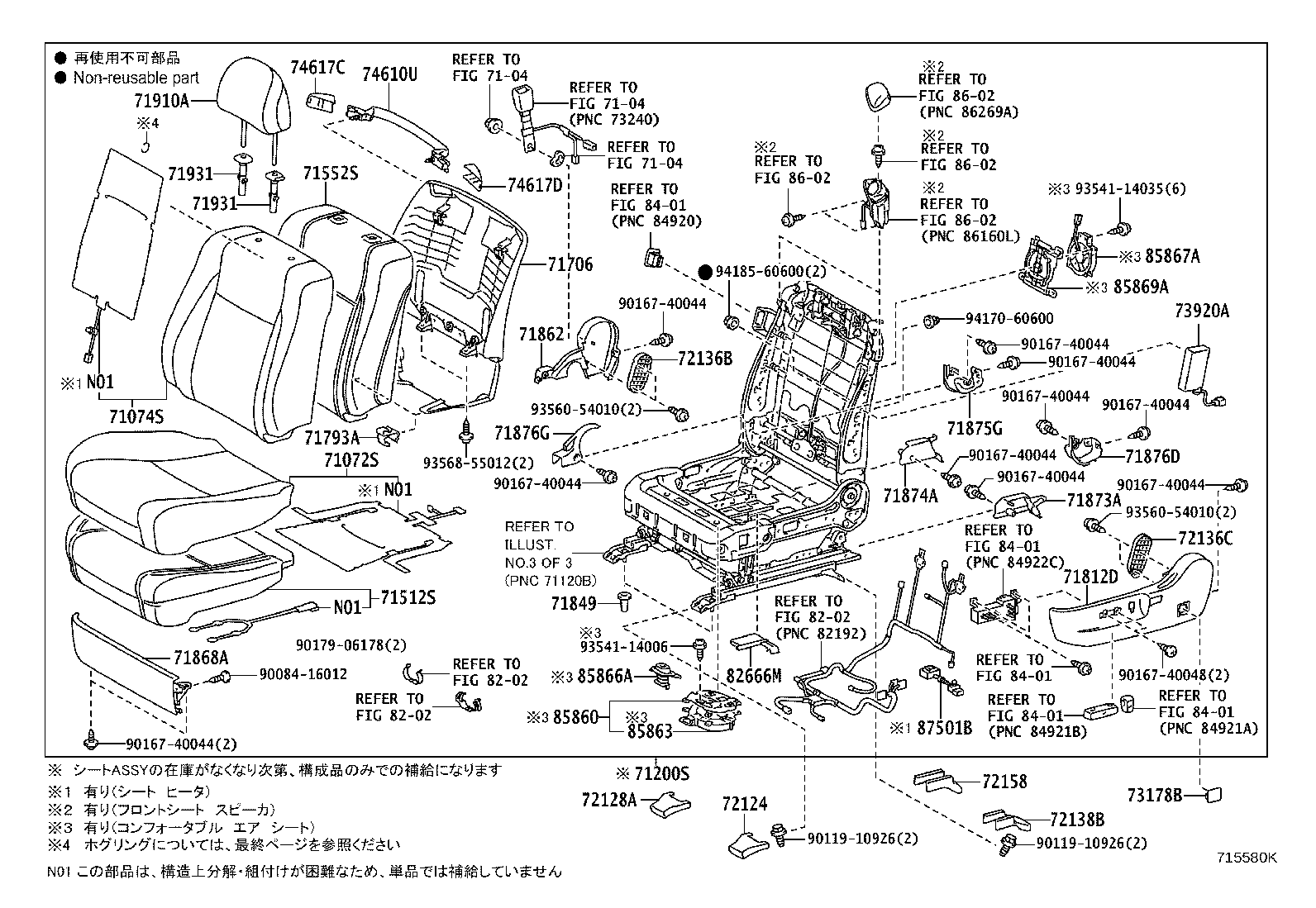

Figure 715575M 715575M 2008-02 → — Figure 715575M 715575M 2009-04 → — Figure 715575M 715575M 2009-07 → — Figure 715576K 715576K 2008-02 → — Figure 715577L 715577L 2008-02 → — Figure 715578M 715578M 2008-02 → — Figure 715578M 715578M 2009-04 → — Figure 715578M 715578M 2009-07 → — Figure 715579K 715579K 2008-02 → — Figure 715580L 715580L 2008-02 → — Figure 716570H 716570H 2008-02 → — Figure 716807D 716807D 2008-02 → — Figure 715581H 715581H 2008-02 → — Figure 713164C 713164C 2008-02 → — Figure 716811C 716811C 2008-02 → — Figure 718165M 718165M 2008-02 → —

Part groups

PNCDescription
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71084S Cover Sub-assy, Front Seatback, Inside LH
71100S Seat Assy, Front RH
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71200S Seat Assy, Front LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71553B Pad, Front Seatback, B
71643A Unit, Active Headrest, Upr
71644 Unit, Active Headrest, Lwr
71705 Board Sub-assy, Front Seatback, RH
71706 Board Sub-assy, Front Seatback, LH
71793A Clip, Front Seatback Pocket
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71848A Cap, Seat Adjuster Cover, RH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71873B Shield, Front Seat Cushion, Lower RH, NO.1
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71876D Cover, Reclining Adjuster Outside, LH
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71904B Adjuster Sub-assy, Front Seat Headrest
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71980 Footrest Assy, Front Seat, NO.1
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72130A Track Assy, Front Seat, Inner RH
72136 Spacer, Seat Track, Lower NO.1
72136A Spacer, Seat Track, Lower NO.2
72136B Spacer, Seat Track, Lower NO.3
72136C Spacer, Seat Track, Lower NO.4
72137B Cover, Seat Track, RH
72138B Cover, Seat Track, LH
72140 Track Assy, LH Seat, Inner
72157A Cover, Seat Track Bracket, Inner RH
72158 Cover, Seat Track Bracket, Inner LH
72457B Knob, Vertical Seat Adjuster, RH
72462 Cover, Vertical Adjuster RH
72477 Spacer, Vertical Adjuster
72494 Handle, Vertical Adjusting, RH
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72613 Striker, Front Seatback Lock
72750D Adjuster Assy, Lumbar Support, RH
72868A Cover, Center Armrest Hinge
73178B Cap, Seat Belt Anchor Cover
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
74610U Grip Assy, Assist
74617C Plug, Assist Grip
74617D Plug, Assist Grip
79977A Felt, Seatback
82666M Holder, Connector
85821H Motor Assy, Power Seat Slide, RH
85821J Motor Assy, Power Seat Reclining, RH
85821K Motor Assy, Power Seat Tilt, RH
85821L Motor Assy, Power Seat Lifter, RH
85822 Motor Assy, Power Seat Slide, LH
85822A Motor Assy, Power Seat Reclining, LH
85860 Blower Assy, Seat Cushion Climate Control
85862 Blower, Seat Climate Control, RH
85863 Blower, Seat Climate Control, LH
85866 Duct, Seat Cushion Climate Control, RH
85866A Duct, Seat Cushion Climate Control, LH
85867 Blower, Seatback Climate Control, RH
85867A Blower, Seatback Climate Control, LH
85869 Cover, Seatback Climate Control, RH
85869A Cover, Seatback Climate Control, LH
87501A Control Sub-assy, Seat Heater, RH
87501B Control Sub-assy, Seat Heater, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
