Toyota Crown

2008-02 → 2012-12 · chassis GRS20#,GWS204 · catalogue 3311C0 · Japan

Supported model Data version 2012-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

21 part groups · 3 illustrations

Illustrations

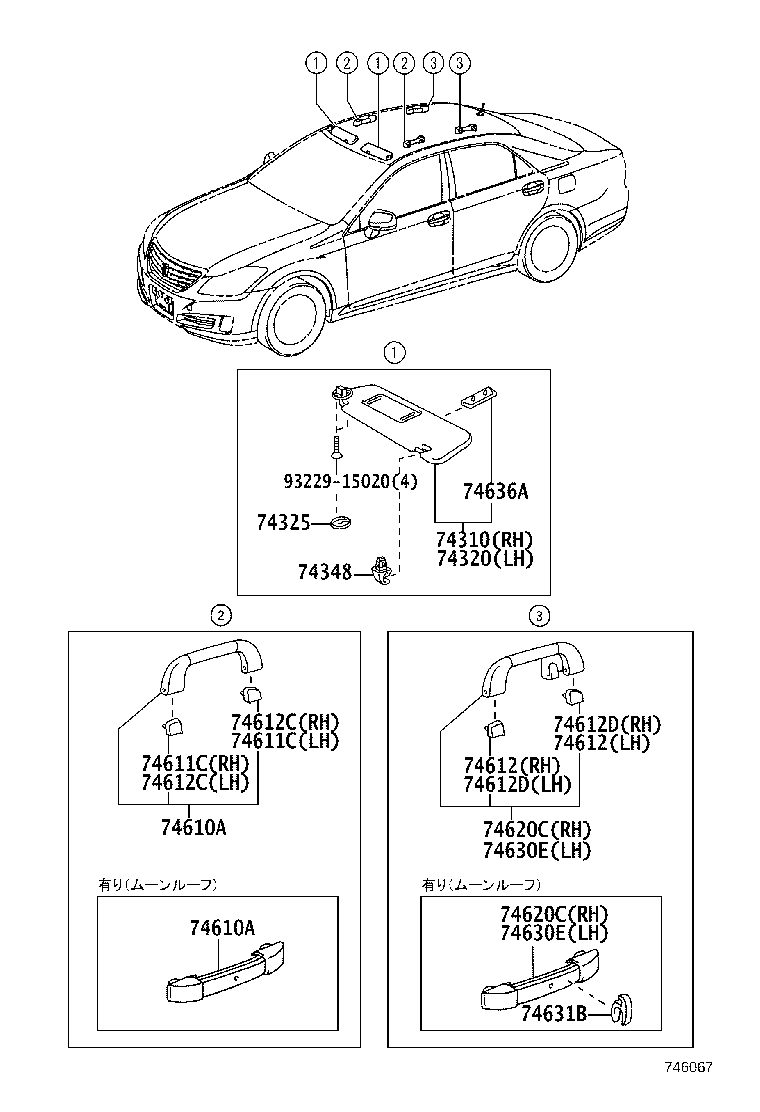

Figure 742513C 742513C 2008-02 → — Figure 742512E 742512E 2008-02 → 2010-02 Figure 746067 746067 2010-02 → —

Part groups

PNCDescription
74201A Panel Sub-assy, Front Armrest Base, Upper RH
74202A Panel Sub-assy, Front Armrest Base, Upper LH
74203A Panel Sub-assy, Rear Armrest Base, Upper RH
74204A Panel Sub-assy, Rear Armrest Base, Upper LH
74230A Panel Assy, Front Door Armrest Base, RH
74240A Panel Assy, Front Door Armrest Base, LH
74250 Armrest Assy, Rear RH
74260 Armrest Assy, Rear LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74325 Cover, Visor Bracket
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74611C Cover, Assist Grip, LH
74612 Cover, Assist Grip
74612C Cover, Assist Grip, RH
74612D Cover, Assist Grip
74620C Grip Assy, Assist, Rear RH
74630E Grip Assy, Assist, Rear LH
74631B Hook, Coat
74636A Bezel, Card Holder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
