Toyota Crown

2008-02 → 2012-12 · chassis GRS20#,GWS204 · catalogue 3311C0 · Japan

Supported model Data version 2012-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

33 part groups · 6 illustrations

Illustrations

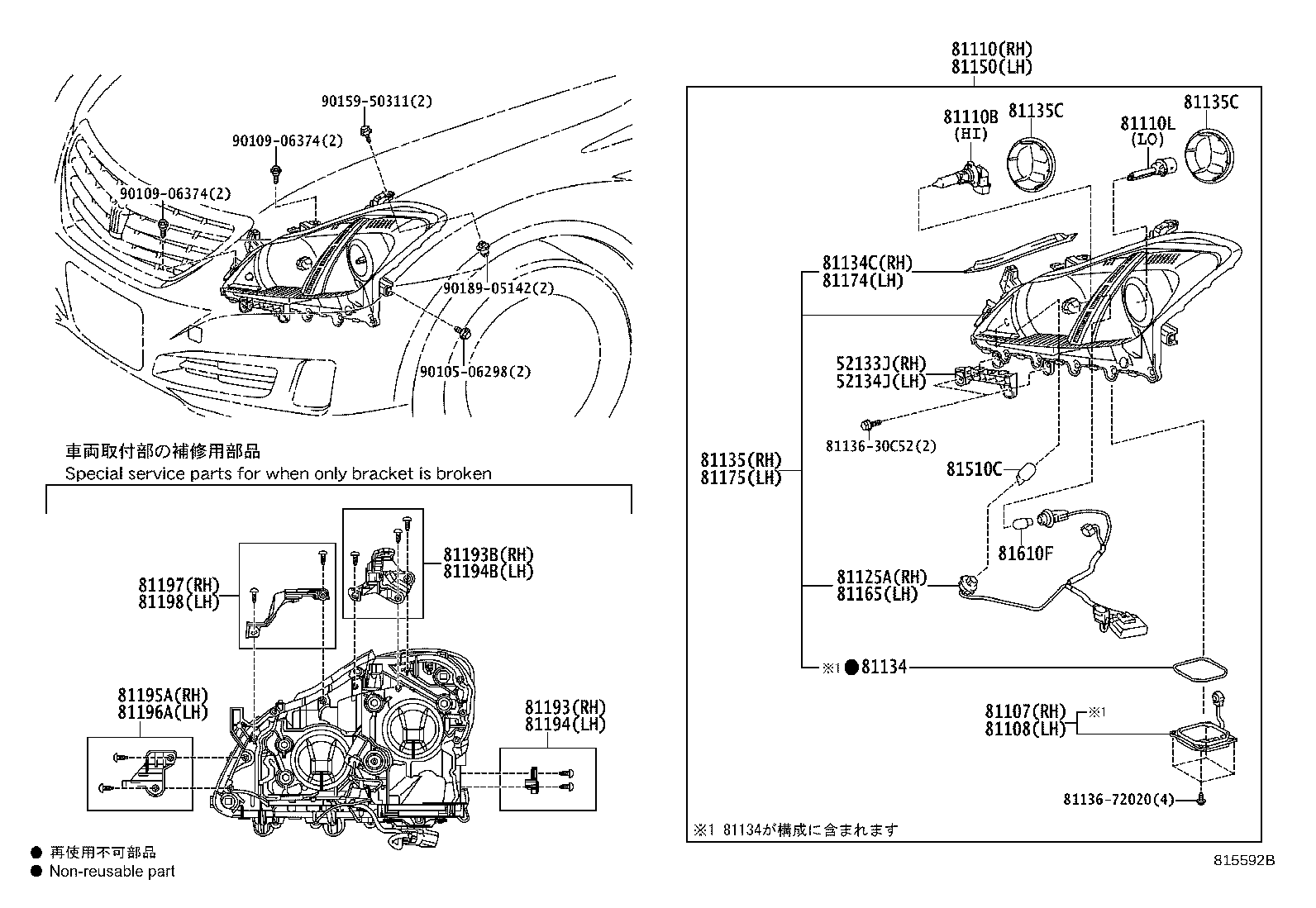

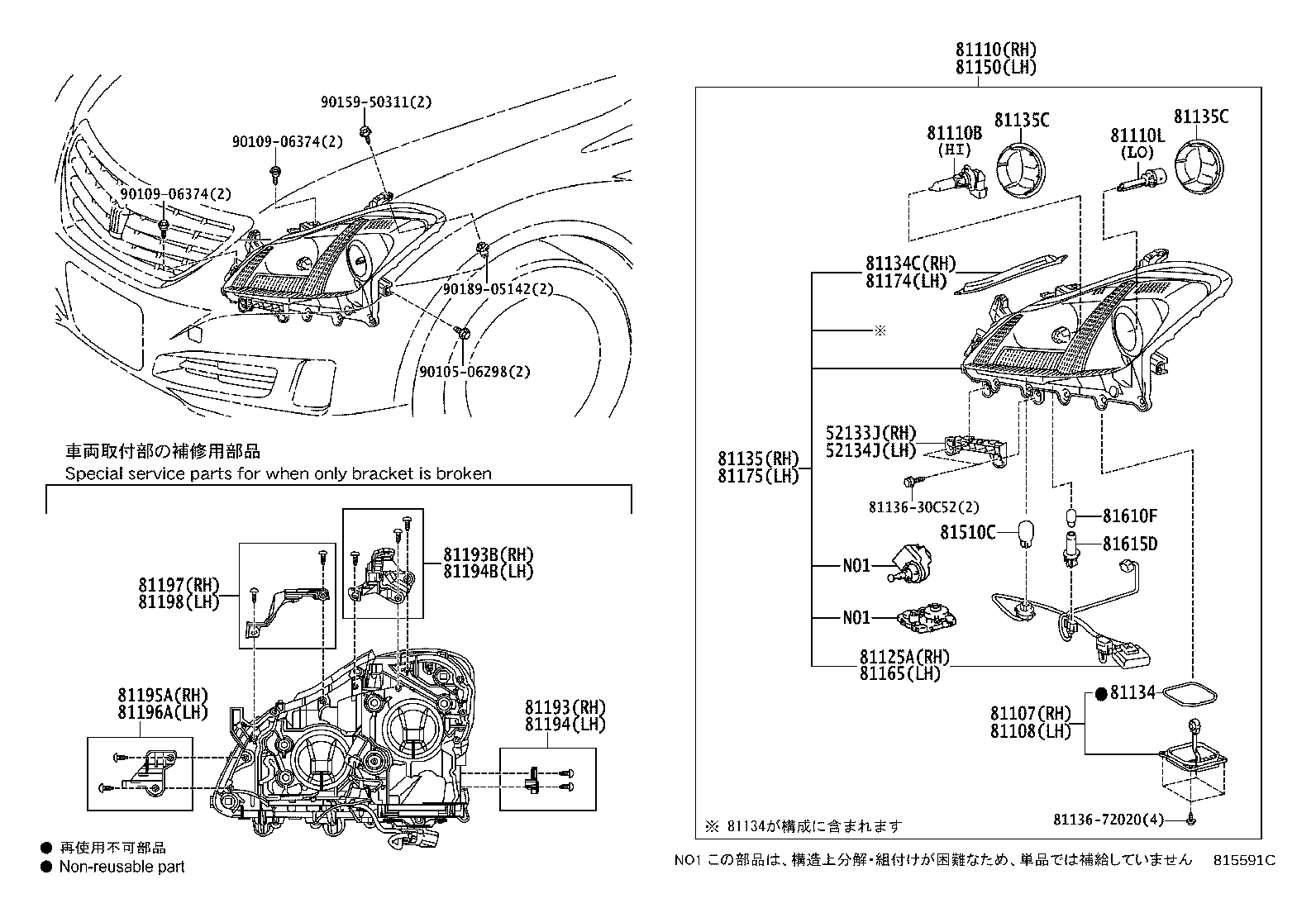

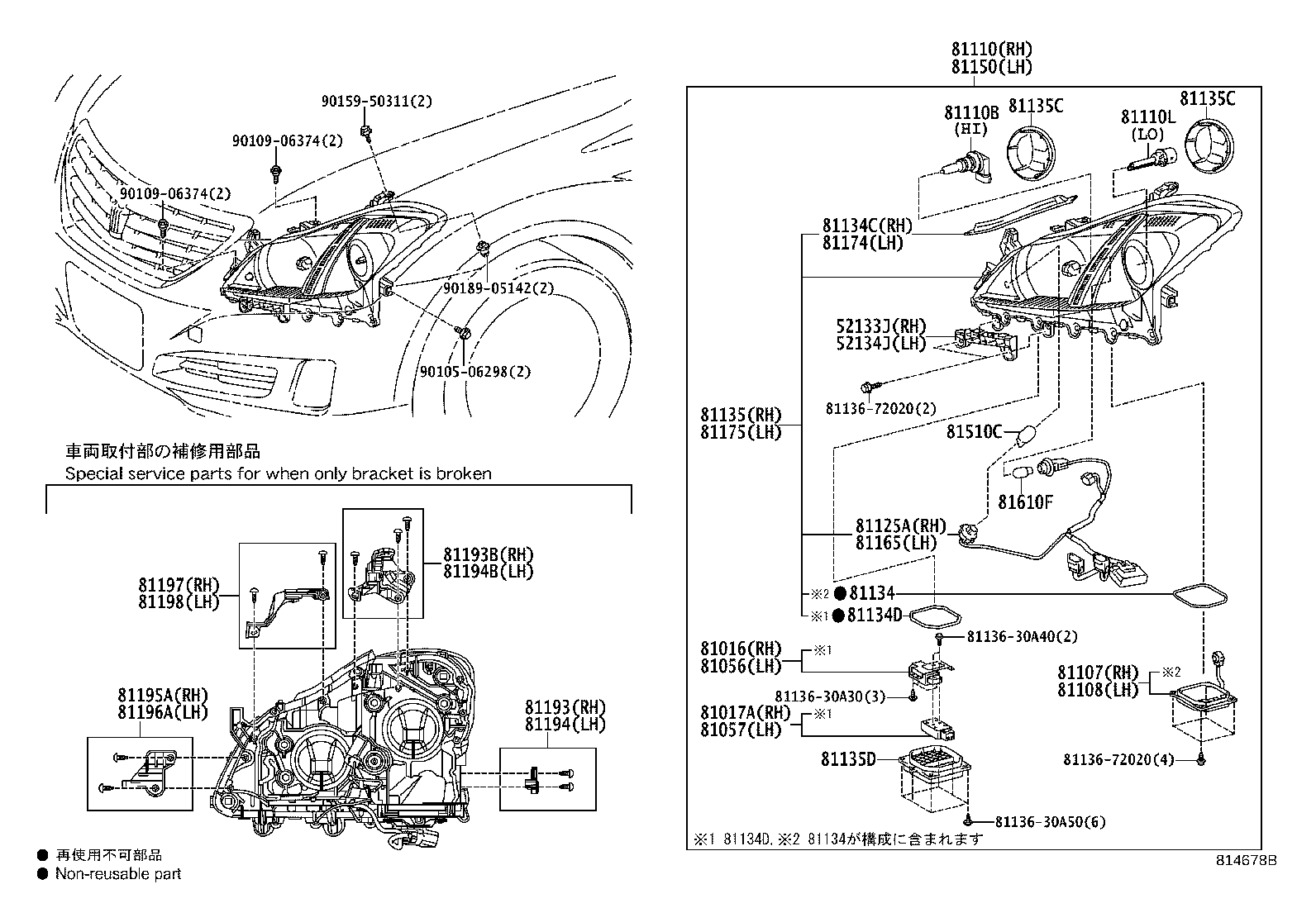

Figure 814586G 814586G 2008-02 → 2010-02 Figure 815591C 815591C 2010-02 → — Figure 814677B 814677B 2008-05 → 2010-02 Figure 815592B 815592B 2010-02 → — Figure 814678B 814678B 2008-05 → 2010-02 Figure 815593B 815593B 2010-02 → —

Part groups

PNCDescription
52133J Reinforcement, Front Bumper Bar, RH
52134J Reinforcement, Front Bumper Bar, LH
81016 Computer Sub-assy, Headlamp, RH NO.1
81017A Computer Sub-assy, Headlamp, RH NO.2
81056 Computer Sub-assy, Headlamp, LH NO.1
81057 Computer Sub-assy, Headlamp, LH NO.2
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110L Bulb, Discharge Headlamp
81125A Cord, Headlamp, RH
81134 Gasket, Headlamp
81134C Gasket, Headlamp Body, RH
81134D Gasket, Headlamp, NO.2
81135 Unit Assy, Headlamp, RH
81135C Cover, Headlamp Back, NO.1
81135D Cover, Headlamp Back, NO.2
81150 Headlamp Assy, LH
81165 Cord, Headlamp, LH
81174 Gasket, Headlamp Body, LH
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81193B Retainer, Headlamp Protector, Upper RH NO.2
81194 Retainer, Headlamp Protector, Upper LH
81194B Retainer, Headlamp Protector, Upper LH NO.2
81195A Retainer, Headlamp Protector, Lower RH
81196A Retainer, Headlamp Protector, Lower LH
81197 Bracket, Headlamp, Lower RH
81198 Bracket, Headlamp, Lwr LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
