Toyota Crown
2008-02 → 2012-12 · chassis GRS20#,GWS204 · catalogue 3311C0 · Japan
Supported model
Data version 2012-12
Switch & Relay & Computer
140 part groups · 13 illustrations
Illustrations
Part groups

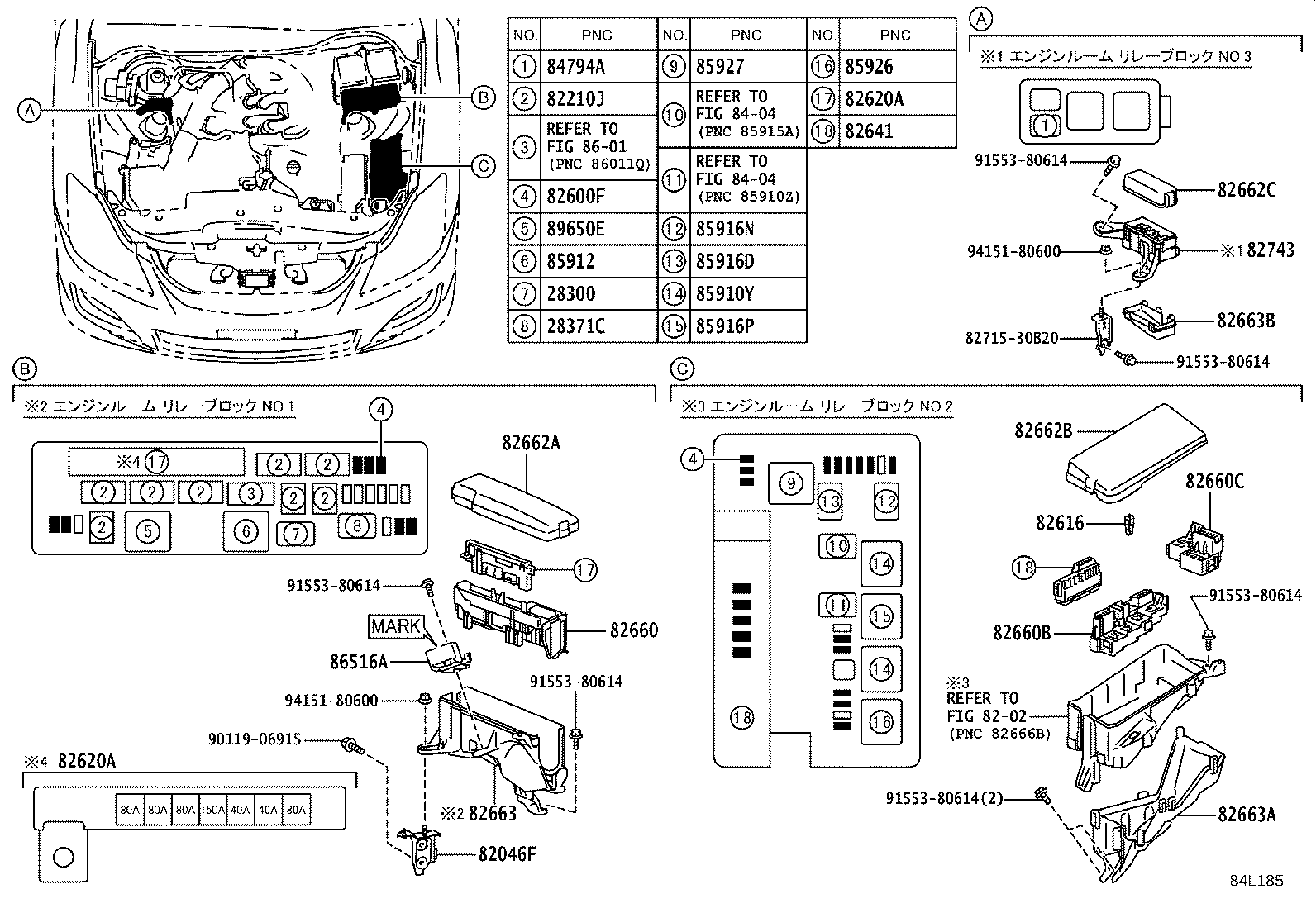

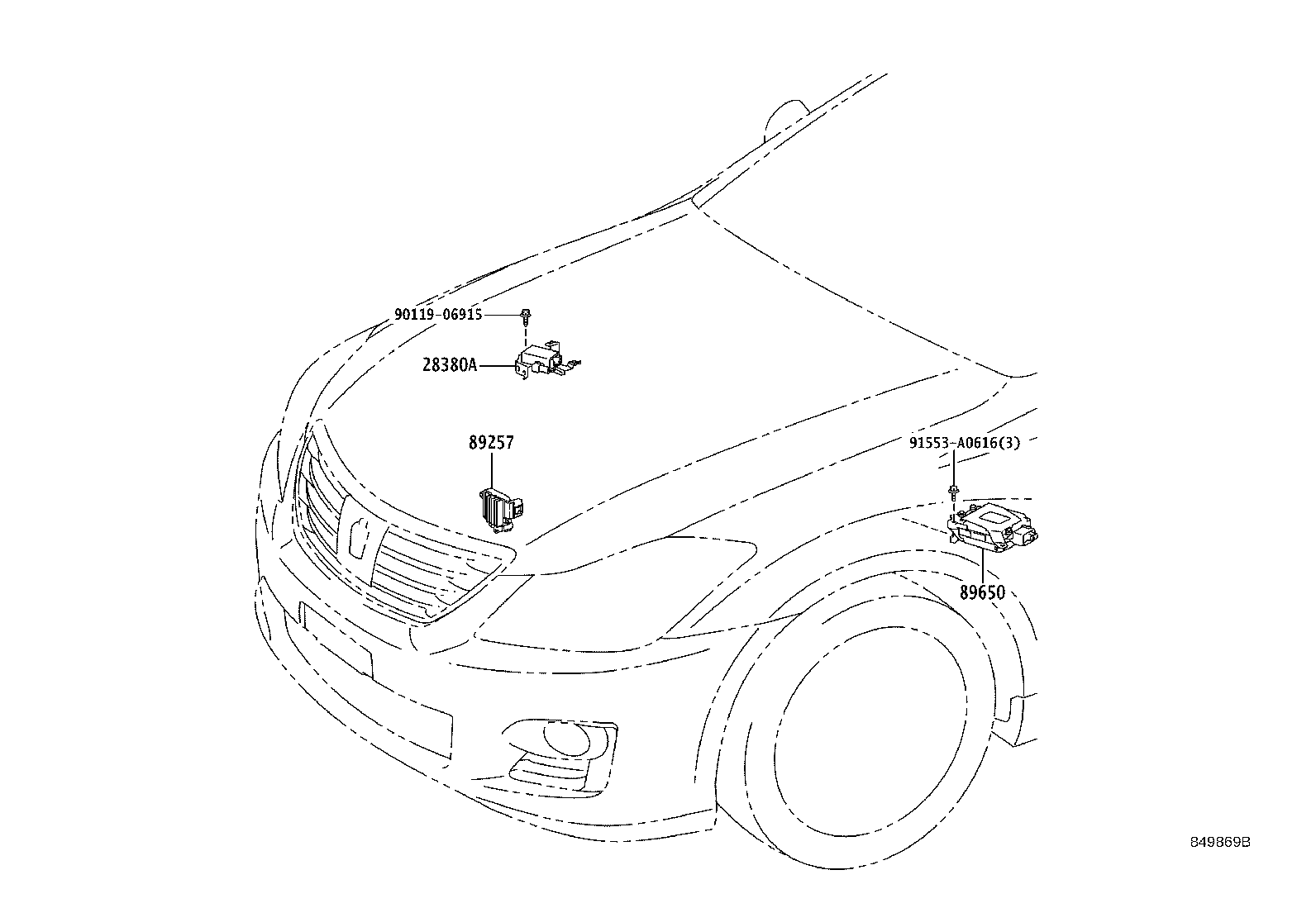

| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371C | Relay, Ignition, NO.2 |
| 28380A | Resister, Fuel Pump |
| 28850 | Sensor Assy, Battery Current |
| 81980 | Flasher Assy, Turn Signal |
| 82046F | Wire Sub-assy, Body Ground, NO.1 |
| 82210J | Fusible Link |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82641 | Relay, Integration NO.1 |

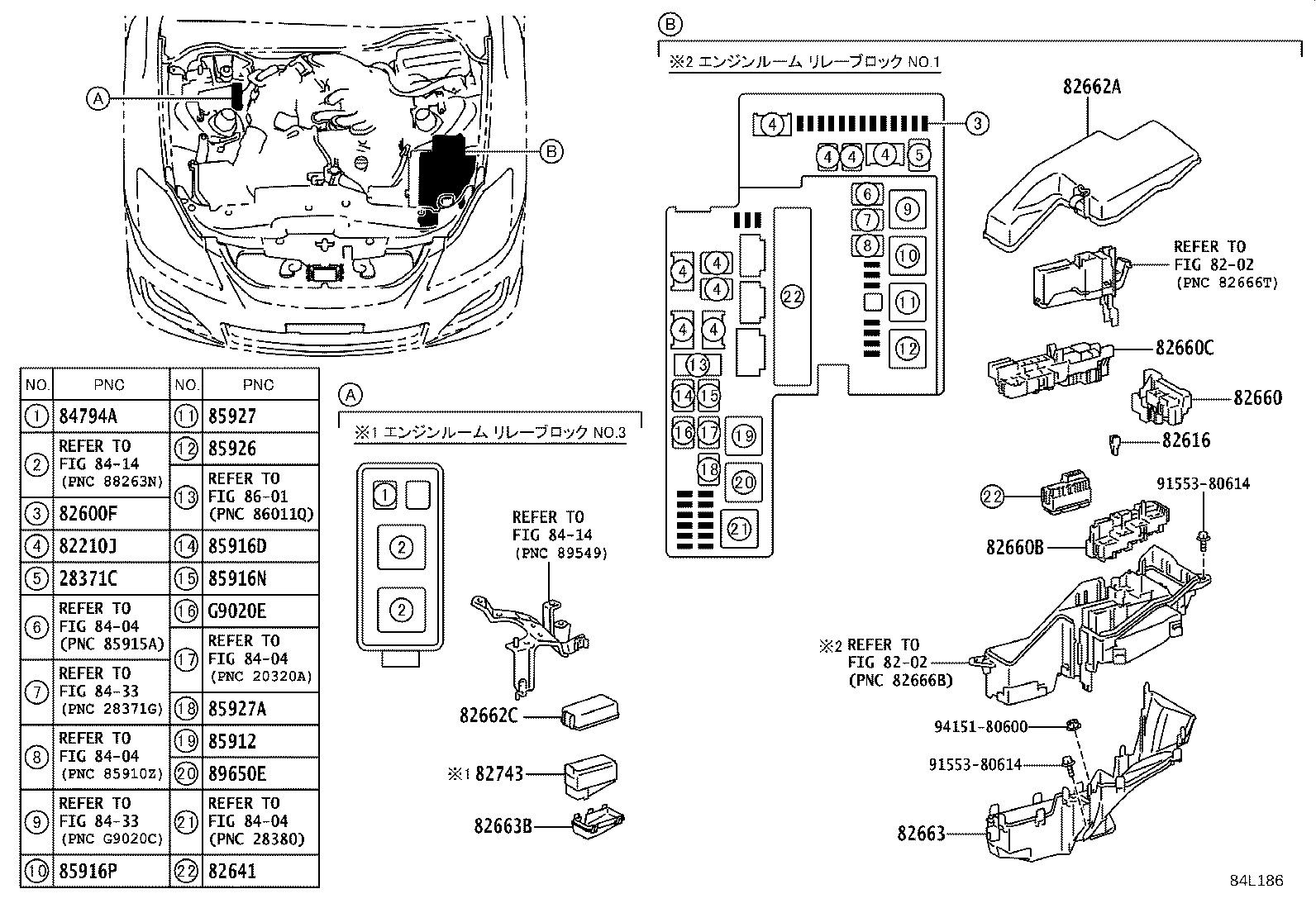

| 82660 | Block Assy, Relay, Engine Room |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663B | Cover, Relay Block, Lower, NO.3 |
| 82670H | Block Assy, Luggage Room Junction |
| 82672A | Cover, Junction Block |
| 82672B | Cover, Junction Block |
| 82672C | Cover, Junction Block |
| 82715 | Bracket,Wiring Harness Clamp |

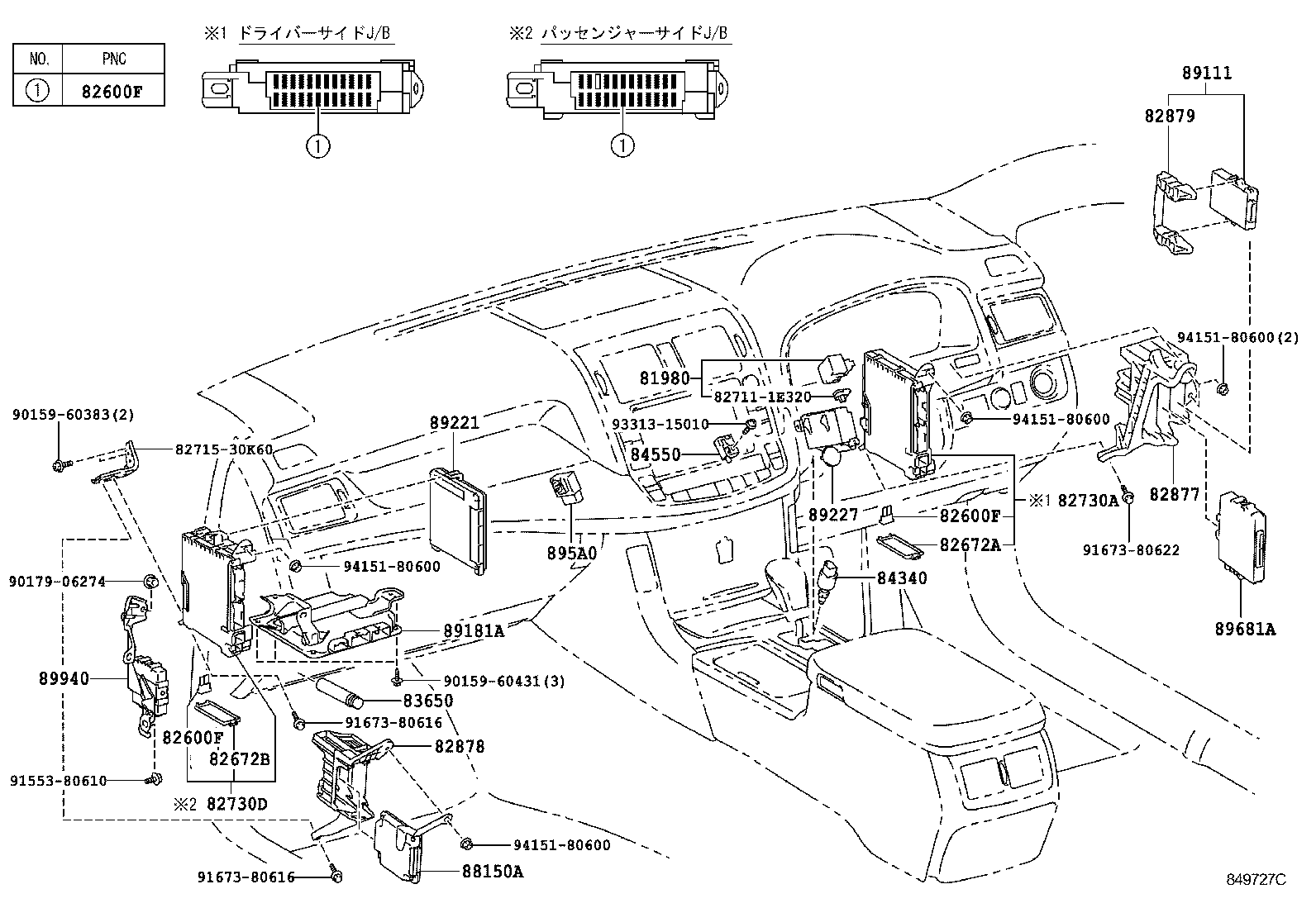

| 82730A | Block Assy, Driver Side Junction |
| 82730D | Block Assy, Passenger Side Junction |
| 82743 | Block, Engine Room Relay, NO.3 |
| 82877 | Box, Computer Integration, RH |
| 82878 | Box, Computer Integration, LH |
| 82879 | Adapter, Computer Integration Box |
| 83320 | Gage Assy, Fuel Sender |
| 83320B | Gage Assy, Fuel Sender, NO.2 |
| 83361 | Gasket, Fuel Sender Gage |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83531C | Switch, Oil Pressure, (PB1) |
| 83531D | Switch, Oil Pressure, (PB2) |
| 83531E | Switch, Oil Pressure, (PB3) |
| 83650 | Fusee |

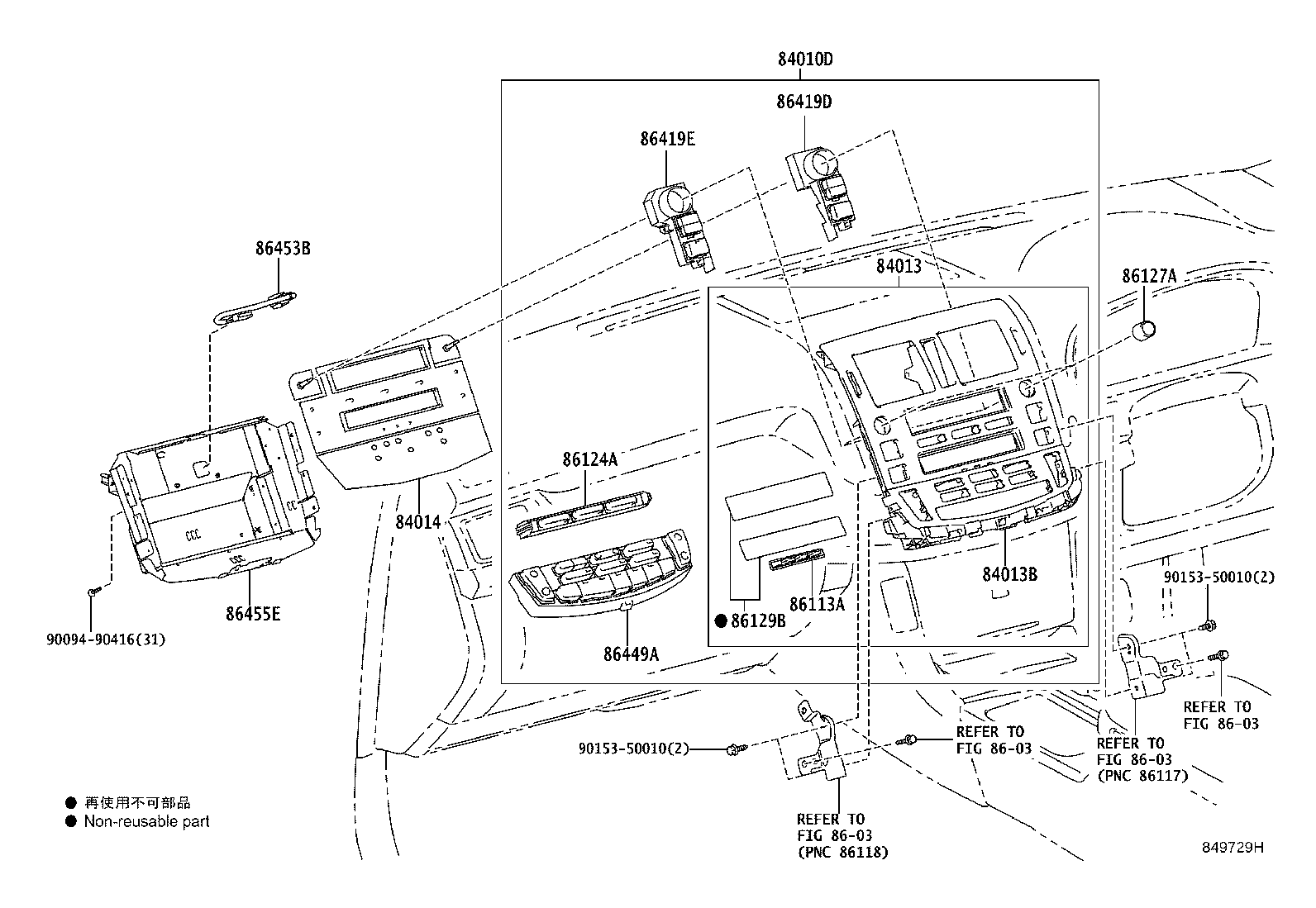

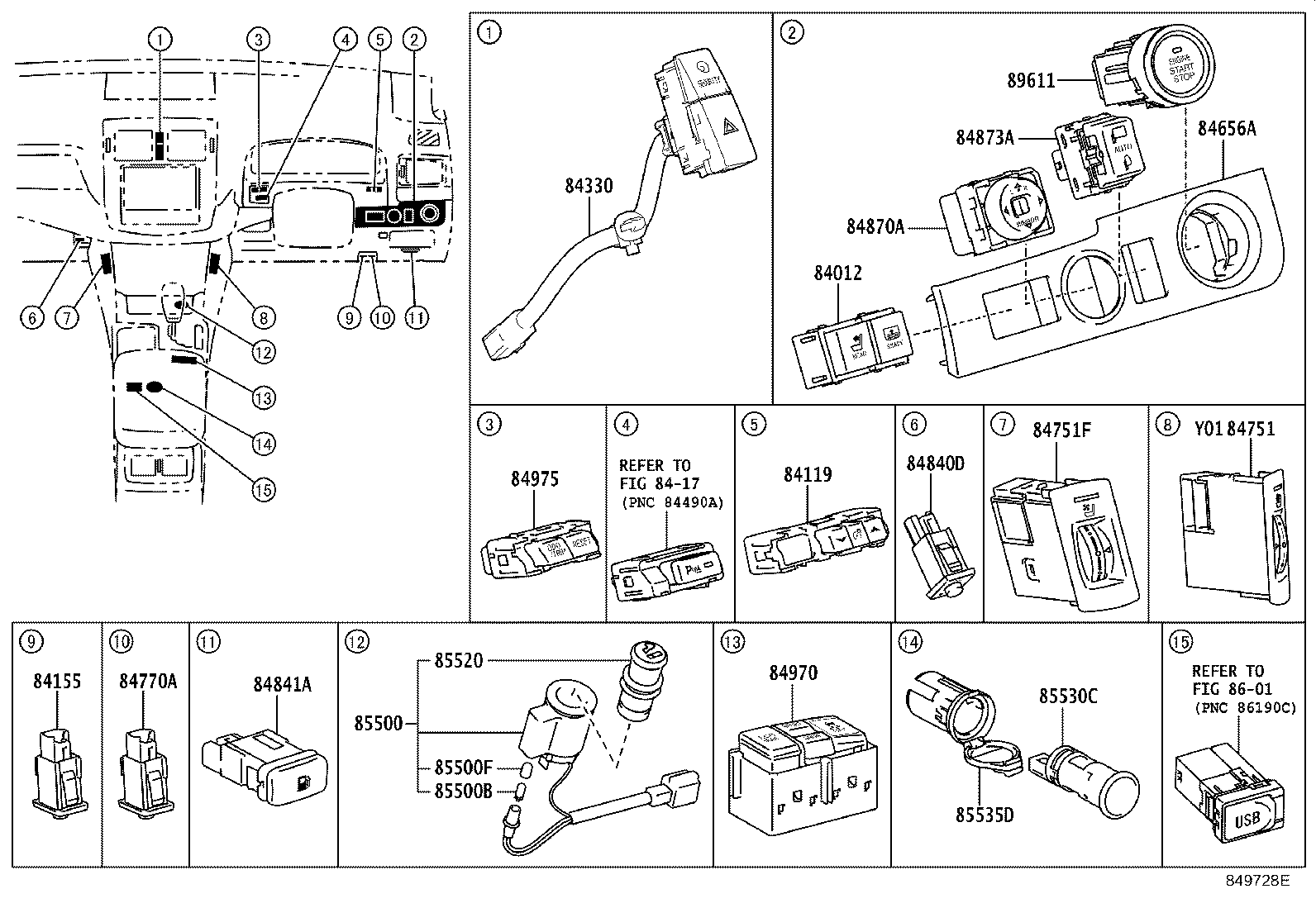

| 84010D | Control & Panel Assy, Integration |
| 84012 | Control & Panel Sub-assy, Integration |
| 84013 | Panel Sub-assy, Integration |
| 84013B | Panel Sub-assy, Integration, NO.2 |
| 84014 | Board Sub-assy, Printed Wire Integration |
| 84119 | Rheostat, Light Control |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84155 | Switch, Headlamp Swivel Main |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |

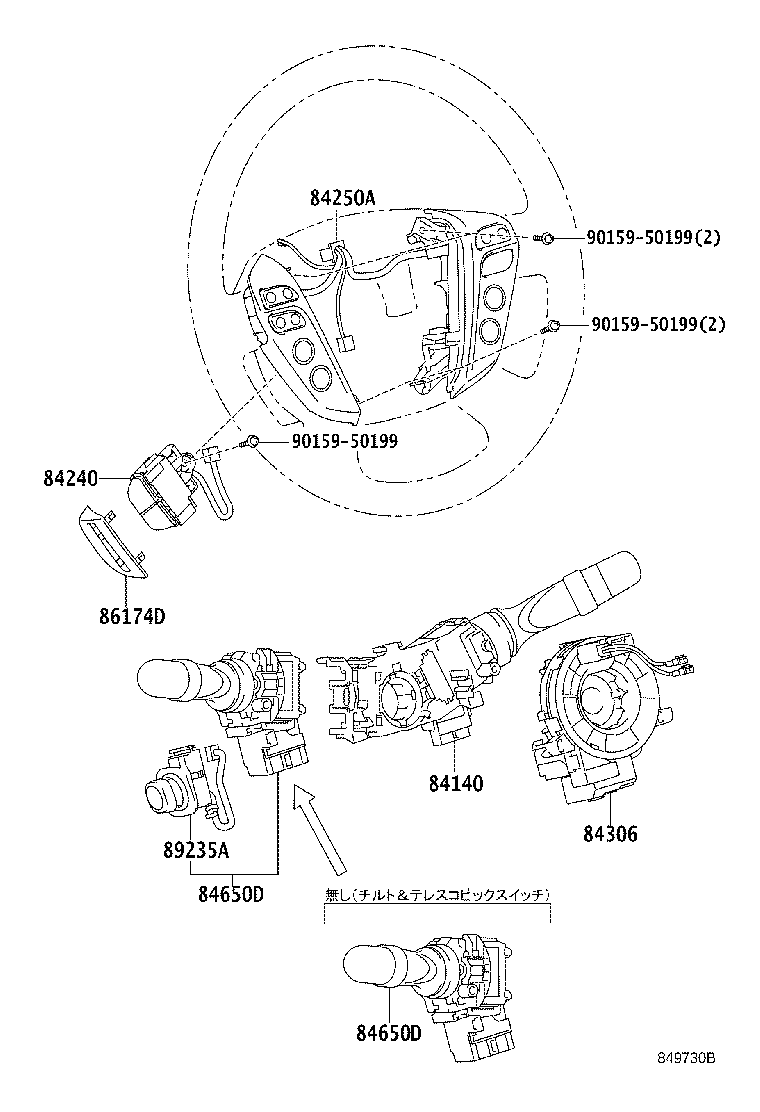

| 84240 | Switch Assy, Steering Pad, W/Modulator |
| 84250A | Switch Assy, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84656A | Bezel, Switch |
| 84660R | Switch, Cooler(REAR) |
| 84661C | Knob, Cooler Control Switch |
| 84662 | Panel, Cooler Control Switch |
| 84751 | Switch, Seat Heater |
| 84751F | Switch, Seat Heater |
| 84770A | Switch Assy, Pre-collision System Cancel |
| 84794A | Relay, FR Wiper Deicer |

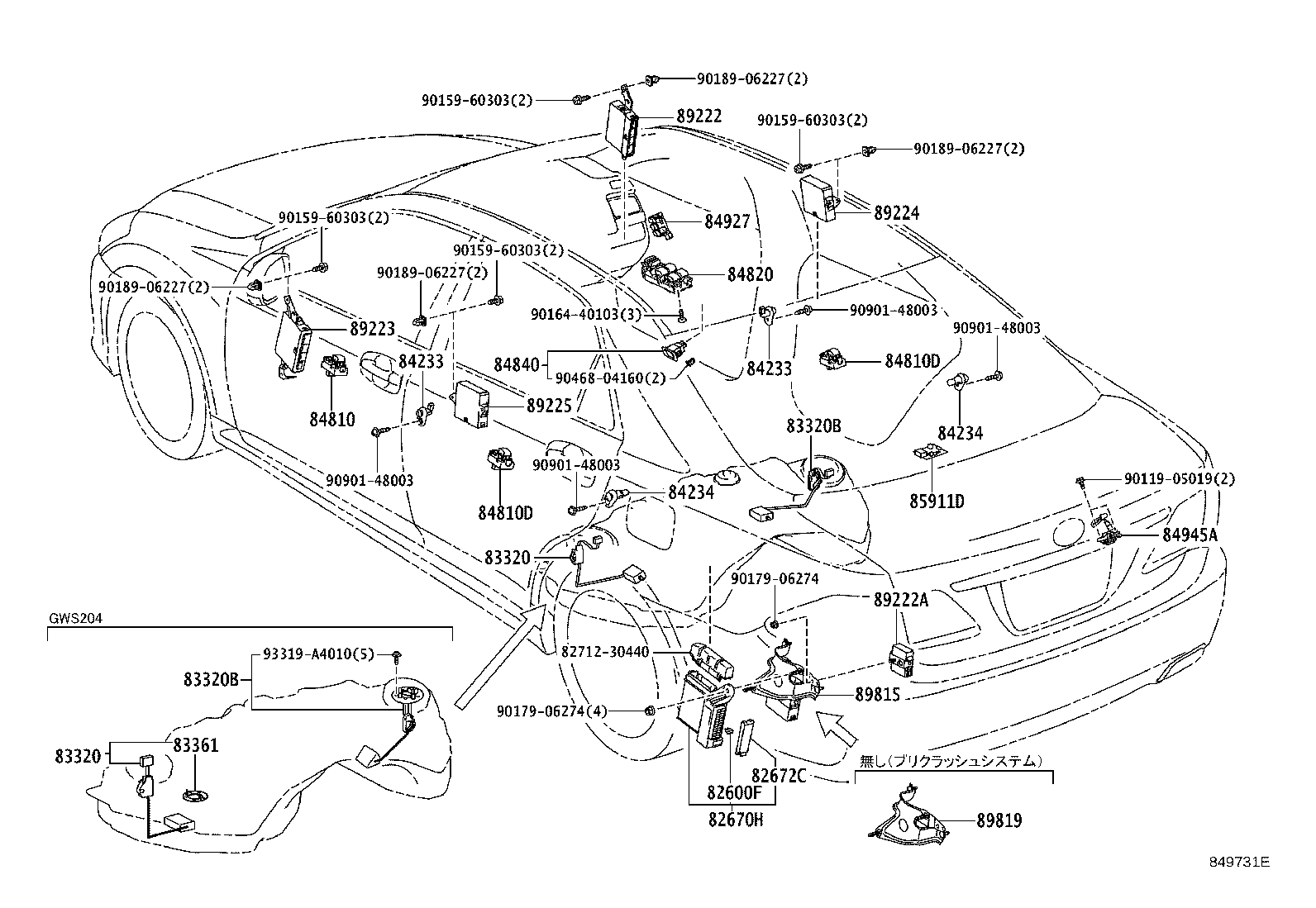

| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84840 | Switch Assy, Luggage Compartment Door Opening |
| 84840D | Switch Assy, Luggage Door Opening |
| 84841A | Switch, Fuel Lid Opener |
| 84870A | Switch Assy, Outer Mirror |
| 84873A | Switch, Retractable Outer Mirror |

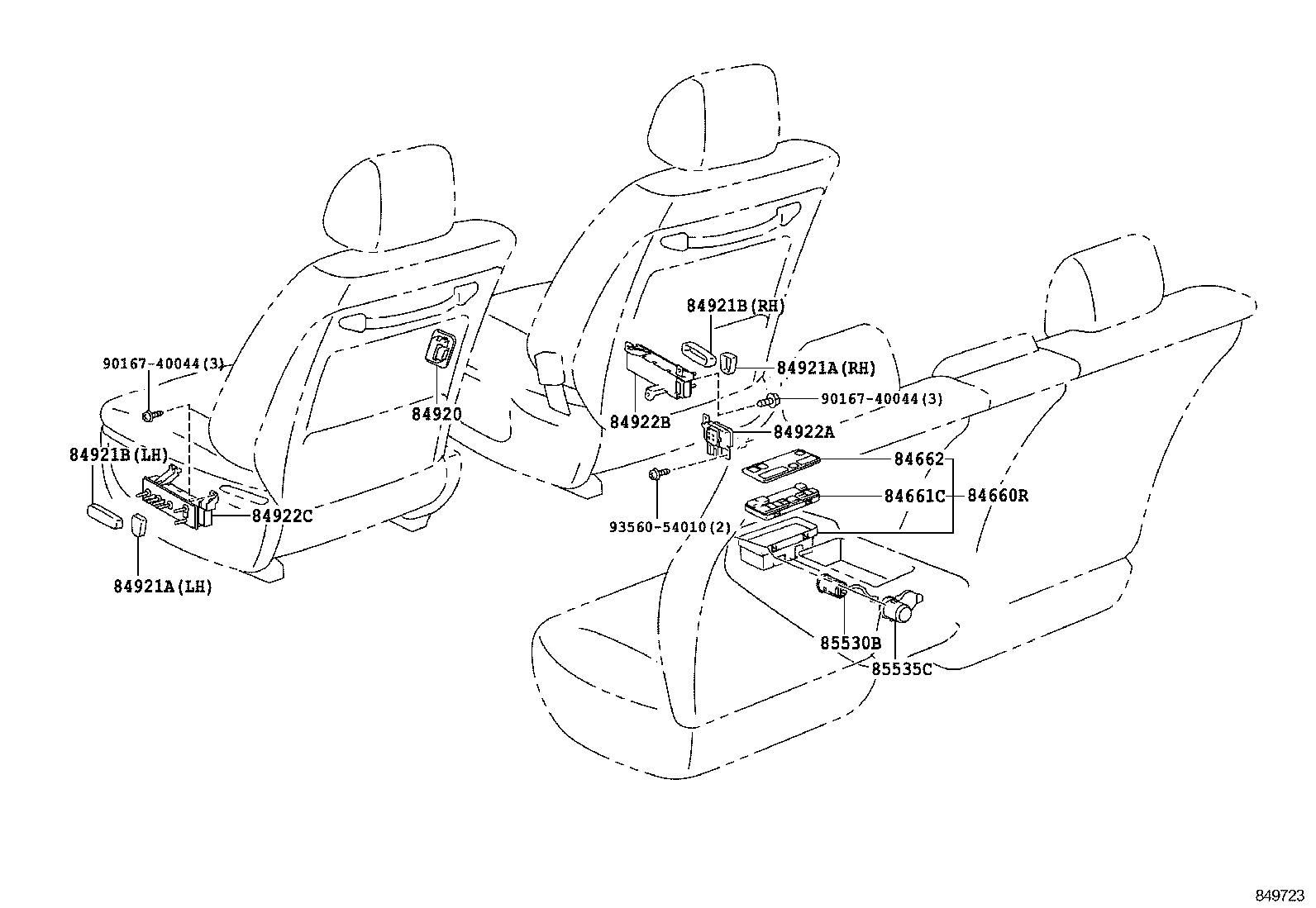

| 84920 | Switch Assy, Power Seat |
| 84921A | Knob, Power Seat Switch (FOR RECLINING) |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84922A | Switch, Front Power Seat(FOR LUMBAR) |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84927 | Switch, Seat Memory |
| 84945A | Switch, Luggage Electrical Key |
| 84970 | Switch Assy, Combination |
| 84975 | Switch, Trip |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85500F | Cap, Cigarette Lighter Bulb |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530B | Socket Assy, Power Outlet, Rear NO.1 |
| 85530C | Socket Assy, Power Outlet, Center |
| 85535C | Cover, Power Outlet Socket, Rear |
| 85535D | Cover, Power Outlet Socket, Center |
| 85910Y | Relay, Rear Heater |
| 85911D | Relay, Rear Sunshade |
| 85912 | Relay, Defogger |
| 85916D | Relay, Fog Lamp |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85926 | Relay, Headlamp Dimmer |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 86113A | Switch, Multi-display |
| 86124A | Knob, Radio Receiver Tone Control |
| 86127A | Knob,Radio Receiver, NO.1 |
| 86129B | Filter, Multi-display |
| 86174D | Case, Switch & Volume |
| 86419D | Knob, Audio Module, RH |
| 86419E | Knob, Audio Module, LH |
| 86449A | Knob,Heater Control Module |
| 86453B | Wire, Multi-media Module |
| 86455E | Case, Multi-media Module |
| 86516A | Condenser |
| 88150A | Computer Assy, Driving Support |
| 89111 | Computer, Network Gateway |
| 89181A | Computer, Steering Control |
| 89221 | Computer, Multiplex Network Body |
| 89222 | Computer, Multiplex Network Door, Front RH |
| 89222A | Computer, Multiplex Network Door |
| 89223 | Computer, Multiplex Network Door, Front LH |
| 89224 | Computer, Multiplex Network Door, Rear RH |
| 89225 | Computer, Multiplex Network Door, Rear LH |
| 89227 | Computer, Multiplex Tilt & Telescopic |
| 89235A | Switch, Tilt & Telescopic |
| 89257 | Computer, Cooling Fan |
| 89451A | Sensor, Shift Lever Position |

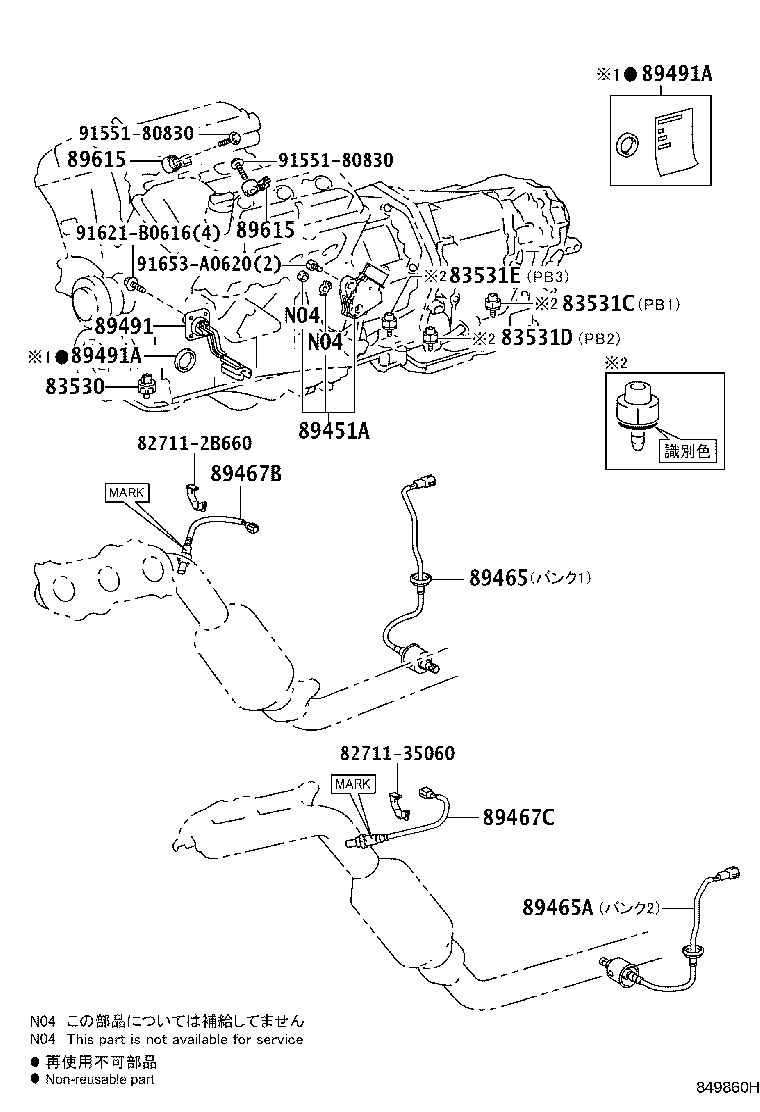

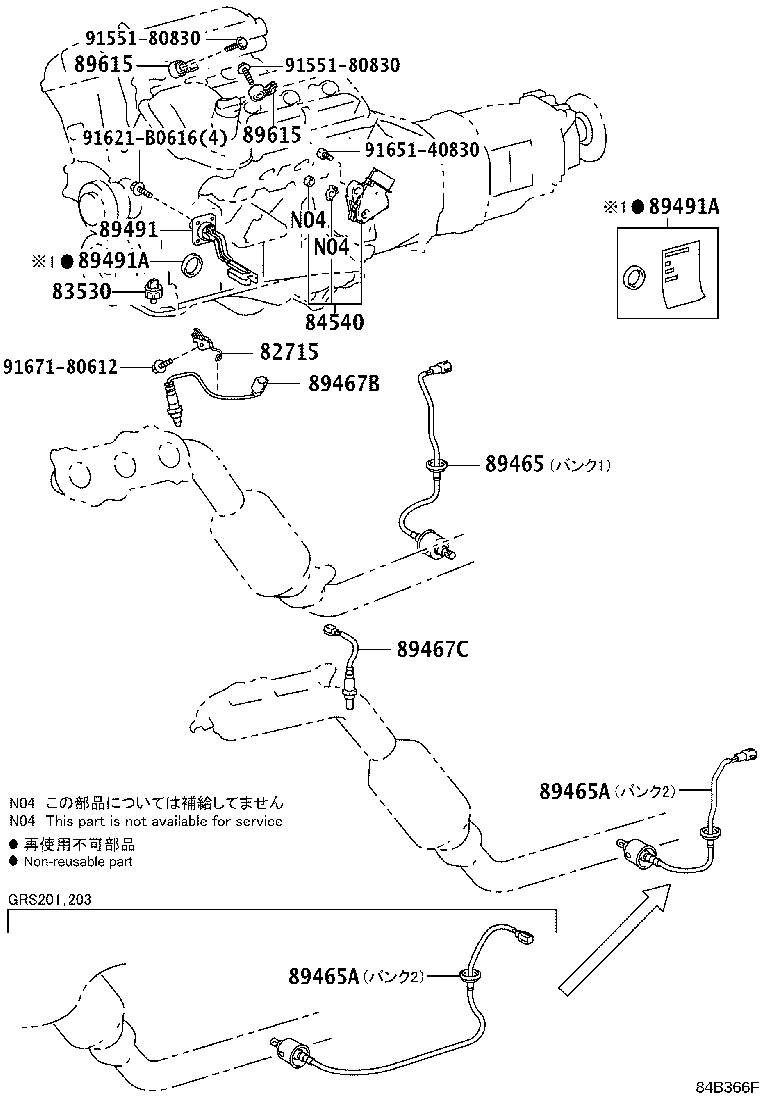

| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |
| 89467B | Sensor, Air Fuel Ratio |
| 89467C | Sensor, Air Fuel Ratio, NO.2 |
| 89491 | Sensor, Engine Oil Level |
| 89491A | Gasket, Engine Oil Level Sensor |
| 895A0 | Relay Assy, Stop Lamp Control |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |

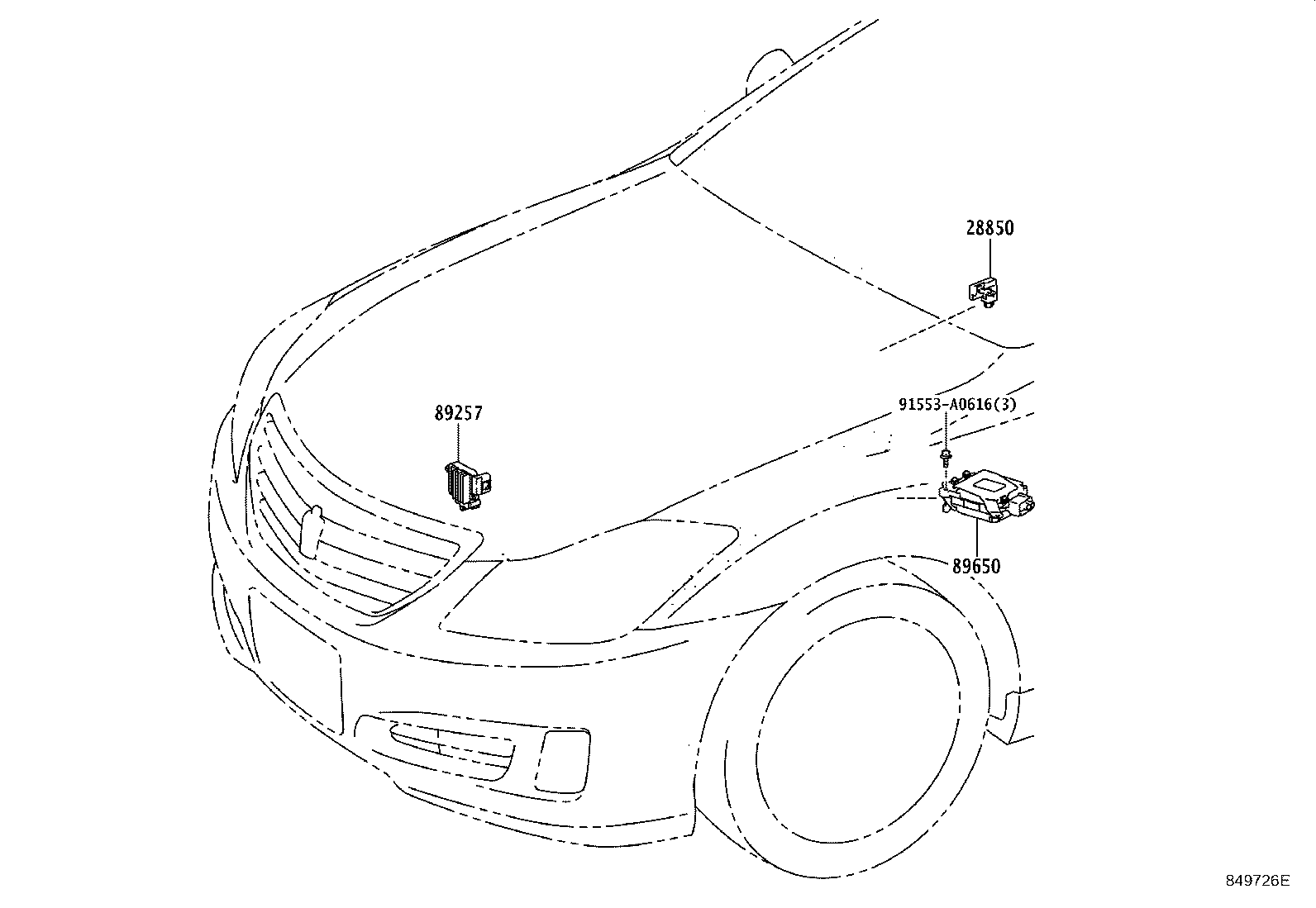

| 89650 | Computer Assy, Power Steering |
| 89650E | Relay, Electric Power Steering |
| 89681A | Computer, Power Management Control |
| 89815 | Computer, Seat Belt Control |
| 89819 | Bracket, Seat Belt Control |
| 89940 | Computer Assy, Headlamp Swivel |
| G9020E | Relay, Hybrid Water Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
