Toyota Crown

2008-02 → 2012-12 · chassis GRS20#,GWS204 · catalogue 3311C0 · Japan

Supported model Data version 2012-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

16 part groups · 2 illustrations

Illustrations

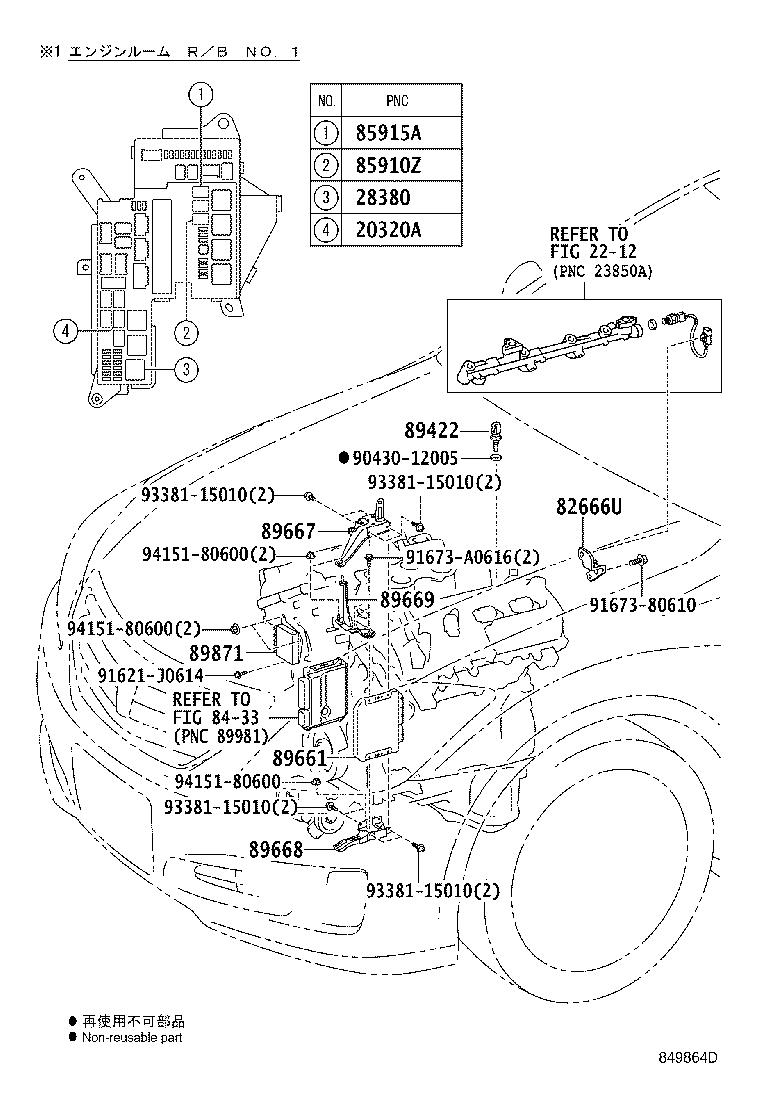

Figure 849725F 849725F 2008-02 → — Figure 849864D 849864D 2008-05 → —

Part groups

PNCDescription
20320A Relay, Fuel Relief Valve
28380 Relay Assy, Fuel Pump
82666U Holder, Connector
82771 Box, Engine Room Ecu
82774 Cover, Engine Room Ecu
82775 Duct, Engine Room Ecu Inlet
82776 Duct, Engine Room Ecu Outlet
85910Z Relay, Injection (FOR EFI)
85915A Relay, Main
89422 Sensor, Water Temperature (FOR E.F.I.)
89570A Computer Assy, Fuel Pump Control
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
89669 Bracket, Engine Control Computer, NO.3
89871 Driver, Injector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
