Toyota Crown

2008-02 → 2012-12 · chassis GRS20#,GWS204 · catalogue 3311C0 · Japan

Supported model Data version 2012-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

19 part groups · 4 illustrations

Illustrations

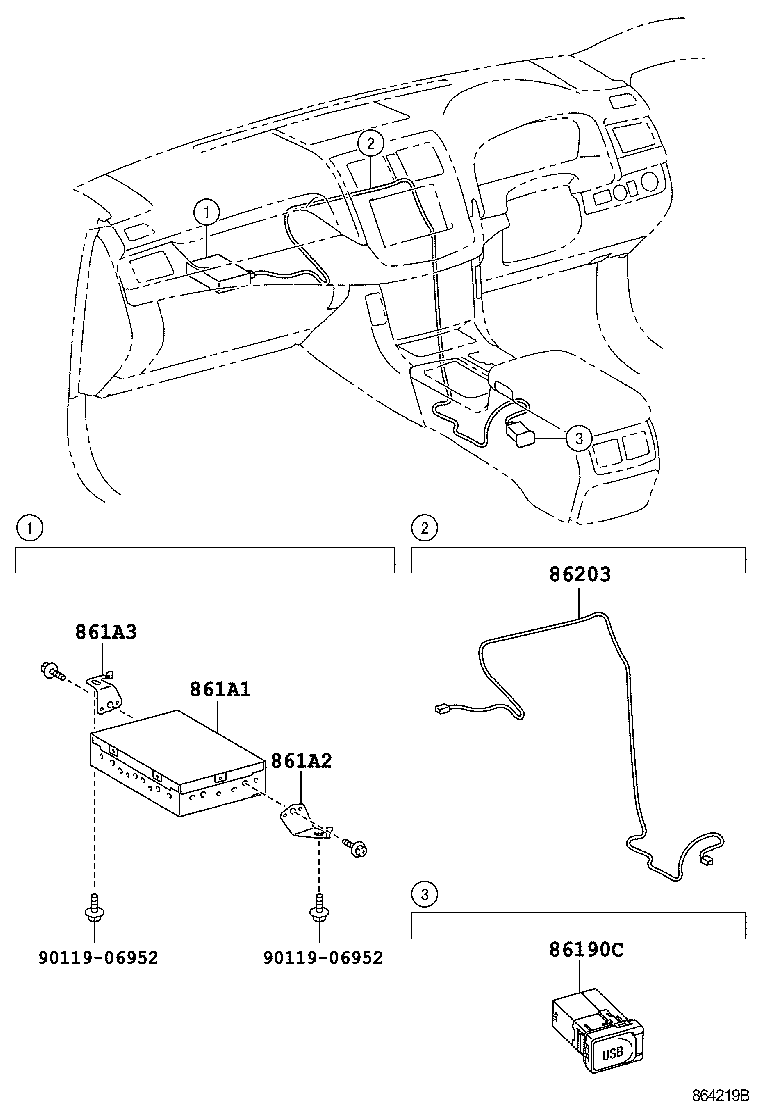

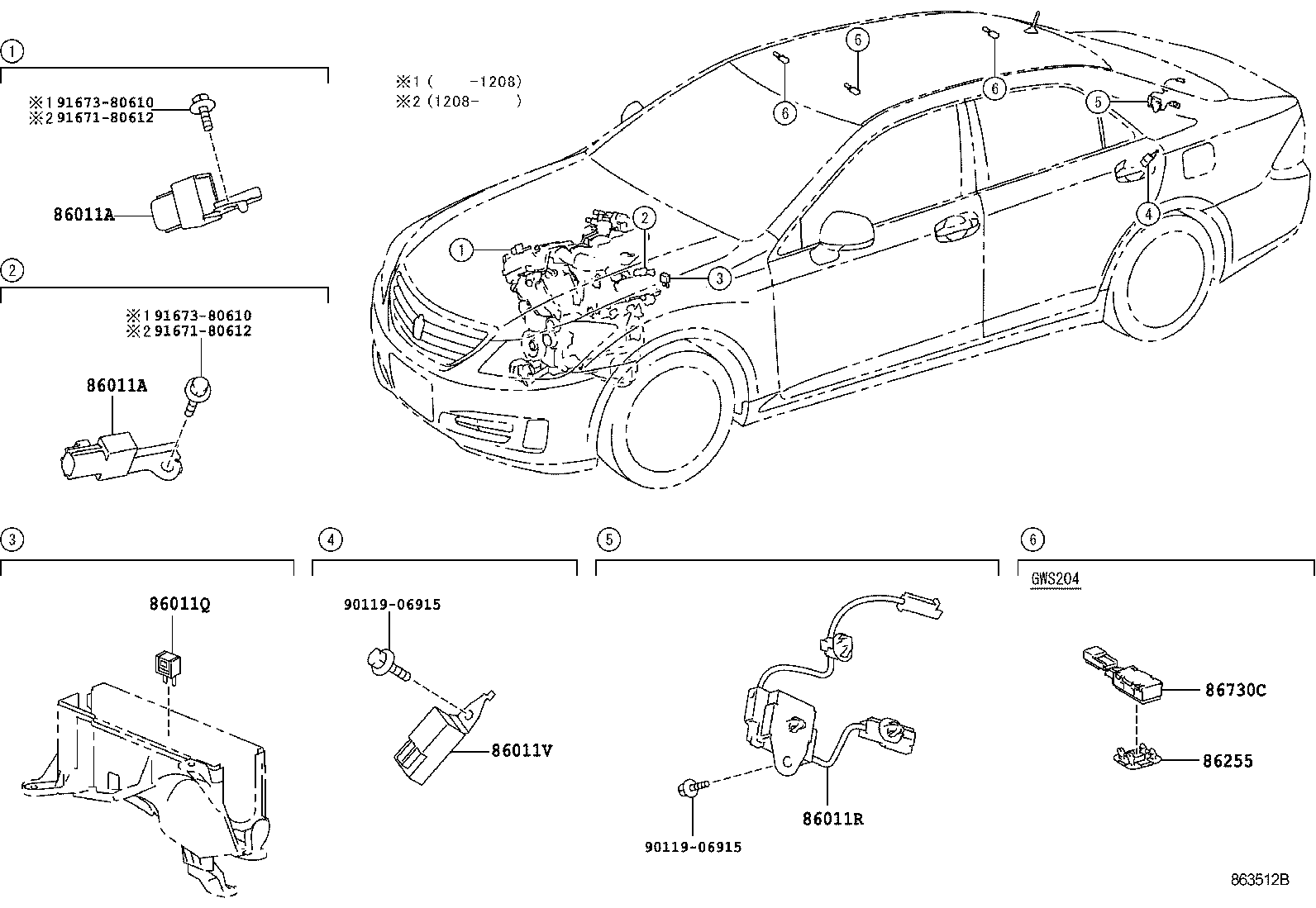

Figure 863510B 863510B 2008-02 → — Figure 863511A 863511A 2008-02 → — Figure 864219B 864219B 2010-02 → — Figure 863512B 863512B 2008-02 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011Q Condenser, Radio Setting
86011R Condenser, Radio Setting
86011V Condenser, Radio Setting
86120 Receiver Assy, Radio
86190C Adapter Assy, Stereo Jack, NO.1
861A1 Computer, Multi-media Interface
861A2 Bracket, Multi-media Interface, NO.1
861A3 Bracket, Multi-media Interface, NO.2
86203 Wire, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86240 Equalizer Assy,Stereo Component
86255 Case, Microphone
86280 Amplifier Assy, Stereo Component
86285 Bracket, Amplifier, NO.1
86286 Bracket, Amplifier, NO.2
86287B Cover, Amplifier
86730C Microphone Assy, Telephone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
