Toyota Crown
2008-02 → 2012-12 · chassis GRS20#,GWS204 · catalogue 3311C0 · Japan
Supported model
Data version 2012-12
Navigation & Front Monitor Display

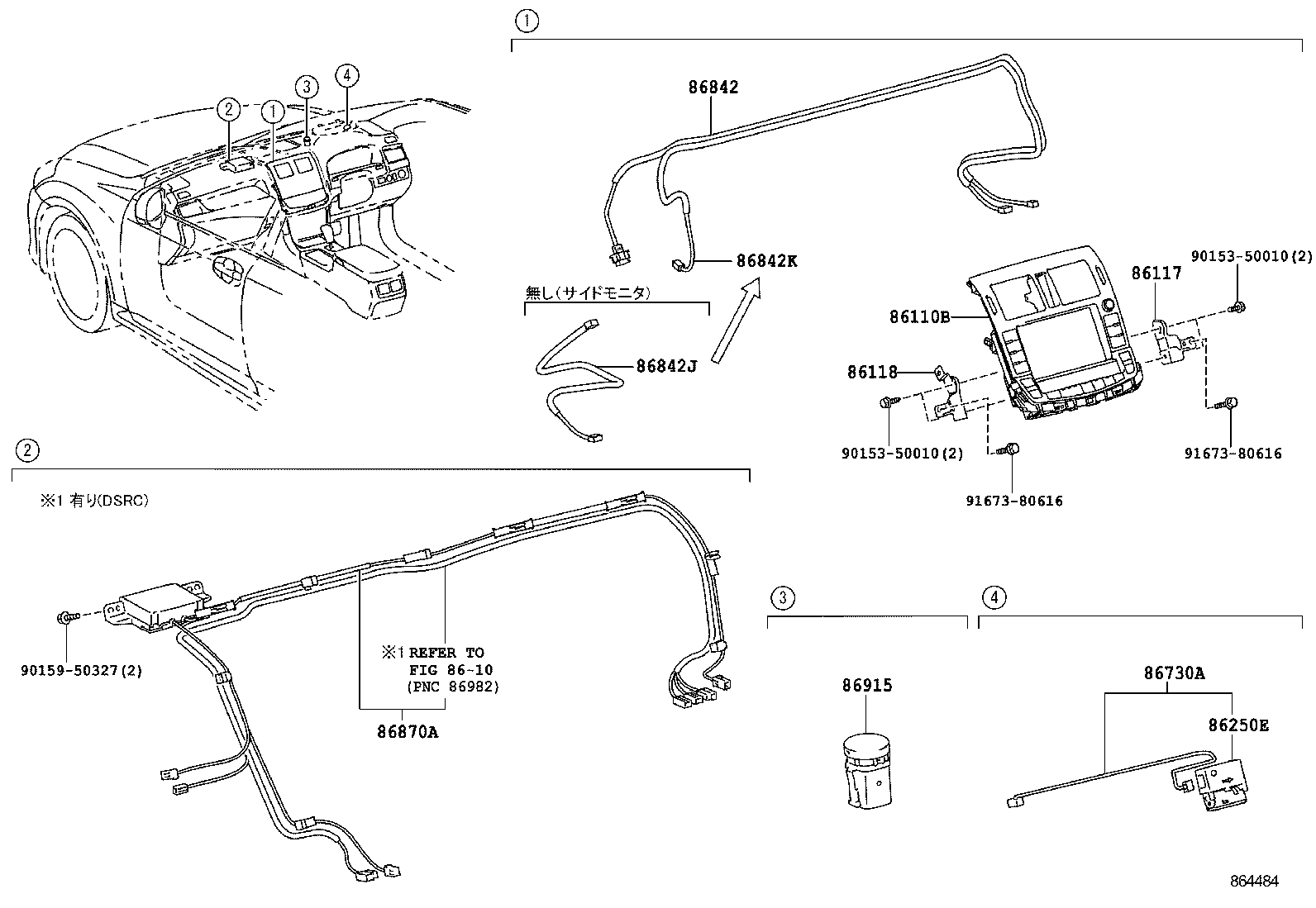

10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86110B | Multi-display Assy |
| 86117 | Bracket, Multi-display Controller, A |
| 86118 | Bracket, Multi-display Controler, B |
| 86250E | Microphone Assy, Amplifier |
| 86730A | Microphone Assy, Telephone |
| 86842 | Wire, Navigation, NO.1 |
| 86842J | Wire, Navigation, NO.2 |
| 86842K | Wire, Navigation, NO.3 |
| 86870A | Antenna Assy, Gps & Vics |
| 86915 | Transceiver, Optical Beacon |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
