Toyota Crown
2008-02 → 2012-12 · chassis GRS20#,GWS204 · catalogue 3311C0 · Japan
Supported model
Data version 2012-12
Telephone & Mayday

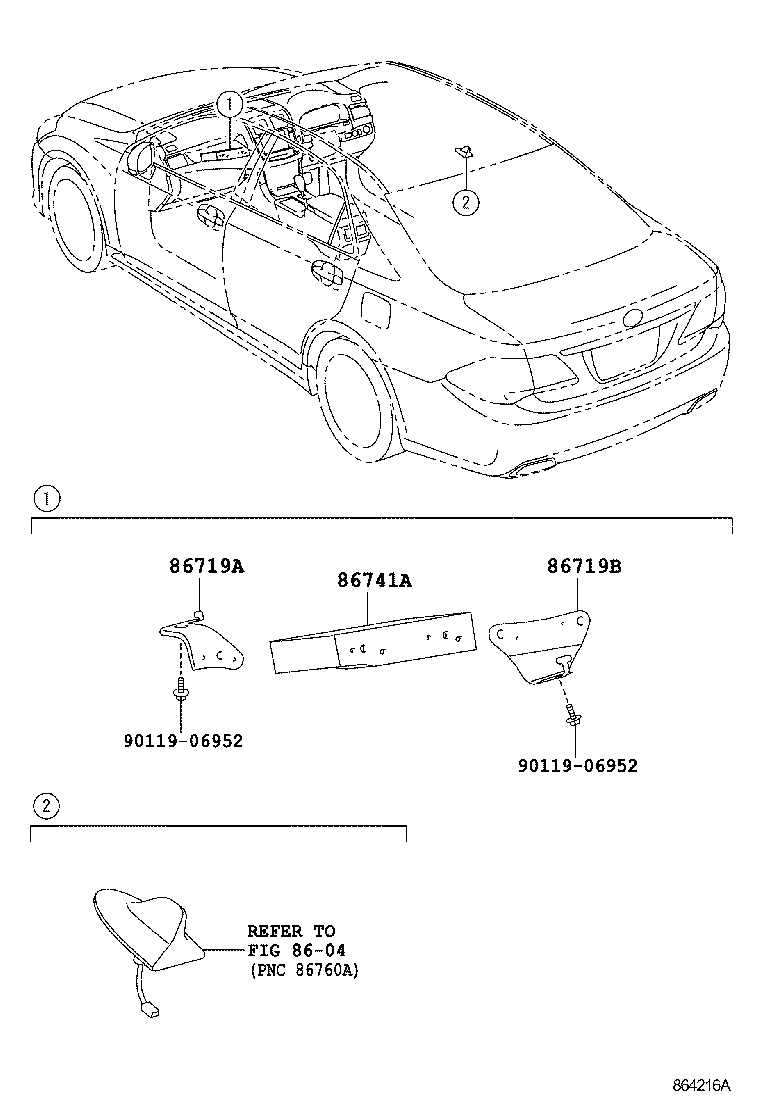

6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86719A | Bracket, Telephone NO.1 |
| 86719B | Bracket, Telephone NO.2 |
| 86741A | Transceiver, Telematics |
| 86761 | Rod, Telephone Antenna |
| 86762 | Base, Telephone Antenna |
| 87268E | Protector, Telephone Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
