Toyota Crown

2008-02 → 2012-12 · chassis GRS20#,GWS204 · catalogue 3311C0 · Japan

Supported model Data version 2012-12

Heating & Air Conditioning - Cooler Unit

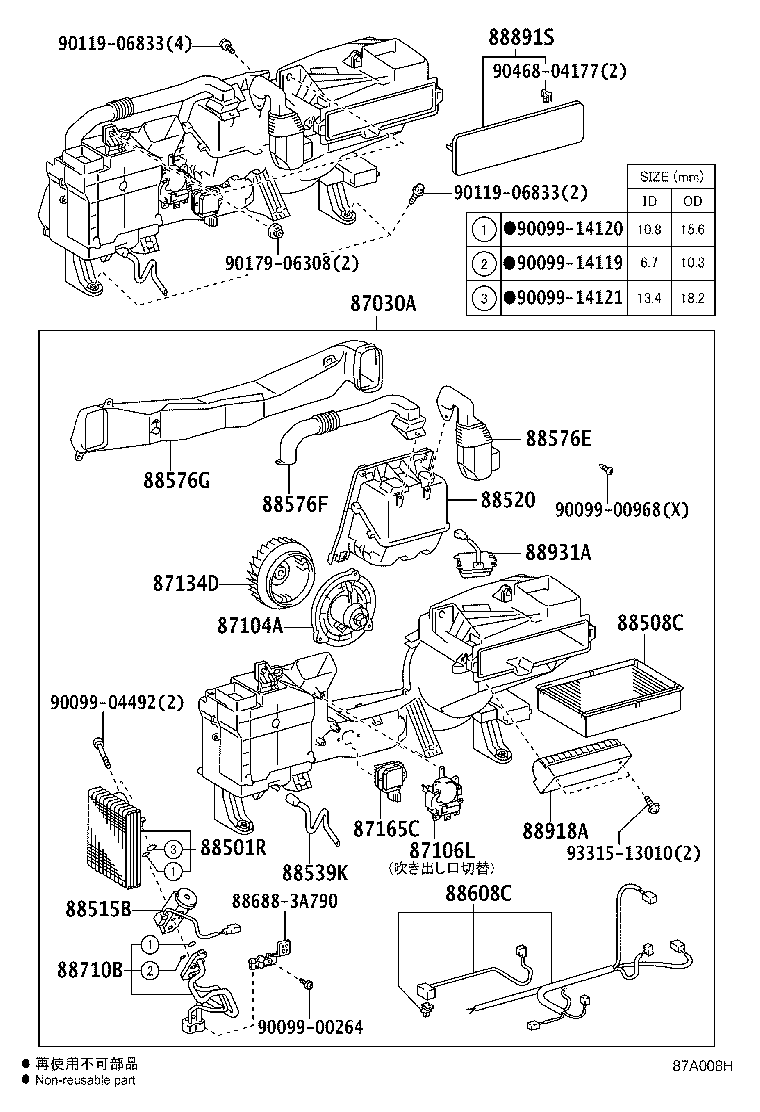

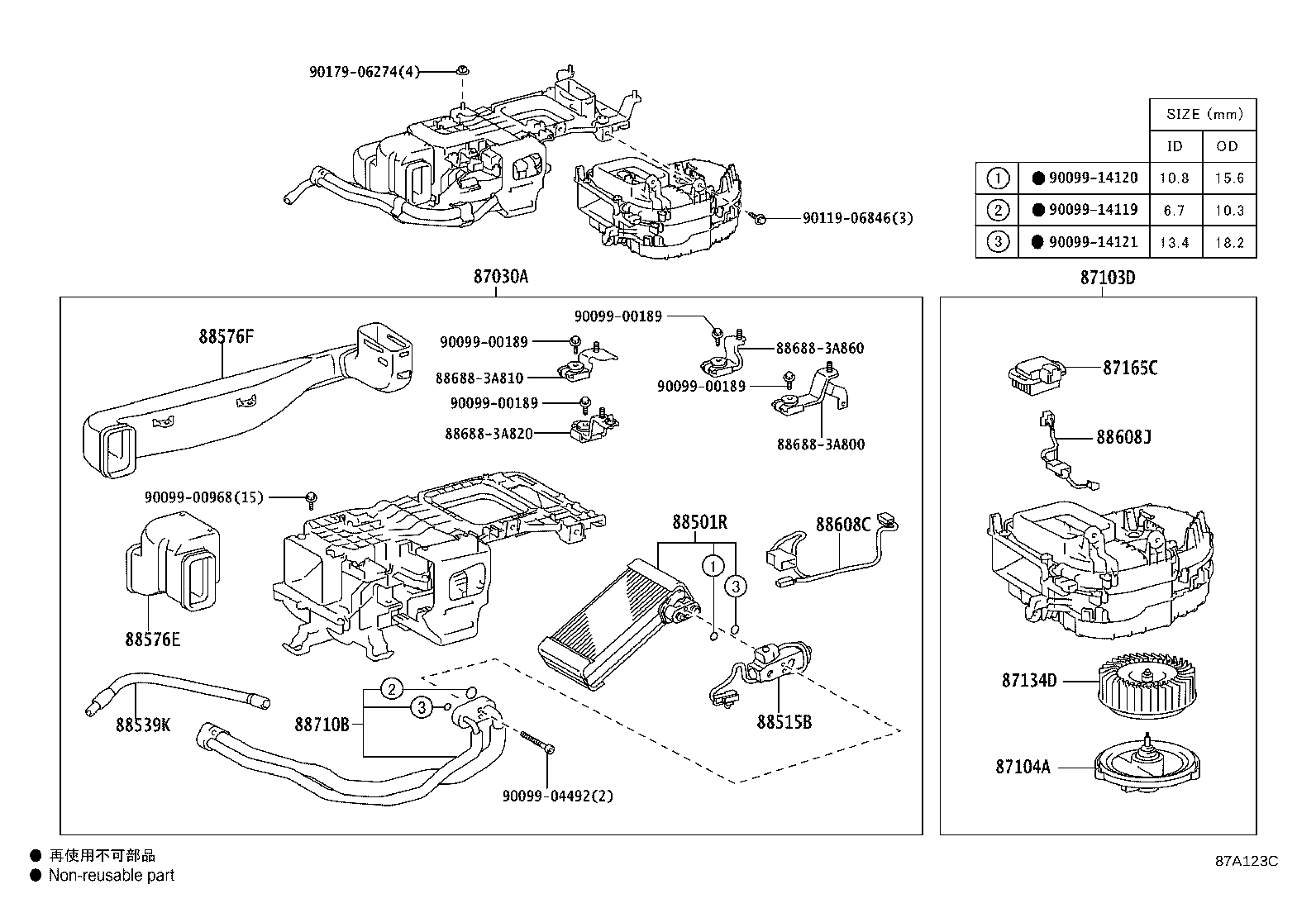

43 part groups · 3 illustrations

PNC	Description
82210K	Harness Assy, Air Conditioner
87020A	Damper Assy, Heater Air
87030A	Unit Assy, Cooling, Rear
87050	Radiator Assy, Air Conditioner
87103B	Motor Sub-assy, Blower W/Fan
87103D	Motor Sub-assy, Blower W/Fan(FOR REAR)
87104A	Motor Sub-assy, Blower
87106D	Servo Sub-assy, Damper, NO.1
87106H	Servo Sub-assy, Damper(FOR AIRMIX)
87106J	Servo Sub-assy, Damper(FOR MODE)
87106L	Servo Sub-assy, Damper
87106V	Servo Sub-assy, Damper(FOR AIRMIX NO.2)
87106Y	Servo Sub-assy, Damper(FOR RECIRCULATION & FRESH)
87107A	Unit Sub-assy, Heater Radiator
87128	Grommet, Heater
87130D	Blower Assy
87134D	Fan, Blower, NO.2
87139C	Filter, Clean Air
87165C	Control, Blower Motor
87223	Pad, Air Duct
88501	Evaporator Sub-assy, Cooler, NO.1
88501R	Evaporator Sub-assy (REAR)
88508C	Filter Sub-assy, Air
88515	Valve, Cooler Expansion
88515B	Valve, Rear Cooling Unit Expansion
88520	Box Assy, Cooling
88539K	Hose, Drain Cooler
88576E	Duct, Cooler Air, NO.1
88576F	Duct, Cooler Air, NO.2
88576G	Duct, Cooler Air, NO.3
88578B	Packing, Cooling Unit, NO.1
88578C	Packing, Cooling Unit, NO.2
88578V	Packing, Cooling Unit, NO.3
88608	Harness Sub-assy, Wiring Air Conditioner
88608C	Harness Sub-assy, Wiring Air Indicator, NO.2
88608J	Harness Sub-assy, Wiring Air Indicator, NO.3
88625	Thermistor, Cooler, NO.1
88650N	Amplifier Assy, Air Conditioner
88710A	Tube Assy, Air Conditioner
88710B	Tube Assy, Air Conditioner
88891S	Cover, Cooler, NO.1
88918A	Lamp Assy, Indicator
88931A	Sensor, Smoke

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
