Heating & Air Conditioning - Cooler Piping

16 part groups · 7 illustrations

Illustrations

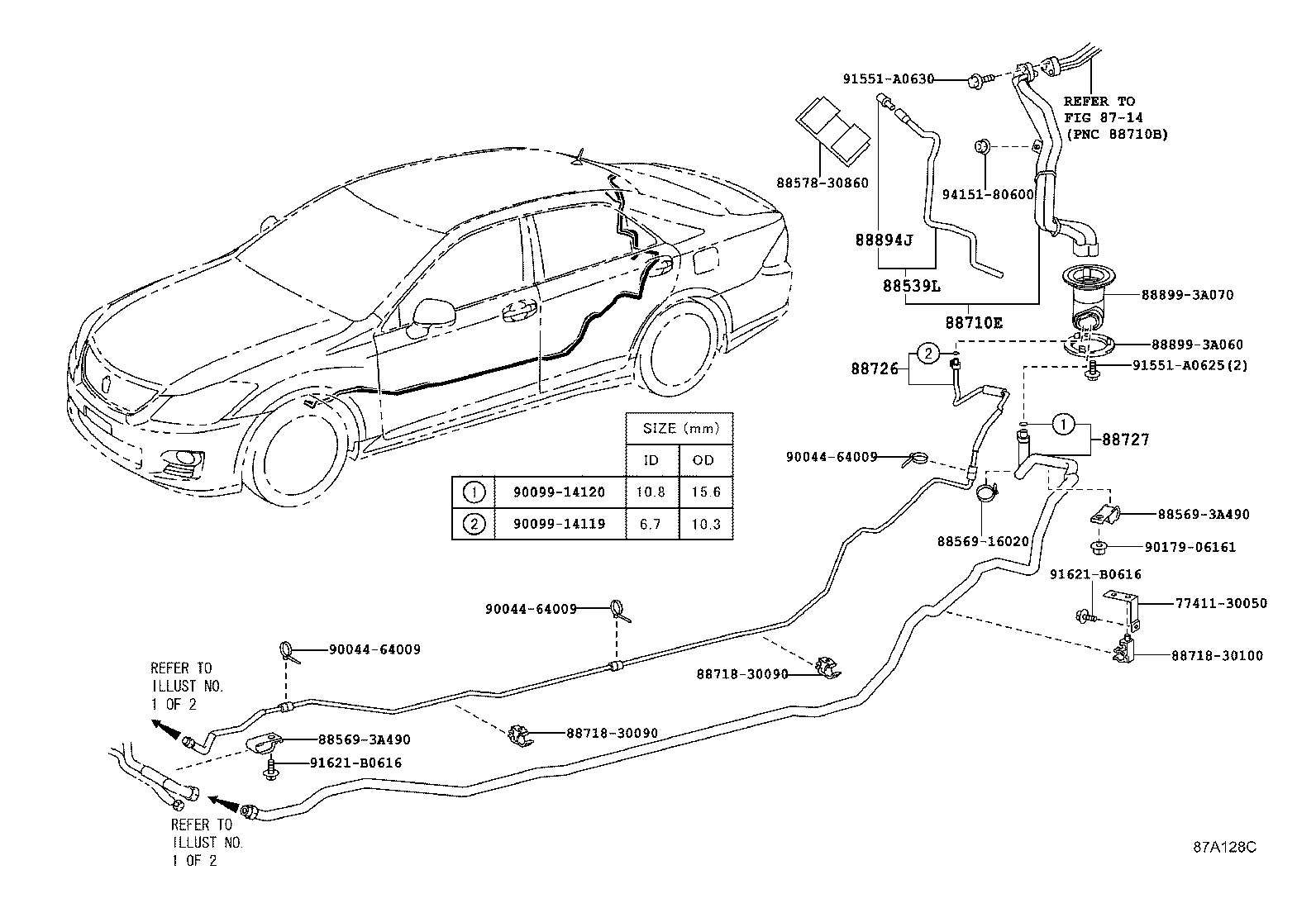

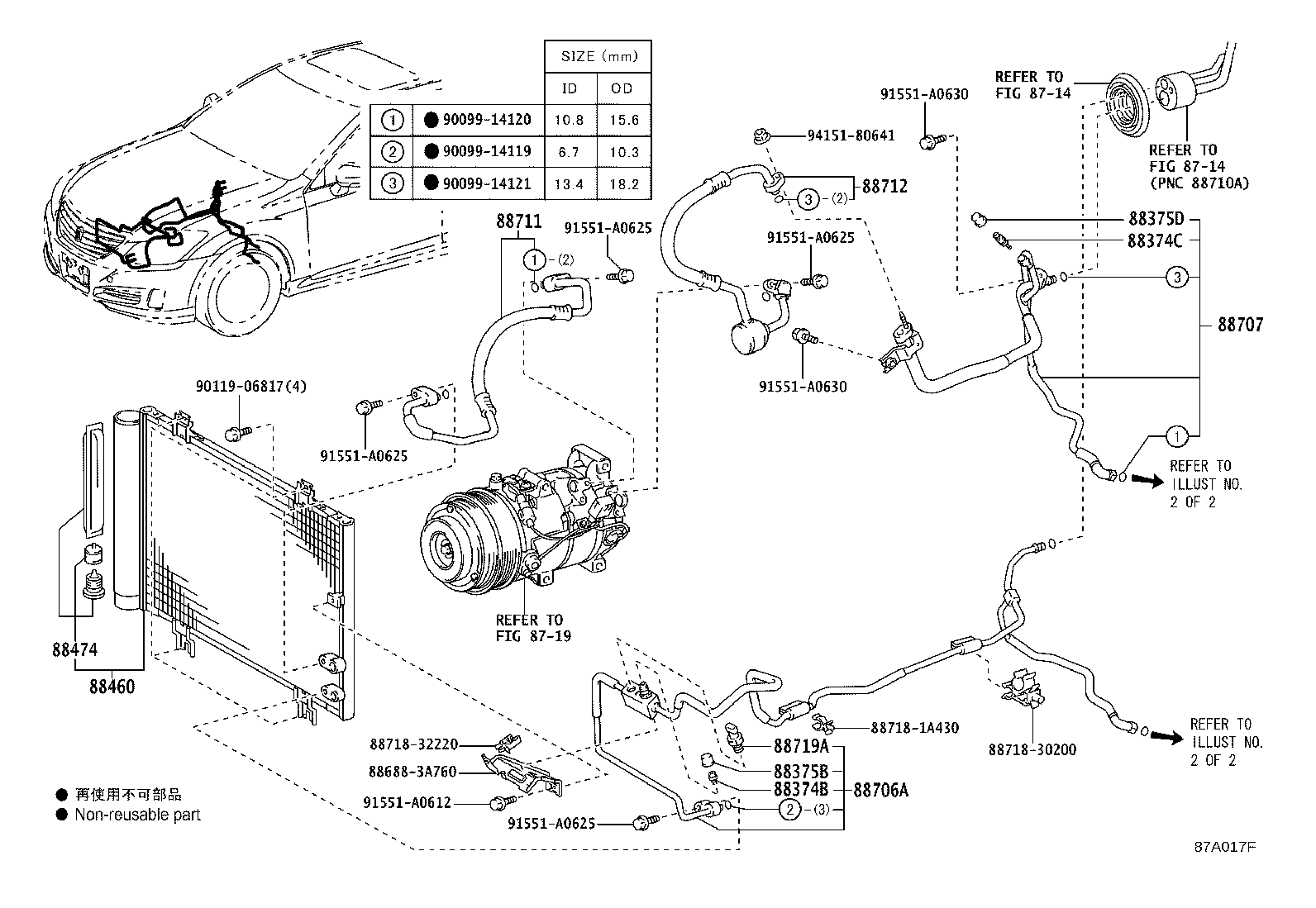

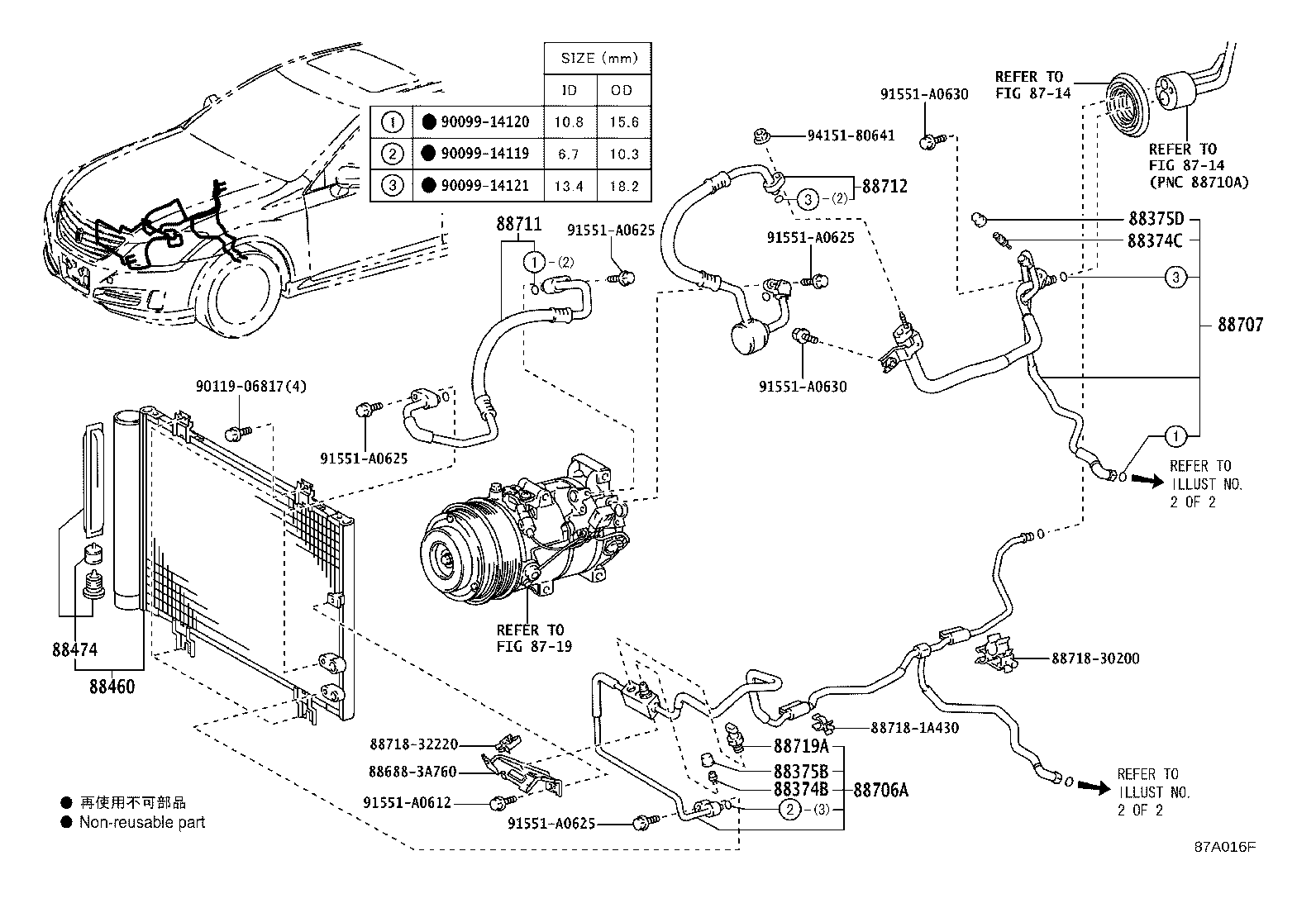

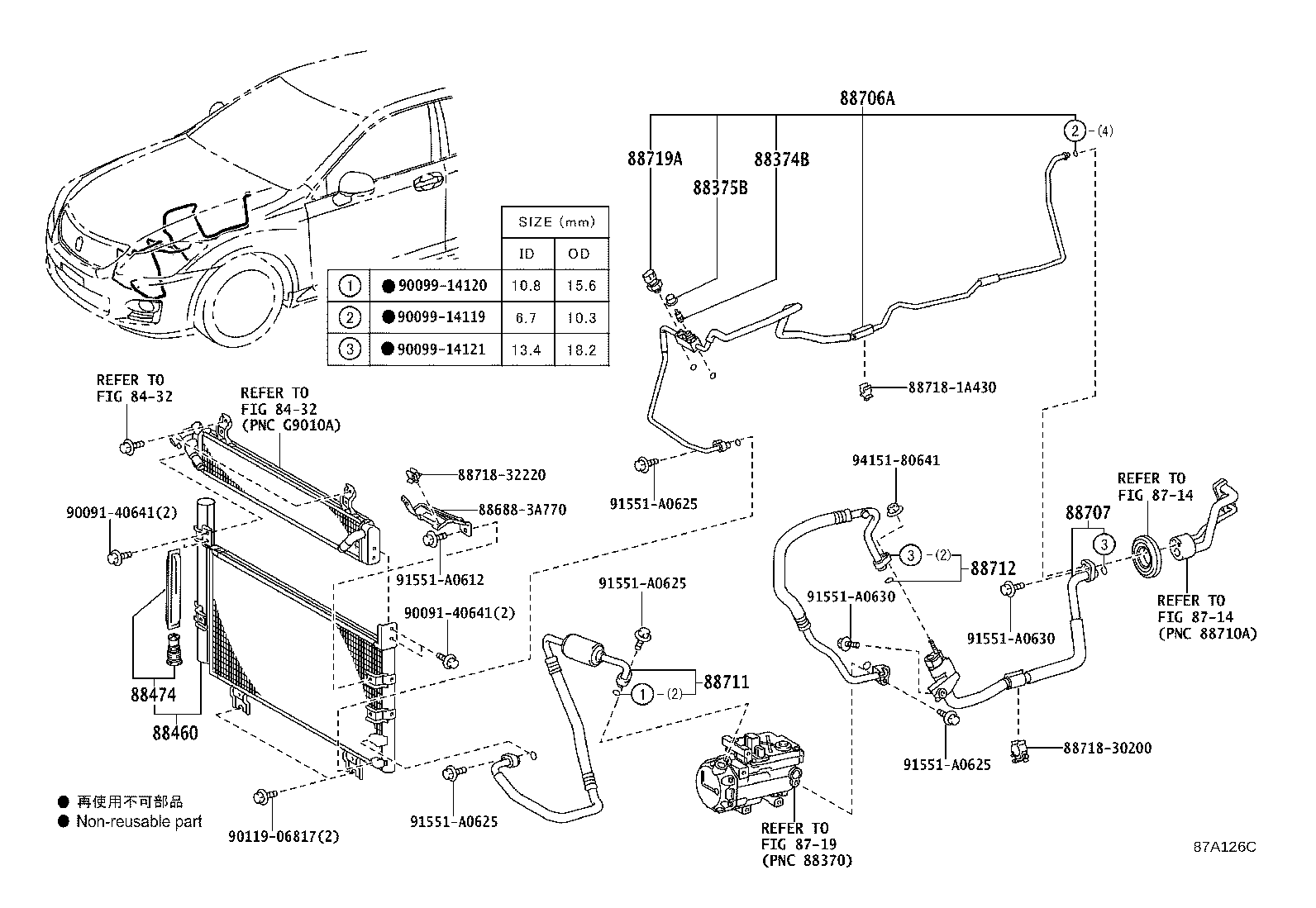

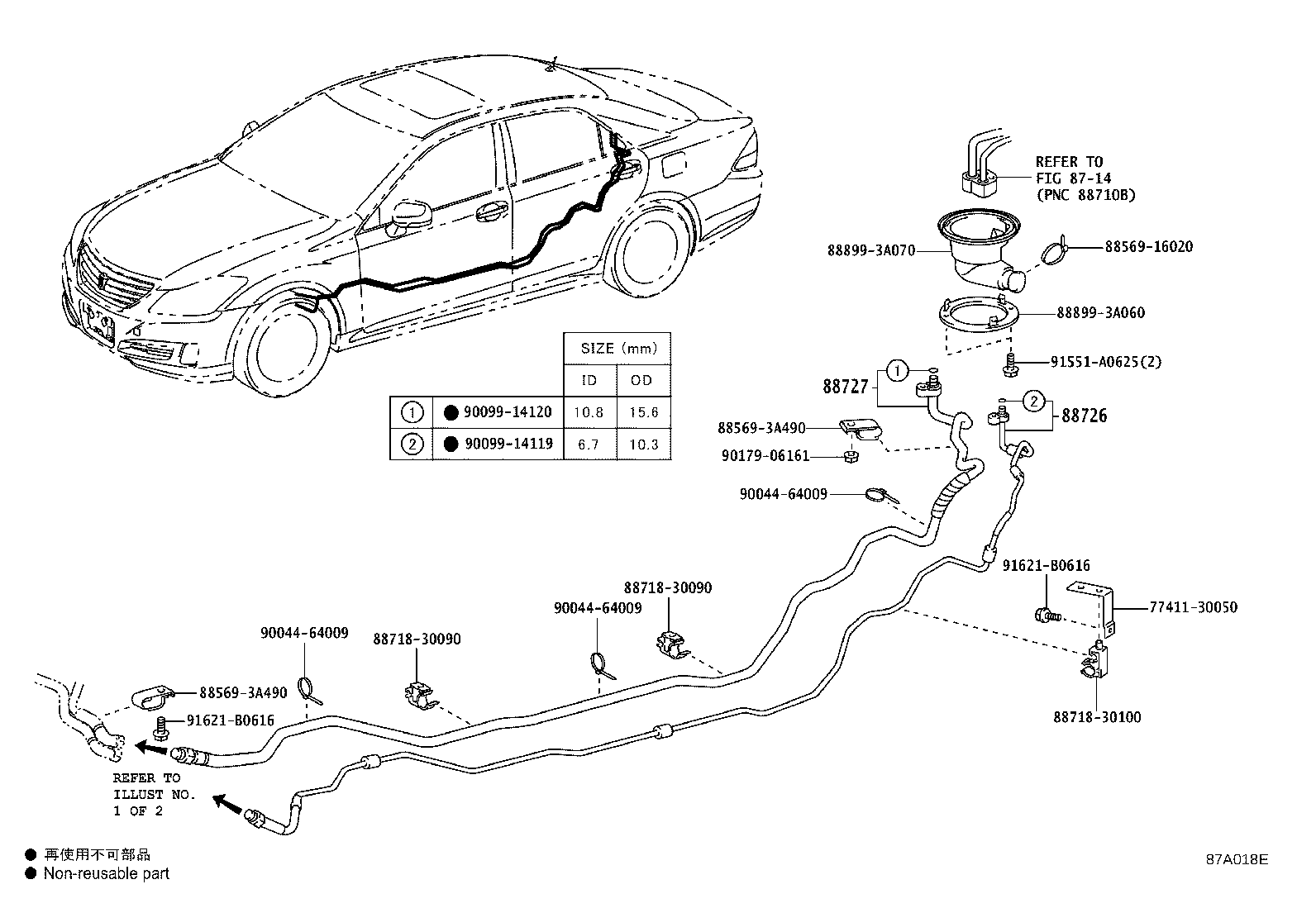

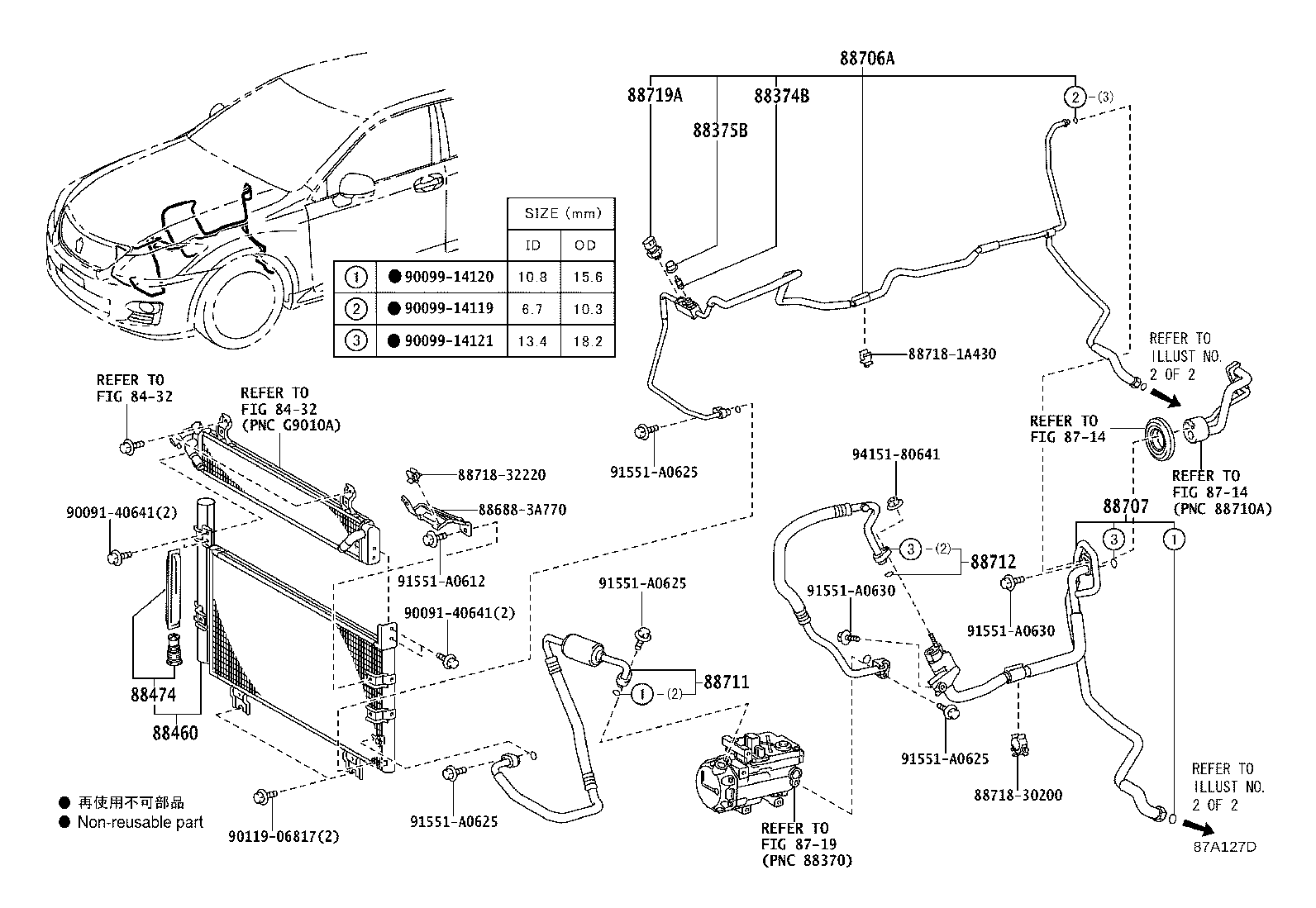

Figure 87A015E 87A015E 2008-02 → — Figure 87A016F 87A016F 2008-02 → — Figure 87A017F 87A017F 2008-02 → — Figure 87A126C 87A126C 2008-05 → — Figure 87A127D 87A127D 2008-05 → — Figure 87A018E 87A018E 2008-02 → — Figure 87A128C 87A128C 2008-05 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88539L Hose, Drain Cooler
88706A Tube Sub-assy, Liquid, A
88707 Pipe Sub-assy, Suction
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88719A Sensor, Air Conditioner Pressure
88726 Tube, Liquid, NO.2
88727 Tube, Suction, NO.2
88894J Connector, Drain Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
