Toyota Crown

2008-02 → 2012-12 · chassis GRS20#,GWS204 · catalogue 3311C0 · Japan

Supported model Data version 2012-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Purifier OR Ion Generator

15 part groups · 3 illustrations

Illustrations

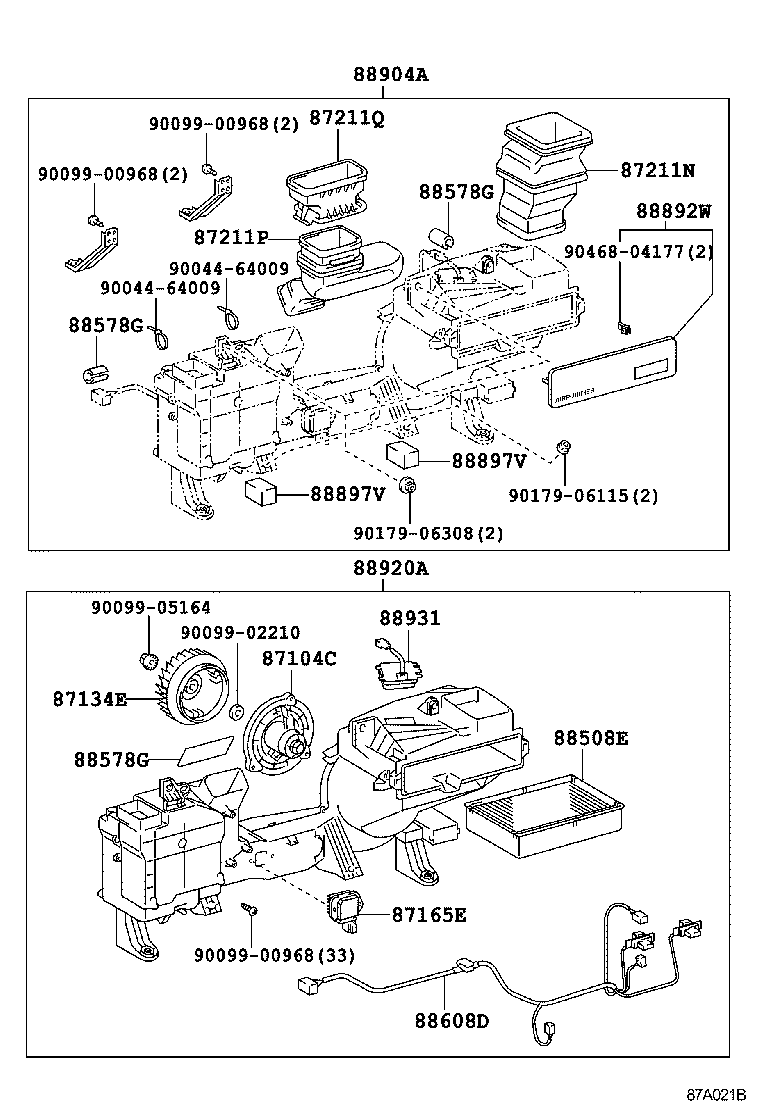

Figure 87A020A 87A020A 2008-02 → — Figure 87A021B 87A021B 2008-02 → — Figure 87A021B 87A021B 2010-02 → —

Part groups

PNCDescription
87104C Blower Motor Sub-assy, Air Purifier
87134E Blower Fan, Air Purifier, NO.2
87165E Control, Air Purifier Blower Motor
87211N Duct, Air Purifier Air, NO.1
87211P Duct, Air Purifier Air, NO.2
87211Q Duct, Air Purifier Air, NO.3
88051A Generator Sub-assy,Ion
88508E Filter Sub-assy, Air Purifier
88578G Packing, Air Purifier, NO.1
88608D Harness Sub-assy, Wiring Air Indicater, NO.2
88892W Cover, Air Purifier
88897V Cushion, Air Purifier
88904A Accessory Sub-assy, Air Purifire
88920A Purifier Assy, Air
88931 Sensor, Smoke
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
