Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

18 part groups · 4 illustrations

Illustrations

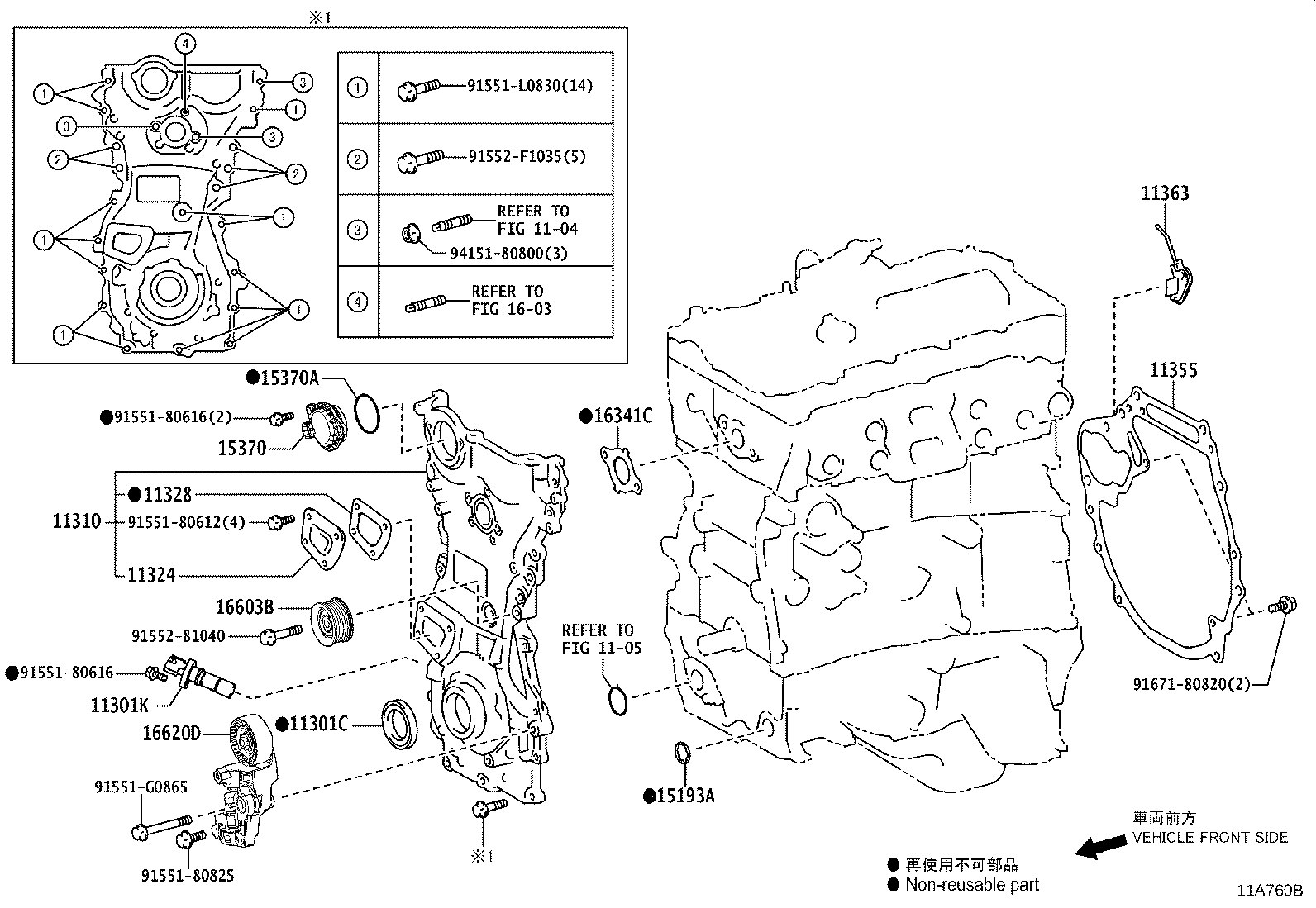

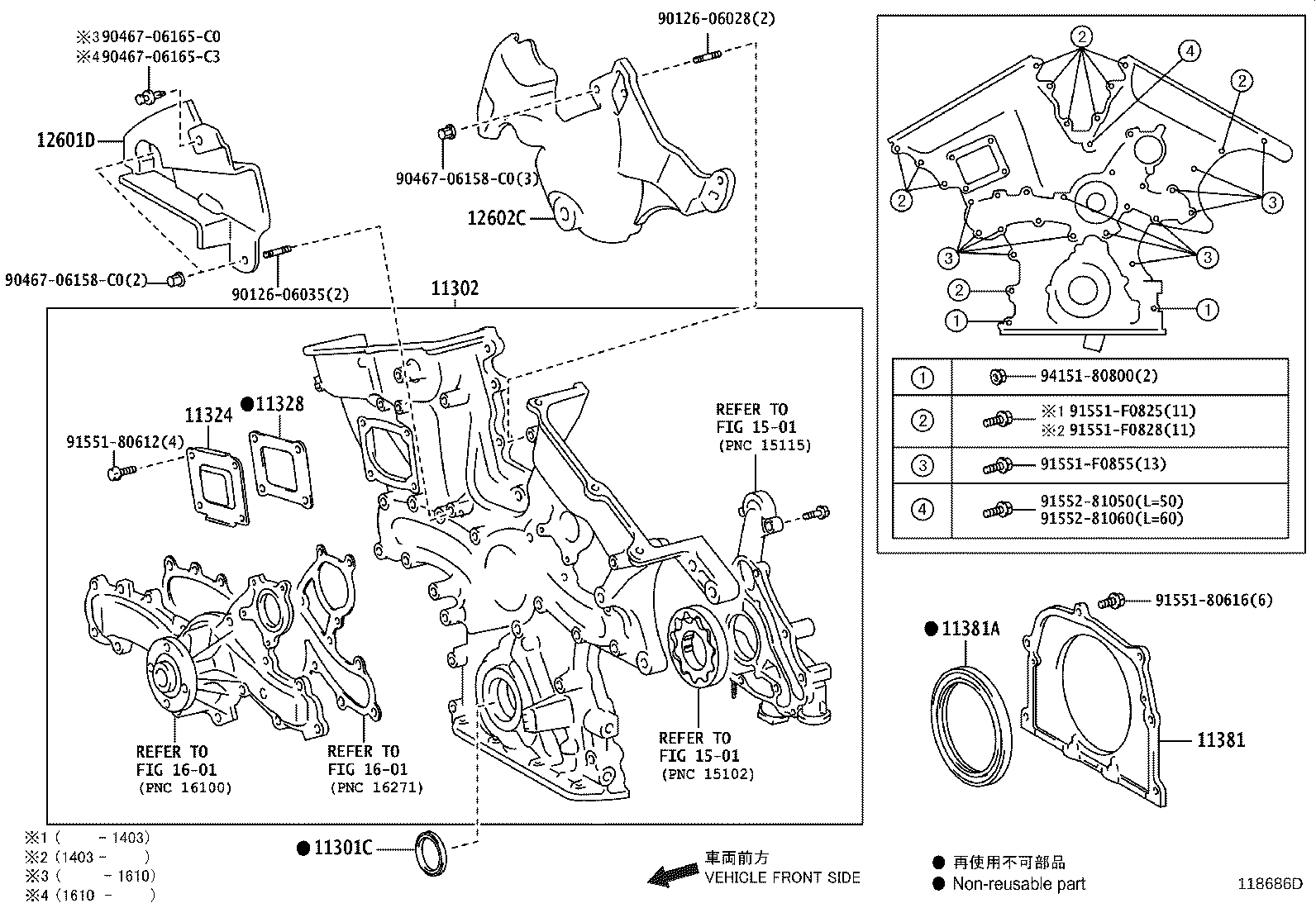

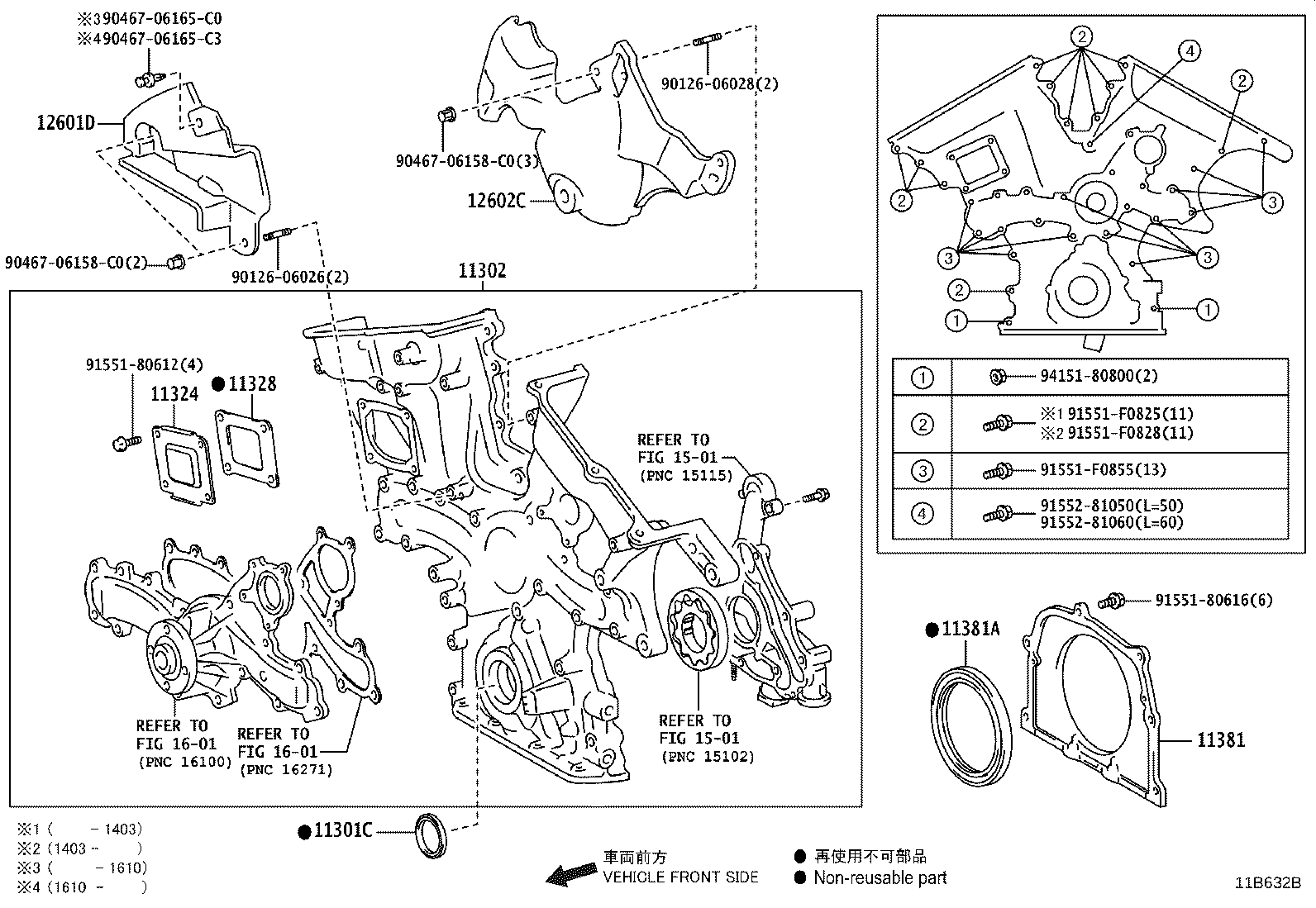

Figure 117786E 117786E 2013-01 → — Figure 11A760B 11A760B 2015-09 → — Figure 11B632B 11B632B 2012-12 → — Figure 118686E 118686E 2013-09 → —

Part groups

PNCDescription
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11310 Cover Assy, Timing Chain
11324 Plate, Timing Chain Cover
11328 Gasket, Timing Gear OR Chain Cover
11355 Plate, Rear End
11363 Cover, Flywheel Side
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
12601D Cover, Engine, NO.1
12602C Cover, Engine, NO.2
15193A Gasket, Oil Pump
15370 Solenoid Assy, Cam Timing Oil Control
15370A Ring, O(FOR CAM TIMING OIL CONTROL SOLENOID)
16341C Gasket, Water Outlet
16603B Pulley Sub-assy, Idler
16620D Tensioner Assy, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
