Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

7 part groups · 6 illustrations

Illustrations

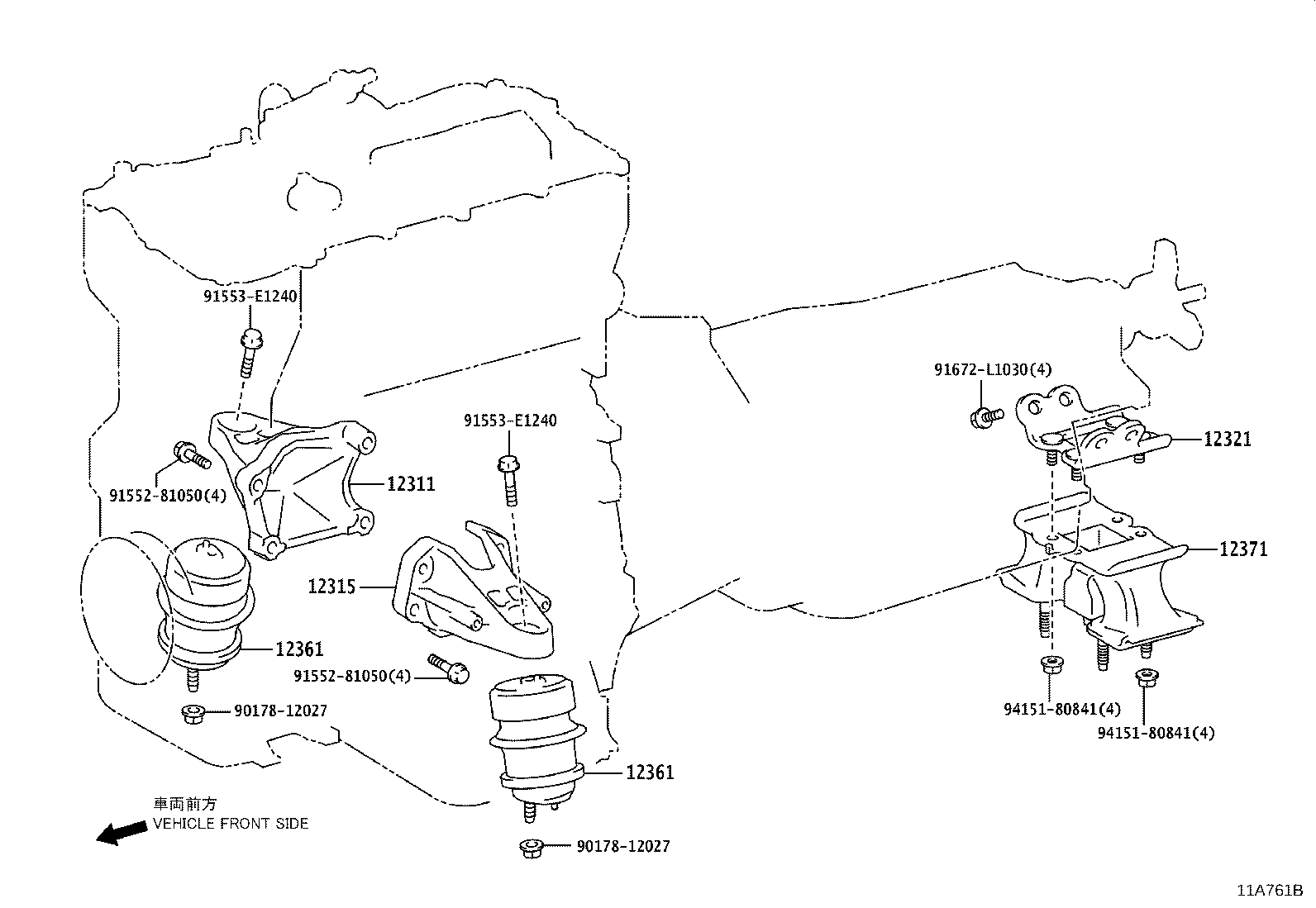

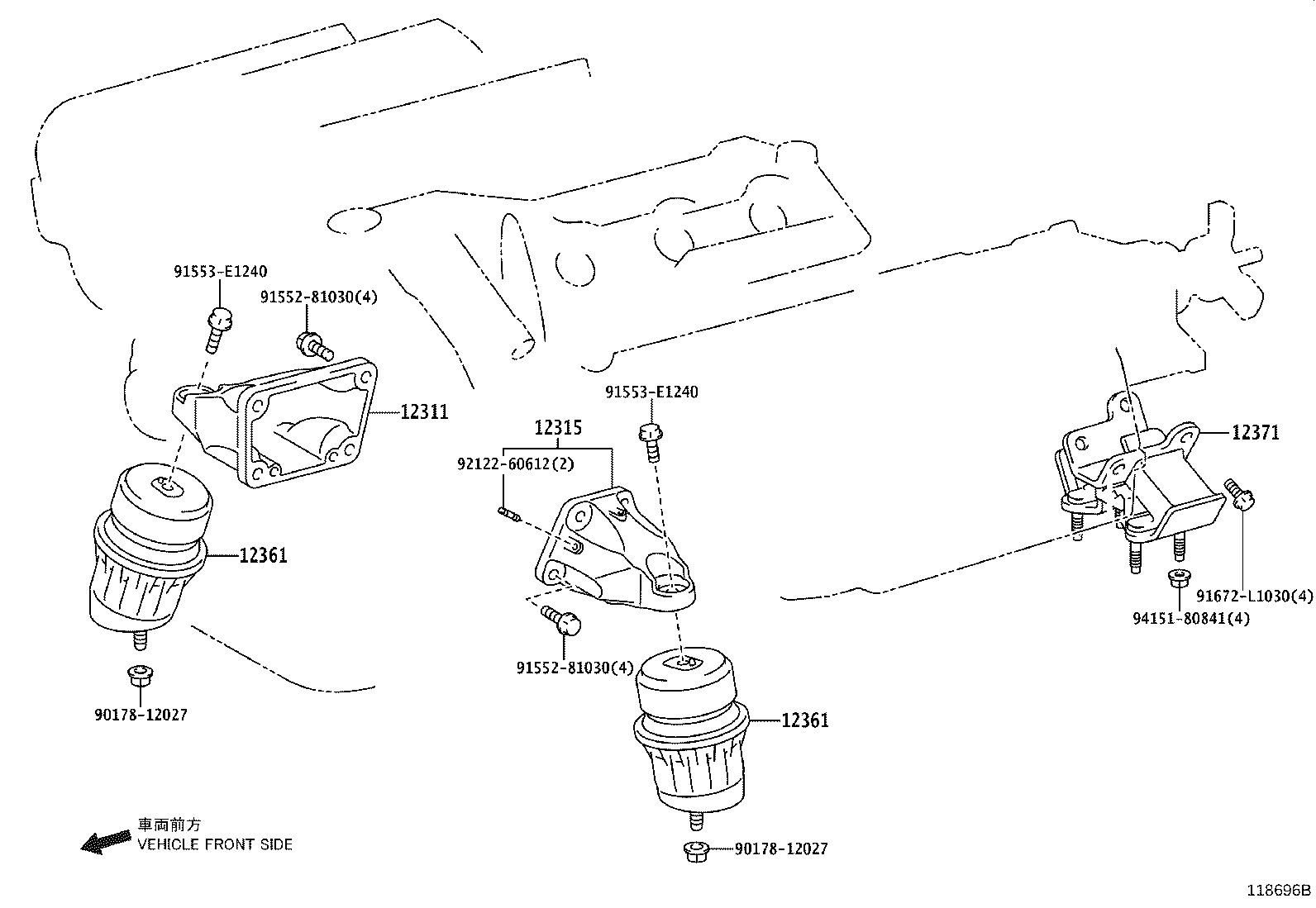

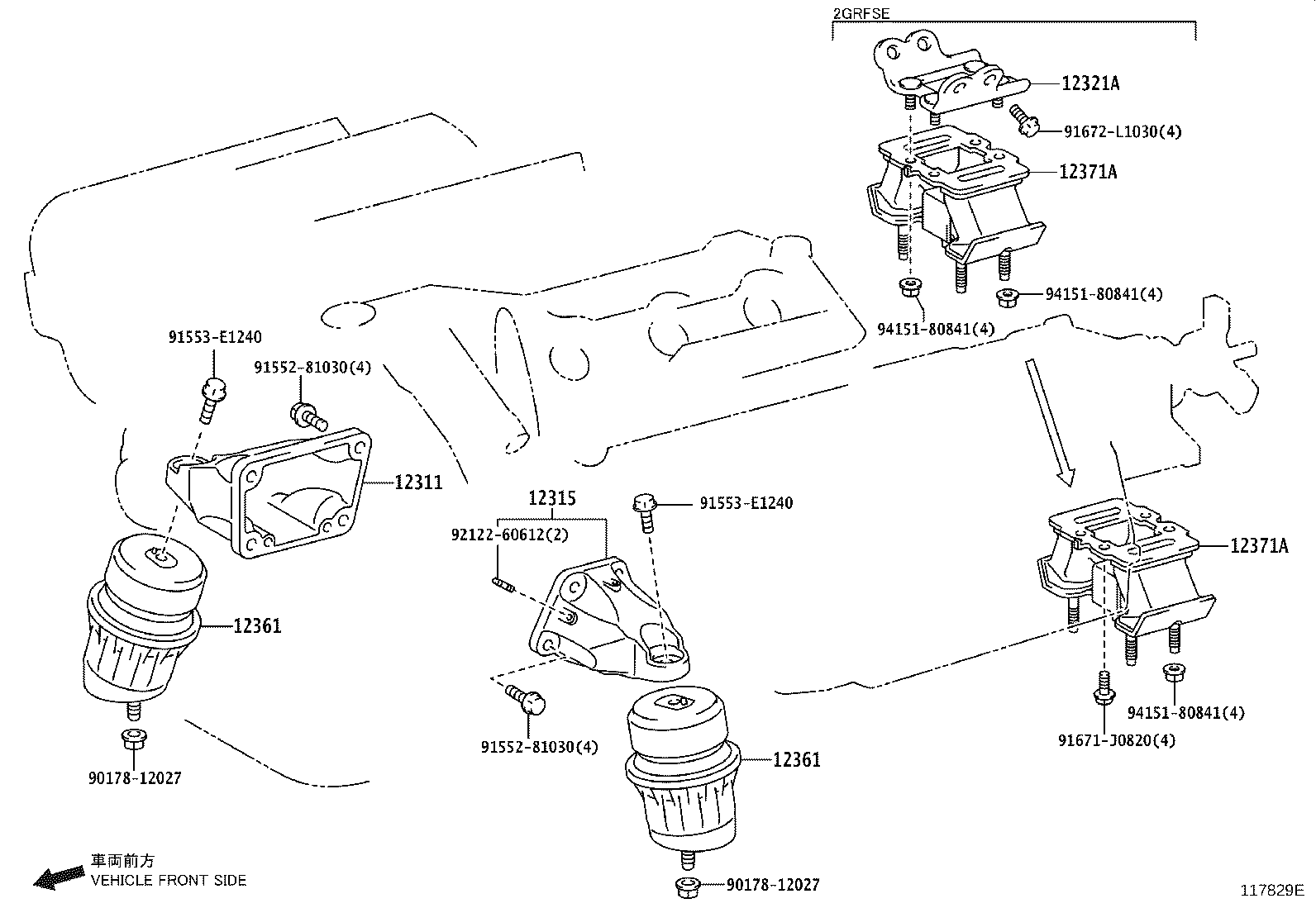

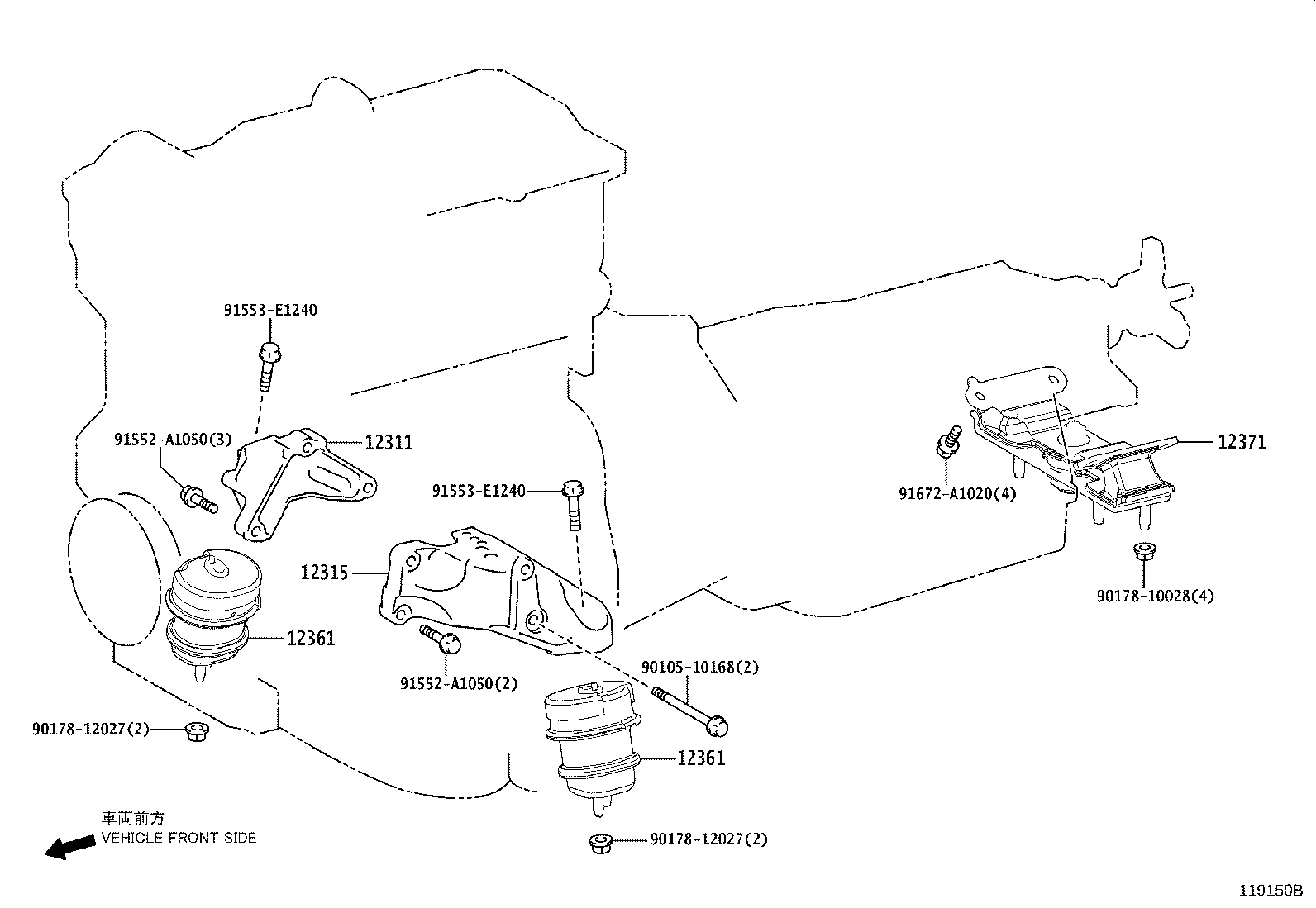

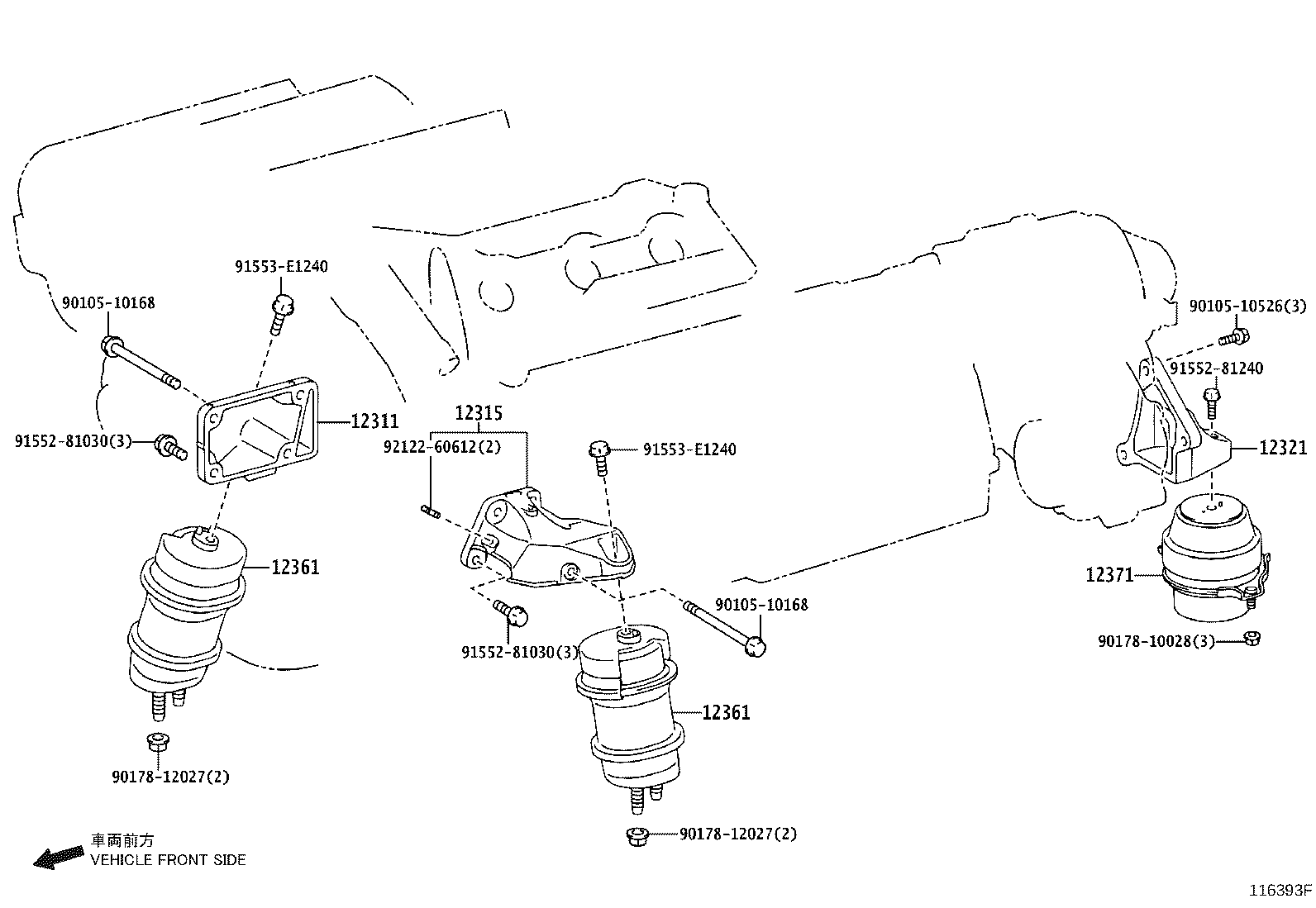

Figure 117791C 117791C 2013-01 → — Figure 119150B 119150B 2014-07 → — Figure 11A761B 11A761B 2015-09 → — Figure 117829E 117829E 2012-12 → — Figure 116393F 116393F 2012-12 → — Figure 118696B 118696B 2013-09 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12371A Insulator, Engine Mounting, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
