Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

9 part groups · 4 illustrations

Illustrations

Figure 152044B

152044B 2013-01 → —

Figure 152173B

152173B 2014-07 → —

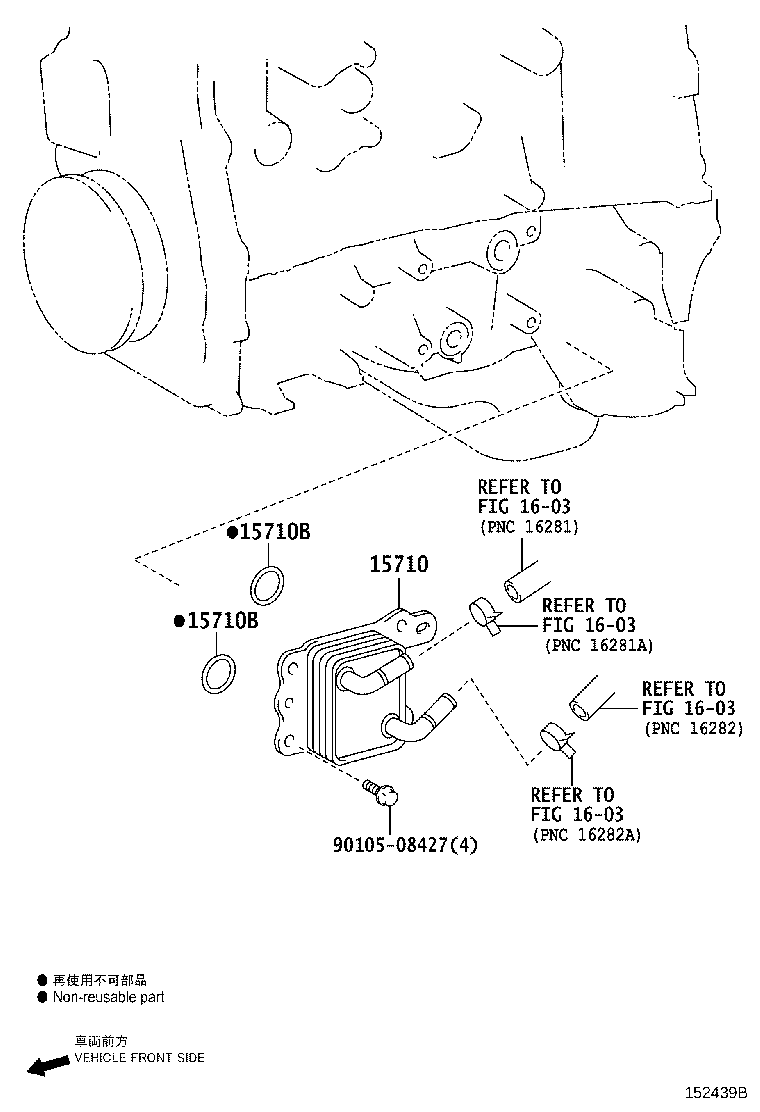

Figure 152439B

152439B 2015-09 → —

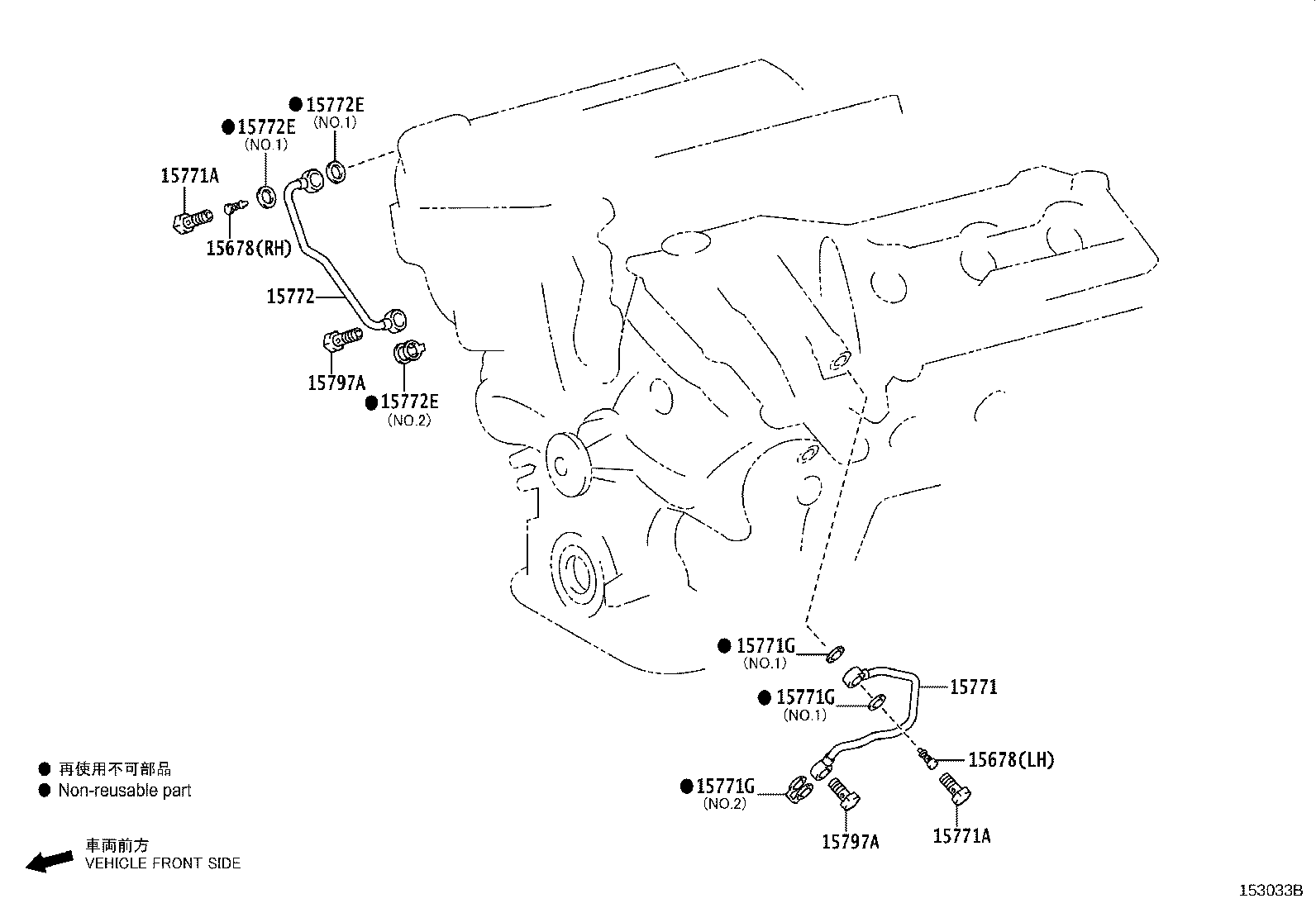

Figure 153033B

153033B 2012-12 → —

Part groups

PNC	Description
15678	Filter, Oil Control Valve
15710	Cooler Assy, Oil
15710B	Ring, O(FOR OIL COOLER)
15771	Pipe, Oil, NO.1
15771A	Union(FOR OIL PIPE)
15771G	Gasket
15772	Pipe, Oil, NO.2
15772E	Gasket(FOR OIL PIPE)
15797A	Bolt, Oil Check Valve

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
