Water Pump

7 part groups · 4 illustrations

Illustrations

Figure 165268C

165268C 2013-01 → —

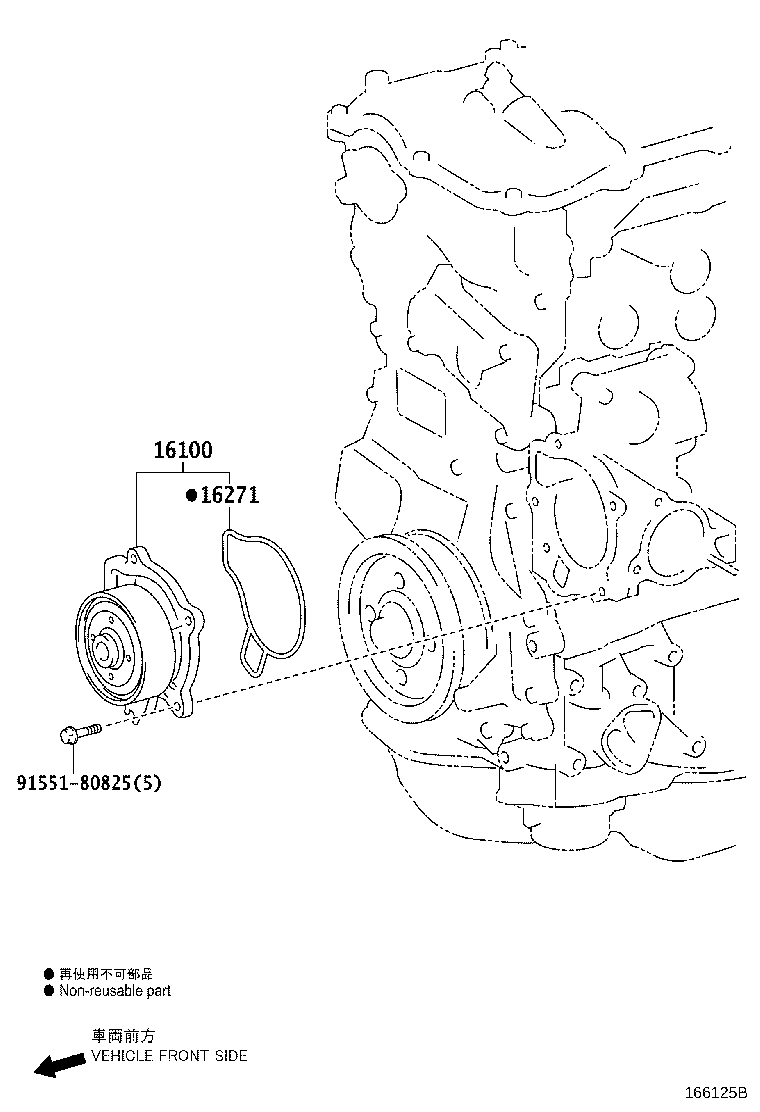

Figure 166125B

166125B 2015-09 → —

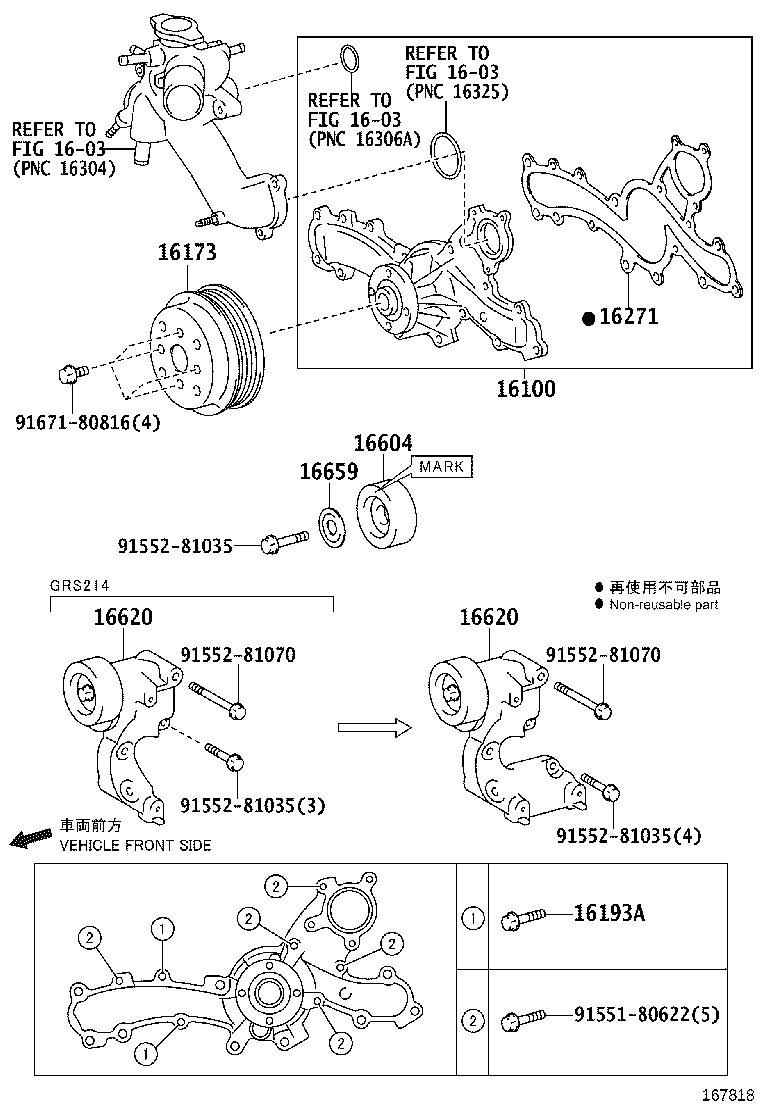

167818 2012-12 → —

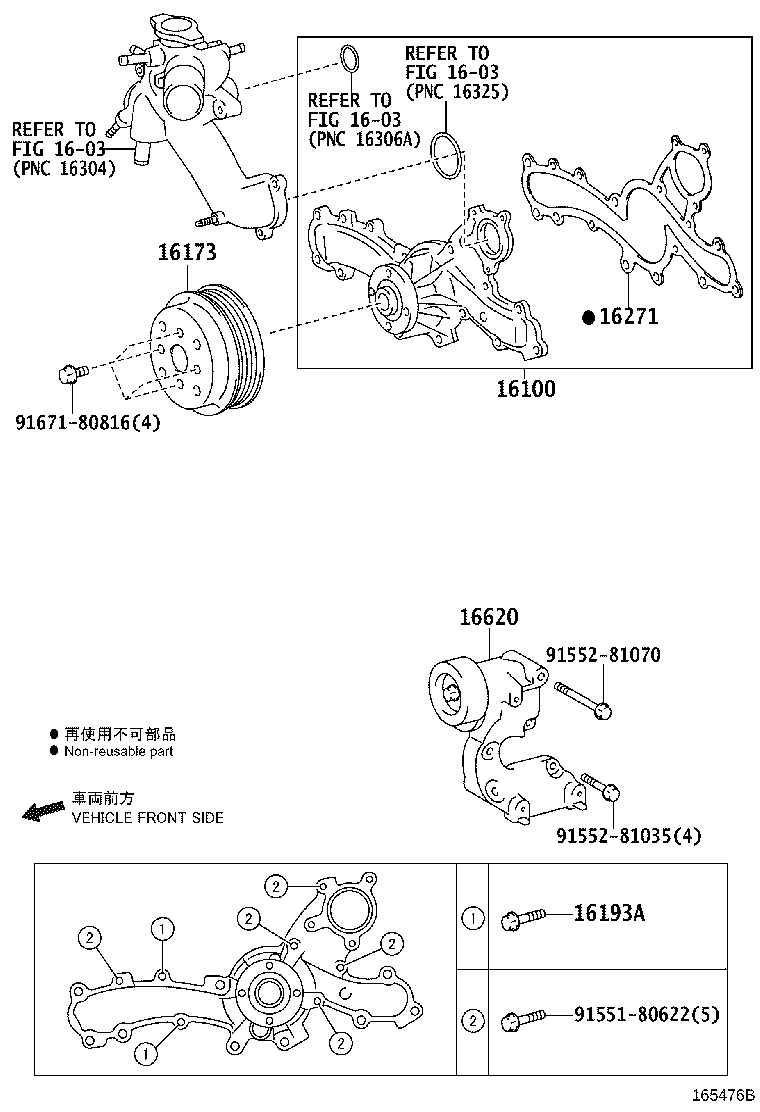

Figure 165476B

165476B 2013-09 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16173	Pulley, Water Pump
16193A	Bolt(FOR WATER PUMP COVER)
16271	Gasket, Water Pump
16604	Pulley Sub-assy, Idler, NO.2
16620	Tensioner Assy, V-ribbed Belt
16659	Plate, Idler Pulley Cover, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
