Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

16 part groups · 6 illustrations

Illustrations

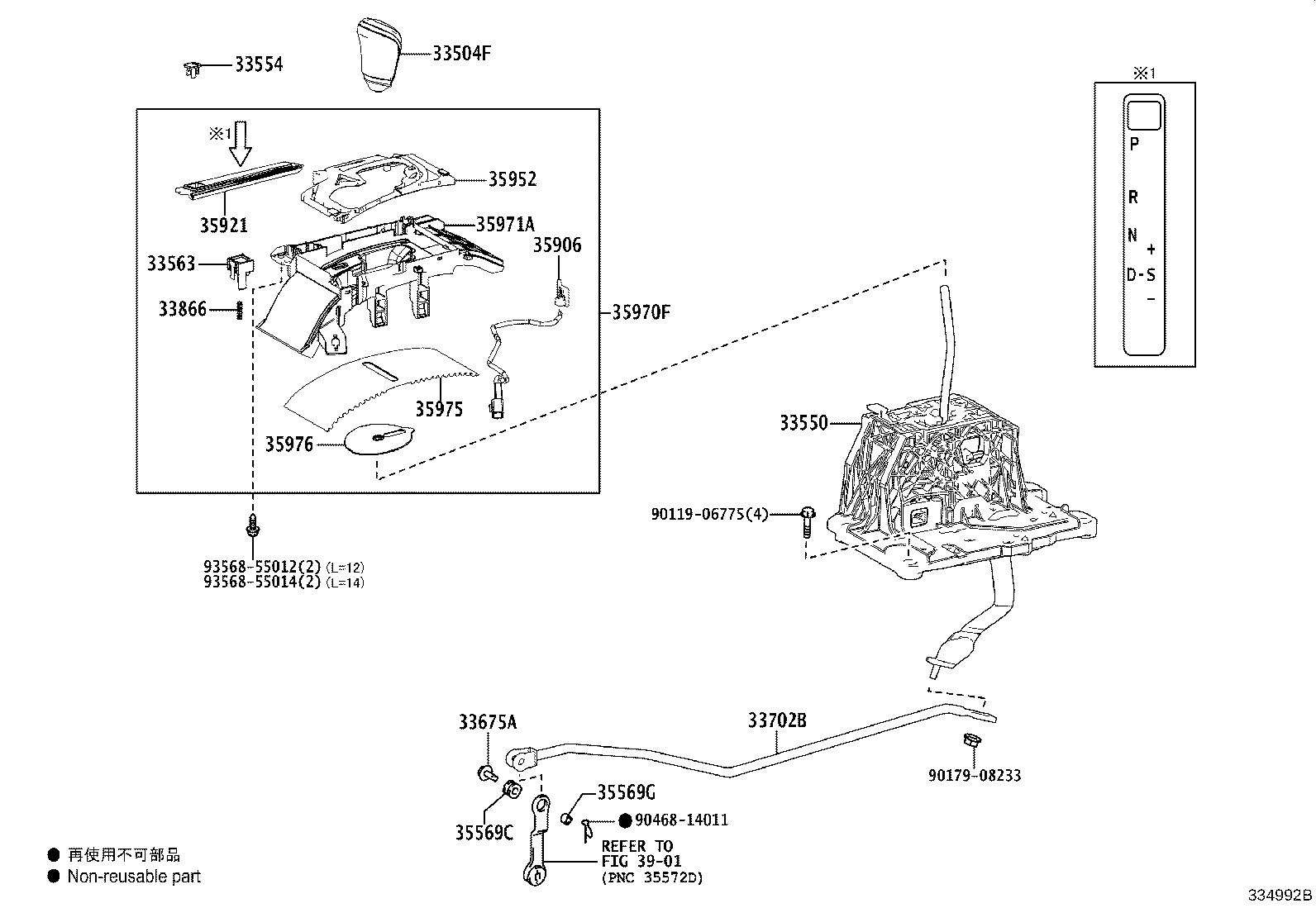

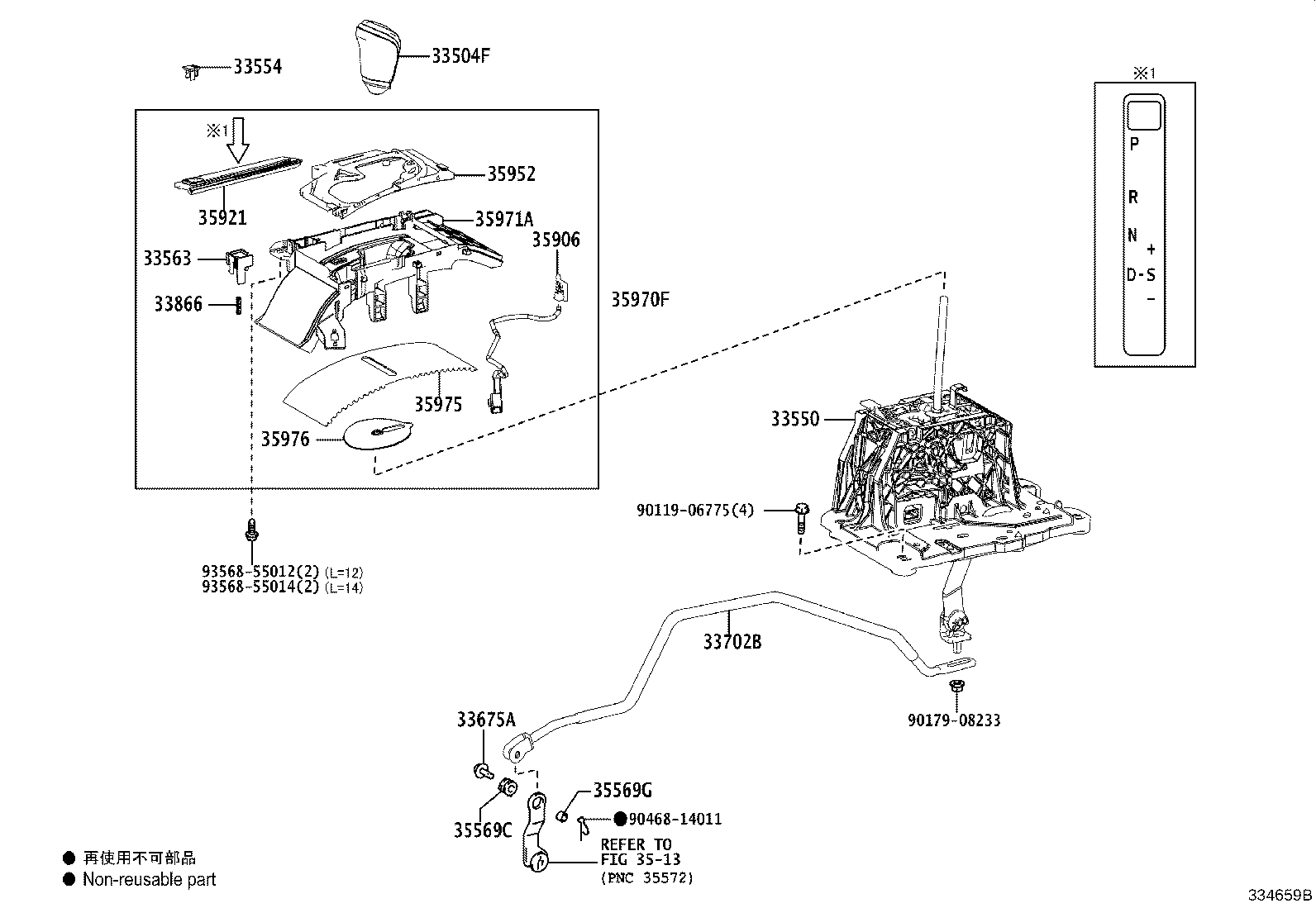

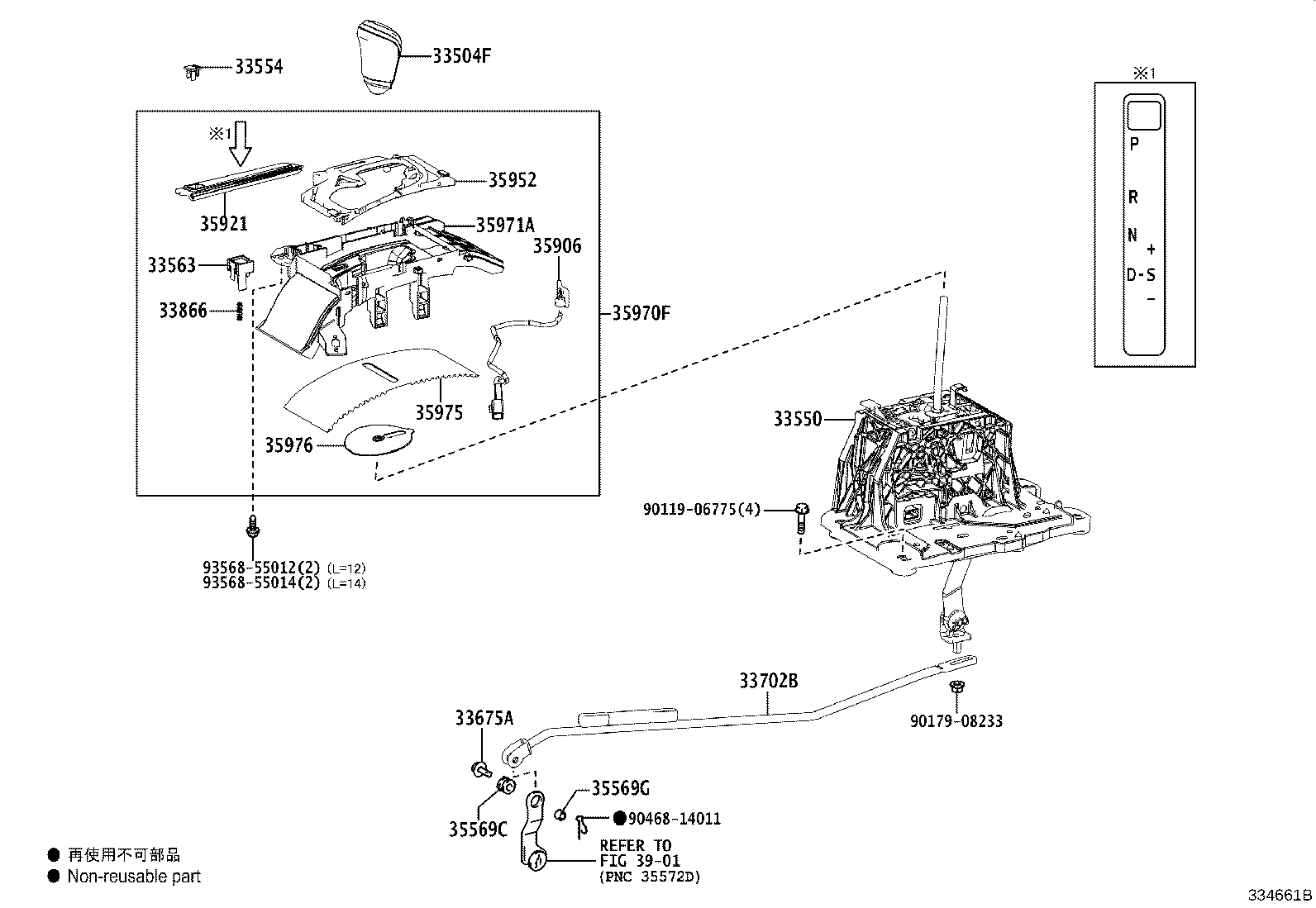

Figure 334658B 334658B 2012-12 → — Figure 334659B 334659B 2012-12 → — Figure 334660B 334660B 2012-12 → — Figure 334661B 334661B 2013-01 → — Figure 334815C 334815C 2013-09 → — Figure 334992B 334992B 2014-07 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33550 Floor Shift Assy, Transmission
33554 Cap, Shift Lever
33563 Button, Shift Lock Release
33675A Pin, W/Hole (FOR TRANSMISSION CONTROL ROD)
33702B Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT)
33866 Spring, Shift Lock Release
35569C Grommet (FOR TRANSMISSION CONTROL ROD)
35569G Bush (FOR TRANSMISSION CONTROL ROD)
35906 Wire Sub-assy, Indicator Lamp
35921 Plate, Control Position Indicator
35952 Lens, Position Indicator
35970F Housing Assy, Position Indicator
35971A Housing, Position Indicator, Upper
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
