Toyota Crown/Hybrid
2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan
Supported model
Data version 2016-08

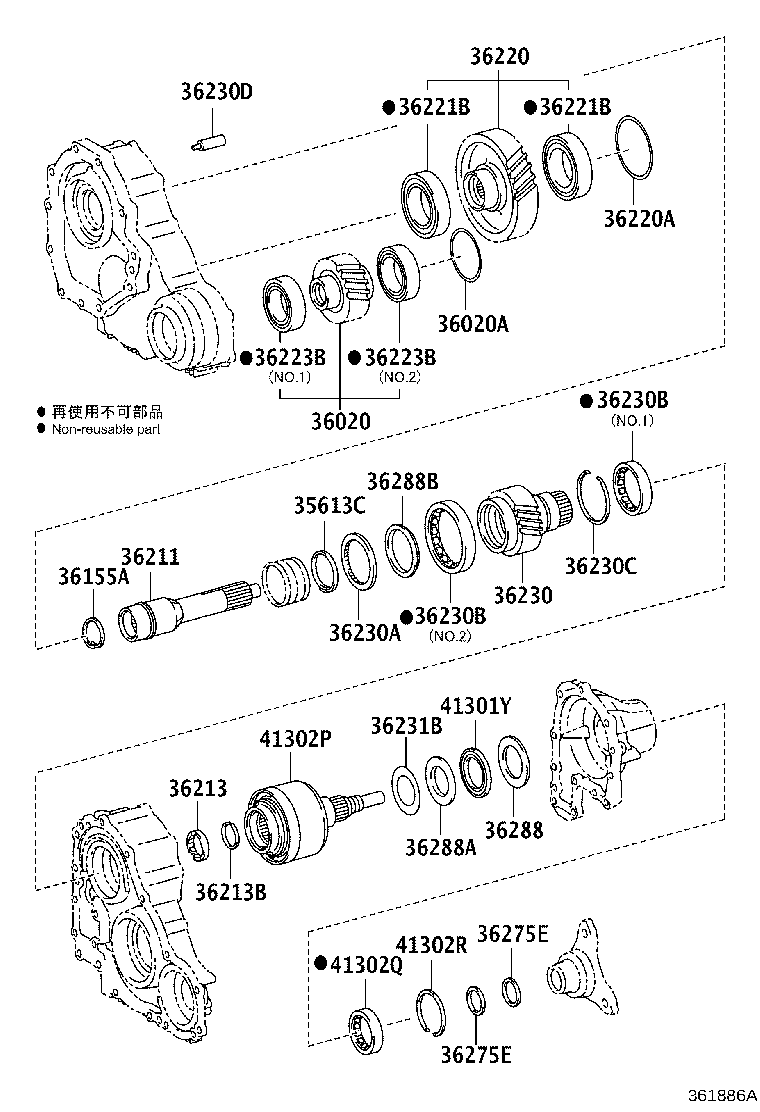

Transfer Gear
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35613C | Ring, Forward Clutch Dram Oil Seal |
| 36020 | Gear Assy, Transfer Counter |
| 36020A | Shim, (FOR TRANSFER COUNTER GEAR ASSY) |
| 36155A | Ring, Transfer Oil Seal |
| 36205 | Sprocket Sub-assy, Transfer Drive |
| 36206 | Sleeve Sub-assy, Trnsfr FR Drive Clutch |
| 36211 | Shaft, Transfer Input |
| 36213 | Stopper, Transfer Input Gear |
| 36213B | Ring, Shaft Snap (FOR TRANSFER INPUT GEAR STOPPER) |
| 36220 | Gear Assy, Transfer Idler |
| 36220A | Shim (FOR TRANSFER IDLER GEAR ASSY) |
| 36221B | Bearing (FOR TRANSFER IDLER GEAR) |
| 36223B | Bearing (FOR TRANSFER COUNTER GEAR) |
| 36230 | Gear Assy, Transfer FR Drive |
| 36230A | Bearing (FOR TRANSFER FR DRIVE GEAR ASSY) |
| 36230B | Bearing, Cylindrical Roller(FOR TRANSFER FR DRIVE GEAR ASSY) |
| 36230C | Ring, Snap (FOR TRANSFER FR DRIVE GEAR ASSY) |
| 36230D | Pin (FOR TRANSFER FR DRIVE GEAR ASSY) |
| 36231B | Shim (FOR TRANSFER OUTPUT SHAFT) |
| 36275E | Washer, Transfer Output Shaft |
| 36288 | Race, Transfer Thrust Bearing, NO.1 |
| 36288A | Race, Transfer Thrust Bearing, NO.2 |
| 36288B | Race, Transfer Thrust Bearing, NO.3 |
| 36291A | Bearing (FOR TRANSFER DRIVE SPROCKET) |
| 36292A | Bearing (FOR TRANSFER DRIVEN SPROCKET) |
| 36293 | Chain, Transfer Front Drive |
| 41301Y | Bearing, Needle Roller(FOR DIFFERENTIAL CASE) |
| 41302P | Case Sub-assy, Differential, NO.1 |
| 41302Q | Bearing, Cylindrical Roller(FOR TRANSFER OUTPUT SHAFT) |
| 41302R | Ring, Hole Snap(FOR DIFFERENTIAL CASE SUB-ASSY, NO.1) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
