Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

11 part groups · 3 illustrations

Illustrations

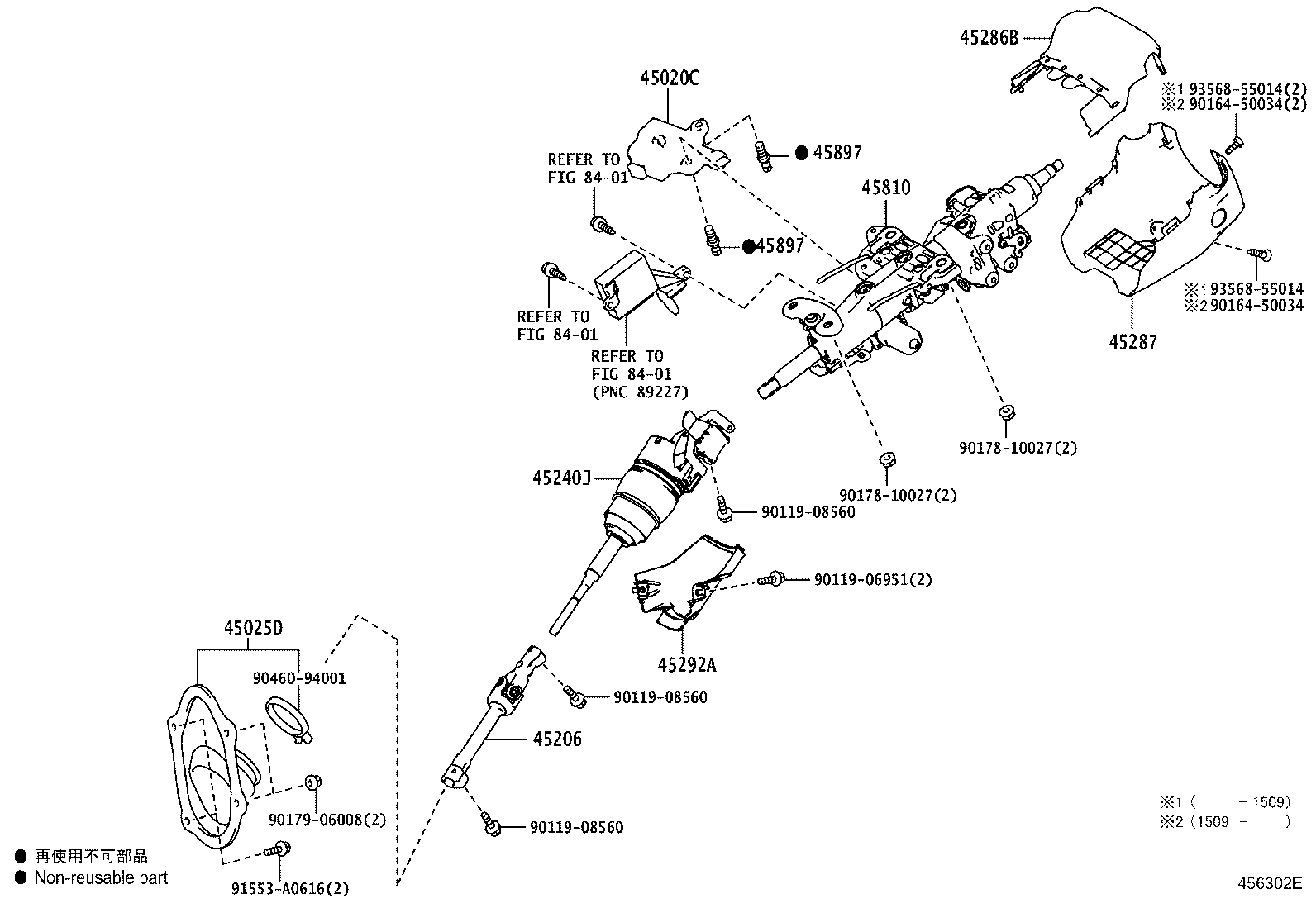

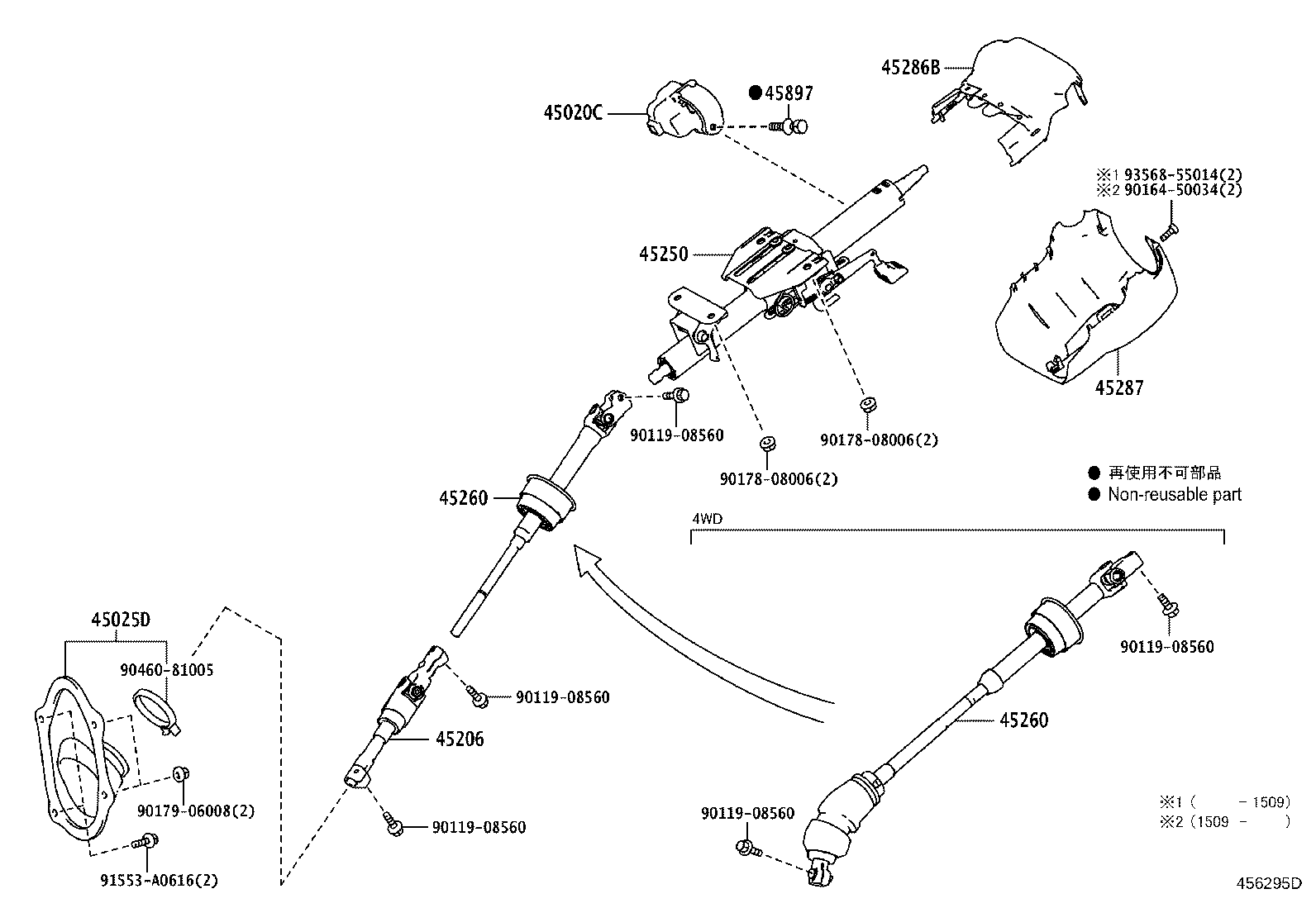

Figure 456294E 456294E 2012-12 → — Figure 456295D 456295D 2012-12 → — Figure 456302E 456302E 2012-12 → —

Part groups

PNCDescription
45020C Actuator Assy, Steering Lock(W/ECU)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45206 Yoke Sub-assy, Steering Sliding W/Shaft
45240J Actuator Assy, Steering
45250 Column Assy, Steering
45260 Shaft Assy, Steering Intermediate, NO.2
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45292A Cover, Main Shaft Lower Dust
45810 Gear Assy, Tilt Steering, W/Motor
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
