Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

9 part groups · 2 illustrations

Illustrations

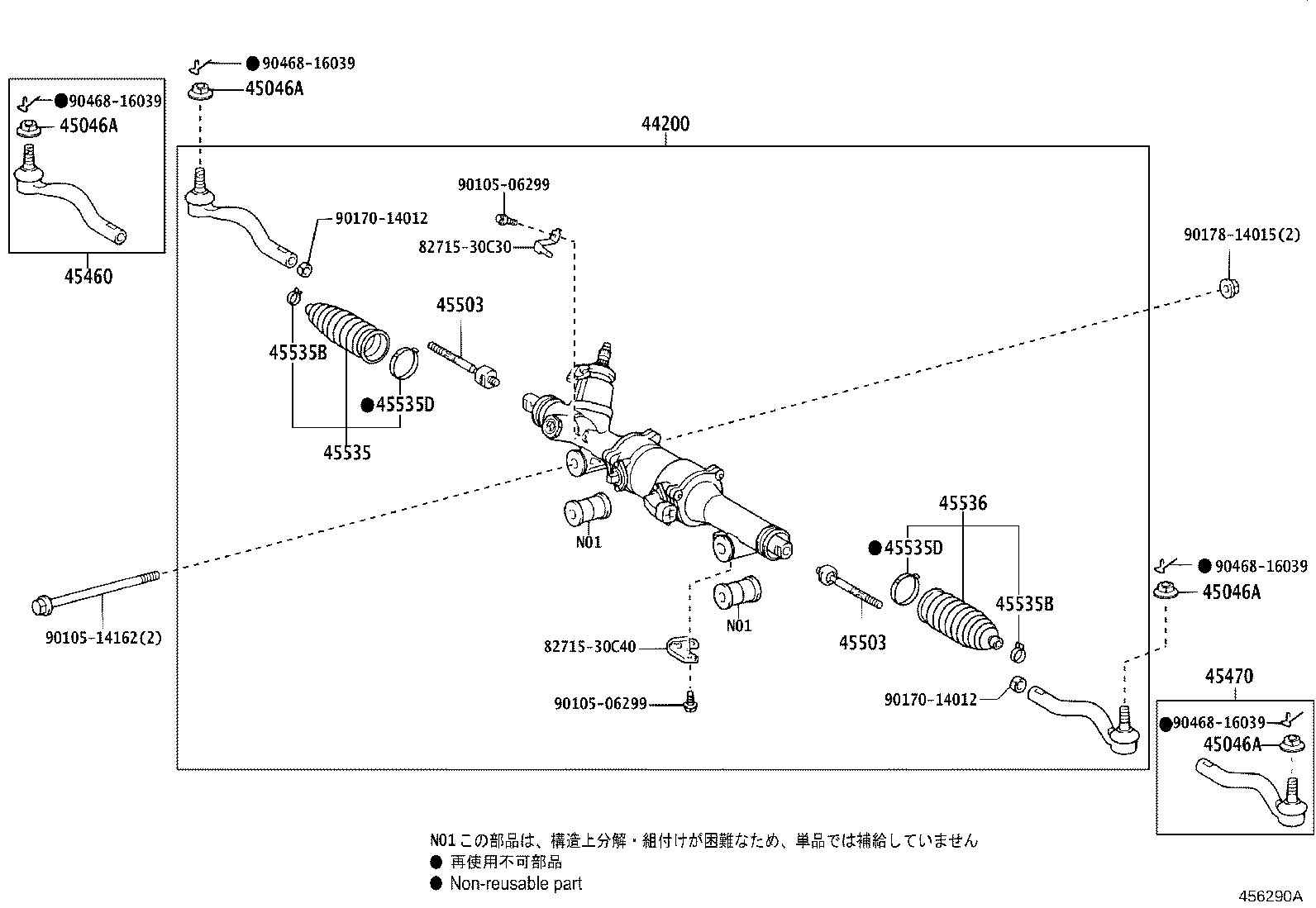

Figure 456289A 456289A 2012-12 → — Figure 456290A 456290A 2012-12 → —

Part groups

PNCDescription
44200 Link Assy, Power Steering
45046A Nut, Castle(FOR TIE ROD END)
45460 Rod Assy, Tie, RH
45470 Rod Assy, Tie, LH
45503 End Sub-assy, Steering Rack
45535 Boot, Steering Rack, NO.1
45535B Clip(FOR STEERING RACK BOOT)
45535D Clamp(FOR STEERING RACK BOOT NO.1)
45536 Boot, Steering Rack, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
