Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

10 part groups · 2 illustrations

Illustrations

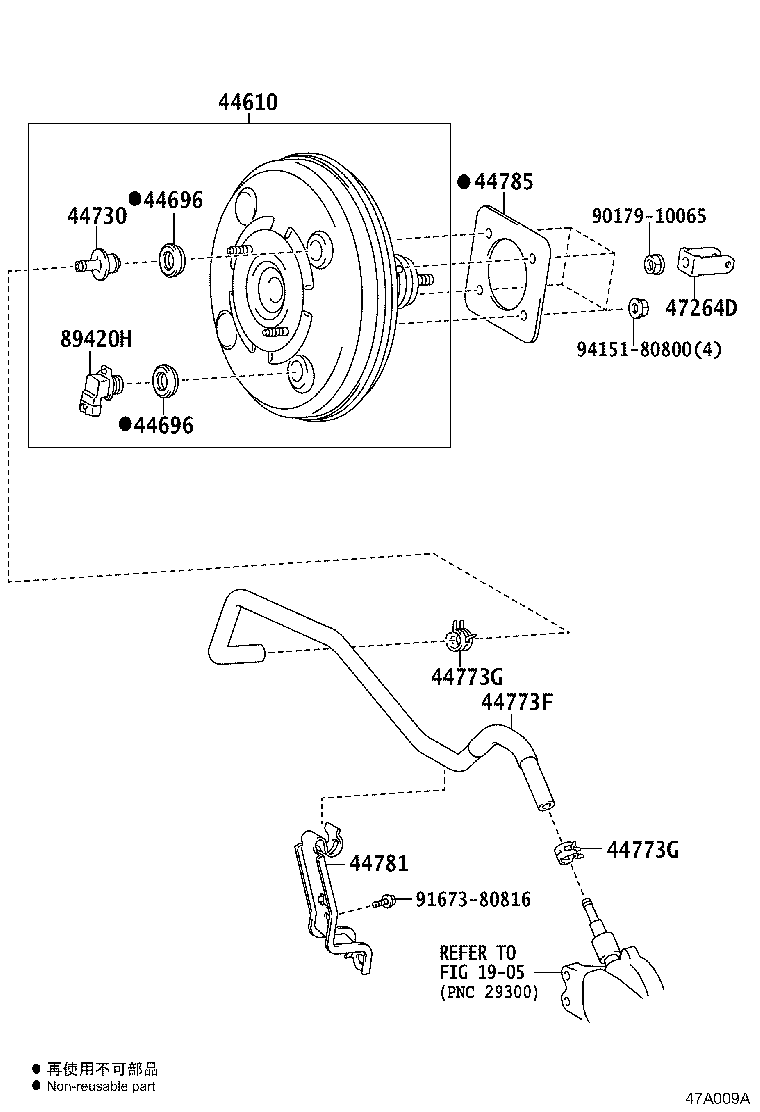

Figure 478066B 478066B 2012-12 → — Figure 47A009A 47A009A 2015-09 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44753 Clamp, Vacuum Reservoir, NO.2
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44781 Bracket, Hose
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
89420H Sensor Assy, Vacuum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
