Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

36 part groups · 20 illustrations

Illustrations

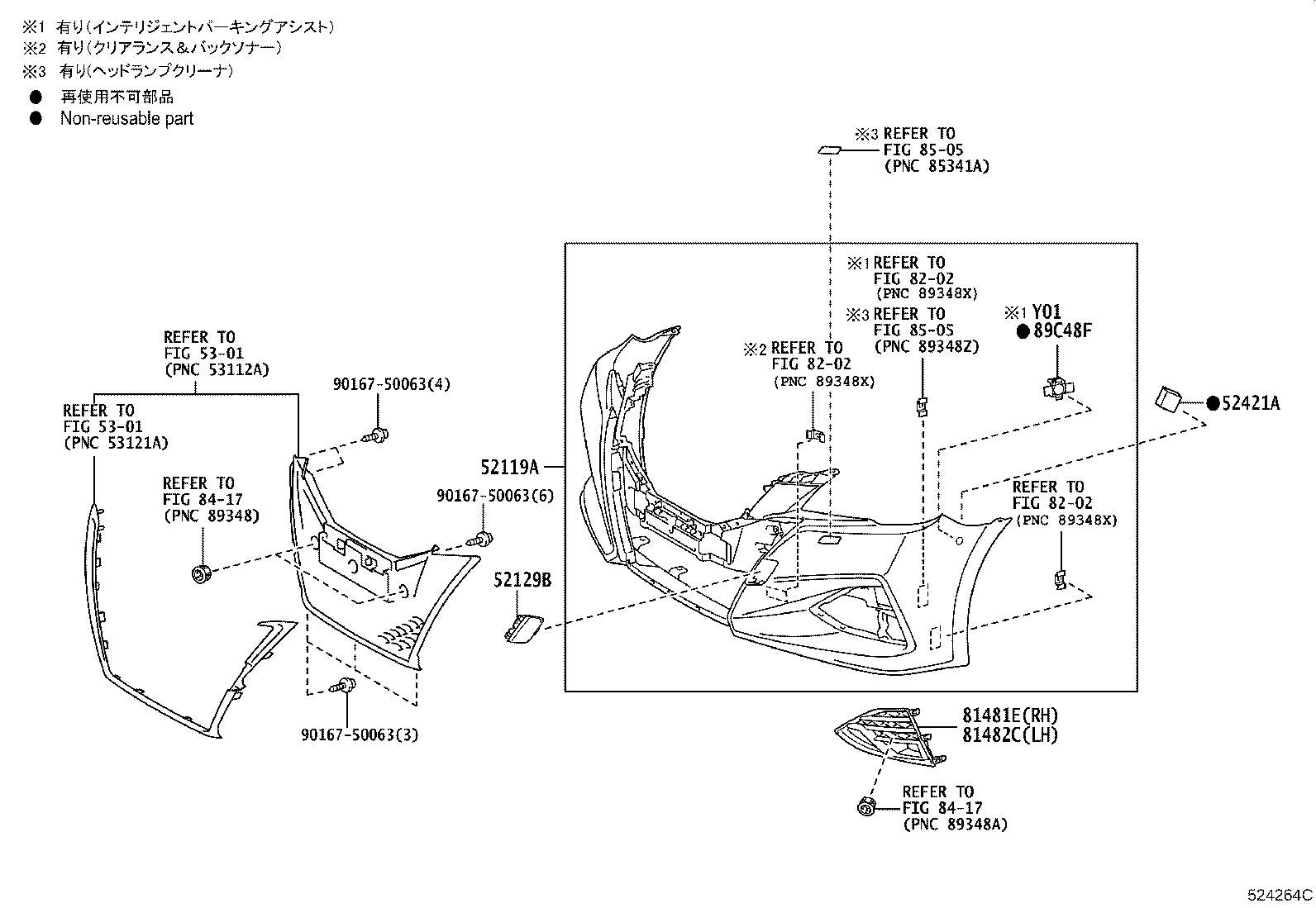

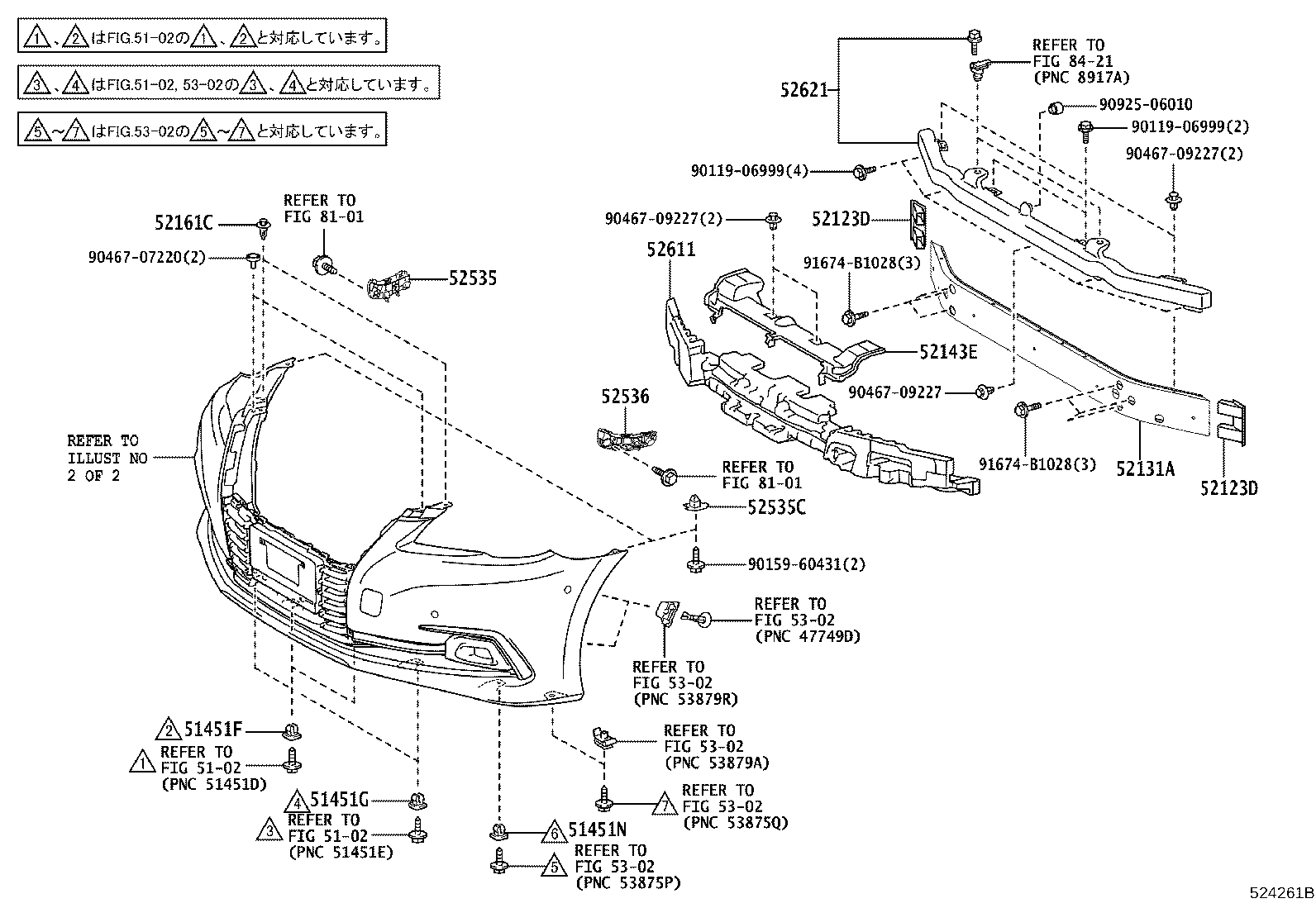

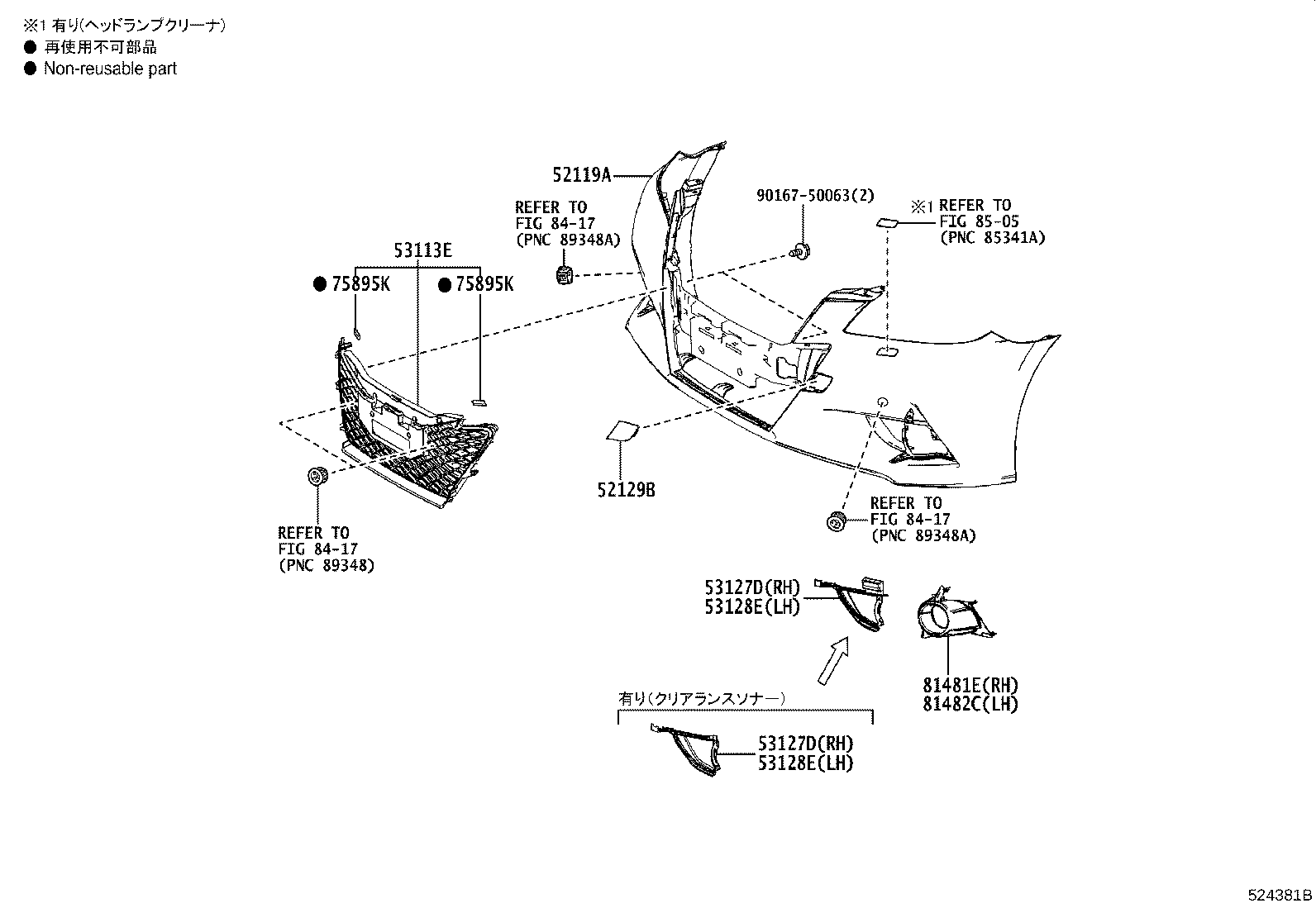

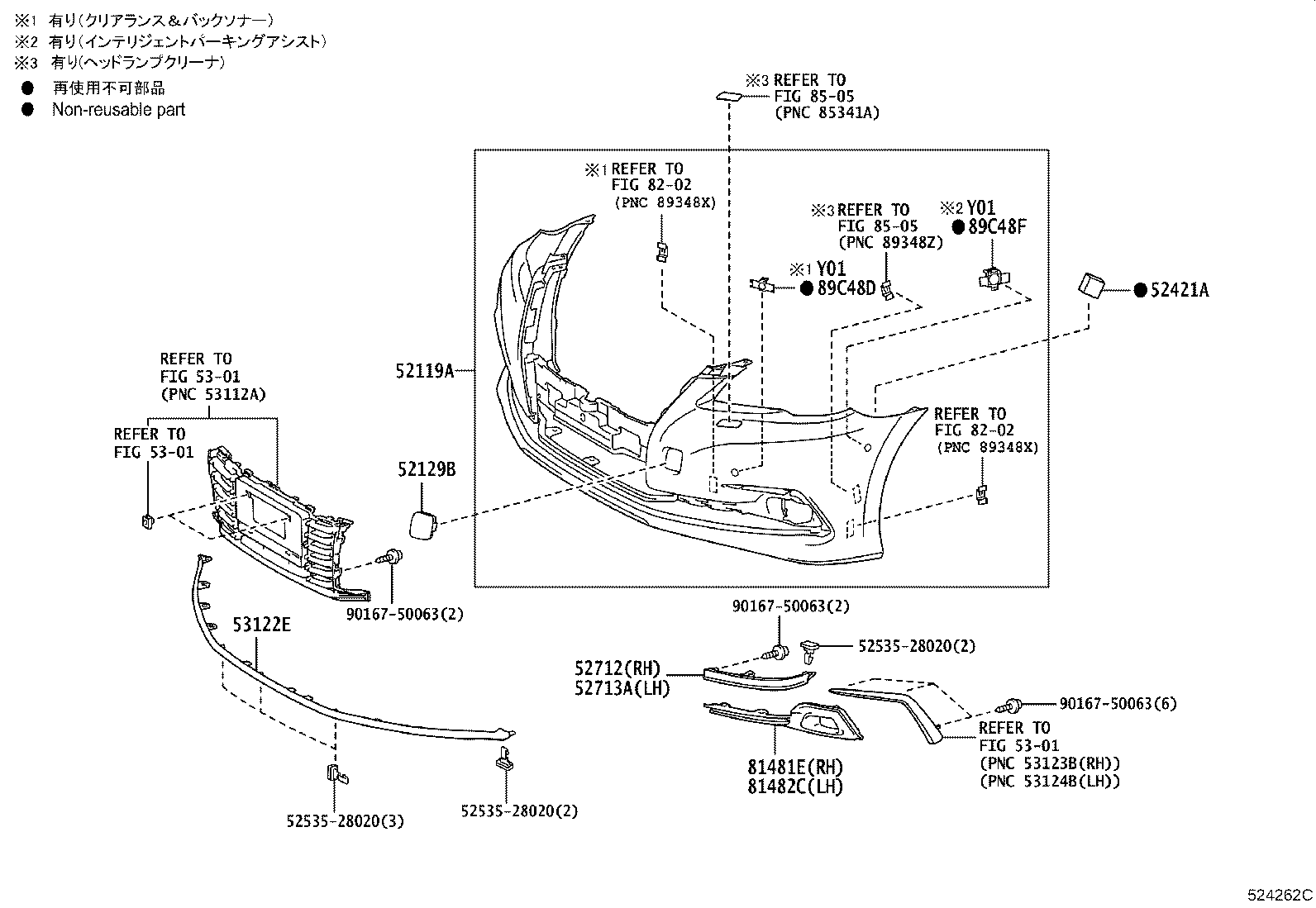

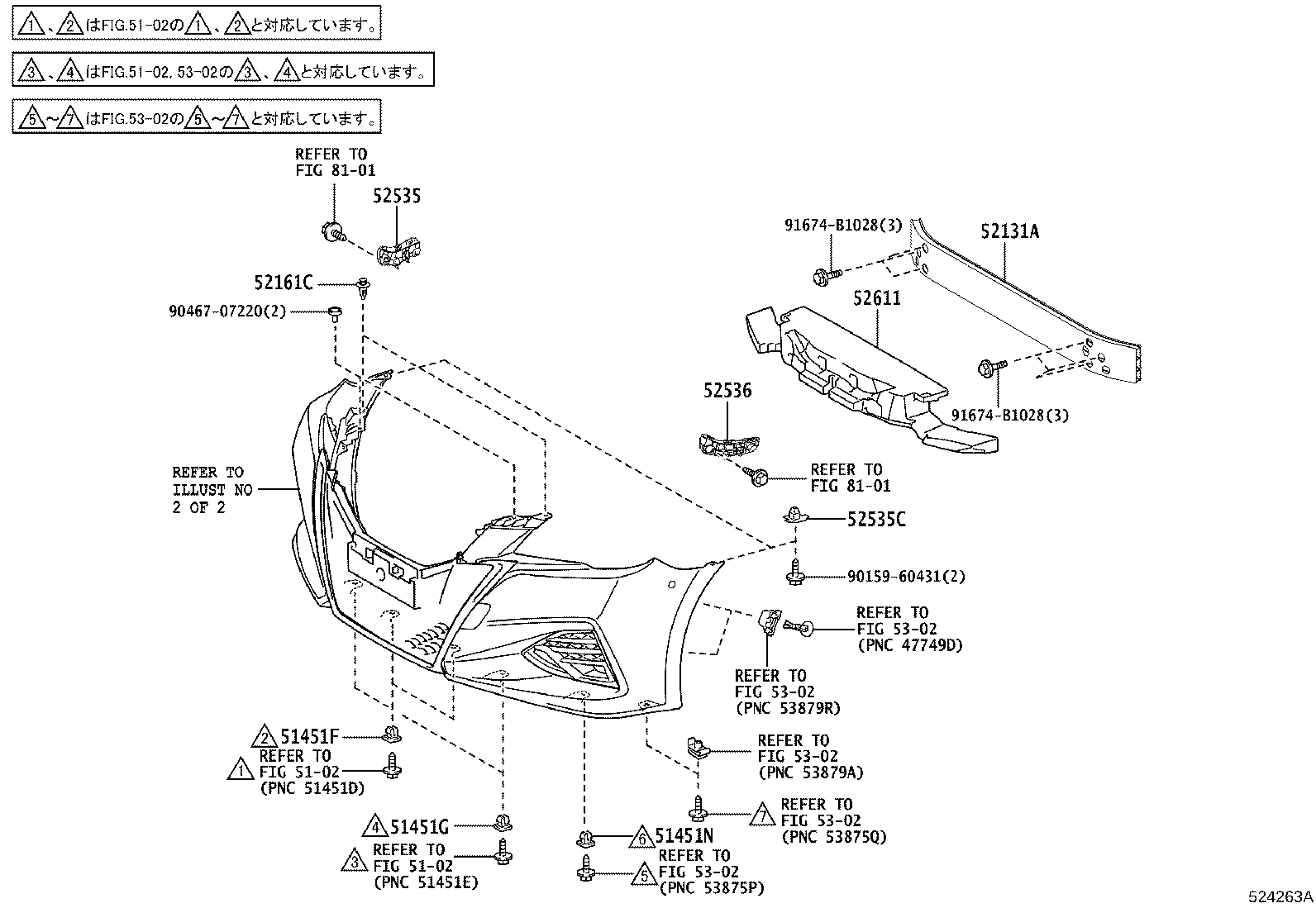

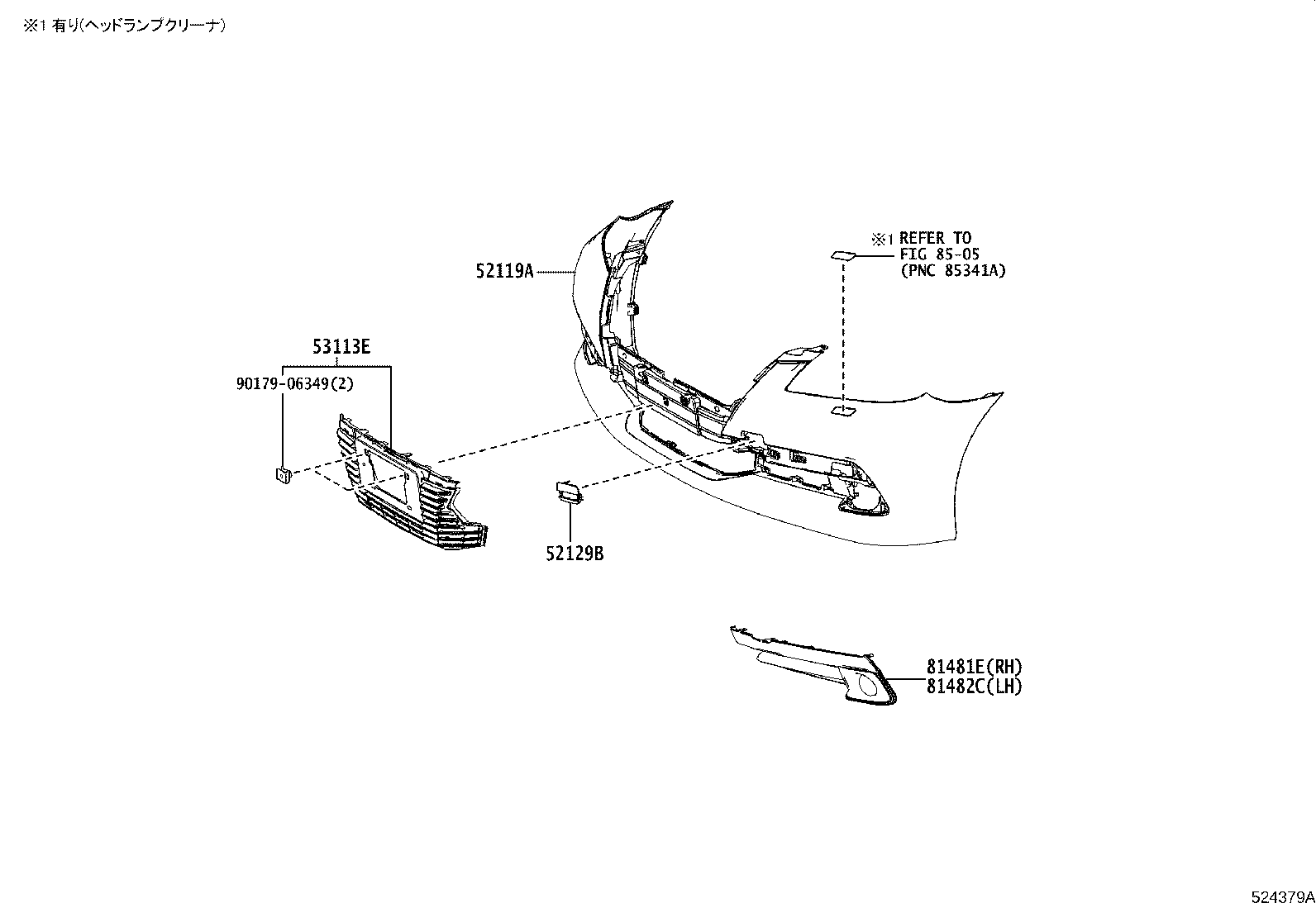

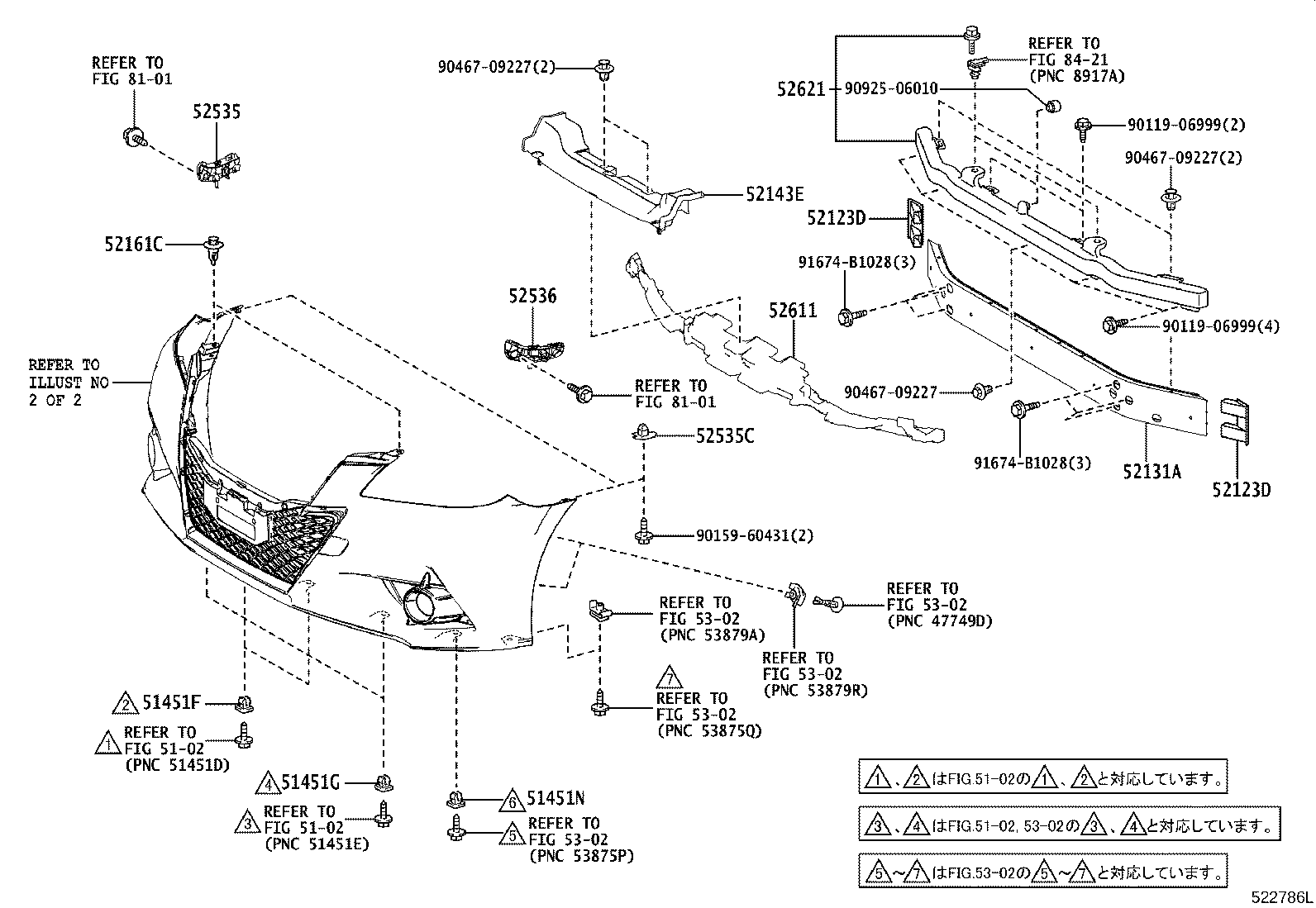

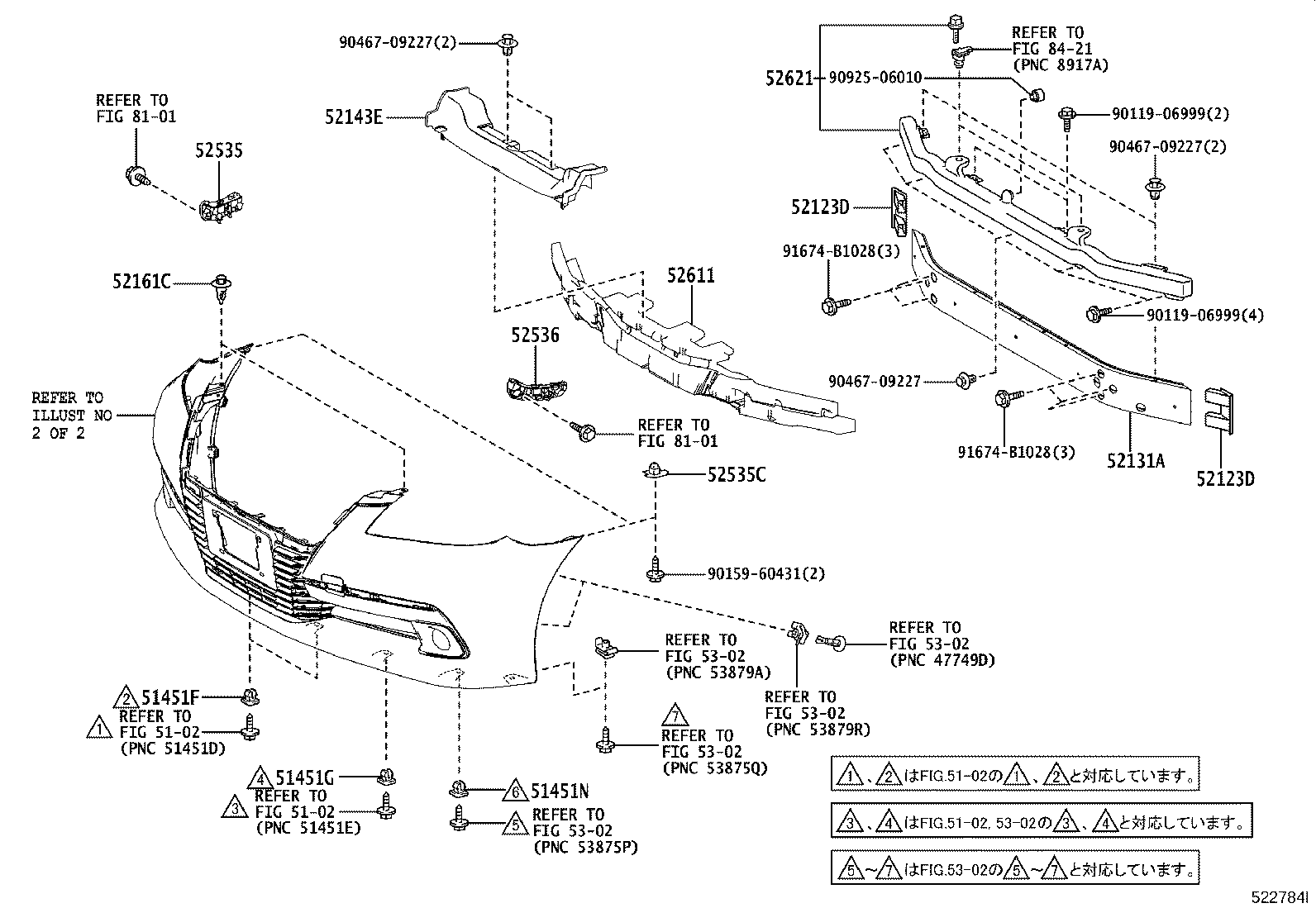

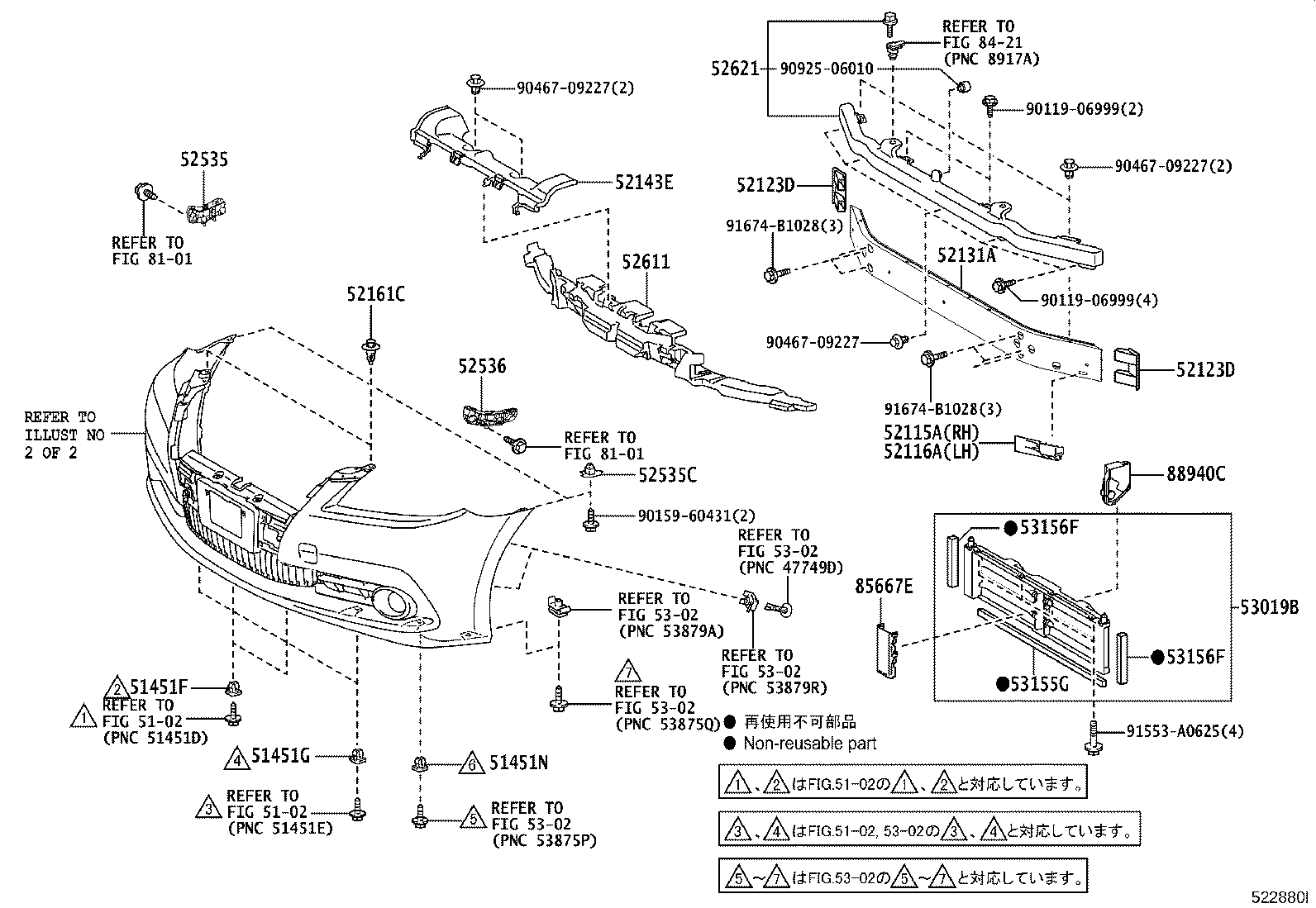

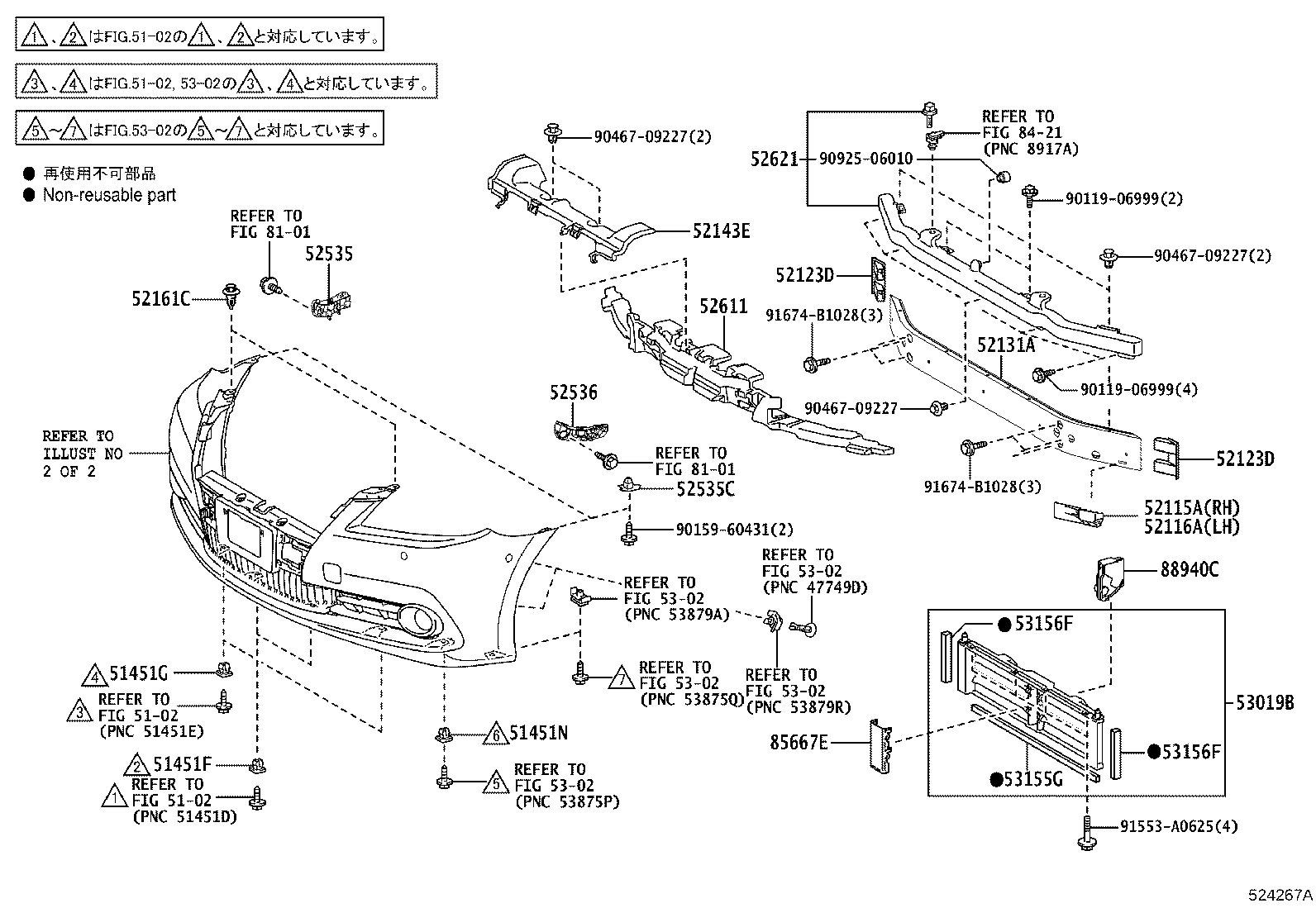

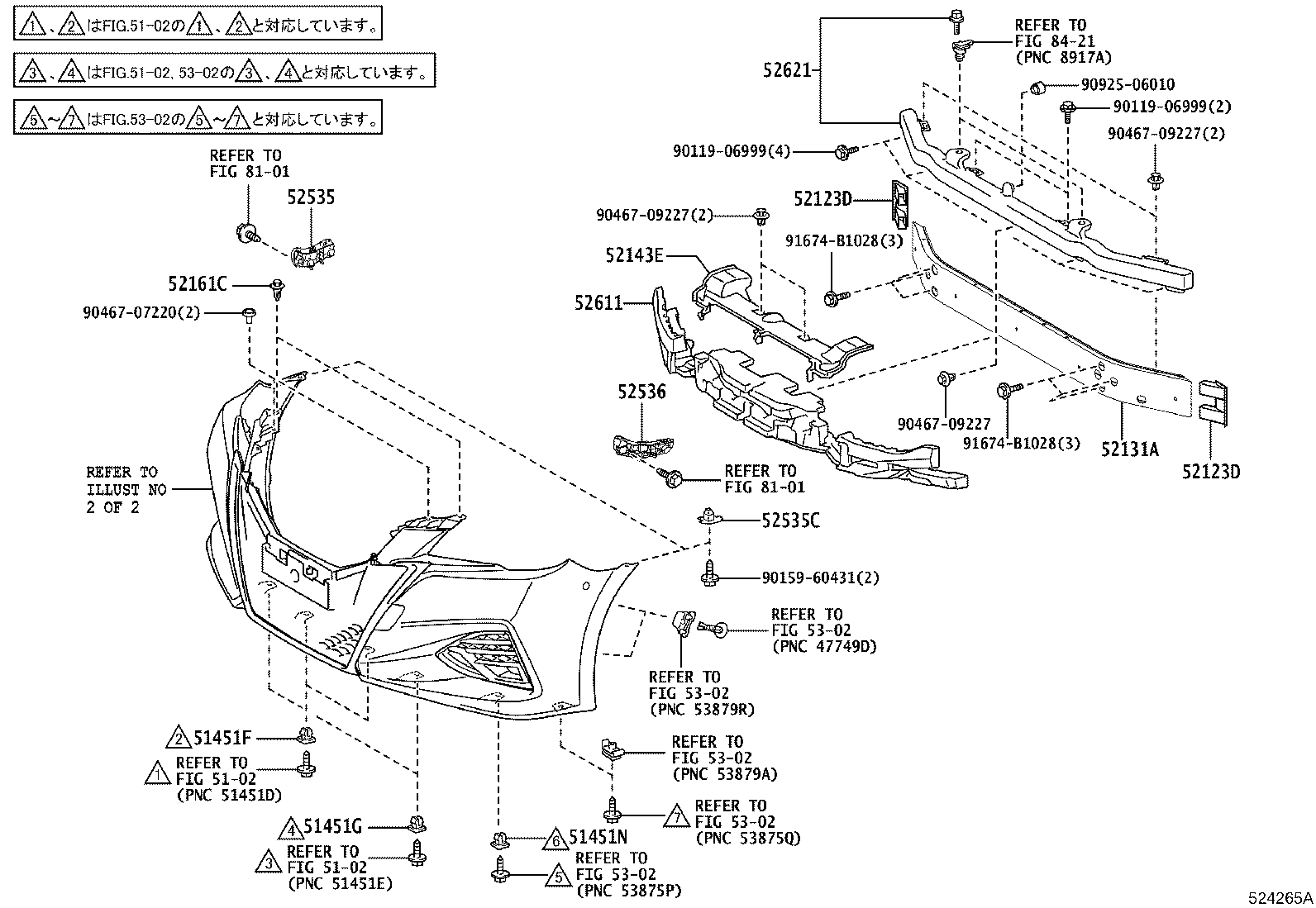

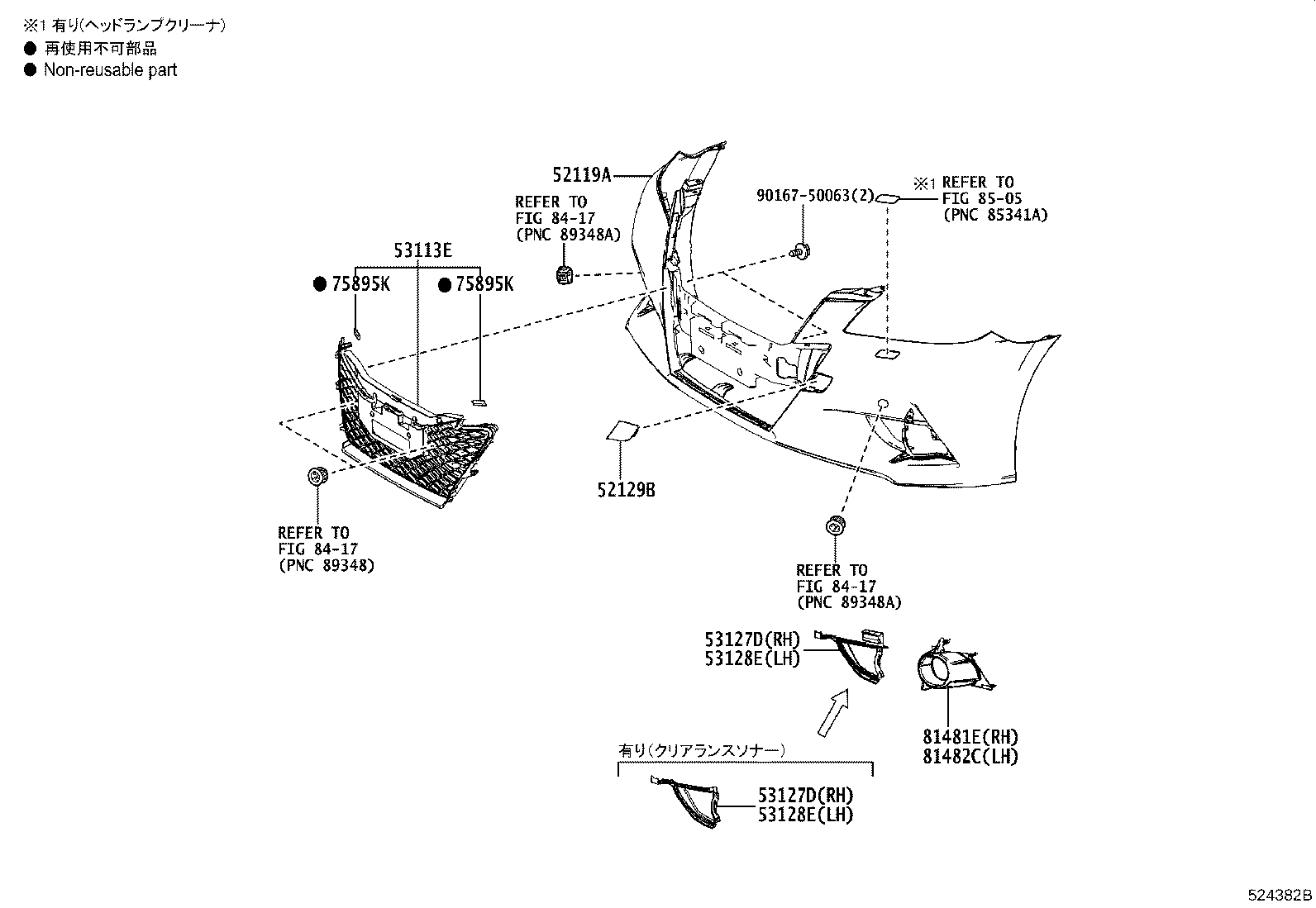

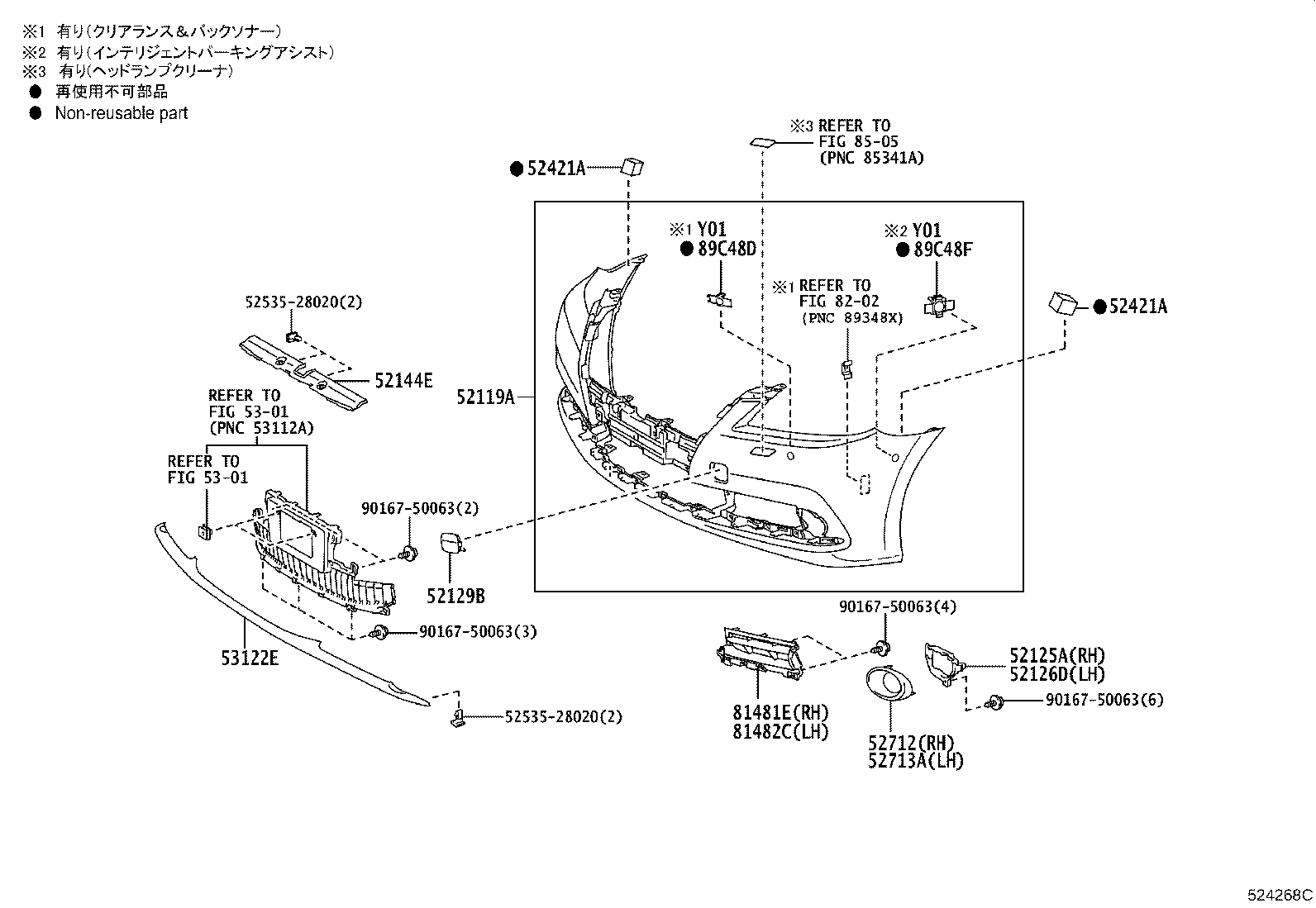

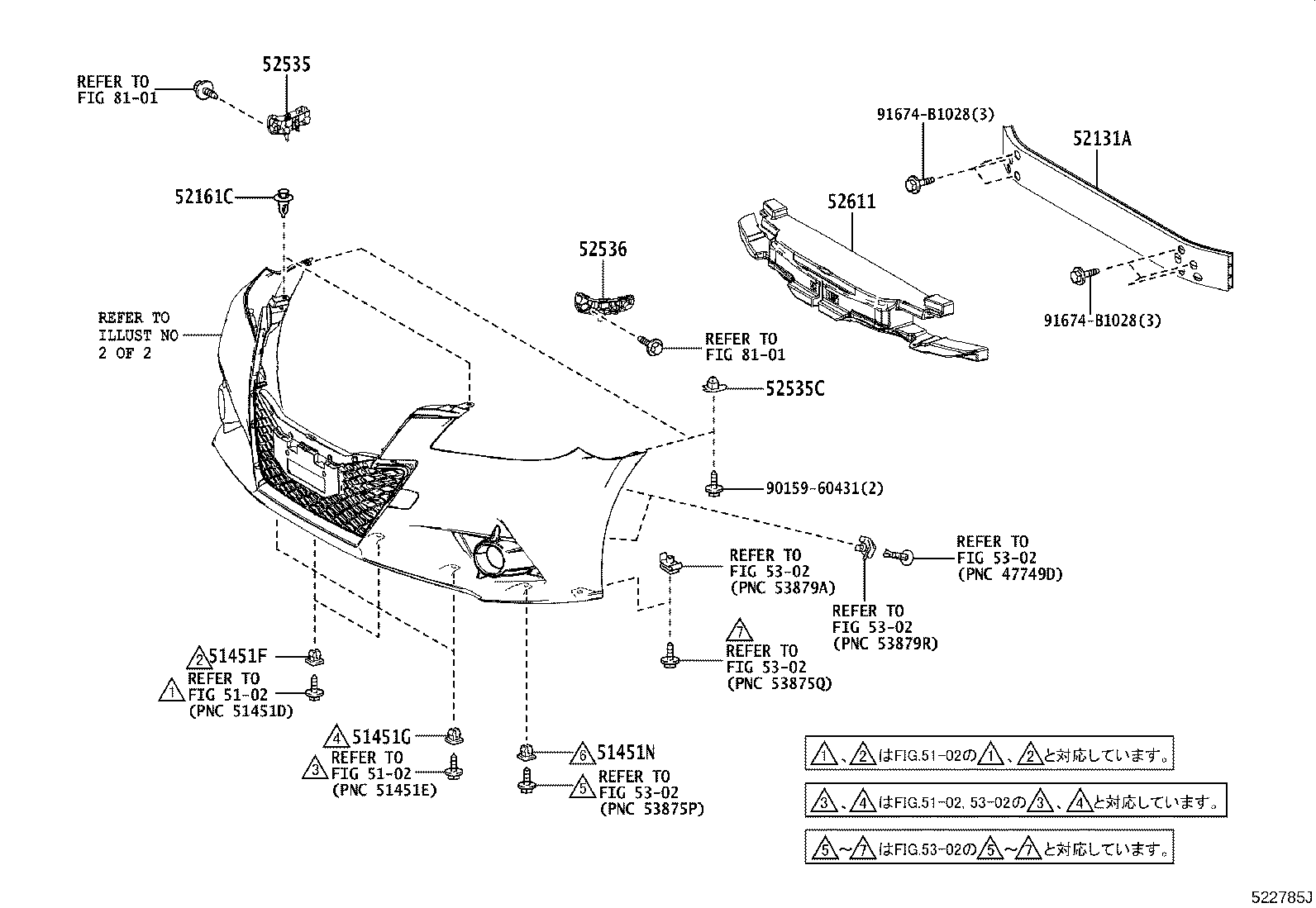

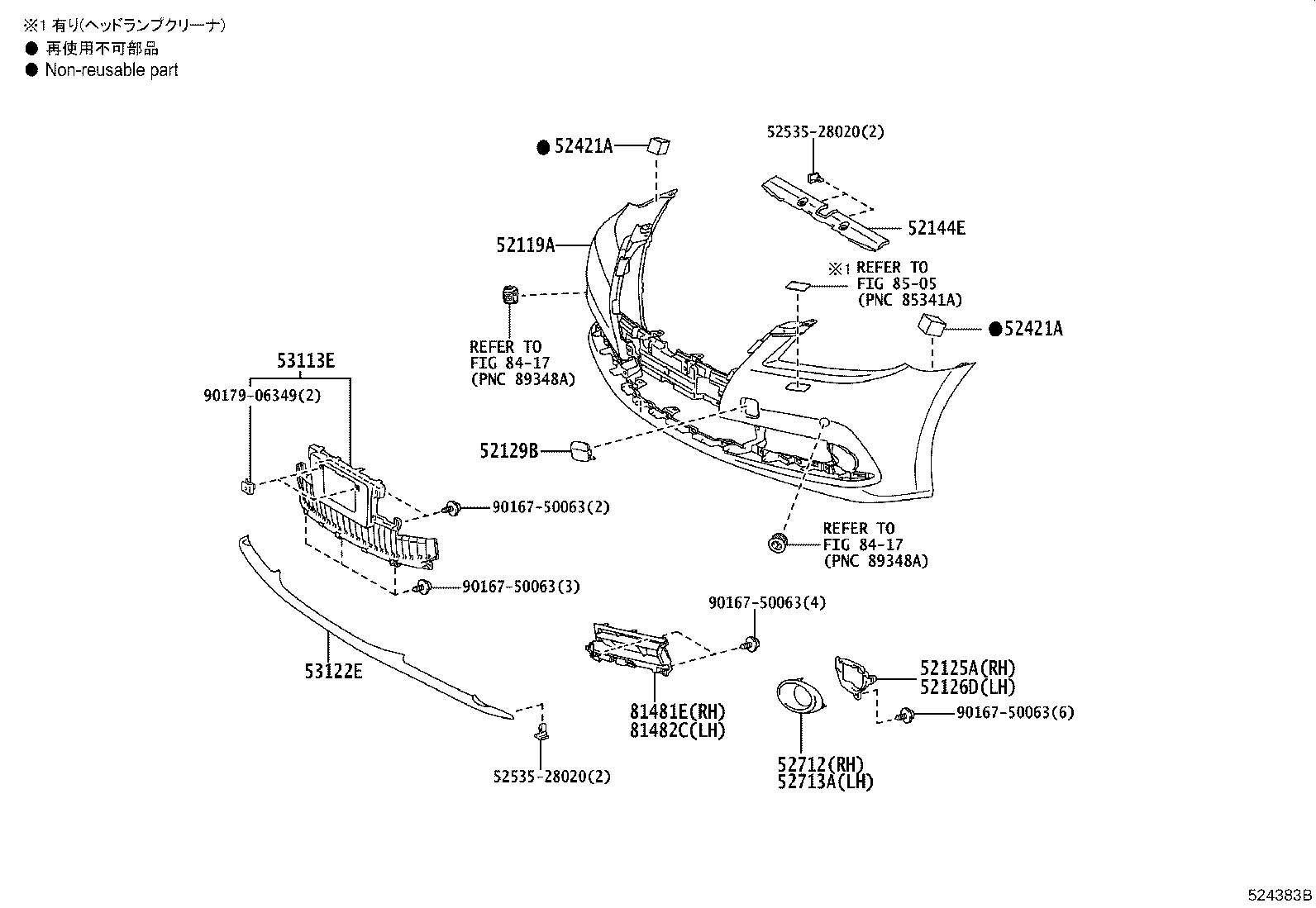

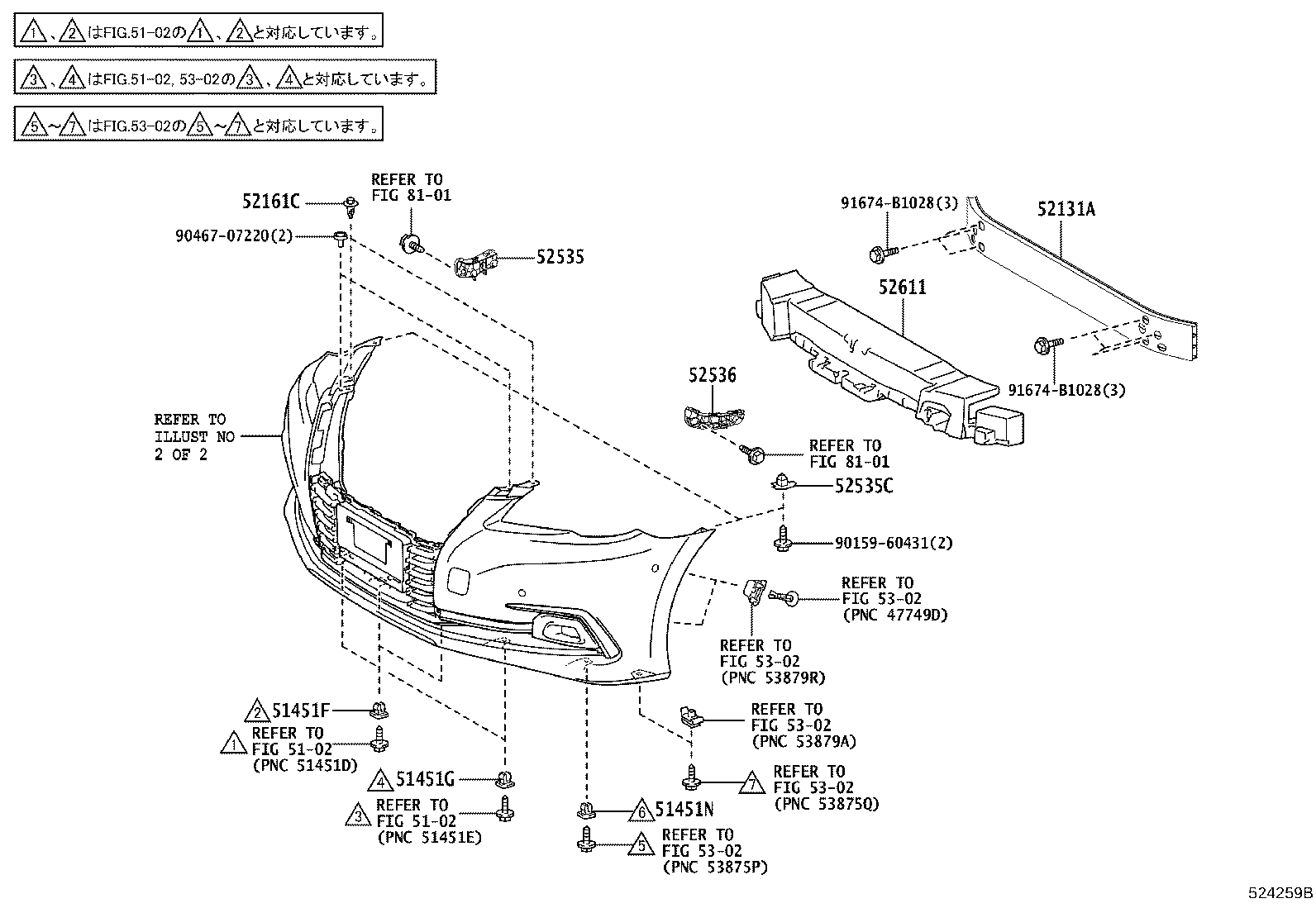

Figure 522783H 522783H 2012-12 → 2015-09 Figure 524379A 524379A 2012-12 → 2015-09 Figure 522784I 522784I 2013-01 → 2015-09 Figure 524380A 524380A 2013-01 → 2015-09 Figure 522785J 522785J 2012-12 → 2015-09 Figure 524381B 524381B 2012-12 → 2015-09 Figure 522786L 522786L 2013-01 → 2015-09 Figure 524382B 524382B 2013-01 → 2015-09 Figure 522880I 522880I 2013-09 → 2015-09 Figure 524383B 524383B 2013-09 → 2015-09 Figure 524259B 524259B 2015-09 → — Figure 524260C 524260C 2015-09 → — Figure 524261B 524261B 2015-09 → — Figure 524262C 524262C 2015-09 → — Figure 524263A 524263A 2015-09 → — Figure 524264C 524264C 2015-09 → — Figure 524265A 524265A 2015-09 → — Figure 524266C 524266C 2015-09 → — Figure 524267A 524267A 2015-09 → — Figure 524268C 524268C 2015-09 → —

Part groups

PNCDescription
51451F Grommet, NO.1
51451G Grommet, NO.2
51451N Grommet, NO.3
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52123D Plate, Front Bumper Reinforcement
52125A Bracket, Fog Lamp Mounting, RH
52126D Bracket, Fog Lamp Mounting, LH
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52143E Plate, Front Energy Absorber Mounting
52144E Stay, Front Bumper, Center
52161C Piece, Front Bumper
52421A Pad, Front Bumper
52535 Retainer, Front Bumper Side, RH
52535C Retainer, Front Bumper Side
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52621 Chamber, Pop UP Hood
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53019B Shutter Sub-assy, Radiator
53113E Grille, Radiator, Lower NO.2
53122E Moulding, Radiator Grille, Lower
53127D Grille, Radiator, Lower Side RH
53128E Grille, Radiator, Lower Side LH
53155G Seal, Radiator Grille
53156F Seal, Radiator Grille, NO.2
75895K Tape, Moulding, NO.1
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
85667E Cover, Motor
88940C Actuator Assy, Swing Grille
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48F Retainer, Ultrasonic Sensor, Front Side
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
