Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

15 part groups · 6 illustrations

Illustrations

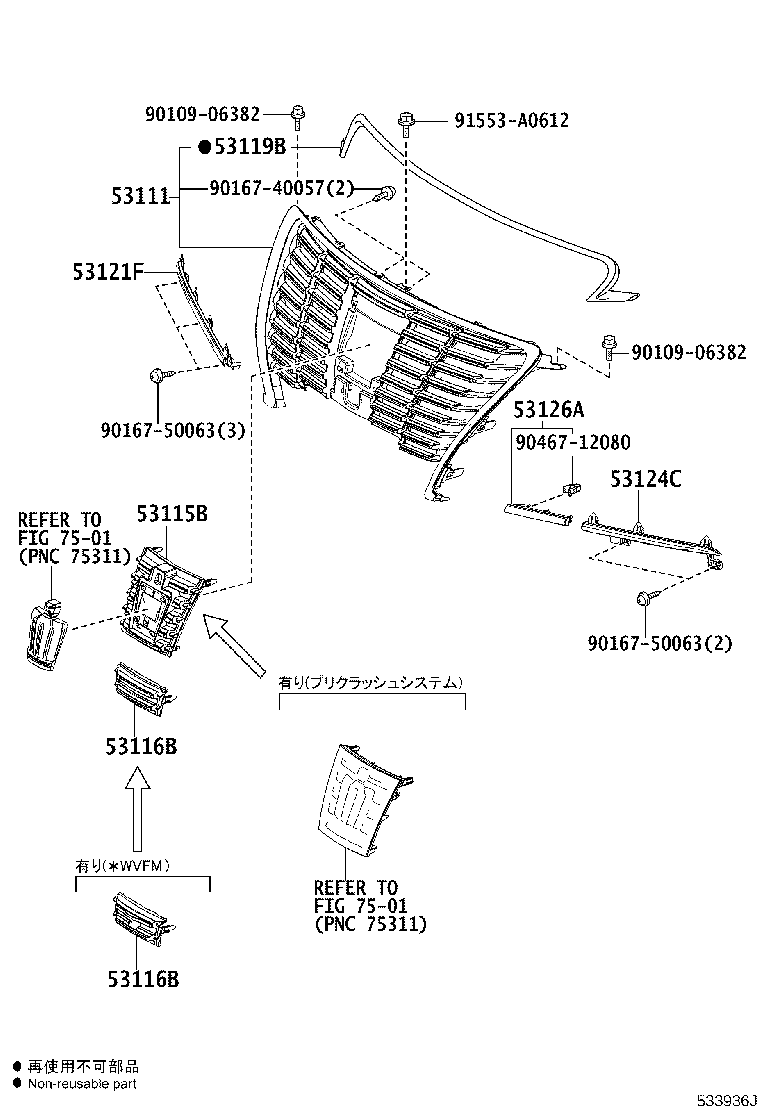

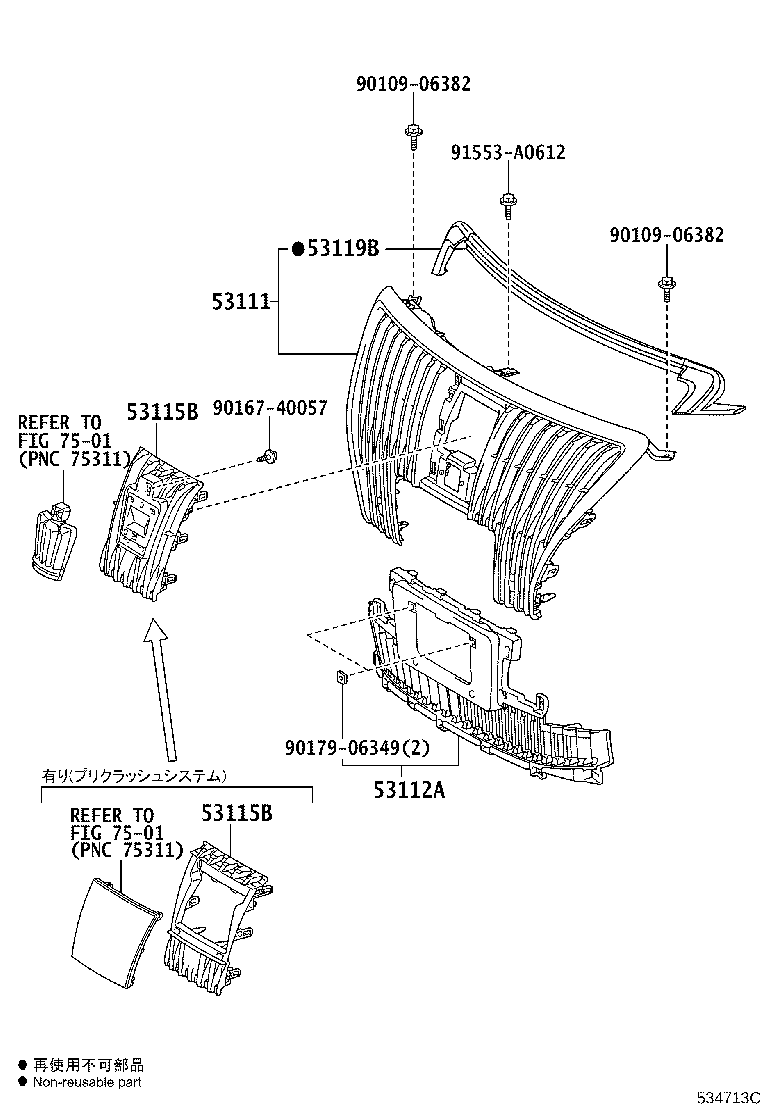

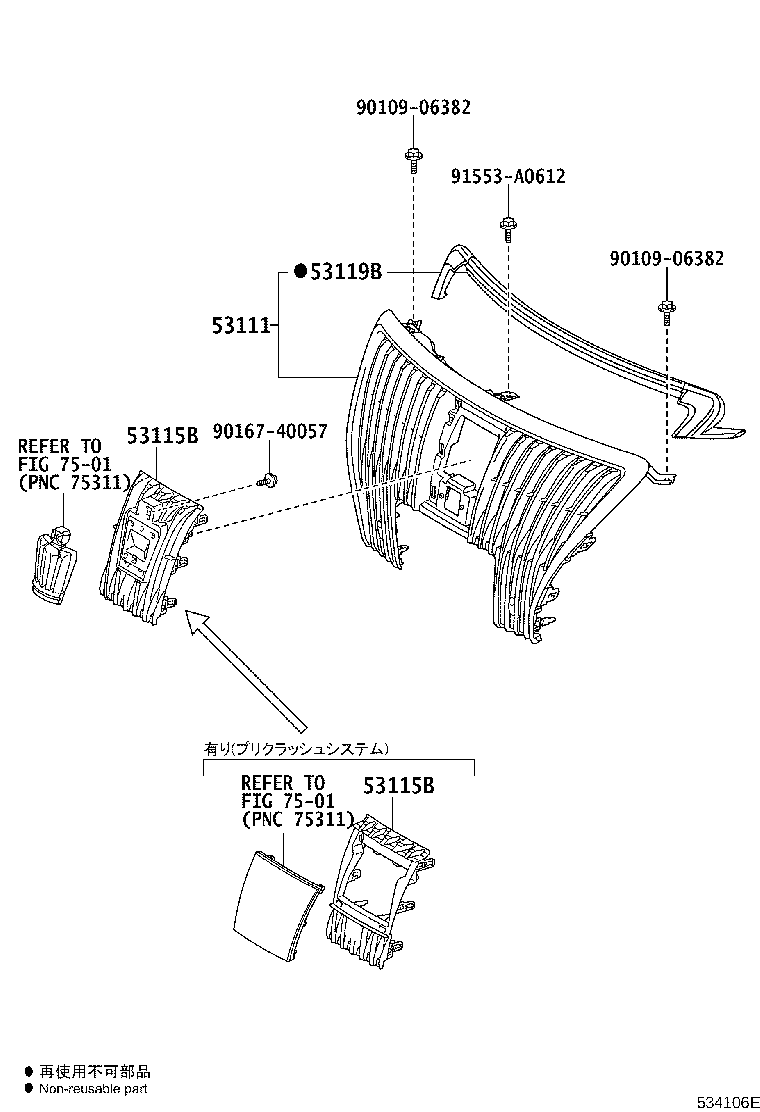

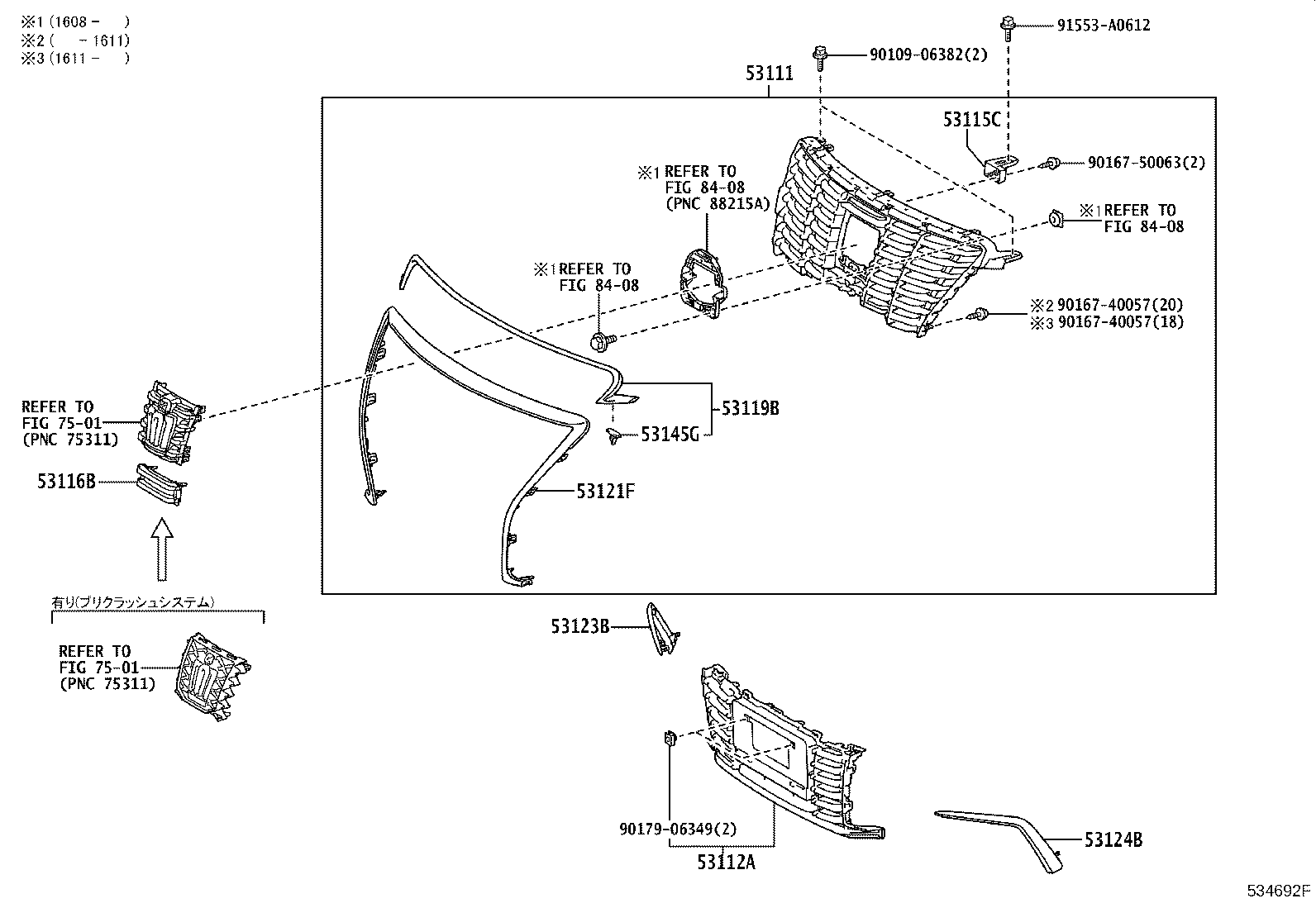

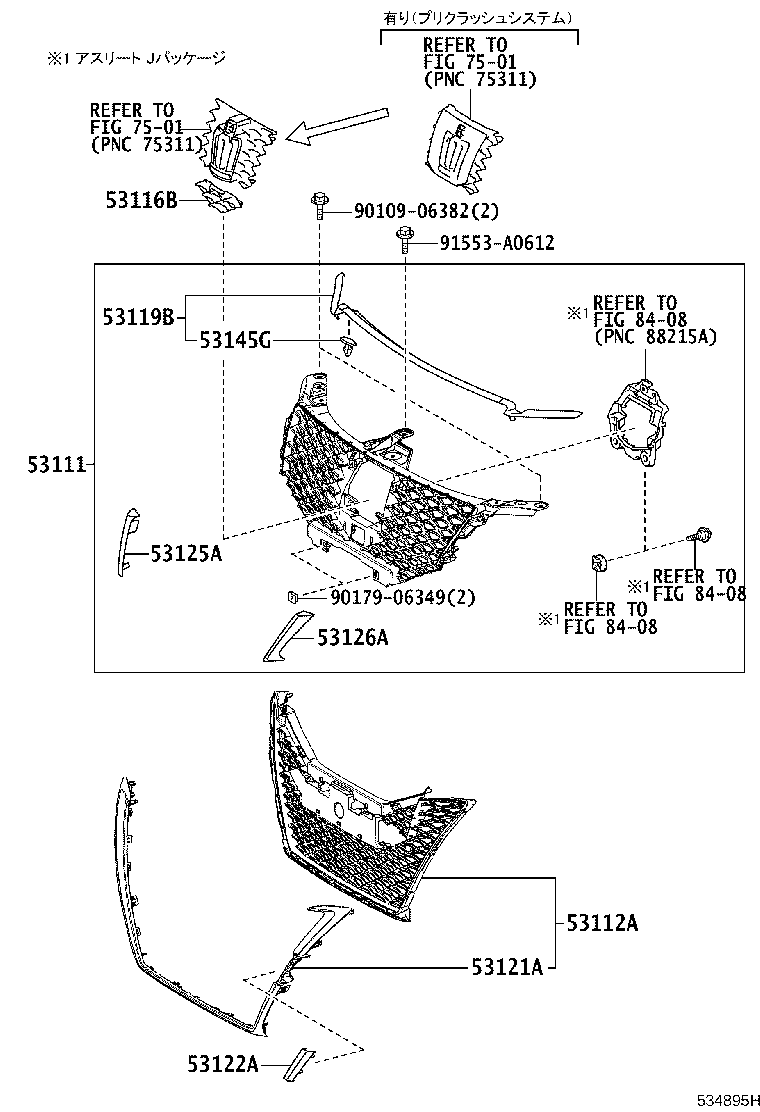

Figure 533937G 533937G 2012-12 → 2015-09 Figure 533936J 533936J 2012-12 → 2015-09 Figure 534106E 534106E 2013-09 → 2015-09 Figure 534895H 534895H 2015-09 → — Figure 534692F 534692F 2015-09 → — Figure 534713C 534713C 2015-09 → —

Part groups

PNCDescription
53111 Grille, Radiator
53112A Grille, Radiator, Lower
53115B Bracket, Radiator Grille
53115C Bracket, Radiator Grille, NO.1
53116B Bracket, Radiator Grille, NO.2
53119B Protector, Radiator Grille
53121A Moulding, Radiator Grille
53121F Moulding, Radiator Grille, Upper RH
53122A Moulding, Radiator Grille, Lower
53123B Moulding, Radiator Grille Side, RH
53124B Moulding, Radiator Grille Side, LH
53124C Moulding, Radiator Grille, Upper LH
53125A Moulding, Radiator Grille, Center RH
53126A Moulding, Radiator Grille, Center LH
53145G Clip, Radiator Grille
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
