Front Fender Apron & Dash Panel

45 part groups · 8 illustrations

Illustrations

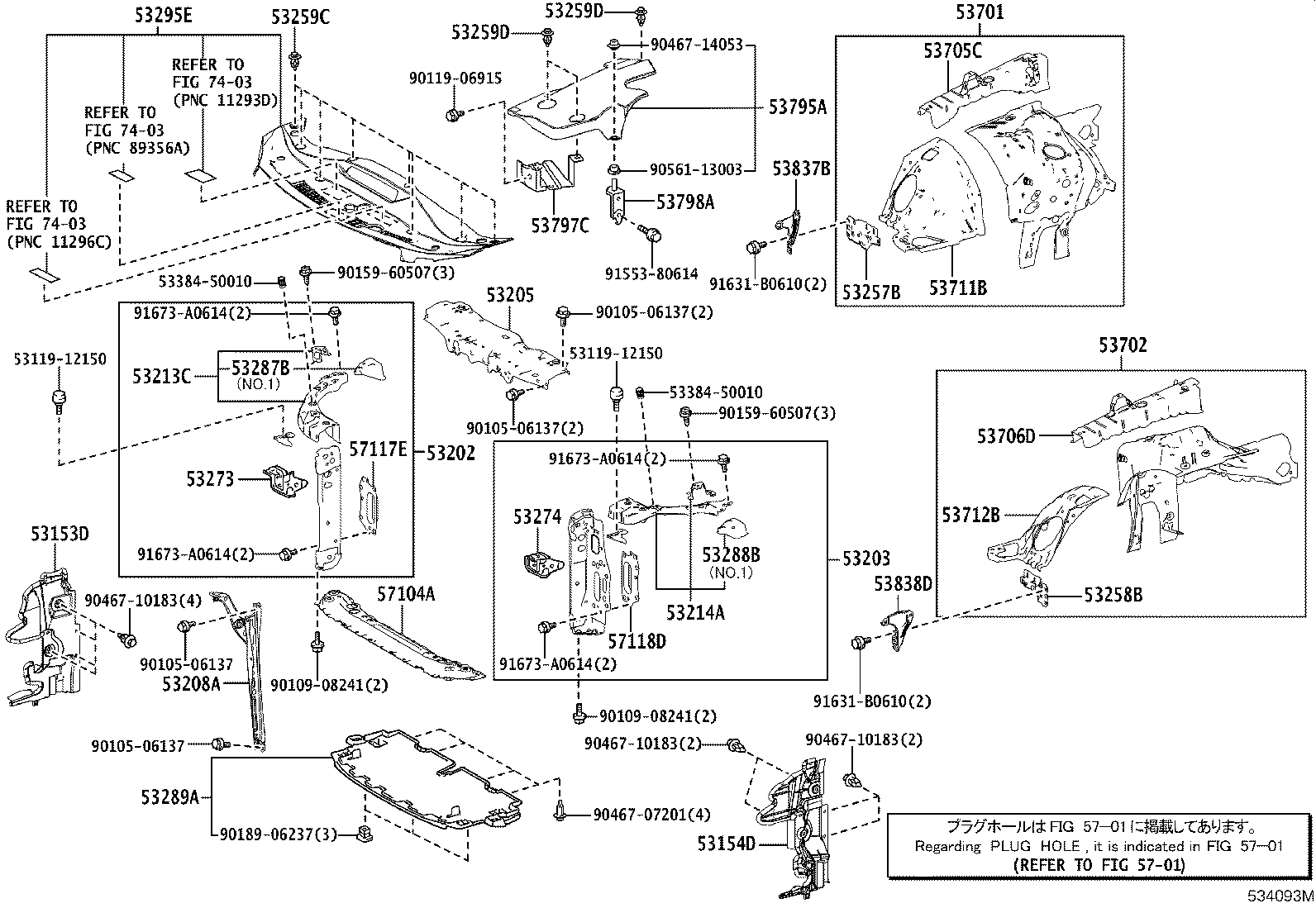

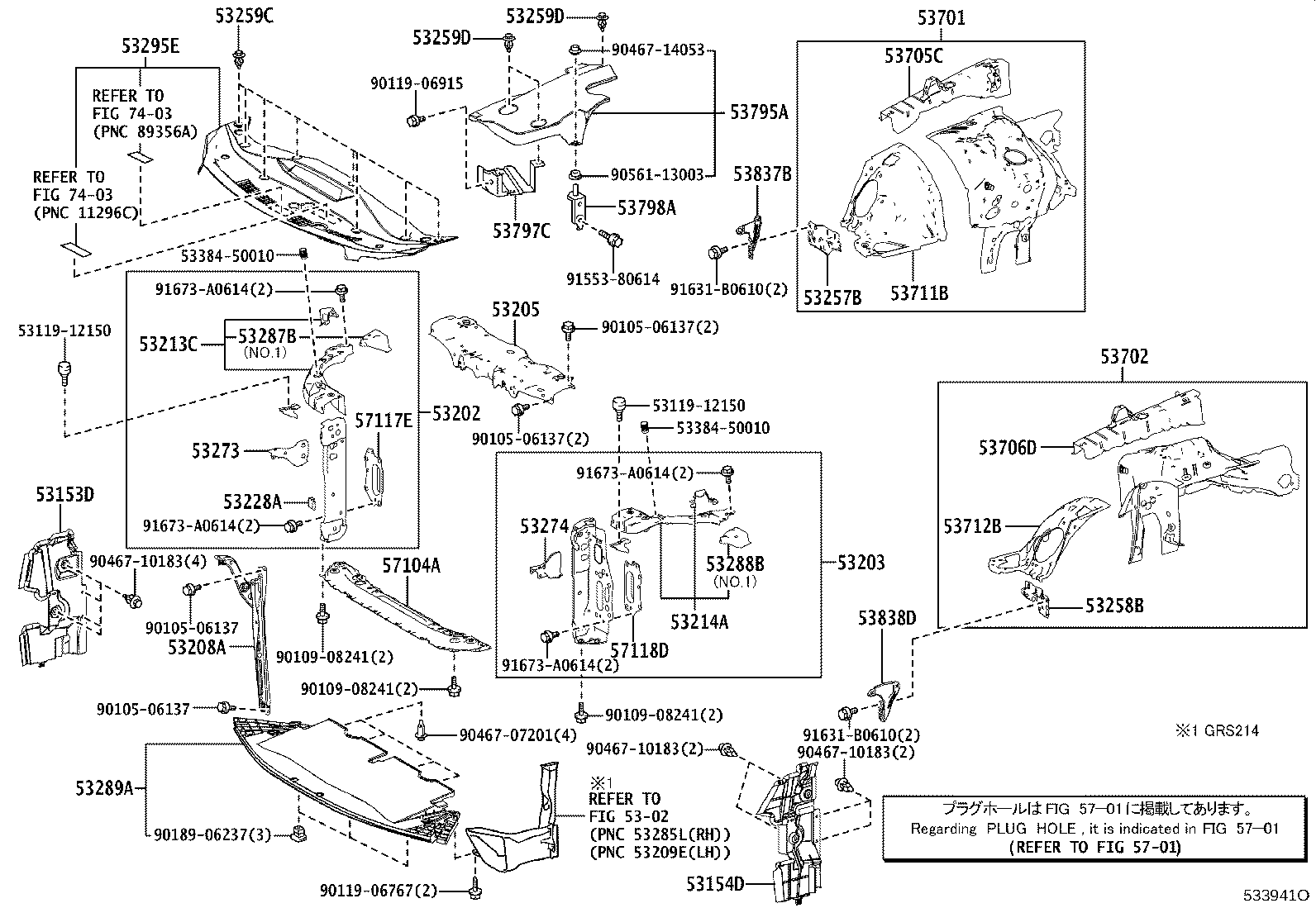

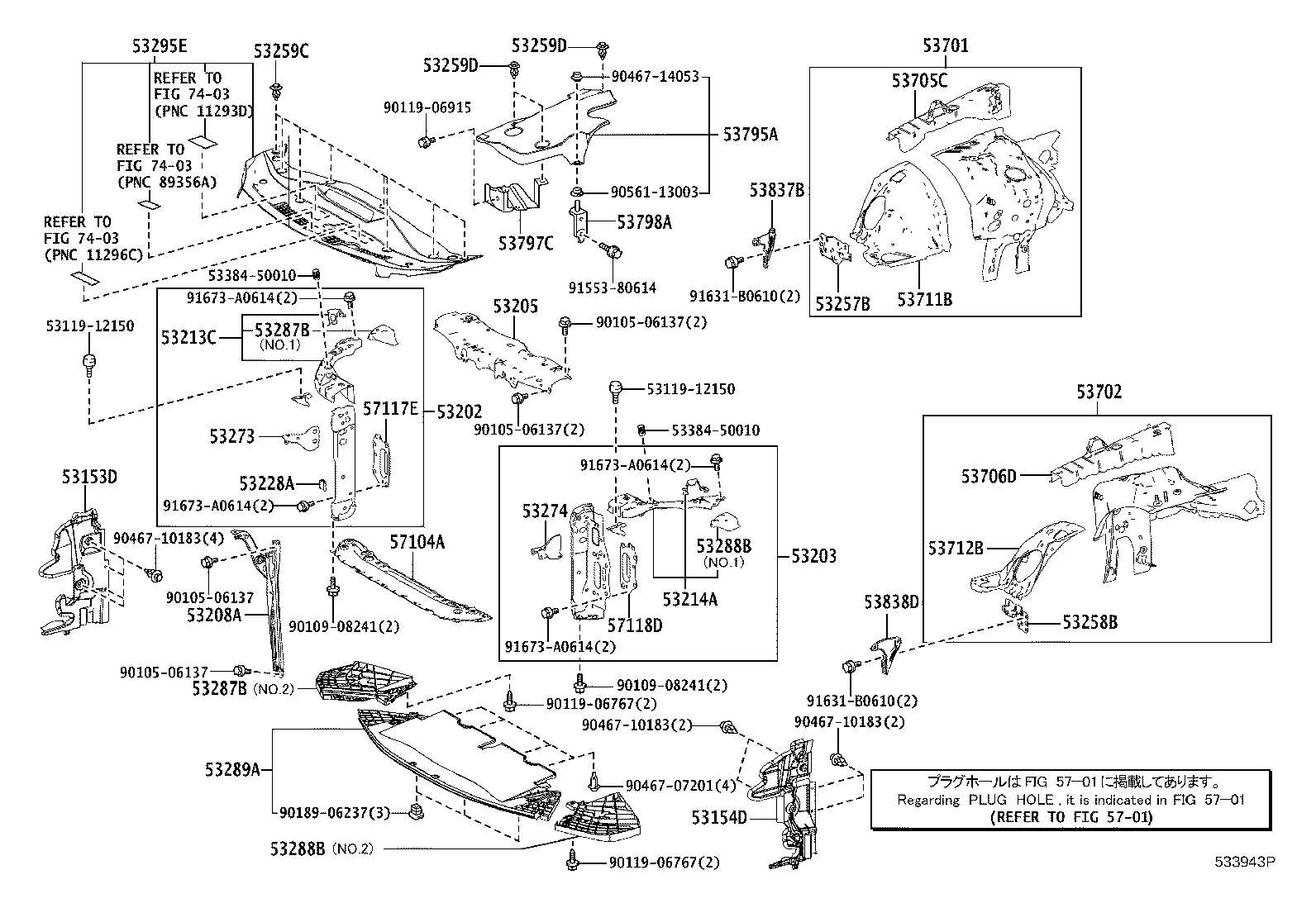

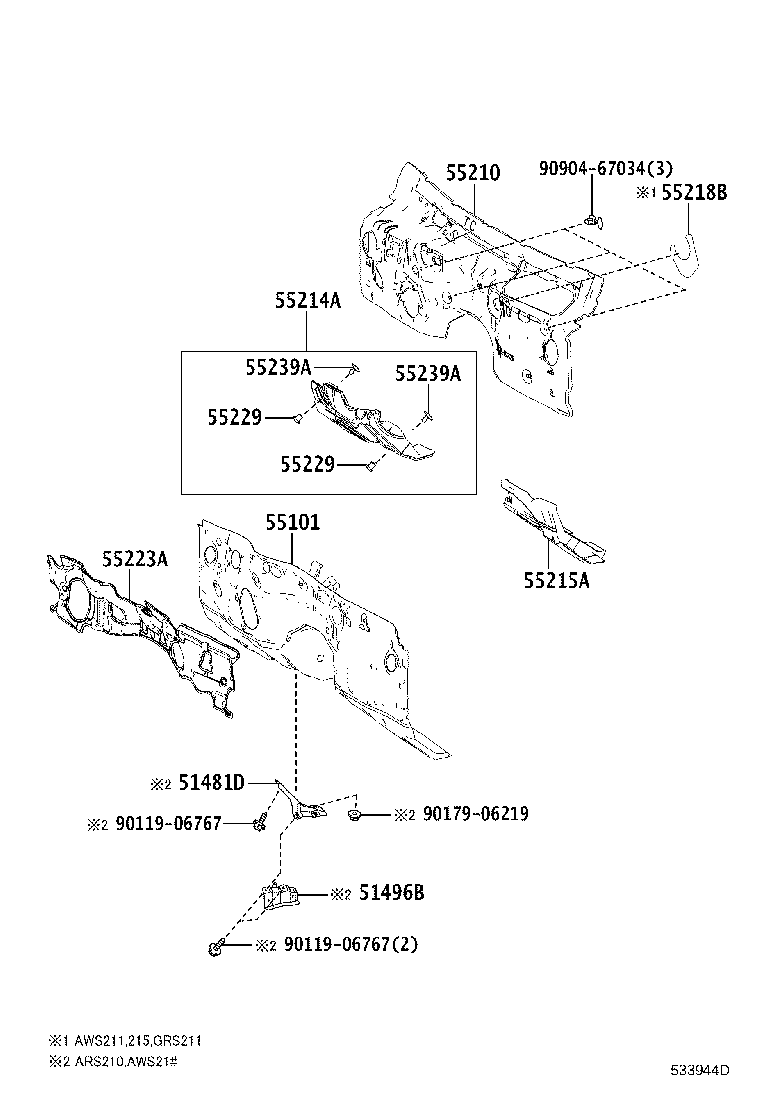

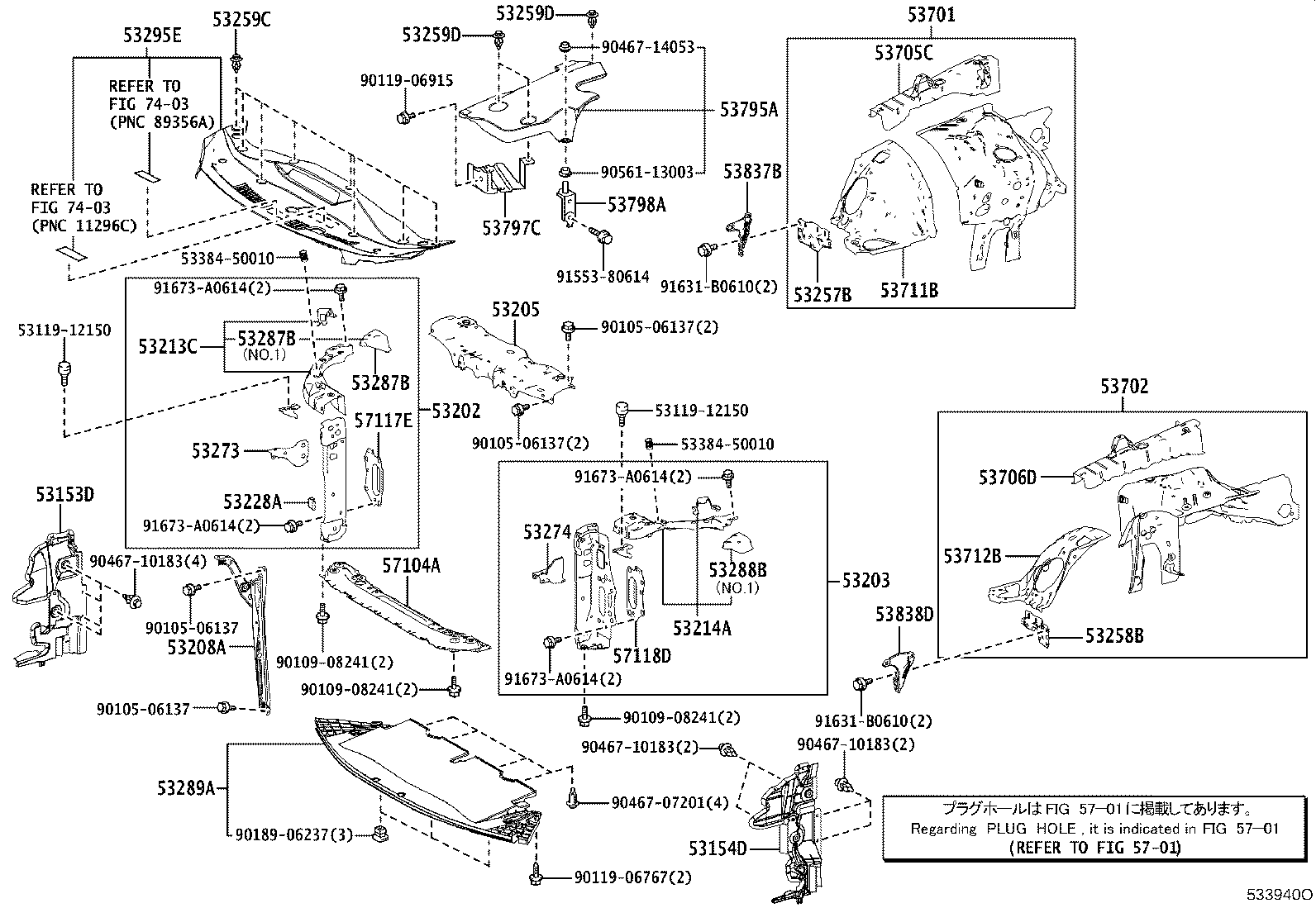

Figure 534656J 534656J 2013-01 → — Figure 534656J 534656J 2015-09 → — Figure 533943P 533943P 2013-01 → — Figure 533941O 533941O 2012-12 → — Figure 533940O 533940O 2012-12 → — Figure 534093M 534093M 2013-09 → — Figure 533944D 533944D 2012-12 → — Figure 533944D 533944D 2015-09 → —

Part groups

PNCDescription
51481D Bracket, Under Guard, Front RH
51496B Cover, Transmission Under, RH
53016 Rod Sub-assy, Radiator Brace
53153D Guide, Radiator Grille Side Air, RH
53154D Guide, Radiator Grille Side Air, LH
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53205 Support Sub-assy, Radiator, Upper
53208A Support Sub-assy, Hood Lock
53213C Support, Radiator, Upper Front
53214A Support, Radiator, Upper LH
53228A Bracket, Radiator Mounting, Lower NO.1
53257B Bracket, Radiator Support TO Front Fender
53258B Bracket, Radiator Support TO Front Fender, LH
53259C Clip, Radiator Support TO Frame Seal
53259D Clip, Radiator Support TO Frame Seal, NO.2
53259E Clip, Radiator Support TO Frame Seal, NO.3
53273 Bracket, Front Bumper Arm Mounting, RH
53274 Bracket, Front Bumper Arm Mounting, LH
53287B Extension, Radiator Support, RH
53288B Extension, Radiator Support, LH
53289A Cover, Radiator Support Opening
53295E Seal, Cool Air Intake Duct
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53705C Bracket Sub-assy, Front Suspension Upper, NO.1 RH
53706D Member Sub-assy, Front Apron TO Cowl Side, LH
53711B Apron, Front Fender, Front RH
53712B Apron, Front Fender, Front LH
53795A Cover, Engine Room, Side
53797C Bracket, Cool Air Intake Silencer
53798A Bracket, Cool Air Intake Silencer, NO.2
53837B Bracket, Front Side Panel, NO.2
53838D Bracket, Front Side Panel, NO.2 LH
55101 Panel Sub-assy, Dash
55210 Insulator Assy, Dash Panel
55214A Pad, Dash Panel Insulator, NO.2
55215A Pad, Dash Panel Insulator, NO.3
55218B Seal, Dash Panel Insulator
55223A Insulator, Dash Panel, Outer
55229 Plate, Dash Panel Insulator, NO.4
55239A Plate, Dash Panel Insulator, NO.3
57104A Member Sub-assy, Front Cross
57117E Retainer, Front Bumper Arm, RH
57118D Retainer, Front Bumper Arm, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
