Toyota Crown/Hybrid

2012-12 → 2018-04 · chassis ARS210,AWS21#,GRS21#,GWS214 · catalogue 3311D0 · Japan

Supported model Data version 2016-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

8 part groups · 6 illustrations

Illustrations

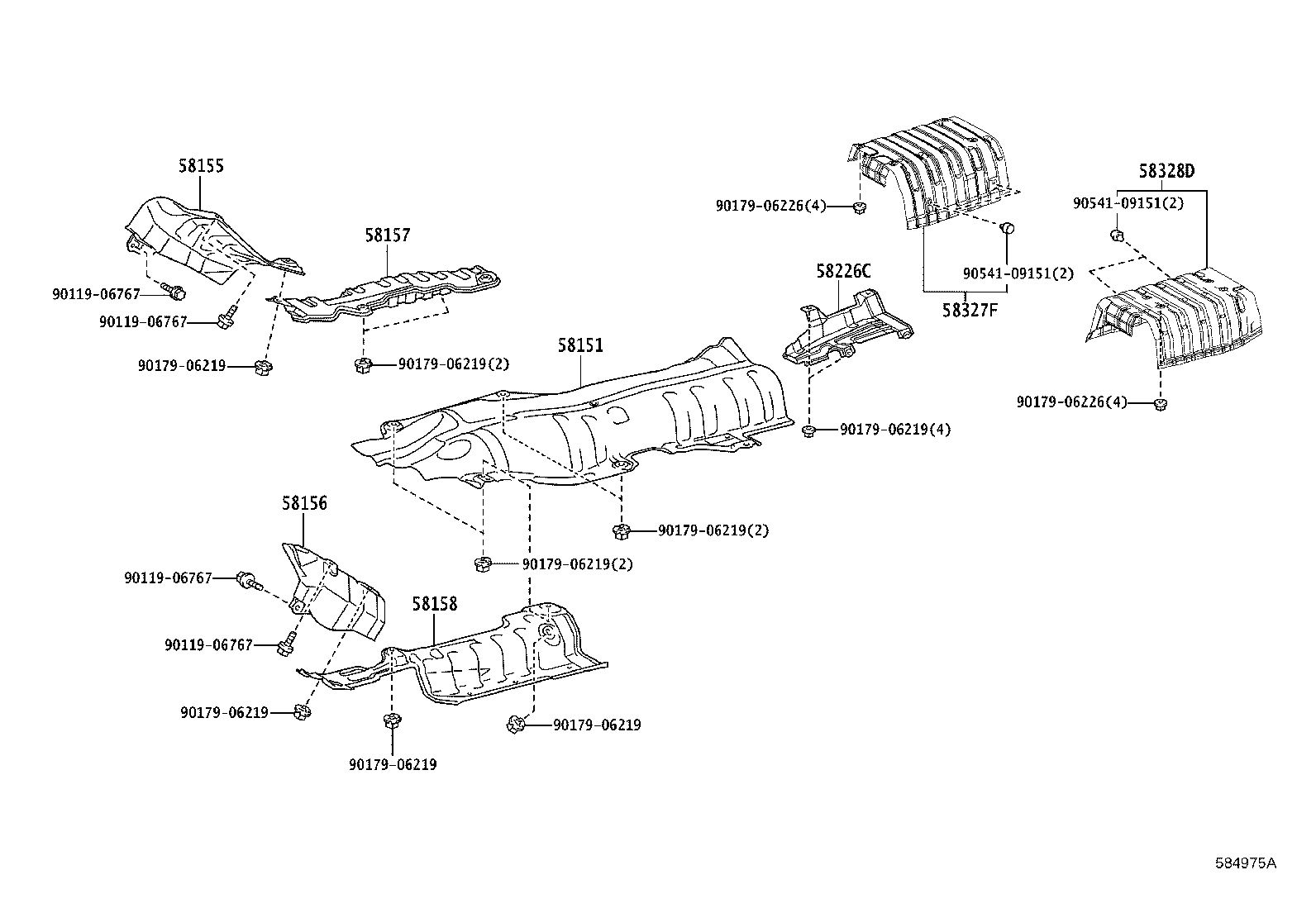

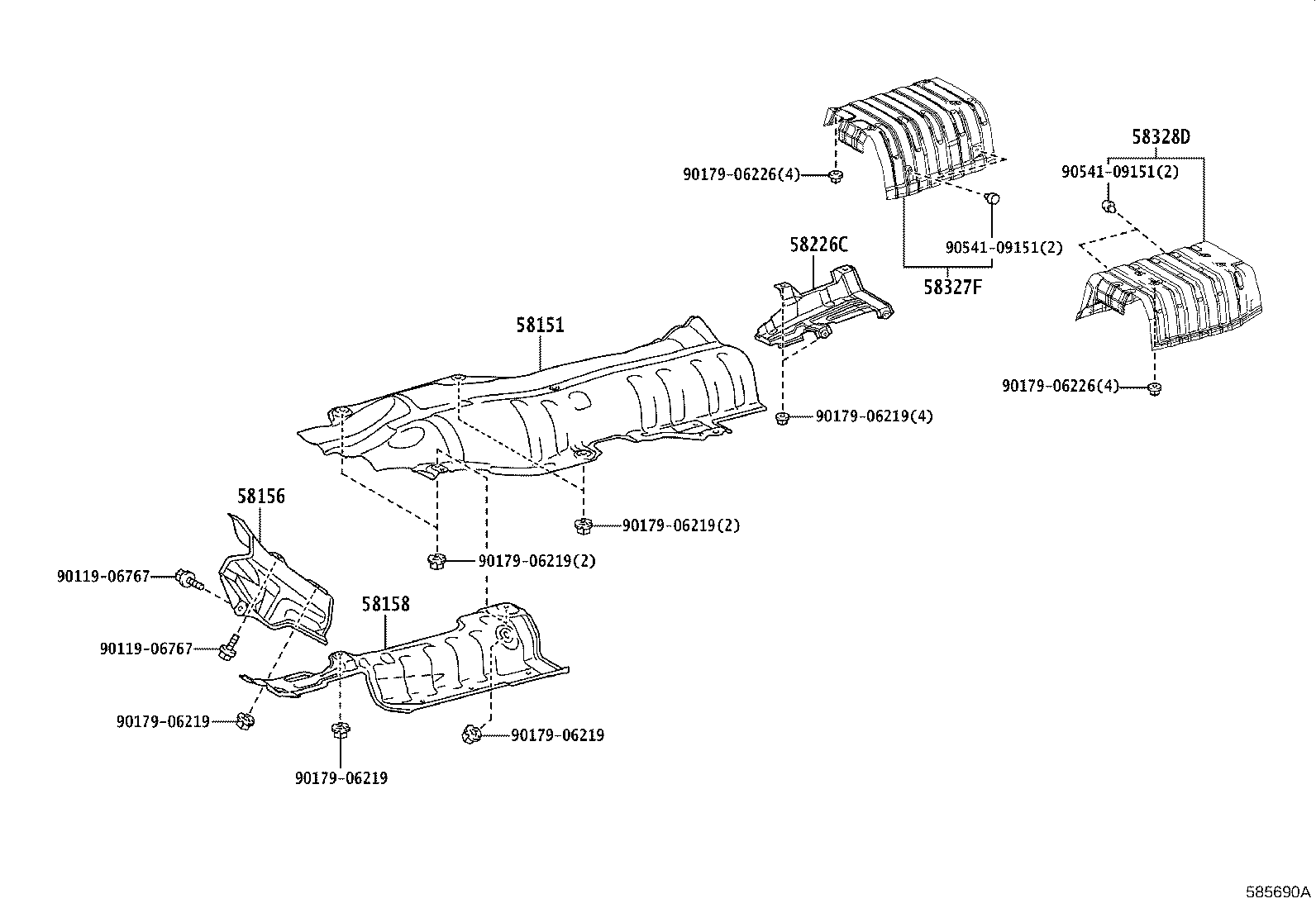

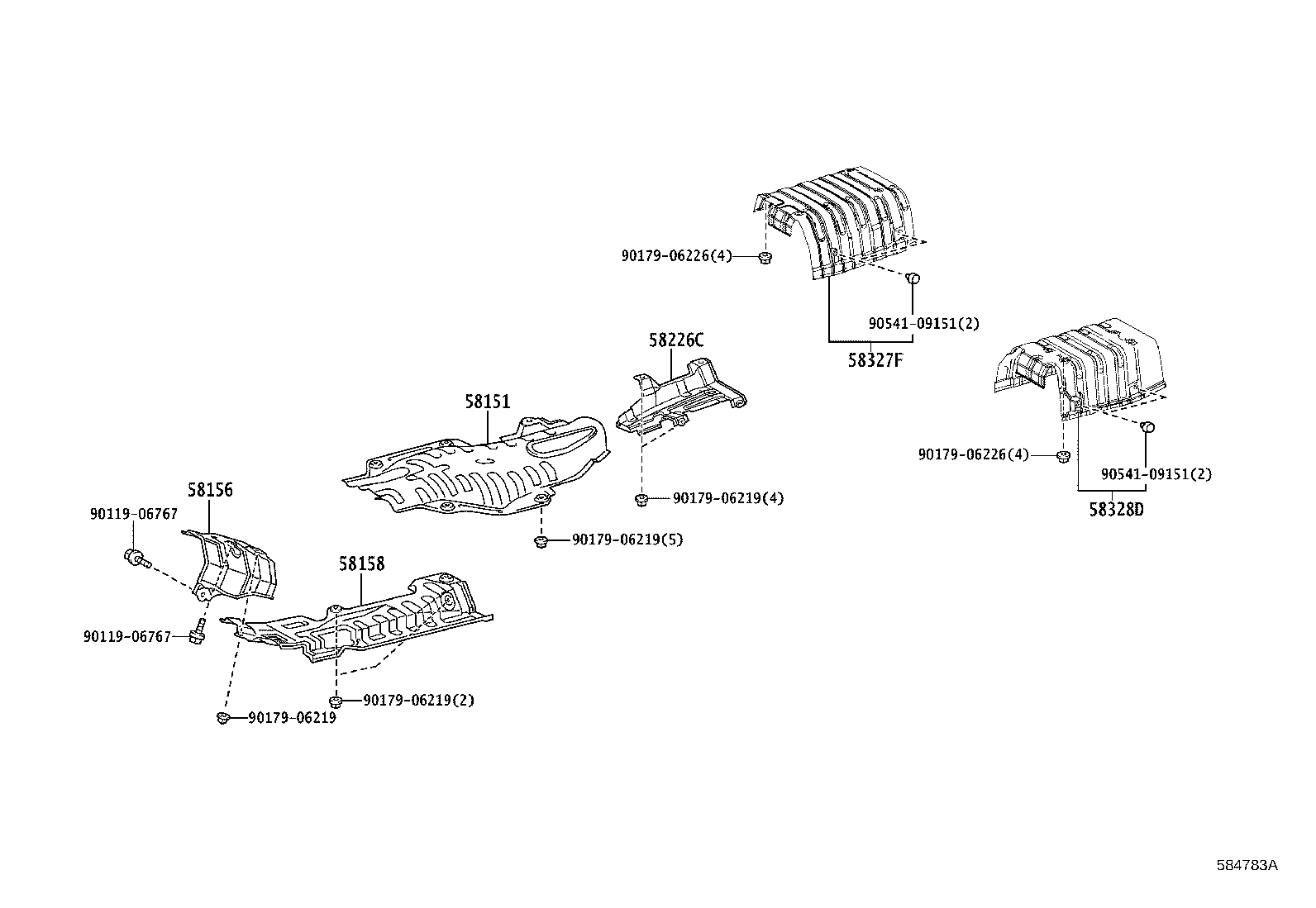

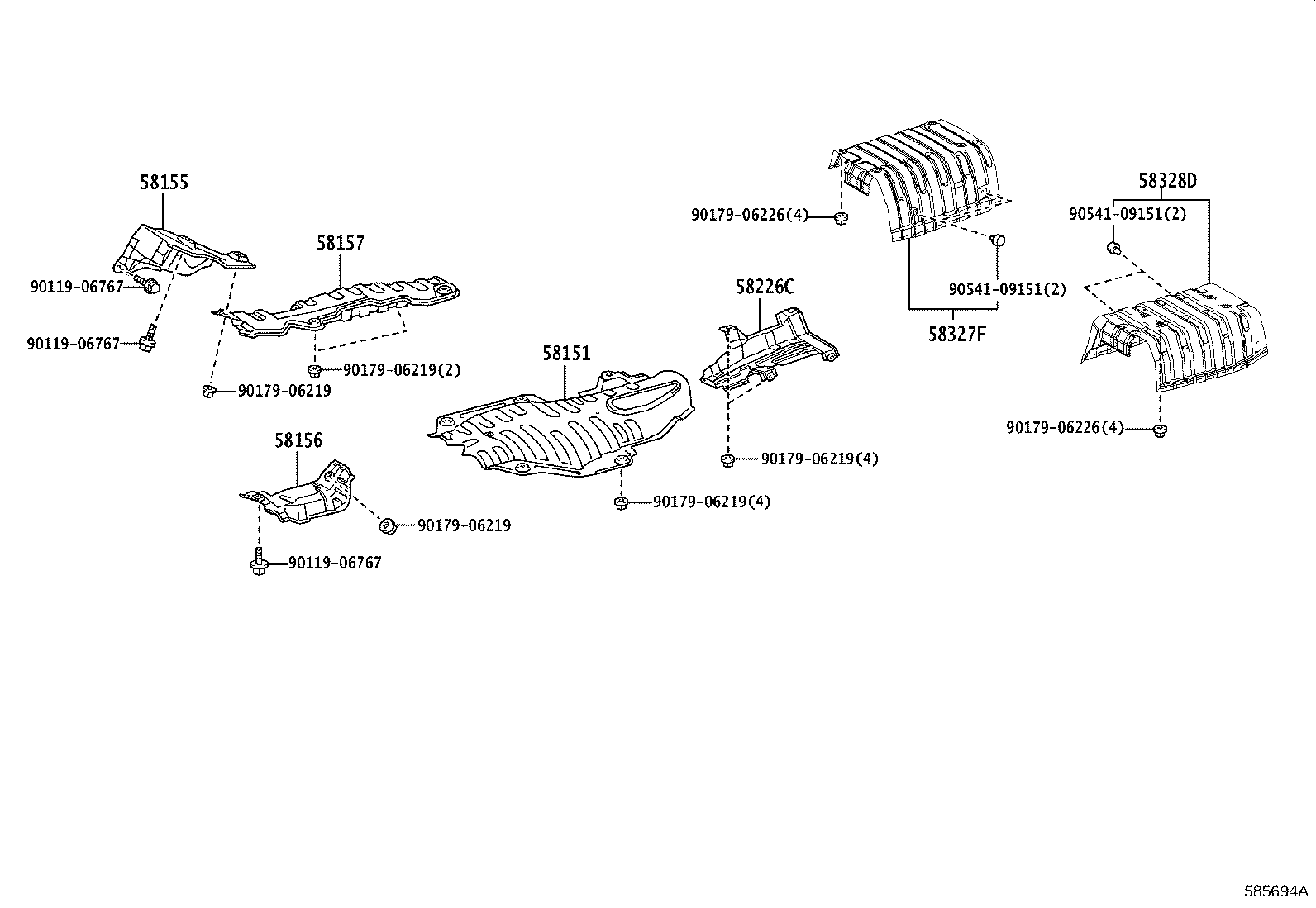

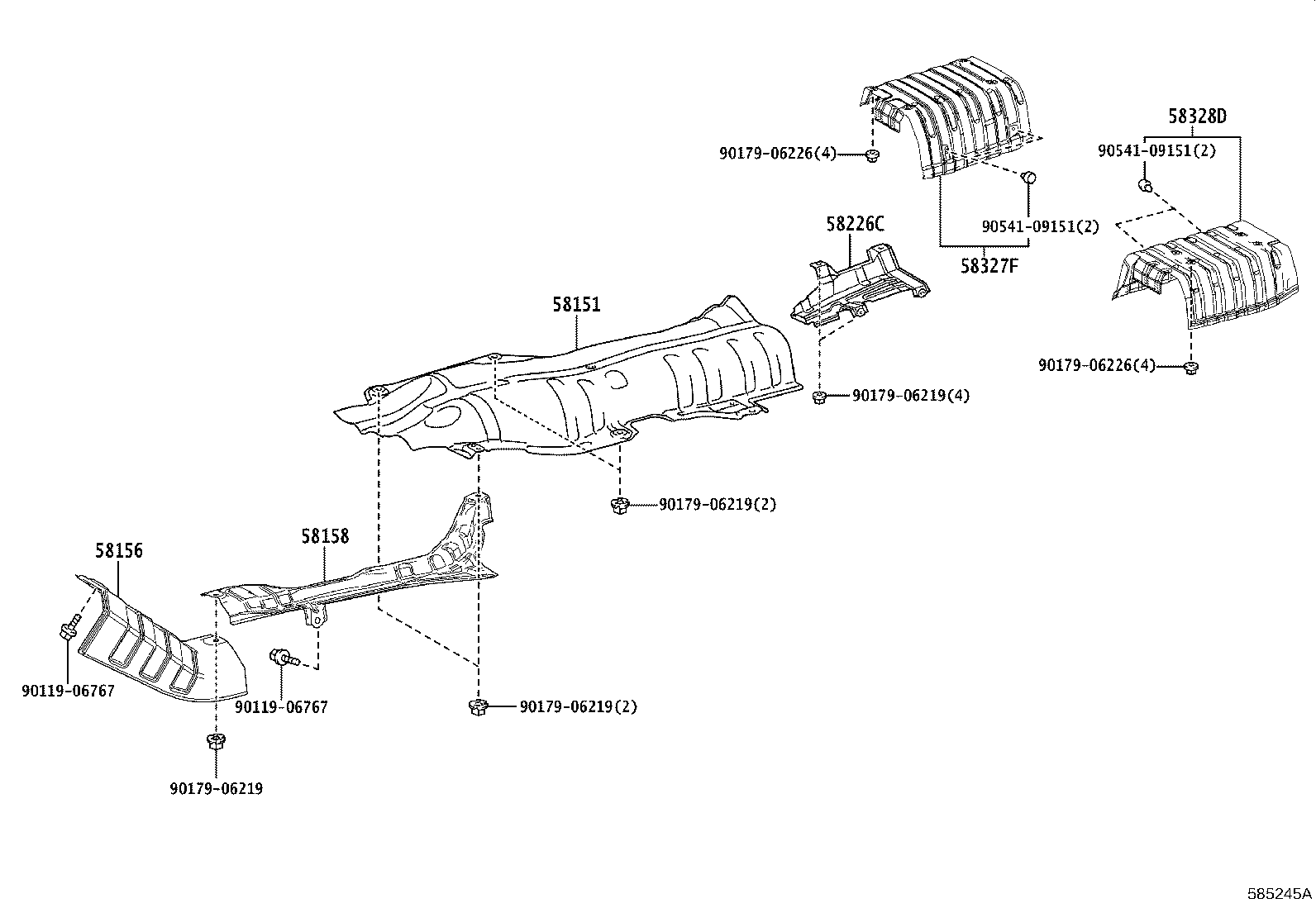

Figure 585693A 585693A 2012-12 → — Figure 585694A 585694A 2012-12 → — Figure 584783A 584783A 2013-01 → — Figure 584975A 584975A 2013-09 → — Figure 585245A 585245A 2014-07 → — Figure 585690A 585690A 2015-09 → —

Part groups

PNCDescription
58151 Insulator, Front Floor Heat, NO.1
58155 Insulator, Front Floor Heat, NO.3
58156 Insulator, Front Floor Heat, NO.4
58157 Insulator, Front Floor Heat, NO.5
58158 Insulator, Front Floor Heat, NO.6
58226C Plate, Air Guide, Outside RH
58327F Insulator, Main Muffler Heat, RH
58328D Insulator, Main Muffler Heat, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
